Manwal tal-Istruzzjonijiet tal-Ispeakers Koassjali Magnadyne F46XB WN 4x6

1. Introduzzjoni

Thank you for choosing Magnadyne F46XB WN 4x6 Coaxial Speakers. These speakers are engineered to deliver powerful and clear audio performance, featuring a silk dome tweeter for crisp highs and a robust design suitable for various applications including cars, RVs, and home audio systems. This manual provides essential information for proper installation, operation, and maintenance to ensure optimal sound quality and longevity of your speakers.

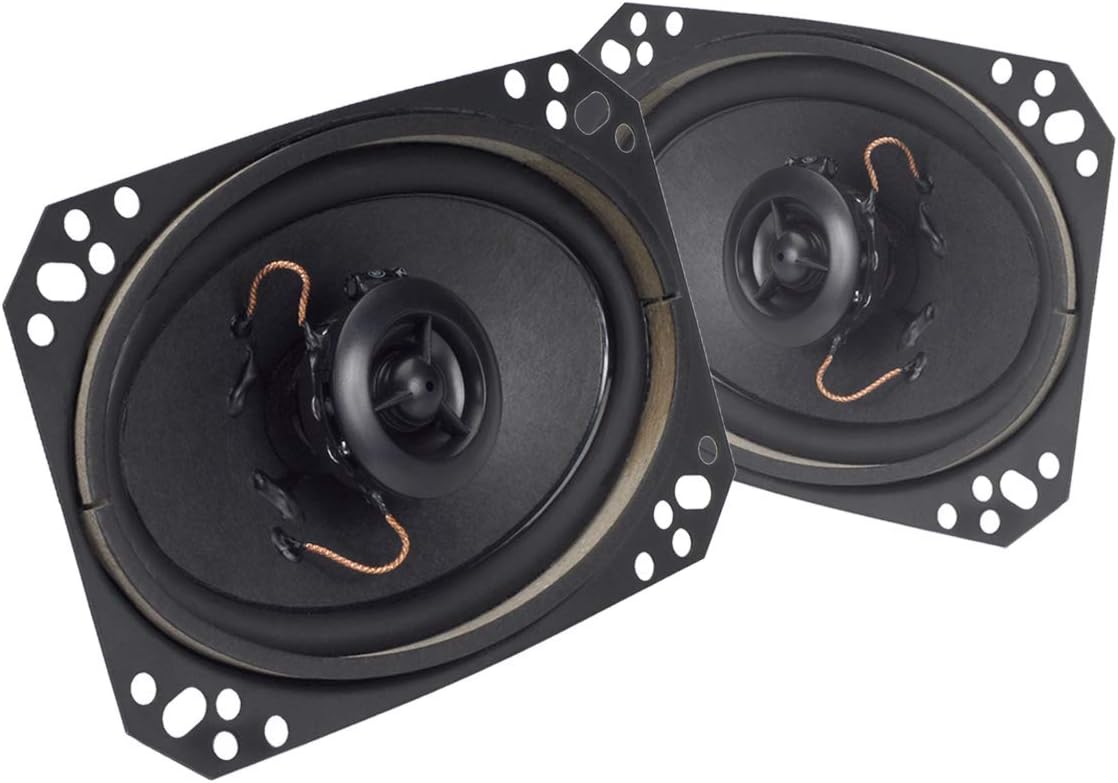

Image 1: Magnadyne F46XB WN 4x6 Coaxial Speakers (Pair)

This image displays the two Magnadyne F46XB WN 4x6 coaxial speakers, showcasing their oval shape, black cone, and central silk dome tweeter. The mounting frame with multiple screw holes is visible around the perimeter.

2. Informazzjoni dwar is-Sigurtà

Please read all safety instructions carefully before installing and operating your speakers. Failure to follow these guidelines may result in injury or damage to the product.

• Installazzjoni Professjonali Rakkomandata: Jekk m'intix ċert dwar xi passi tal-installazzjoni, ikkonsulta professjonist kwalifikat.
• Skonnettjar tal-Enerġija: Always disconnect the vehicle's battery or power source before beginning any electrical work to prevent short circuits or electrical shock.
• Wiring: Ensure all wiring is correctly connected according to polarity (+/-) to avoid damage to the speakers or audio system. Use appropriate gauge wiring.
• Immuntar: Securely mount the speakers to prevent them from becoming loose during vehicle operation, which could cause injury or damage.
• Livelli tal-Volum: Prolonged exposure to high volume levels can cause hearing damage. Operate your audio system at moderate levels.
• Kundizzjonijiet Ambjentali: These speakers are designed for durability but are not waterproof. Avoid direct exposure to water or extreme moisture.

3. Kontenut tal-Pakkett

Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett:

• 2 x Magnadyne F46XB WN 4x6 Coaxial Speakers
• Mounting hardware (screws, clips - typical for speaker installation, assuming included)
• Manwal ta 'Istruzzjoni (dan id-dokument)

4. Setup u Installazzjoni

Installazzjoni xierqa hija kruċjali għal prestazzjoni ottimali. Segwi dawn il-passi bir-reqqa.

4.1 Għodod Meħtieġa

• Tornavit (ras Phillips)
• Strippers/crimpers tal-wajer
• It-trapan (jekk ikunu meħtieġa toqob ġodda għall-immuntar)
• Tejp tal-kejl jew ħakkiem
• Nuċċalijiet tas-sigurtà

4.2 Post tal-Immuntar

These speakers are designed for flush mounting. Choose a location that provides adequate space for the speaker's depth and allows for proper sound dispersion. Ensure the mounting surface is sturdy enough to support the speaker's weight.

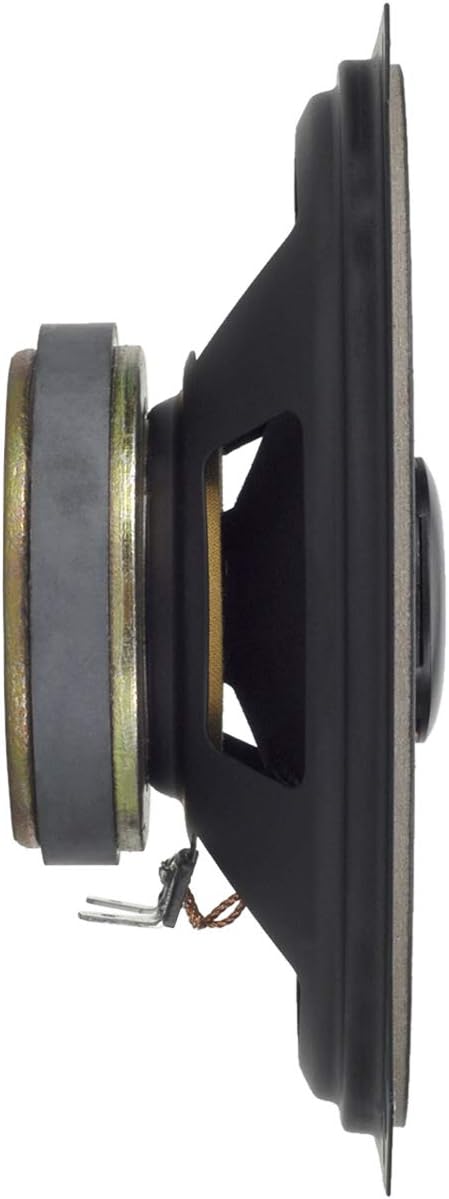

Image 2: Speaker Side Profile

Din l-immaġni turi l-ġenb profile of a Magnadyne 4x6 coaxial speaker, highlighting its mounting depth and the magnet structure at the rear.

4.3 Speaker Dimensions and Cutout

Refer to the diagram below for precise cutout dimensions. It is recommended to use the provided template (if included) or carefully measure and mark the cutout area.

• Dijametru tat-Toqba: 151mm x 102.5mm (5.94" x 4.04")
• Fond tal-Immuntar: 47mm (1.85")

Image 3: Installation Diagram with Cutout Dimensions

This diagram illustrates the recommended cutout dimensions and mounting depth for the Magnadyne F46XB WN speaker, showing both front and side profiles bil-kejl f'millimetri u pulzieri.

4.4 Konnessjonijiet tal-Wiring

The speakers have a 4 Ohm impedance. Connect the speaker wires from your audio source (e.g., car stereo, amplifier) to the speaker terminals. Ensure correct polarity: positive (+) to positive and negative (-) to negative. Incorrect wiring can lead to poor sound quality or damage.

Image 4: Speaker Rear View ma Terminals

This image displays the rear of the Magnadyne 4x6 coaxial speaker, clearly showing the magnet structure and the positive and negative wiring terminals for connection.

1. Carefully cut the mounting hole according to the dimensions.
2. Run speaker wires from your audio source to the mounting location.
3. Connect the positive (+) wire from your audio source to the larger terminal on the speaker, and the negative (-) wire to the smaller terminal.
4. Place the speaker into the cutout and secure it using the provided mounting screws. Do not overtighten.
5. Once both speakers are installed, reconnect the power source and test the audio.

5. Kif Tħaddem l-Ispeakers Tiegħek

Once properly installed, your Magnadyne F46XB WN speakers are ready for use. These speakers are designed to work with 12V stereo systems and can handle up to 35 watts peak power. They offer a wide frequency response of 80Hz-15kHz, ensuring a balanced and detailed audio experience.

• Qawwa Mixgħul: Turn on your audio source (e.g., car stereo, receiver).
• Aġġustament tal-Volum: Start with the volume at a low level and gradually increase it to your desired listening level. Avoid excessively high volumes to prevent distortion and potential speaker damage.
• Settings tal-awdjo: Adjust bass, treble, and balance settings on your audio source to fine-tune the sound to your preference. The silk dome tweeter provides crisp highs and clear vocals.

6. Manutenzjoni u Kura

To ensure the longevity and performance of your Magnadyne speakers, follow these simple maintenance guidelines:

• Tindif: Use a soft, dry cloth to gently wipe the speaker grilles and cones. Do not use harsh chemicals, solvents, or abrasive cleaners.
• Umdità: These speakers are not waterproof. Protect them from direct exposure to rain, splashes, or excessive humidity.
• Temperatura: Avoid exposing the speakers to extreme temperatures, both hot and cold, for extended periods.
• Ħsara Fiżika: Be careful not to puncture or tear the speaker cones or surrounds. The robust rubber edge provides some protection against wear and tear.

7 Issolvi l-problemi

Jekk tiltaqa' ma' problemi bl-ispikers tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:

If the problem persists after trying these solutions, please contact Magnadyne customer support.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For warranty information or technical support regarding your Magnadyne F46XB WN 4x6 Coaxial Speakers, please contact Magnadyne customer service directly. You can find more information and contact details on the official Magnadyne website or through their Amazon Brand Store.

Magnadyne Brand Store: Visit Magnadyne Store on Amazon
