Linkstyle Joycon Joystick Replacement User Manual

Introduzzjoni

This manual provides comprehensive instructions for the installation and use of the Linkstyle 4PCS Joycon Joystick Replacement. Designed for Nintendo Switch and Switch Lite Joy-Con controllers, these 3D analog joysticks offer a high-quality solution for worn-out, broken, or drifting original joysticks, restoring precise control to your gaming experience.

Please read this manual carefully before proceeding with installation to ensure proper function and to avoid damage to your device.

Kontenut tal-Prodott

Ivverifika li l-komponenti kollha huma preżenti fil-pakkett tiegħek:

• 4 x Linkstyle 3D Analog Joystick Replacements
• 4 x "Y" Type Screws (Replacement)
• 2 x "+" Type Screws (Replacement)
• 1 x Storage Box for Thumb Sticks

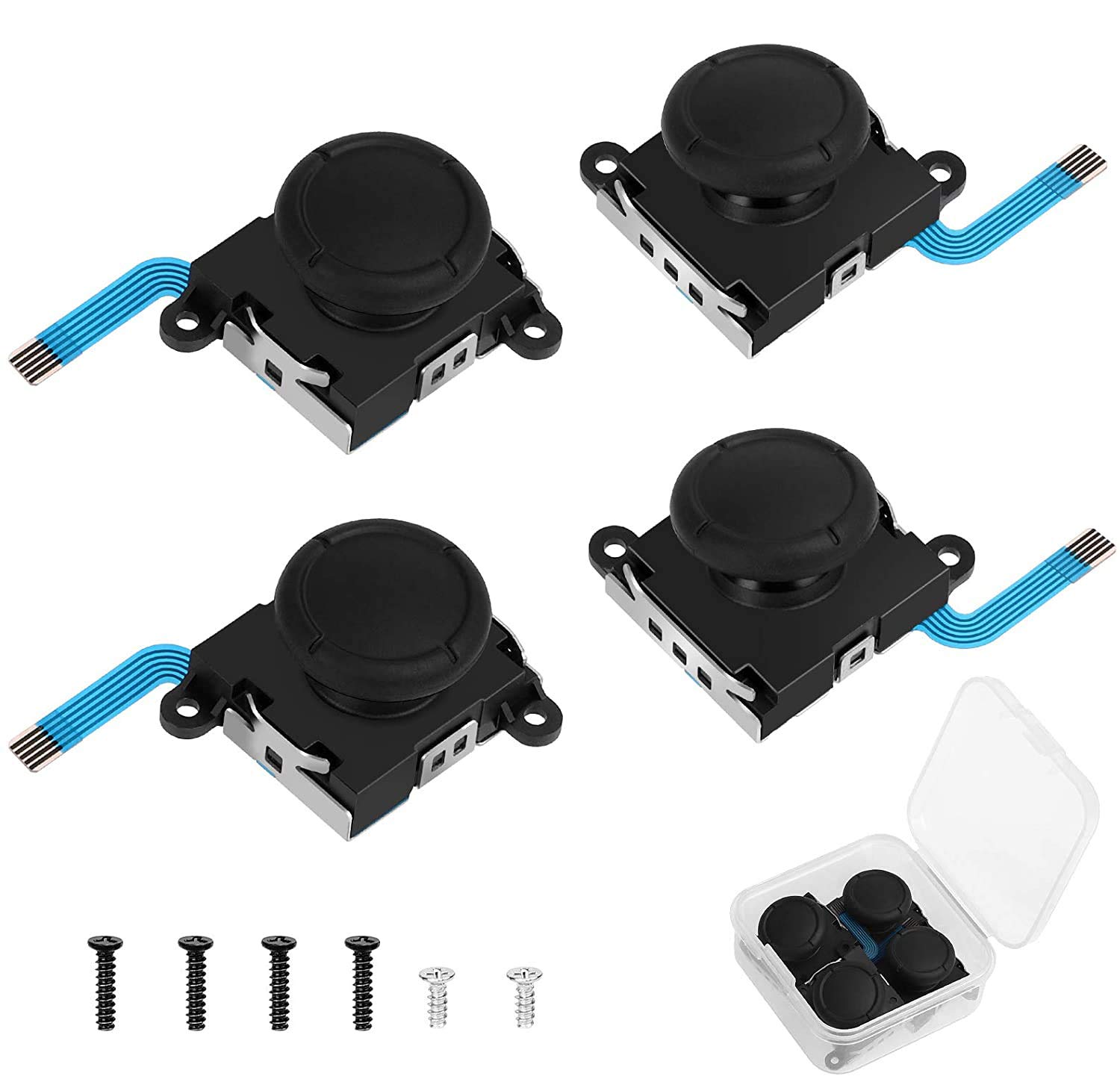

Figure 1: Package Contents. This image displays the four joystick replacements, the included Y-type and cross-type screws, and the storage box, along with approximate dimensions of the joystick.

Figura 2: Aktarview of the Linkstyle Joycon Joystick Replacement kit, showing the four joystick modules, various replacement screws, and a small container for thumb stick caps.

Kompatibilità

The Linkstyle Joycon Joystick Replacements are compatible with the following Nintendo console controllers:

• Nintendo Switch Joy-Con (Left and Right)
• Nintendo Switch Lite
• Nintendo Switch OLED Model Joy-Con (Left and Right)

Figure 3: Compatibility Chart. This image illustrates the compatibility of the joystick replacements with Nintendo Switch, Switch Lite, and Switch OLED consoles.

Karatteristiċi

• Durabilità Mtejba: Upgraded quality and wear-resistant materials for prolonged lifespan.
• Kontroll ta' Preċiżjoni: 3D analog joysticks provide accurate and responsive input.
• Kostruzzjoni ta' Kwalità Għolja: Made of durable plastic and metal components, ensuring stable contact and smooth 360-degree joystick control.
• Dustproof Cap Design: Includes a cap to protect the joystick from dust and scratches, contributing to longevity.
• Kit Tlesti: Comes with necessary replacement screws for convenient installation.

Figure 4: High-Quality Materials. This image highlights the metal construction of the joystick module and demonstrates the 360-degree range of motion for precise control.

Gwida għall-Installazzjoni

Importanti: Joystick replacement requires opening the Joy-Con controller. This process involves small components and delicate connections. If you are not comfortable with electronic repairs, seek professional assistance. Linkstyle is not responsible for any damage incurred during installation.

Għodod Meħtieġa (Mhux Inklużi):

• Tri-wing (Y-type) screwdriver
• Phillips head (+) screwdriver
• Plastic prying tool or spudger
• Pinzetta

Installazzjoni pass pass:

1. Neħħi l-Għatu ta' Wara: Using a tri-wing screwdriver, carefully remove the "Y" screws from the back of the Joy-Con controller. Gently pry open the back cover.
2. Skonnettja l-batterija: Locate and carefully disconnect the battery connector. Remove the battery and any plastic separator.
3. Remove Internal Screws: Using a Phillips head screwdriver, remove the internal "+" screws securing the joystick module.
4. Disconnect Joystick Cables: Carefully use tweezers to disconnect the ribbon cables attached to the joystick. Be gentle to avoid tearing.
5. Remove Old Joystick: Remove any remaining "+" screws specific to the joystick replacement. Carefully lift out the old, drifting, or broken joystick.
6. Install New Joystick: Place the new Linkstyle joystick into position. Reconnect the ribbon cables and secure the joystick with the appropriate "+" screws.
7. Erġa' arma: Reinstall the battery and its separator, reconnect the battery connector, and carefully close the back cover, securing it with the "Y" screws.

Figure 5: Detailed Installation Steps. This image provides a visual walkthrough of the joystick replacement process, from opening the controller to installing the new module.

Operating and Calibration

After installing the new joystick, it is crucial to calibrate it within the Nintendo Switch system settings to ensure accurate performance and eliminate any potential drift.

Passi ta' Kalibrazzjoni:

1. From the Nintendo Switch HOME Menu, select Issettjar tas-Sistema.
2. Scroll down the left-hand menu and select Kontrolluri u Sensers.
3. Agħżel Ikkalibra Stikek tal-Kontroll.
4. Follow the on-screen prompts to calibrate the newly installed joystick. This typically involves tilting the stick in various directions and pressing it down.

Proper calibration will ensure the joystick responds correctly to your movements and prevents issues like unintended character movement or camera drift.

Figure 6: Joystick Calibration. This image illustrates the difference between a drifting joystick (top) and a properly calibrated joystick (bottom) on the Nintendo Switch calibration screen.

Manutenzjoni

To ensure the longevity and optimal performance of your Linkstyle Joycon Joystick Replacements:

• Żomm Nadif: Regularly wipe the joystick and surrounding areas with a soft, dry cloth to prevent dust and debris buildup.
• Evita Forza: Do not apply excessive force or pressure to the joystick during use or storage.
• Aħżen sew: When not in use, store your controllers in a clean, dry environment away from extreme temperatures.
• Dustproof Cap: Ensure the dustproof cap is properly seated to protect the internal mechanism.

Issolvi l-problemi

If you encounter issues after installing the joystick replacement, consider the following:

Kwistjonijiet Komuni u Soluzzjonijiet:

Figure 7: Applicable Situations. This image illustrates scenarios where joystick replacement is necessary, including joystick drift, slow response, and physical damage.

Speċifikazzjonijiet

Garanzija u Appoġġ

For warranty information or technical support regarding your Linkstyle Joycon Joystick Replacement, please refer to the seller's policy on the platform where the product was purchased or contact Linkstyle customer service directly.

You may find additional support resources and contact information on the official Linkstyle store page: Linkstyle Store on Amazon.
