FITUEYES Floor TV Stand Instruction Manual

1. Introduzzjoni

Thank you for choosing the FITUEYES Floor TV Stand, Model HU-XI-201. This manual provides detailed instructions for the safe and correct assembly, operation, and maintenance of your new TV stand. This stand is designed to accommodate most 32 to 75 inch flat panel or curved screen televisions, offering features such as height adjustment, swivel, and tilt for optimal viewing.

Please read this manual thoroughly before installation and retain it for future reference. Ensure all components are present and undamaged before beginning assembly.

2. Informazzjoni dwar is-Sigurtà

• Aqra l-Istruzzjonijiet Kollha: Follow all assembly and safety instructions carefully. Incorrect assembly can lead to product damage or personal injury.
• Kapaċità tal-piż: Do not exceed the maximum weight capacity of 88 lbs (40 kg) for the TV mount.
• Kompatibbiltà VESA: Ensure your TV's VESA mounting pattern falls within the specified range of 200x200mm to 600x400mm.
• Wiċċ Stabbli: Dejjem poġġi l-istand tat-TV fuq wiċċ ċatt, stabbli u livellat.
• Tfal u Pets: Żomm it-tfal u l-annimali domestiċi 'l bogħod miż-żona tal-assemblaġġ. Partijiet żgħar jistgħu jkunu perikolużi biex wieħed jifga.
• Għodod: Uża biss l-għodda pprovduti jew rakkomandati f'dan il-manwal.
• Iċċekkja l-Konnessjonijiet: Iċċekkja perjodikament il-viti u l-konnessjonijiet kollha biex tiżgura li jibqgħu ssikkati u siguri.
• Evita li tissikka żżejjed: Do not over-tighten screws, as this may cause damage.

3. Kontenut tal-Pakkett

Qabel l-assemblaġġ, ivverifika li l-partijiet kollha elenkati hawn taħt huma preżenti u mhux imħassra. Jekk xi partijiet huma nieqsa jew imħassra, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

Image: All components of the TV stand, including the base, main column, TV bracket, shelves, and various hardware pieces, are laid out for assembly.

• Pjanċa bażi
• Kolonna ta' Appoġġ Prinċipali
• TV Mounting Brackets (Left & Right)
• Adjustable Shelves (x2)
• Hardware Kit (screws, washers, spacers, Allen wrench, open-end wrench)
• Klipps għall-Immaniġġjar tal-Kejbils

4. Istruzzjonijiet ta' Twaqqif u Assemblaġġ

Follow these steps carefully to assemble your FITUEYES Floor TV Stand.

4.1 Pre-Assembly Check

• Ivverifika l-Kompatibbiltà tat-TV: Check your TV's VESA mounting pattern and weight. This stand supports VESA patterns from 200x200mm to 600x400mm and TVs up to 88 lbs (40 kg).

Image: A technical diagram illustrating the VESA compatibility range (200x200mm to 600x400mm), maximum TV weight capacity (88 lbs/40 kgs), and the adjustable height range of the stand.

4.2 Passi tal-Assemblea

1. Arma l-Bażi: Attach the main support column to the base plate using the provided screws and tools. Ensure it is securely fastened.
2. Attach TV Mounting Brackets to TV: Carefully place your TV face down on a soft, clean surface. Attach the TV mounting brackets to the back of your TV using the appropriate screws, washers, and spacers from the hardware kit. Ensure the brackets are level and securely tightened.
3. Immuntar tat-TV fuq Stand: With assistance, carefully lift the TV and hook the attached brackets onto the main support column's mounting plate. Secure the TV to the stand using the safety screws or locking mechanisms provided.
4. Installa l-ixkafef: Position the adjustable shelves at your desired height on the main support column. Secure them using the designated fasteners.
5. Ġestjoni tal-Kejbil: Utilize the integrated cable management clips or channels on the back of the main column to route and conceal your TV and device cables for a tidy appearance.

Immaġni: Dettaljata view of the TV stand, showcasing its sturdy iron base, the integrated cable routing system along the back of the column, and the mechanism for tilt adjustment.

5. Istruzzjonijiet Operattivi

5.1 Aġġustament tal-Għoli

The TV mount allows for height adjustment. To change the TV height, loosen the securing bolts on the main column, carefully adjust the TV to the desired vertical position, and then re-tighten the bolts securely. Always ensure the TV is level after adjustment.

Image: An illustration demonstrating how the TV mount can be adjusted vertically along the main column to achieve different viewing għoli.

5.2 Funzjoni ta' Dawwar

The TV mount features a ±30° swivel capability. Gently push the TV to the left or right to adjust the viewing angle. This allows you to optimize your view from various positions in the room without moving the entire stand.

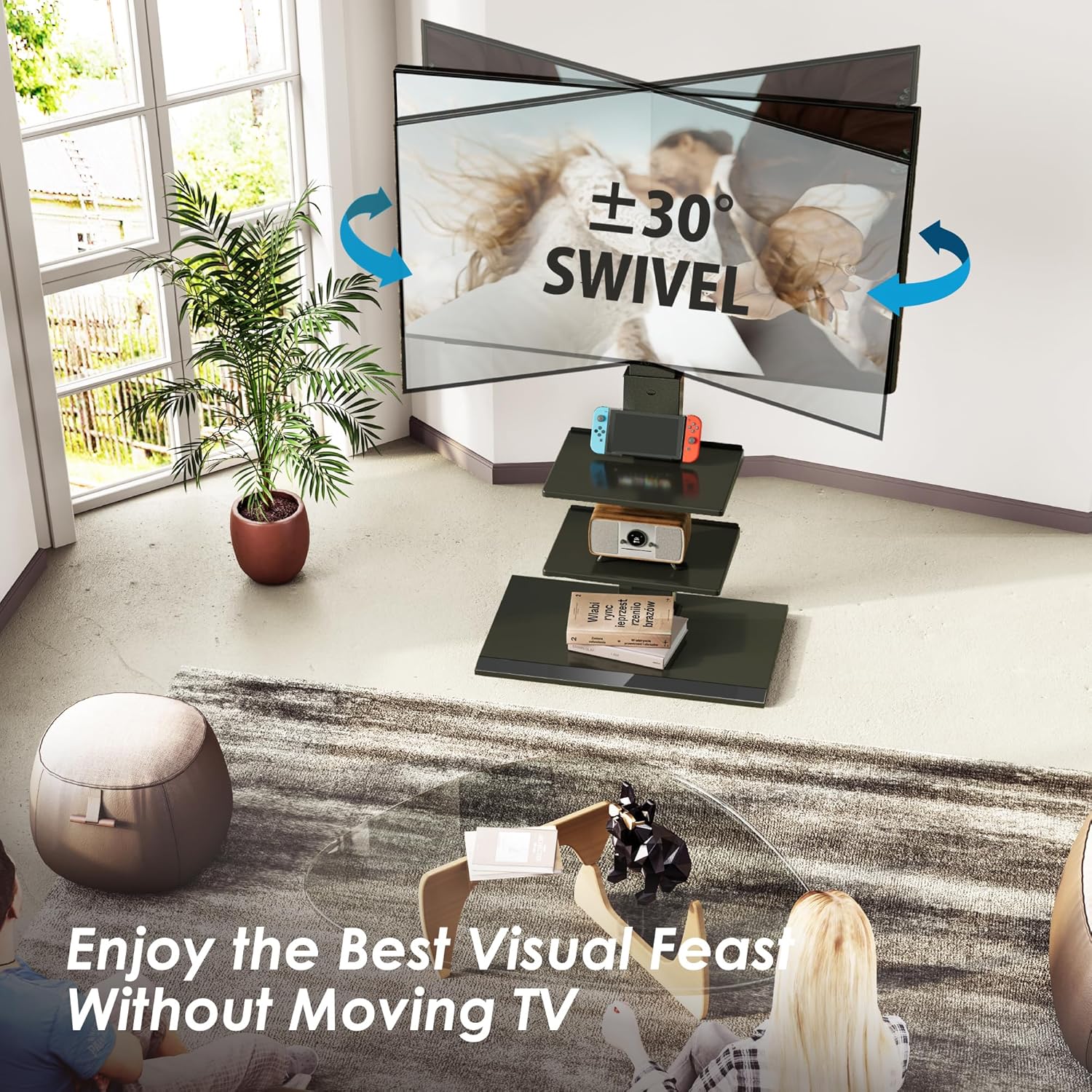

Image: A visual representation of the TV stand's ±30° swivel function, showing how the TV can be angled left or right for flexible viewing.

5.3 Aġġustament tal-Mejjel

The TV mount can be tilted from +5° to -15°. To adjust the tilt, loosen the tilt adjustment knobs or screws on the TV brackets, set the TV to your preferred angle, and then re-tighten them to secure the position.

5.4 Ġestjoni tal-Cable

Use the cable management system located on the rear of the main column to organize and hide power cords and AV cables. This helps maintain a clean and clutter-free appearance.

6. Manutenzjoni

• Tindif: Wipe the stand with a soft, dry cloth. Do not use abrasive cleaners or harsh chemicals, as they may damage the finish.
• Kontrolli regolari: Periodically inspect all connections and fasteners to ensure they are tight and secure. Re-tighten if necessary.
• Evita tagħbija żejda: Do not place items on the shelves or TV that exceed their weight limits.

7 Issolvi l-problemi

• TV Mhux Livell: If the TV appears uneven after mounting, check that the mounting brackets are installed correctly and that all height adjustment bolts are tightened evenly.
• Il-Waqfa Tħossha Instabbli: Ensure the base is on a flat, level surface. Verify all screws connecting the column to the base and the TV mount to the column are fully tightened. Do not exceed the maximum weight capacity.
• Difficulty Adjusting Swivel/Tilt: Check for any obstructions. Ensure adjustment knobs or screws are sufficiently loosened before attempting to move the TV, and re-tighten them afterward.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

The FITUEYES Floor TV Stand Model HU-XI-201 comes with an up to 10-year warranty, reflecting our commitment to quality and durability. For warranty claims, technical assistance, or any questions regarding your product, please contact FITUEYES customer support.

Please refer to the contact information provided on the product packaging or the official FITUEYES webis-sit għad-dettalji ta' appoġġ l-aktar aġġornati.
