1. Informazzjoni Importanti dwar is-Sigurtà
Jekk jogħġbok aqra l-istruzzjonijiet kollha bir-reqqa qabel ma tuża l-apparat u żommhom għal referenza futura. Jekk ma ssegwix dawn l-istruzzjonijiet, dan jista' jirriżulta f'xokk elettriku, nar, jew korriment serju.
- Always unplug the air purifier before moving it, opening the grille, changing filters, or whenever it is not in use.
- Do not operate the air purifier if the cord or plug is damaged, or if the connection to the wall outlet is loose.
- Żomm il-korda tad-dawl 'il bogħod minn uċuħ imsaħħna.
- Tużax il-purifikatur tal-arja f'imxarrab jew damp ambjenti, bħal kmamar tal-banju.
- Tdaħħalx subgħajk jew oġġetti barranin f'xi fetħiet.
- Dan l-apparat mhuwiex maħsub għall-użu minn persuni (inklużi tfal) b’kapaċitajiet fiżiċi, sensorji jew mentali mnaqqsa, jew nuqqas ta’ esperjenza u għarfien, sakemm ma jkunux ingħataw superviżjoni jew istruzzjoni dwar l-użu tal-apparat minn persuna responsabbli għas-sigurtà tagħhom.
- It-tfal għandhom ikunu sorveljati biex jiżguraw li ma jilagħbux bl-apparat.
2. Prodott Aktarview
The CUCKOO True HEPA Air Purifier (CAC-I0510FW) is designed to improve indoor air quality by capturing airborne particles and odors. It features a multi-stage filtration system and smart sensors for optimal performance.
2.1 Komponenti
The air purifier consists of the main unit, a multi-layer filter, and a power cord. The control panel is located on the top surface of the unit.
2.2 Karatteristiċi ewlenin
- Smart Dust Sensor: Detects the pollution status of the air indoors in real-time and adjusts fan speed accordingly.
- Żona ta' Kopertura: Ideal for small to mid-sized spaces, covering up to 456 square feet.
- 3 Color LED Display: Indicates the cleanliness of indoor air through the dust sensor. Blue for Excellent, Yellow for Moderate, Red for Poor.
- Modalità Sleep: Designed to slow down the fan speed and dim the lights for a calm and quiet ambiance, ensuring a good night's rest.
- 3-Stage Sistema ta' Filtrazzjoni: Includes a Pre-Filter, True HEPA H13 filter, and Activated Carbon filter for comprehensive air purification.
The advanced 3-in-1 filtration system works together to capture airborne particles such as pet dander, smoke, odors, dust, and gases.
This air purifier is designed for effective air purification in rooms up to 456 square feet, providing one air change per hour.
3. Setup u Installazzjoni
3.1 Disimballaġġ
- Neħħi l-purifikatur tal-arja mill-imballaġġ tiegħu bir-reqqa.
- Remove all packaging materials, including any protective film or tape.
- Ensure all components are present: main unit, 3-in-1 filter, and power cord.
3.2 Installazzjoni tal-Filtru
The air purifier comes with one True HEPA H13 filter pre-installed, but it may be wrapped in plastic for shipping. Please remove the plastic before first use.
- Dawwar il-purifikatur tal-arja ta’ taħt fuq.
- Dawwar l-għatu tal-bażi kontra l-arloġġ biex tiftaħ u tneħħih.
- Carefully pull out the filter assembly.
- Neħħi kwalunkwe ippakkjar tal-plastik mill-filtru.
- Daħħal il-filtru lura fl-unità, waqt li tiżgura li jkun imqiegħed sew.
- Erġa' dawwar l-għatu tal-bażi u dawwar lejn l-arloġġ biex tissakkar sew.
3.3 Tqegħid
Place the air purifier on a firm, level surface. Ensure there is at least 6 inches (15 cm) of clear space around all sides of the unit for optimal airflow.
Consider the dimensions when choosing a suitable location for your air purifier.
4. Istruzzjonijiet Operattivi
4.1 Power On/Off
Plug the power cord into a standard electrical outlet. Press the Power button on the control panel to turn the unit on or off.
4.2 Kontroll tal-Veloċità tal-Fann
The air purifier offers multiple fan speed settings. Press the Fan Speed button to cycle through available speeds (e.g., Low, Medium, High, Auto).
In Auto mode, the smart dust sensor will automatically adjust the fan speed based on the detected air quality.

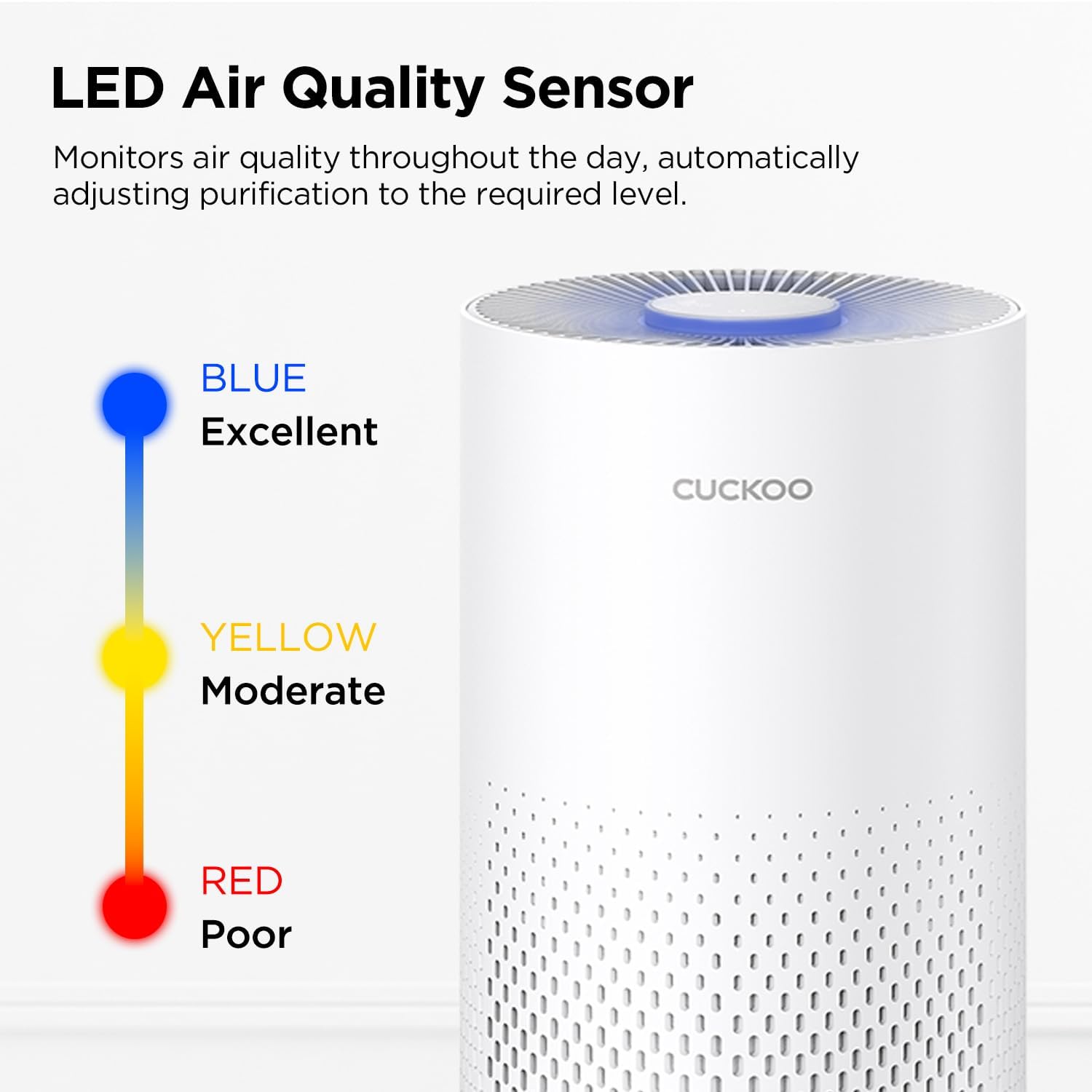

4.3 Indikatur tal-Kwalità tal-Arja
The LED light on the top of the unit indicates the current air quality:
- Blu: Kwalità tal-Arja Eċċellenti
- Isfar: Kwalità Moderata tal-Arja
- Aħmar: Kwalità Fqira tal-Arja
4.4 Modalità Sleep
Activate Sleep Mode for quiet operation during rest periods. In this mode, the fan speed will be reduced, and the display lights will dim to create a peaceful environment.
4.5 Funzjoni Timer
Set the air purifier to operate for a specific duration using the Timer button. Available timer settings typically include 2, 4, or 8 hours. The unit will automatically turn off once the set time has elapsed.
5. Manutenzjoni
5.1 Sostituzzjoni tal-Filtru
The air purifier is equipped with a filter replacement indicator that will alert you when it's time to change the filter. This is typically indicated by a specific light on the control panel.
To replace the filter, follow the steps outlined in Section 3.2 "Filter Installation", ensuring the unit is unplugged before proceeding. Dispose of the old filter responsibly.
Note: Filter lifespan varies depending on air quality and usage. Replace the filter when the indicator light illuminates or when you notice a decrease in performance or an increase in odors.
5.2 Tindif tal-Unità
- Dejjem aqla l-purifikatur tal-arja qabel it-tindif.
- Imsaħ il-barra tal-unità b'artab, damp drapp. Tużax tindif jew solventi li joborxu.
- The pre-filter can be gently vacuumed to remove larger dust particles between replacements of the main filter. Do not wash the HEPA or Activated Carbon filters.
- Kun żgur li l-unità tkun niexfa għalkollox qabel ma terġa' tgħaqqadha.
6 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-unità ma tixgħel. | Mhux imdaħħla fil-plakka; Is-sokket tal-elettriku mhux qed jaħdem; Il-buttuna tal-enerġija mhux ippressata. | Ensure power cord is securely plugged into a working outlet. Press the Power button. |
| Reduced airflow or purification. | Filter is dirty or clogged; Air inlets/outlets blocked. | Check and replace the filter if necessary. Ensure no obstructions around the air inlets and outlets. |
| Storbju mhux tas-soltu. | Filter not installed correctly; Foreign object inside unit. | Ensure filter is properly seated. Unplug and check for any foreign objects. |
| Air quality indicator always red/yellow. | High pollution level; Sensor dirty. | Allow time for purification. Clean the dust sensor (refer to maintenance section if applicable). |
Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti ta' CUCKOO.
7. Speċifikazzjonijiet
| Speċifikazzjoni | Valur |
|---|---|
| Numru tal-Mudell | CAC-I0510FW Air Purifier 3-in-1 |
| Dimensjonijiet tal-Prodott | 7.78"D x 7.78"W x 15.3"H |
| Piż | 4.2 Liri |
| Kopertura taż-Żona tal-Art | Sa 456 pied kwadru |
| Livell ta' Storbju | 41 dB (decibels) |
| Tip ta 'filtru | 3-Stage (Pre-Filter, True HEPA H13, Activated Carbon) |
| Manifattur | Cuckoo |
8. Garanzija u Appoġġ
For warranty information and customer support, please refer to the warranty card included with your product or visit the official CUCKOO websit. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.
For further assistance, you may contact CUCKOO customer service through their official channels. Always provide your product model number (CAC-I0510FW) when seeking support.
You can visit the CUCKOO Store for more information: Ħanut Uffiċjali tal-CUCKOO
