1. Introduzzjoni
Thank you for choosing the HiLook HIKVISION 204U-K1 4-Channel 5MP HD DVR. This manual provides essential information for the proper installation, operation, and maintenance of your digital video recorder. Please read this manual thoroughly before using the product and retain it for future reference.
2. Istruzzjonijiet Importanti dwar is-Sigurtà
- Provvista tal-Enerġija: Use only the power adapter specified for this device. Ensure the power voltage is stable and meets the requirements.
- Ventilazzjoni: Timblokkax il-fetħiet tal-ventilazzjoni. Installa skont l-istruzzjonijiet tal-manifattur.
- Ilma u Umdità: Do not expose the device to rain or moisture. Do not place objects filled with liquids, such as vases, on the apparatus.
- Temperatura: Ħaddem l-apparat fil-medda ta' temperatura speċifikata. Evita ambjenti estremament sħan jew kesħin.
- Tindif: Naddaf biss b'ċarruta niexfa. Tużax tindif likwidu jew tindif aerosol.
- Servizzi: Tippruvax isservi dan il-prodott int stess. Irreferi l-manutenzjoni kollha lil persunal tas-servizz kwalifikat.
- Hard Drive: Handle the hard drive with care. Improper installation or removal can cause data loss or damage.
3. Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti u f'kundizzjoni tajba meta tiftaħhom mill-pakkett. Jekk xi oġġetti huma neqsin jew bil-ħsara, ikkuntattja lill-bejjiegħ tiegħek.
- HiLook HIKVISION 204U-K1 DVR Unit
- Adapter tal-Enerġija
- Ġurdien USB
- SATA Data Cable (for HDD connection)
- SATA Power Cable (for HDD connection)
- Gwida Quick Start
Figure 3.1: The HiLook HIKVISION 204U-K1 DVR unit, shown with an optional hard drive and included accessories such as a mouse and cables.
4. Setup Inizjali
4.1. Konnessjoni tad-DVR
Follow these steps to connect your DVR to cameras, a monitor, and the network.
- Installa l-Hard Drive (Mhux obbligatorju): Jekk id-DVR tiegħek ma ġiex b'hard drive installat minn qabel, iftaħ id-DVR casing, connect the SATA data and power cables to the HDD, and secure the HDD inside the DVR.
- Qabbad il-Kameras: Connect your surveillance cameras to the BNC video input ports on the rear panel of the DVR. This model supports 4 channels.
- Qabbad il-Monitor: Qabbad monitor mal-port tal-ħruġ HDMI jew VGA fuq il-pannell ta' wara.
- Qabbad in-Netwerk: Connect an Ethernet cable from the DVR's LAN port to your router or network switch for remote access and network features.
- Qabbad il-Maws USB: Plug the included USB mouse into one of the USB ports for navigation.
- Qabbad l-Enerġija: Connect the power adapter to the DVR's power input and then plug it into a power outlet.
Figure 4.1: Rear panel of the DVR, illustrating the various input and output ports including video in, audio in/out, VGA, HDMI, USB, network interface, and power supply.
4.2. Tixgħel
After all connections are made, the DVR will power on automatically. The system will boot up, and you should see the HiLook logo on your connected monitor. Follow the on-screen prompts for initial setup, including setting up an administrator password and configuring network settings.
5. Gwida tal-Operazzjoni
5.1. Interface tal-Utent Overview
The DVR's graphical user interface (GUI) can be navigated using the USB mouse. Right-click to access the main menu, and left-click to select options. The live view displays feeds from connected cameras.
5.2. Reġistrazzjoni u Daqq
- Reġistrazzjoni manwali: Mill-live view, click the record icon to start or stop manual recording for a specific channel.
- Reġistrazzjoni Skedata: Aċċessa l-menù prinċipali, naviga lejn Rekord > Skeda to set up continuous or motion-triggered recording schedules for each camera.
- Daqq: Mill-menu prinċipali, agħżel Daqq. Choose the date, time, and camera channel to review irreġistrat footage.
5.3. Sejbien tal-Mozzjoni u Twissijiet
The DVR supports smart motion detection and can send alerts via email or push notifications to a mobile application.
- Ikkonfigura s-Sejbien tal-Mozzjoni: Mur fuq Main Menu > Alarm > Motion Detection. Select the camera channel, enable motion detection, and define the detection area and sensitivity.
- Set Up Email Alerts: In Main Menu > Network > Email, configure your SMTP server settings and recipient email addresses. Enable email linkage for motion detection events.
- Mobile App Notifications: Download the official HiLook mobile application. Add your DVR to the app and enable push notifications for alarm events.
Figure 5.1: A smartphone screen showing a real-time email notification triggered by smart motion detection.
Figure 5.2: A smartphone displaying multiple smart motion-triggered alerts, indicating movement detected in specific areas monitored by surveillance cameras.
6. Manutenzjoni
- Tindif: Regularly clean the exterior of the DVR with a soft, dry cloth. Ensure ventilation openings are free from dust.
- Aġġornamenti tal-Firmware: Iċċekkja l-HiLook uffiċjali website for the latest firmware updates. Updating firmware can improve performance and add new features. Follow the provided instructions carefully.
- Ġestjoni tal-Hard Drive: Periodically check the health of your hard drive through the DVR's system settings. Ensure sufficient storage space is available for recordings.
- Sigurtà tal-Password: Regularly change your administrator password to maintain system security.
7 Issolvi l-problemi
If you encounter issues with your DVR, refer to the table below for common problems and solutions.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| L-ebda output tal-vidjo fuq il-monitor | Loose HDMI/VGA cable; Incorrect monitor input; DVR not powered on. | Check cable connections; Select correct input on monitor; Verify power supply. |
| Ebda immaġni tal-kamera | Camera not powered; Loose BNC cable; Faulty camera. | Ensure camera power; Check BNC connections; Test camera with another input if possible. |
| Ma nistax naċċessa d-DVR mill-bogħod | Network cable disconnected; Incorrect network settings; Firewall blocking access. | Verify Ethernet connection; Check IP address, gateway, DNS settings; Configure router/firewall. |
| L-ebda reġistrazzjoni | Hard drive not installed/initialized; Recording schedule not set; HDD full. | Install/initialize HDD; Configure recording schedule; Check HDD status and capacity. |
| Is-sejbien tal-moviment mhux qed jaħdem | Motion detection disabled; Sensitivity too low; Detection area not set. | Enable motion detection; Adjust sensitivity; Define detection area. |
8. Speċifikazzjonijiet Tekniċi
Below are the key technical specifications for the HiLook HIKVISION 204U-K1 DVR.
| Karatteristika | Speċifikazzjoni |
|---|---|
| Mudell | 204U-K1 |
| Input tal-Vidjo | 4-channel BNC interface (supports HDTVI/AHD/CVI/CVBS/IP) |
| Kompressjoni tal-vidjo | H.265 Pro+/H.265 Pro/H.265/H.264 |
| Output tal-vidjo | 1 HDMI, 1 VGA (simultaneous output) |
| Riżoluzzjoni tal-Output HDMI | Up to 4K (3840 × 2160) for 204U-K1 |
| Input/Output Awdjo | 1-ch RCA (2-way audio) / 1-ch RCA |
| Hard Disk Drive (HDD) | 1 SATA interface, up to 10 TB capacity |
| Interfaċċa tan-Netwerk | 1 RJ45 10M/100M self-adaptive Ethernet interface |
| Interface USB | 2 × USB 2.0 |
| Provvista tal-Enerġija | 12 VDC |
| Dimensjonijiet (W × D × H) | Approx. 200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch) |
| Piż (mingħajr HDD) | Appross. 1 kg (2.2 lb) |

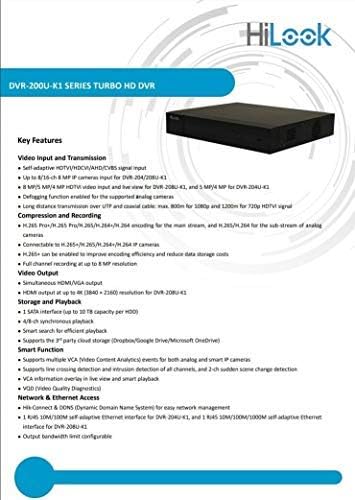

Figure 8.1: A detailed list of key features for the DVR-200U-K1 series, including video input/transmission, compression, video output, storage, smart functions, and network access.
9. Garanzija u Appoġġ għall-Klijent
Your HiLook HIKVISION 204U-K1 DVR comes with a limited warranty. Please refer to the warranty card included in your package or visit the official HiLook website for detailed warranty terms and conditions. For technical assistance, troubleshooting, or service inquiries, please contact your authorized HiLook dealer or customer support.
Riżorsi onlajn: For additional support, firmware downloads, and FAQs, please visit the official HiLook support websit.
