Manwal tal-Utent tal-Pedala tar-Reverb Stereo Doppju Electro-Harmonix Oceans 12

Introduzzjoni

The Electro-Harmonix Oceans 12 is a dual stereo reverb pedal designed to provide a wide array of reverb effects and advanced functionality. It features two independent stereo reverb engines, offering extensive control over reverb parameters, signal routing, and preset management. This manual provides detailed instructions for setup, operation, and maintenance of your Oceans 12 pedal.

Figura 1: Quddiem view of the Electro-Harmonix Oceans 12 Dual Stereo Reverb Pedal, showcasing its controls and footswitches.

Setup

Rekwiżiti ta' Enerġija

• The Oceans 12 requires a 9V DC power supply.
• Ensure the power supply is center-negative and provides sufficient current for the pedal's operation.
• The pedal is designed for corded electric power and does not operate on 9V batteries.

Konnessjonijiet

The Oceans 12 offers flexible input/output options for various setups, including stereo and mono configurations with send/return capabilities.

• IN (L/MONO): Main audio input. Use this for mono input.
• R/RETURN: Right channel input for stereo operation, or return for an effects loop.
• OUT (L/MONO): Main audio output. Use this for mono output.
• R/SEND: Right channel output for stereo operation, or send for an effects loop.
• EXP/FSW: Input for an external expression pedal or 3-button footswitch for expanded control.

Figura 2: Ġenb view of the Oceans 12 pedal, illustrating the various input and output jacks for audio and external control.

Figure 3: The Oceans 12 pedal integrated into a guitar setup, demonstrating its stereo input/output or mono send/return capabilities with pre and post reverb options.

Kontrolli u Funzjonijiet

The Oceans 12 features a comprehensive set of controls to shape your reverb sound. Understanding each control is key to unlocking the pedal's full potential.

Pumi tal-Kontroll

• FX LVL / INF LVL: Controls the wet/dry mix of the reverb effect. In some modes, it also controls infinite attenuation.
• PREDELAY / SEND LVL: Adjusts the pre-delay time before the reverb begins. Can also control send level for effects loop.
• TIME / LO-FI: Sets the decay time of the reverb. In certain modes, it functions as a Lo-fi control.
• TONE / TIDE: Adjusts the tone of the reverb. Also functions as the Tide Control for stereo image alteration.
• MODALITÀ: Selects between different modes for the currently chosen reverb type.
• SELECT (A/B): Toggles between Reverb Engine A and Reverb Engine B.
• IPPRESETAT: Rotary switch to select one of the 24 available presets.
• REVERB TYPE: Rotary switch to select one of the 12 distinct reverb algorithms.

Swiċċijiet tas-saqajn

• REVERB A: Activates/deactivates Reverb Engine A. Can also be used for Tap Tempo.
• REVERB B: Activates/deactivates Reverb Engine B.

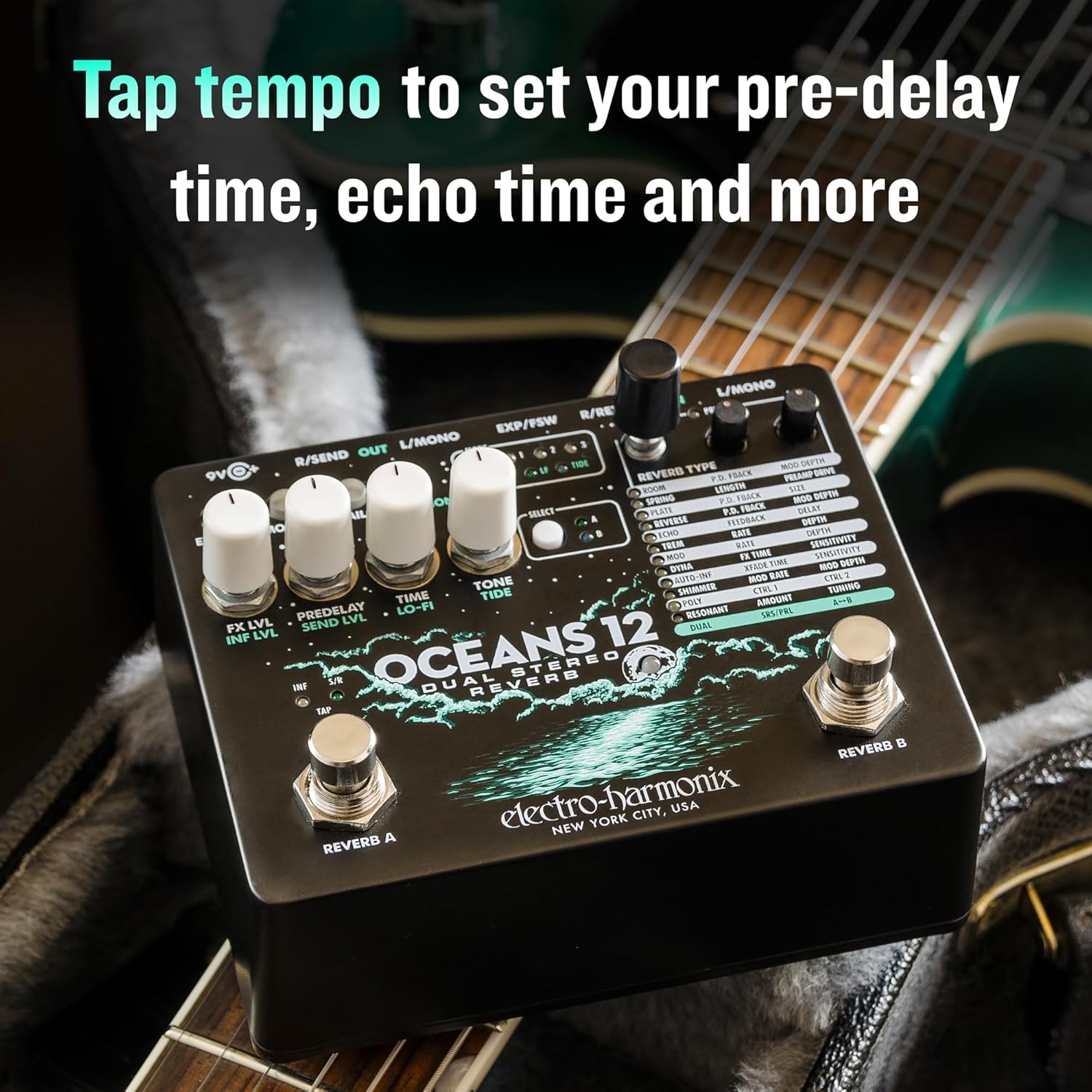

Figure 4: The Oceans 12 pedal's footswitches and controls, illustrating the Tap Tempo function for setting pre-delay and echo times.

Toggle Swiċċijiet

• EXP MODE / MOMENT: Configures the external expression pedal behavior or enables momentary footswitch action.
• TAILS: Determines whether the reverb trails naturally after bypass or cuts off immediately.
• FUNZJONI: Accesses secondary functions for certain knobs.

Tipi ta' riverber

The Oceans 12 offers 12 distinct reverb algorithms, each with multiple modes and adjustable parameters:

• kamra: Two modes, simulating lively rooms and spacious performance halls. Parameters: P.D. FBACK, LENGTH, MOD DEPTH.
• IR-REBBIEGĦA: Two modes, emulating vintage tube reverb and the EHX Holy Grail spring algorithm. Parameters: P.D. FBACK, LENGTH, PREAMP ISSUQ.
• PJANĊA: Two modes, emulating smooth metal plate reverbs. Parameters: P.D. FBACK, LENGTH, SIZE.
• REVERSI: Two modes, offering reverse reverb and true reversed echoes. Parameters: P.D. FBACK, LENGTH, MOD DEPTH.
• ECHO: Three modes, combining digital delay with various echo rhythms feeding into a plate reverb. Parameters: FEEDBACK, DELAY, MOD DEPTH.
• TREM: Three modes, applying a periodic volume envelope to a hall reverb. Parameters: RATE, DEPTH, MOD DEPTH.
• MOD: Three modes, combining chorus and flange with reverb tails. Parameters: RATE, DEPTH, MOD DEPTH.
• DINA: Three dynamic, experimental reverb algorithms: swell, gate, and duck. Parameters: FX TIME, SENSITIVITY, MOD DEPTH.
• AUTO-INF: Three modes, auto-infinite reverb that crossfades to new reverb washes. Parameters: XFADE TIME, SENSITIVITY, MOD DEPTH.
• SHIMMER: Two modes, rich octave-shifted reverb washes. Parameters: MOD RATE, DEPTH, MOD DEPTH.
• POLYPHONIC: Two modes, configurable bi-directional pitch shifts for reverb tails. Parameters: CTRL 1, CTRL 2, MOD DEPTH.
• RESONANT: Two modes, reverb excited by tunable resonators and self-oscillating filters. Parameters: AMOUNT, TUNING, MOD DEPTH.

Modi Operattivi

Dual Reverb Engines

The Oceans 12 features two simultaneous, independent stereo reverb engines (A and B). This allows for complex layering of effects or running two distinct reverb sounds concurrently.

Figure 5: The Oceans 12 pedal in a performance setting, highlighting its capability to run two independent stereo reverb engines simultaneously.

Series and Parallel Control

The pedal allows you to configure the two reverb engines in either series or parallel. This routing flexibility significantly impacts how the two reverbs interact and combine.

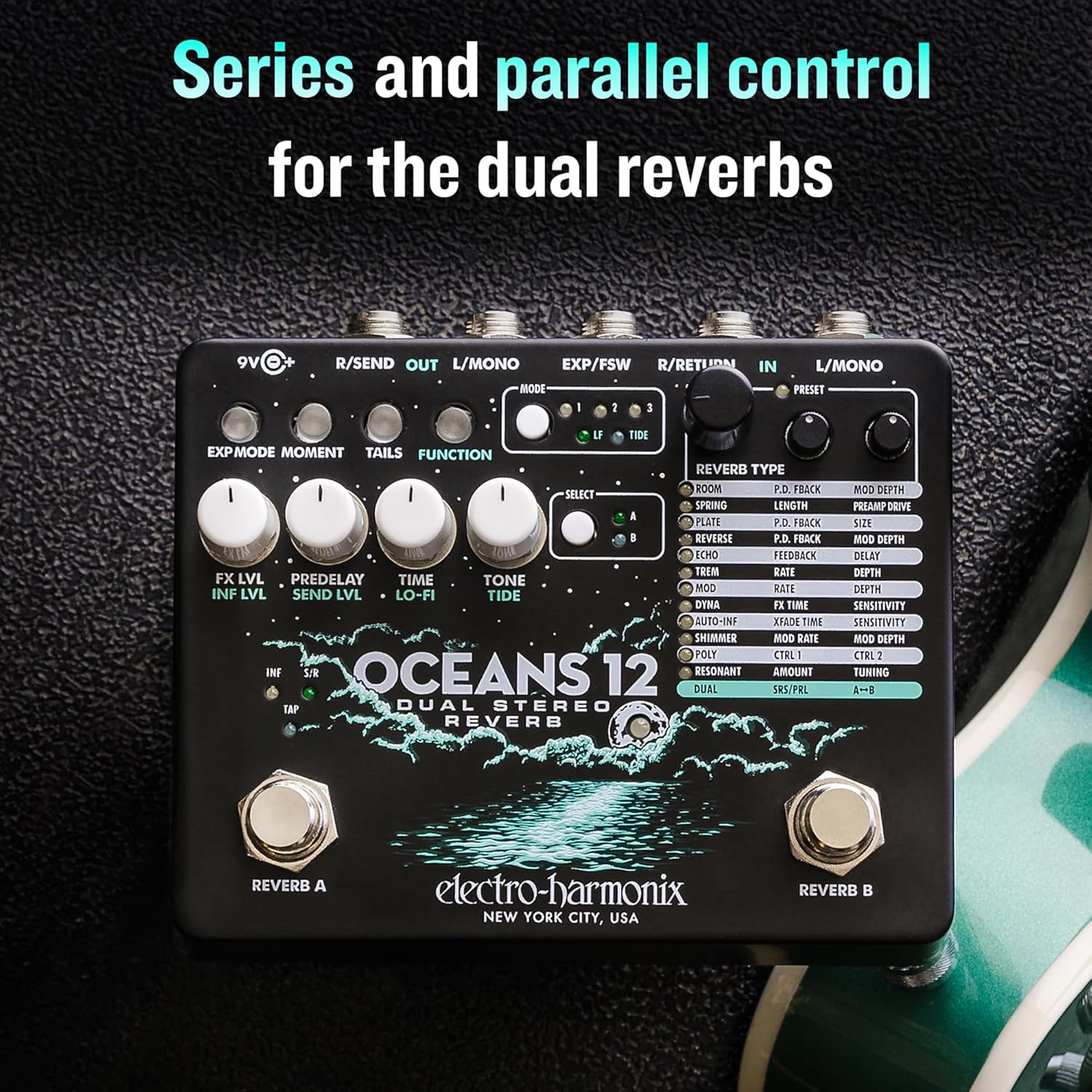

Figure 6: The Oceans 12 pedal, demonstrating its series and parallel control options for combining the two reverb engines.

Presets

The Oceans 12 includes 24 presets, allowing you to save and recall your favorite reverb settings. Refer to the full manual for detailed instructions on saving and loading presets.

Karatteristiċi Avvanzati

• Tide Control: This feature allows for stereo image alteration, providing dynamic width and movement to the reverb sound.
• Lo-fi Control: Introduces a vintage, degraded quality to the reverb, useful for specific atmospheric effects.
• Infinite Attenuation Control: Enables sustained reverb tails, allowing notes to ring out indefinitely.
• Kontroll Estern: An input jack is provided for connecting an external expression pedal or a 3-button footswitch, offering hands-free control over various parameters and functions.

Figure 7: The Oceans 12 pedal showcasing its advanced controls, including Tide Control for stereo image alteration, Lo-fi Control, and Infinite Attenuation Control.

Speċifikazzjonijiet

Manutenzjoni

To ensure the longevity and optimal performance of your Electro-Harmonix Oceans 12 pedal, follow these maintenance guidelines:

• Tindif: Uża drapp artab u niexef biex tnaddaf il-barra tal-pedala. Evita prodotti tat-tindif jew solventi li joborxu, għax jistgħu jagħmlu ħsara lill-finitura jew lill-komponenti interni.
• Ħażna: Aħżen il-pedala f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi. Meta ma tkunx qed tużaha għal perjodi twal, skonnettja l-provvista tal-enerġija.
• Konnessjonijiet: Periodically check all input/output jacks and power connections for any signs of wear or corrosion. Ensure cables are securely plugged in during operation.
• Foot Switches: Keep footswitches free from debris.

Issolvi l-problemi

If you encounter issues with your Oceans 12 pedal, consider the following troubleshooting steps:

• Ebda Ħsejjes:
  • Verify the power supply is correctly connected and functioning.
  • Check all audio cables for proper connection and integrity.
  • Ensure the pedal is not in bypass mode if you expect an effect.
  • Confirm the FX LVL knob is not set to minimum.
• Ħoss/Storbju Mhux Mistenni:
  • Check for ground loops if using multiple pedals.
  • Kun żgur li l-kejbils kollha huma protetti u f'kundizzjoni tajba.
  • Review knob settings; extreme settings can produce unusual sounds.
• Stereo Output Issues:
  • Ensure both L/MONO and R/RETURN inputs are correctly connected for stereo input, and L/MONO and R/SEND outputs are used for stereo output.
  • Verify that the cables used for stereo connections are functioning correctly.
  • Test with different cables and amplifiers/interfaces to isolate the issue.
• Is-Swiċċ tas-Saqajk Ma Jirrispondix:
  • Kun żgur li l-footswitch huwa nadif u ħieles minn debris.
  • If using an external footswitch, verify its connection and functionality.

Jekk il-problemi jippersistu wara li tipprova dawn il-passi, ikkuntattja l-appoġġ għall-klijenti ta' Electro-Harmonix għal aktar assistenza.

Garanzija u Appoġġ

Electro-Harmonix products are designed for reliability and performance. For information regarding warranty coverage, product registration, or technical support, please visit the official Electro-Harmonix webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom direttament. Żomm l-irċevuta tax-xiri tiegħek bħala prova tax-xiri għal talbiet ta' garanzija.

For additional resources and the most up-to-date information, please refer to the Electro-Harmonix official websit.
