Manwal tal-Utent tal-Iskaner tal-Barkod Idejn-Free Omnidirezzjonali Symcode G3300W-2D

1. Prodott Aktarview

The Symcode G3300W-2D is an omnidirectional, hands-free automatic barcode scanner designed for efficient and versatile scanning. It features dual-engine imaging technology, allowing it to capture both 1D and 2D barcodes from various surfaces, including LCD and OLED mobile phone screens. Its desktop design frees up your hands, enhancing operational efficiency in various environments.

Figure 1: Symcode G3300W-2D Omnidirectional Barcode Scanner with connectivity cables.

2. Karatteristiċi ewlenin

• Omnidirectional Hands-Free Scanning: Allows for quick and convenient scanning without needing to hold the device.
• Superior Decoding Ability: Capable of reading common 1D and 2D codes, including QR Code, Data Matrix, PDF417, UPC/EAN, Code39, Code 128, and more.
• Skennjar tal-Iskrin: Efficiently captures barcodes from mobile phone and computer screens.
• Prestazzjoni robusta: Decodes blurring, damaged, distorted, colorful, or reflective barcodes at high speeds.
• Plug and Play: No software or drivers required for most operating systems; connects via a single USB cable.
• Kompatibilità Wiesgħa: Works with Windows XP/7/8/10, Mac OS, Linux, and common software like Word and Excel.
• Disinn aġġustabbli: The scanner head can be adjusted for optimal scanning angles.

Figure 2: The scanner's advanced decoding capabilities for various barcode types, including damaged and blurred codes.

3. Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:

• Symcode G3300W-2D Barcode Scanner Unit
• USB Connection Cable (1.8m/5.9ft)
• Manwal għall-Utent

Figure 3: Contents included in the Symcode barcode scanner package.

4. Istruzzjonijiet ta' Setup

4.1 Konnessjoni tal-Iskaner

1. Locate the USB connection port on the back of the scanner unit.
2. Connect the smaller end of the provided USB cable to the scanner's port.
3. Connect the larger USB-A end of the cable to an available USB port on your computer (PC, laptop, etc.).
4. The scanner is designed for plug-and-play operation and should be automatically recognized by your operating system (Windows, Mac OS, Linux) without requiring additional driver installation.
5. Once connected, the scanner will emit a short beep and the indicator light will turn on, signifying it is ready for use.

Figure 4: The scanner's broad compatibility with various devices and operating systems.

5. Istruzzjonijiet Operattivi

The Symcode G3300W-2D scanner operates in an automatic, hands-free mode. Simply place the item with the barcode in front of the scanner's window.

5.1 1D Barcode Scanning

To scan a 1D barcode:

1. Kun żgur li l-iskaner huwa konness u mixgħul.
2. Position the 1D barcode within the scanner's field of view. The scanner will automatically detect and read the barcode.
3. A successful scan will be indicated by a beep and the data appearing in your active application (e.g., text editor, POS software).

5.2 2D Barcode Scanning (QR, Data Matrix, PDF417)

To scan a 2D barcode:

1. Kun żgur li l-iskaner huwa konness u mixgħul.
2. Place the 2D barcode (e.g., QR code on a package or screen) in front of the scanner's window.
3. The scanner's advanced imaging technology will quickly capture and decode the information.
4. Confirm the successful scan by the audible beep and the data output.

5.3 Scanning from Mobile Phone and Computer Screens

The G3300W-2D is optimized to read barcodes directly from digital displays. For best results, ensure the screen brightness is adequate and avoid excessive glare.

6. Configuration and Customization

The scanner can be configured using special programming barcodes found in the full instruction manual. These barcodes allow you to adjust settings such as:

• Volume of the beep sound
• Keyboard language (e.g., English, French, Japanese, Spanish)
• Modi ta 'skannjar
• Is-settings tat-trażmissjoni tad-dejta

Refer to the detailed programming guide in your physical user manual for a complete list of configurable options and their corresponding barcodes.

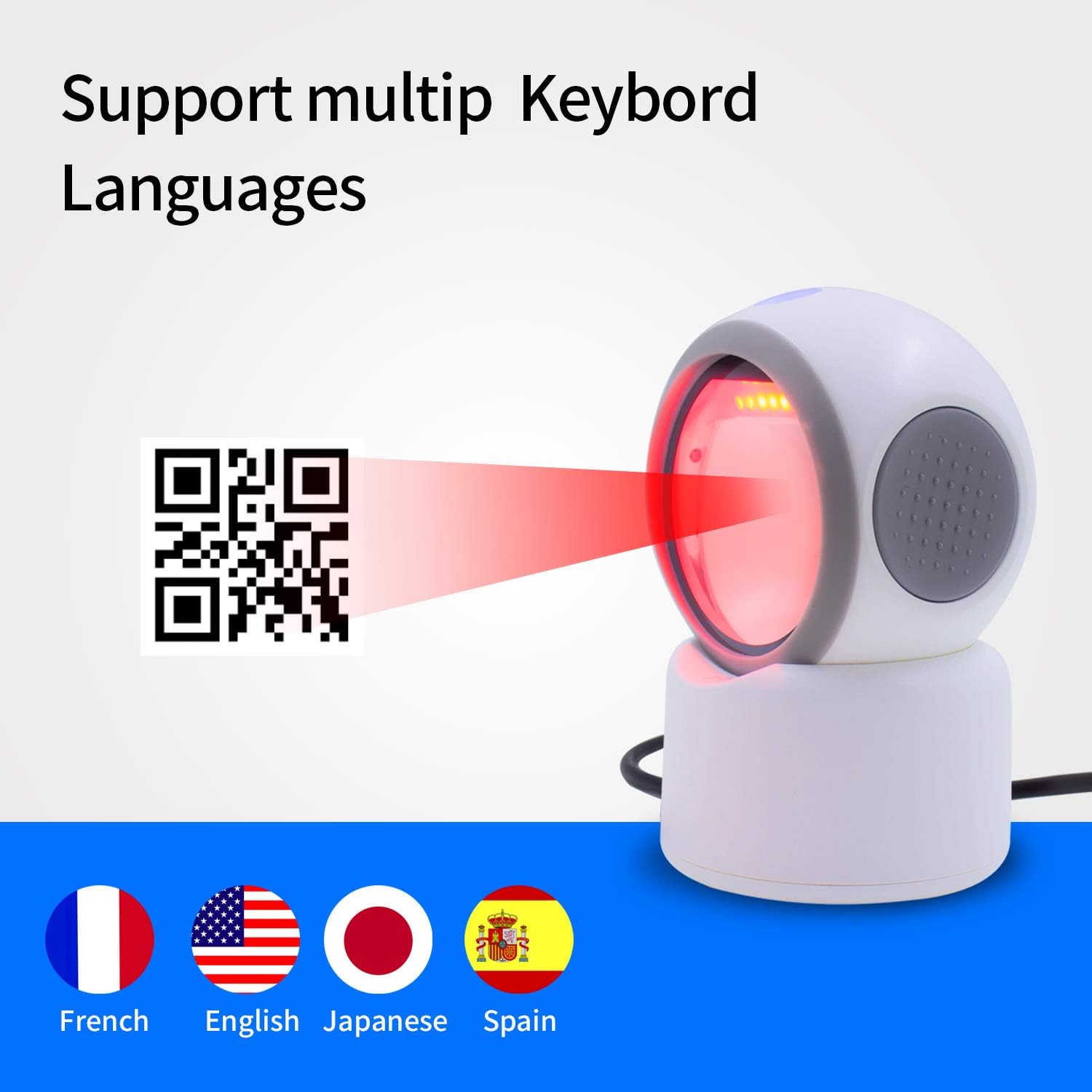

Figure 5: The scanner supports various keyboard layouts for international use.

Figure 6: Design features including LED lighting and a non-slip base for stability.

7. Manutenzjoni

To ensure optimal performance and longevity of your Symcode barcode scanner, follow these maintenance guidelines:

• Tindif: Regularly wipe the scanner's window and exterior with a soft, dry, lint-free cloth. For stubborn smudges, a slightly dampened cloth with water or a mild, non-abrasive cleaner can be used. Avoid harsh chemicals or abrasive materials.
• Ħażna: Aħżen l-iskaner f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Immaniġġjar: Handle the scanner with care to prevent drops or impacts that could damage internal components or the scanning window.

8. Issolvi l-problemi ta' Kwistjonijiet Komuni

Jekk tiltaqa' ma' problemi bl-iskaner tiegħek, irreferi għall-problemi u s-soluzzjonijiet komuni li ġejjin:

• Skaner Mhux Rikonoxxut mill-Kompjuter:
  • Kun żgur li l-kejbil USB huwa konness sew kemm mal-iskaner kif ukoll mal-kompjuter.
  • Try connecting the scanner to a different USB port on your computer.
  • Ibda mill-ġdid il-kompjuter tiegħek.
  • If the scanner becomes unresponsive after the computer idles or sleeps, unplug and re-plug the USB cable to re-establish the connection.
• Ma nistax niskennja l-Barcodes:
  • Verify that the scanner is powered on (indicator light is active).
  • Ensure the barcode is clean, undamaged, and within the scanner's optimal reading range.
  • Check for excessive glare on the barcode, especially when scanning from screens. Adjust the angle or lighting.
  • Confirm that the barcode type is supported by the scanner (refer to Section 2: Key Features).
• Output tad-Data Skorretta:
  • Check the keyboard language settings of your computer and ensure they match the scanner's configuration (refer to Section 6: Configuration and Customization).
  • Ensure no other applications are interfering with the input.
• Scanner is Too Sensitive/Scans Multiple Times:
  • Refer to the full user manual for programming barcodes that can adjust scanning sensitivity or trigger modes.

9. Speċifikazzjonijiet Tekniċi

10. Informazzjoni dwar Garanzija

Symcode products are manufactured to high-quality standards. This product typically comes with a standard manufacturer's warranty covering defects in materials and workmanship under normal use. For specific warranty terms, duration, and conditions, please refer to the warranty card included in your product packaging or contact Symcode customer support directly.

11. Appoġġ għall-Klijent

If you require further assistance, have questions about your product, or need technical support, please contact Symcode customer service through the following channels:

• Online: Visit the official Symcode websit għal FAQs, riżorsi ta' appoġġ, u formoli ta' kuntatt.
• Email: Irreferi għall-imballaġġ tal-prodott tiegħek jew għall-informazzjoni uffiċjali websit għall-indirizz elettroniku tal-appoġġ għall-klijenti.
• Telefon: Contact numbers may be available on the official Symcode webis-sit jew fid-dokumentazzjoni tal-prodott tiegħek.

When contacting support, please have your product model number (G3300W-2D) and purchase information ready.
