1. Introduzzjoni
This manual provides essential information for the proper use, setup, operation, maintenance, and troubleshooting of your Cressi Patrol Back Inflation Buoyancy Compensator (BCD). The Patrol BCD is designed for scuba diving, offering a lightweight and anatomically designed solution for comfort and durability. Please read this manual thoroughly before using the BCD to ensure safe and effective diving.
Figura 1: Naħa ta' quddiem view of the Cressi Patrol BCD, showcasing its compact design and integrated components.
2. Karatteristiċi ewlenin
The Cressi Patrol BCD incorporates several design elements for enhanced performance and user convenience:
- Lightweight Rear Inflation Design: The BCD features a dorsal air cell, providing buoyancy from the back, which contributes to a streamlined profile and comfortable underwater trim.
- Air Cell Compression Strap: A specialized strap ensures rapid deflation and efficient volume control of the air cell.
- Rigid Back Plate with Integrated Handle: An ultralight rigid back plate offers optimal stability and includes a handle for easy carrying.
- Flat-Lock-Aid Integrated Weight System: This system allows for easy and secure integration and quick release of weights.
- Multiple Pressure Relief Valves: Equipped with three dump valves for efficient buoyancy control: one on the upper part of the inflator hose, one on the right shoulder, and a third on the lower right side of the air cell.
- Plastic D-Rings: Strategically placed plastic D-rings reduce overall weight while providing attachment points for accessories.
- Adjustable Harness System: The shoulder and waist harness are fully adjustable, accommodating a range of body sizes.
- Zippered Pockets: Pockets with zippers and bindings are located on the side lobes for secure storage.
Figura 2: Wara view of the Cressi Patrol BCD, highlighting the adjustable harness system and backplate.

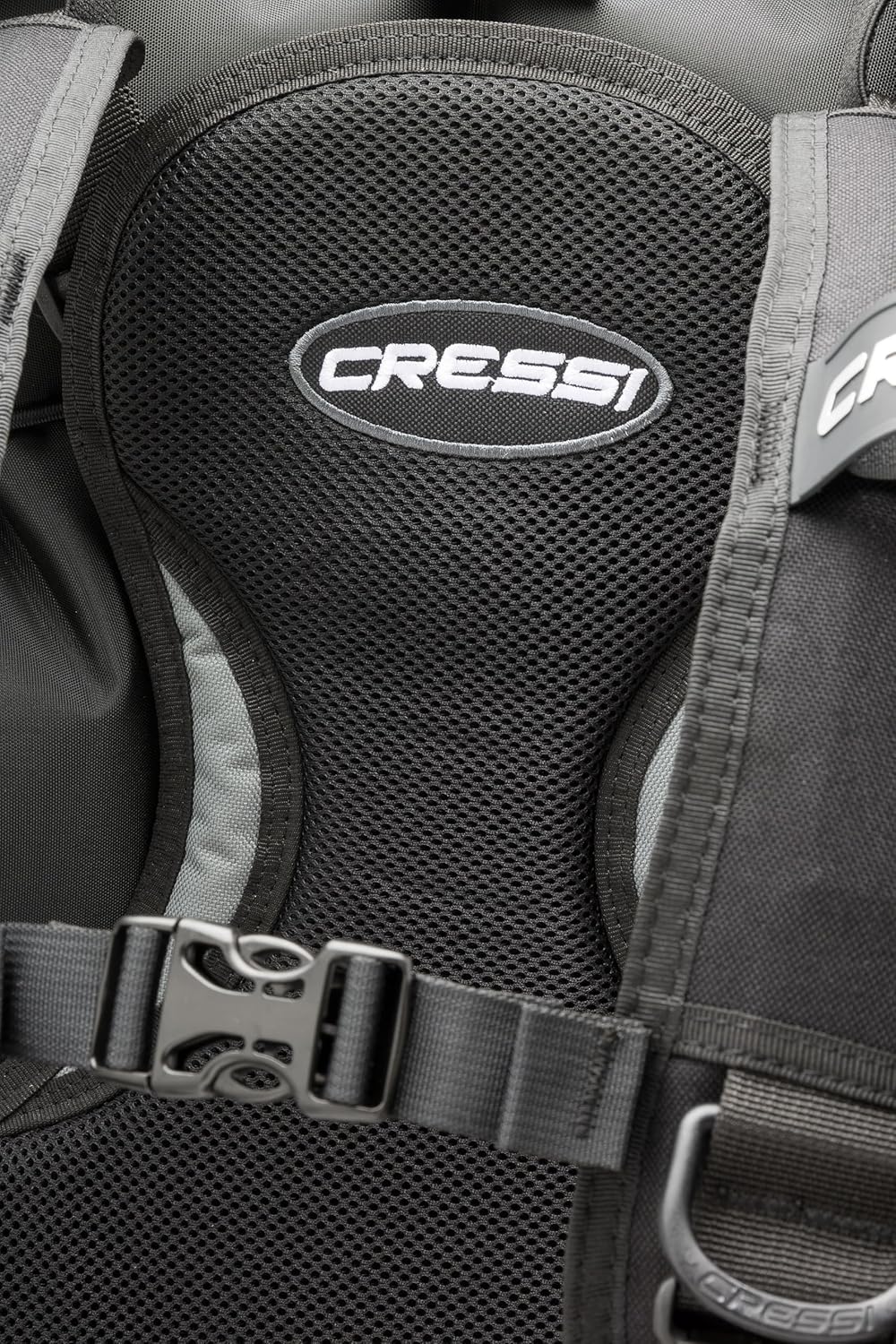

Figure 3: Detail of the Cressi logo and mesh padding on the BCD's back support.
Figure 4: The dorsal air cell and rigid backplate of the Cressi Patrol BCD, designed for optimal buoyancy and stability.
Figure 5: Close-up of the Flat-Lock-Aid integrated weight pocket and a plastic D-ring on the Cressi Patrol BCD.
3. Istruzzjonijiet ta' Setup
3.1 Attaching to a Scuba Tank
- Place the BCD on a flat surface with the backplate facing up.
- Position the scuba tank onto the BCD's backplate, ensuring the tank valve aligns with the BCD's tank band.
- Secure the tank band tightly around the tank. Ensure the tank is stable and does not wobble.
- Connect the low-pressure inflator hose from your regulator first stage to the BCD's inflator mechanism.
3.2 Aġġustament tal-Arness
The Cressi Patrol BCD features an adjustable harness system for a secure and comfortable fit.
- Ċineg tal-ispallejn: Adjust the shoulder straps so the BCD sits comfortably on your back without restricting movement.
- Waist Strap: Fasten the waist strap and adjust it snugly around your waist.
- Ċinga tas-sider: Secure the chest strap across your sternum and adjust for comfort.
- Ensure all straps are tightened sufficiently to prevent the BCD from shifting during a dive, but not so tight as to cause discomfort or restrict breathing.
3.3 Loading Weight Pockets
The Flat-Lock-Aid integrated weight system allows for easy loading and release of weights.
- Insert soft or hard weights into the designated weight pockets. The pockets can hold up to 4.5 kg (approximately 10 lbs) each.
- Ensure the weight pockets are fully inserted and securely locked into place. A distinct click or visual confirmation should indicate proper engagement.
- Distribute weights evenly between the left and right pockets for balanced trim.
4. Operating the BCD
4.1 Inflazzjoni u Deflazzjoni
- Power Inflation: Press the inflation button on the inflator mechanism to add air to the BCD from your tank.
- Oral Inflation: To orally inflate, press the deflate button and blow into the mouthpiece of the inflator hose.
- Deflazzjoni:
- Press the deflate button on the inflator mechanism to release air.
- Pull the cord of the right shoulder dump valve to release air.
- Pull the cord of the lower right dump valve to release air.
- Pull down on the inflator hose itself to activate the upper left dump valve.
- Always maintain neutral buoyancy underwater and positive buoyancy at the surface.
4.2 Weight Release
In an emergency, the integrated weight pockets can be quickly released.
- Locate the quick-release handles on the weight pockets.
- Pull firmly on the handles to release the weight pouches. Practice this procedure in a controlled environment.
5. Kura u Manutenzjoni
Proper care extends the life of your BCD and ensures its reliable operation.
- Tlaħliħ: After each dive, thoroughly rinse the BCD with fresh water, both inside and out. Inflate the BCD slightly, fill the air cell with fresh water through the oral inflator, slosh it around, and then drain it completely.
- Tnixxif: Hang the BCD in a shaded, well-ventilated area to dry completely. Avoid direct sunlight, which can degrade materials.
- Ħażna: Store the BCD partially inflated in a cool, dry place away from chemicals, heat sources, and direct sunlight. Do not store heavy items on top of the BCD.
- Spezzjonijiet: Regularly inspect all straps, buckles, hoses, and valves for signs of wear, damage, or corrosion.
- Servizzi Professjonali: Have your BCD professionally inspected and serviced by an authorized Cressi dealer annually or as recommended by local diving regulations.
6 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| BCD loses air rapidly | Leaking inflator valve, torn air cell, open dump valve. | Inspect inflator and dump valves for debris. Check air cell for punctures. If damage is found, seek professional repair. |
| Difficulty inflating BCD | Low-pressure hose disconnected, regulator first stage not supplying air, inflator button stuck. | Ensure LP hose is securely connected. Check air supply to regulator. Clean or free stuck inflator button. |
| Difficulty deflating BCD | Deflate button stuck, dump valve stuck closed. | Check and free deflate button. Inspect dump valves for obstructions. |
| Weight pockets not securing | Pockets not fully inserted, locking mechanism obstructed. | Ensure pockets are pushed in completely until they click. Check for debris in the locking mechanism. |
If you encounter issues not listed here or if solutions do not resolve the problem, contact an authorized Cressi service center or your diving professional.
7. Speċifikazzjonijiet tal-Prodott
| Karatteristika | Dettall |
|---|---|
| Brand | Cressi |
| Isem tal-Mudell | Għassa |
| Numru tal-Parti | IC741600 |
| Tip | Back Inflation BCD |
| Materjal | Nylon (Outer), Neoprene (Lining) |
| Piż tal-oġġett | 2.5 Kilogrammi |
| Rakkomandazzjoni tal-Piż Massimu | 4.5 Kilograms per pocket |
| Valvoli ta' Ħelsien tal-Pressjoni | 3 (Inflator hose, right shoulder, lower right air cell) |
| Sistema tal-Piż | Flat-Lock-Aid Integrated Weight System |
| D-Ċrieki | Plastik |
| Tip ta' xedd | Adjustable Shoulder and Waist |
| Medda ta' Età | Adulti |
| Fit Tip | Universali |
8. Informazzjoni dwar Garanzija
The Cressi Patrol BCD is covered by a Garanzija limitata ta 'sena from the date of purchase. This warranty covers manufacturing defects and material flaws under normal use. It does not cover damage resulting from misuse, improper maintenance, accidents, or unauthorized modifications. For warranty claims, please retain your proof of purchase and contact an authorized Cressi dealer or Cressi customer service.
9. Appoġġ għall-Klijent
For further assistance, technical support, or inquiries regarding your Cressi Patrol BCD, please contact your local authorized Cressi dealer. You can also visit the official Cressi websit għal riżorsi addizzjonali u informazzjoni ta’ kuntatt.
Cressi Official Websit: www.cressi.com
