Introduzzjoni
This manual provides detailed instructions for the safe installation, operation, and maintenance of your Modern Flames Spectrum Slimline 100 Inch Electric Fireplace. Please read all instructions carefully before installation and use to ensure proper function and safety.

Image: The Modern Flames Spectrum Slimline 100 Inch Electric Fireplace displaying vibrant red flames and decorative media.
Informazzjoni Importanti dwar is-Sigurtà
Dejjem segwi l-prekawzjonijiet bażiċi ta' sigurtà meta tuża apparati elettriċi biex tnaqqas ir-riskju ta' nar, xokk elettriku, u korriment lil persuni.
- Aqra l-istruzzjonijiet kollha qabel tuża dan in-nar.
- Tħaddemx fuklar b'korda jew plagg bil-ħsara, jew jekk il-heater ma jkunx ħadem sew, waqa', jew ġarrab ħsara b'xi mod.
- Tużax barra.
- Evita li tpoġġi l-korda tal-enerġija taħt it-tapit jew li tgħattiha b'twapet, runners, jew kisi simili.
- To disconnect the fireplace, turn controls to the OFF position, then remove the plug from the outlet.
- Dan il-nar huwa sħun meta jintuża. Biex tevita ħruq, tħallix ġilda mikxufa tmiss uċuħ sħan.
- Attenzjoni kbira hija meħtieġa meta xi heater jintuża minn jew ħdejn tfal jew persuni invalidi u kull meta n-nar jitħalla jaħdem u ma jkunx hemm attenzjoni.
- Daħħalx jew tħallix oġġetti barranin jidħlu fi kwalunkwe fetħa tal-ventilazzjoni jew tal-egżost għax dan jista' jikkawża xokk elettriku jew nar, jew jagħmel ħsara lill-fuklar.
- Dejjem ipplaggja l-ħiters direttament f'ħanut/reċipjent tal-ħajt. Qatt tuża b'korda ta' estensjoni jew vit tal-enerġija rilokabbli (outlet/power strip).
- Dan il-prodott fih kimiċi magħrufa mill-Istat ta’ Kalifornja li jikkawżaw kanċer u difetti fit-twelid jew ħsara riproduttiva oħra.
Kontenut tal-Pakkett
Upon unpacking, ensure all components are present and undamaged. If any parts are missing or damaged, contact customer support immediately.
- Modern Flames Spectrum Slimline Electric Fireplace Unit (100 Inch)
- Kontroll mill-bogħod
- LED Light Kit (Integrated)
- Decorative Media (e.g., log set, crystals)
- Installation Hardware (as required for built-in installation)
- Manwal għall-Utent
Setup u Installazzjoni
The Modern Flames Spectrum Slimline fireplace is designed for built-in installation. Proper planning and adherence to local building codes are essential.
Konsiderazzjonijiet ta' qabel l-installazzjoni:
- Post: Choose a suitable indoor location. Ensure adequate clearance from combustible materials.
- Dimensjonijiet: The product dimensions are 4"D x 100"W x 17"H. Prepare an opening that accommodates these measurements with appropriate framing.
- Provvista tal-Enerġija: The unit requires an AC/DC power source. Ensure a dedicated, properly grounded electrical outlet is available within reach of the power cord. The fireplace is corded.
- Ventilazzjoni: This is a vent-free unit. However, ensure the area around the fireplace is not obstructed to allow for proper heat distribution.
Passi ta' Installazzjoni:
- Carefully remove the fireplace from its packaging.
- Prepare the wall opening according to the fireplace dimensions and manufacturer's framing instructions (refer to detailed diagrams in the full manual).
- Insert the fireplace unit into the prepared opening. Secure it using the provided mounting hardware.
- Install the decorative media (logs, crystals) into the designated area within the firebox.
- Qabbad il-korda tad-dawl ma' żbokk elettriku ertjat.
- Test the unit's functions (flames, heat, lighting) before finalizing the installation.

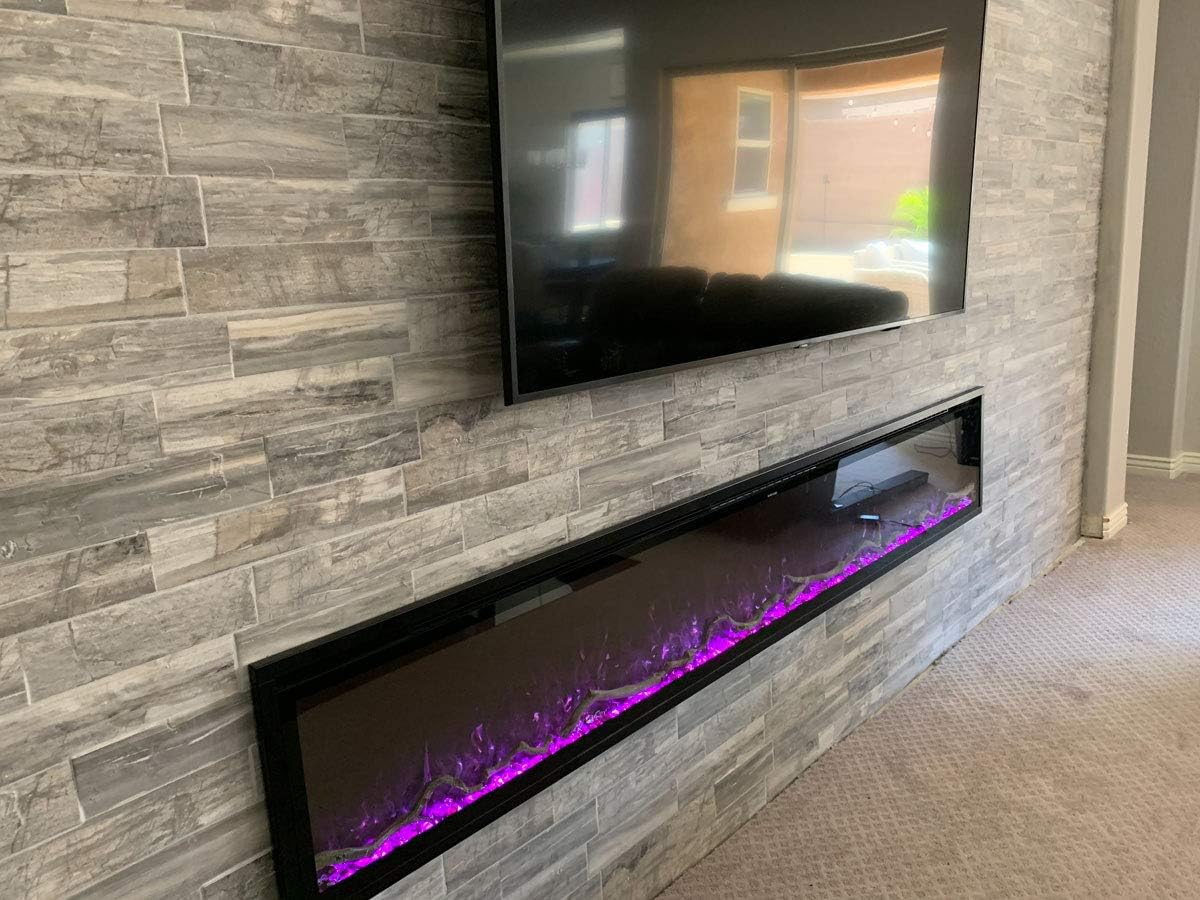

Image: An installed Modern Flames Spectrum Slimline fireplace showcasing purple flame effects within a modern wall setting.

Image: The fireplace integrated into a wall, displaying a dynamic combination of red and blue flame colors.

Image: An installed fireplace unit with warm orange flame effects, complementing the surrounding wall texture.
Istruzzjonijiet Operattivi
Your Modern Flames Spectrum Slimline fireplace can be operated using the included remote control or the control panel located on the unit.
Panel tal-Kontroll:

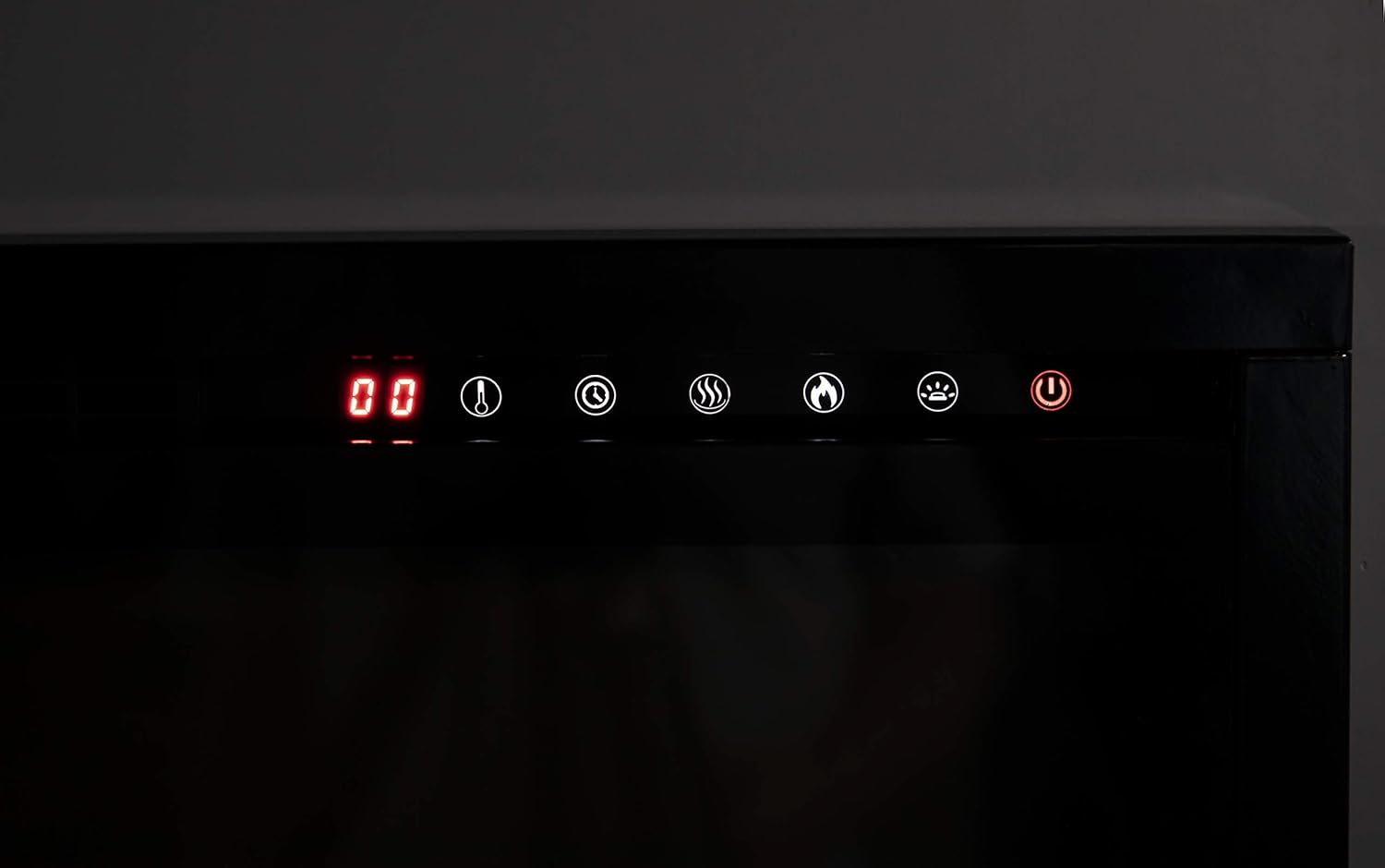

Immaġni: Naħa mill-qrib view of the fireplace, highlighting the integrated control panel with various function buttons.

Immaġni: Dettaljata view of the fireplace's control panel, showing illuminated buttons for power, flame, heat, and other settings.
The control panel features illuminated buttons for direct access to various functions. Refer to the detailed diagram in the full manual for specific button identification.
Kontroll mill-bogħod:

Image: The sleek black remote control for the Modern Flames electric fireplace, featuring clearly labeled buttons for various functions.
The remote control provides convenient operation from a distance. Ensure batteries are correctly installed.
- Buttuna tal-Qawwa: Jixgħel jew jitfi n-nar.
- Buttuna tal-Fjamma: Cycles through various flame color options (Hybrid-FX LED Light Ambience).
- Buttuna tas-Sħana: Activates or deactivates the heater. The heat output is 5000 BTUs, capable of heating up to 200 square feet.
- Brightness/Intensity: Adjusts the brightness or intensity of the flame effects.
- Timer: Jissettja tajmer li jintefa awtomatikament.
- Media Bed Lighting: Controls the lighting for the decorative media bed.

Image: The electric fireplace displaying cool blue flame effects, highlighting the customizable ambience feature.
Manutenzjoni
Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tan-nar elettriku tiegħek.
- Tindif: Kun żgur li l-unità tkun mitfija u skonnettjata qabel ma tnaddafha. Uża drapp artab u damp drapp biex tnaddaf l-uċuħ ta’ barra. Tużax prodotti tat-tindif jew sprejs li joborxu.
- Panel tal-ħġieġ: Naddaf il-pannell tal-ħġieġ b'ċarruta ratba u prodott tat-tindif tal-ħġieġ li ma jobrox.
- Vents tal-arja: Periodically check and clean the air intake and exhaust vents to ensure they are free from dust and debris. Blocked vents can lead to overheating.
- Bozoz: The LED lights are designed for long life and typically do not require replacement. If an issue occurs, contact customer support.
Issolvi l-problemi
If you experience issues with your fireplace, refer to the following common problems and solutions. If the problem persists, contact customer support.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| In-nar ma jixgħelx. | Bla enerġija, korda tal-enerġija skonnettjata, circuit breaker ixxuttat. | Kun żgur li l-unità hija pplaggjata, iċċekkja s-sokit tal-ħajt, u rrisettja s-circuit breaker. |
| No flame effect. | Flame effect is turned OFF, LED lights malfunction. | Press the flame button on the remote or control panel. If issue persists, contact support. |
| Ebda output tas-sħana. | Heater is OFF, thermostat setting too low, air vents blocked. | Ensure heater is ON, increase thermostat setting, clear air vents. |
| Il-kontroll mill-bogħod ma jaħdimx. | Batteriji mejta, ostruzzjoni, remote barra mill-firxa. | Replace batteries, remove obstructions, operate within range. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Fjammi Moderni |
| Isem tal-Mudell | Spectrum Slimline (SPS-50B) |
| Dimensjonijiet tal-Prodott | 4"D x 100"W x 17"H |
| Piż tal-oġġett | 51 liri |
| Materjal | Ċeramika, Ħġieġ |
| Tip Finish | Miżbugħa |
| Kulur | Iswed |
| Tip ta' Installazzjoni | Mibnija fil- |
| Sors tal-Enerġija | AC/DC (Corded) |
| Output tas-Sħana | 5000 BTU |
| Kopertura tat-Tisħin | Sa 200 pied kwadru |
| Tip ta 'ventilazzjoni | Vent Ħieles |
| Komponenti Inklużi | LED light, Remote Control, Decorative Media |
| Użi Speċifiċi Għall-Prodott | Ġewwa |
| Stil | Moderna |
| Tip ta' Kamra | Kamra tal-Ħajja |
| UPC | 850011491010 |
Informazzjoni dwar Garanzija
This Modern Flames Spectrum Slimline Electric Fireplace is covered by a Garanzija Limitata. For specific terms, conditions, and duration of the warranty, please refer to the warranty card included with your product or visit the official Modern Flames websit. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
Appoġġ għall-Klijent
Should you have any questions, require technical assistance, or need to report a problem with your Modern Flames Spectrum Slimline Electric Fireplace, please contact Modern Flames customer support. Contact information can typically be found on the manufacturer's webis-sit jew fuq l-imballaġġ tal-prodott.
When contacting support, please have your model number (SPS-50B) and proof of purchase readily available.
