1. Introduzzjoni
This manual provides essential information for the safe and efficient installation, operation, and maintenance of your Tecnolite Integrated LED Downlight. Please read these instructions carefully before installation and retain them for future reference. This product is designed for indoor use and provides a 24W Day Light illumination with a 150° beam angle.
Image 1.1: Tecnolite Integrated LED Downlight and its retail packaging. The packaging highlights "Luz de día" (Day Light) and "Aplicación Interior" (Interior Application).
2. Istruzzjonijiet tas-Sigurtà
- Sigurtà Elettrika: L-installazzjoni għandha titwettaq biss minn elettriċista kwalifikat skont il-kodiċijiet u r-regolamenti elettriċi lokali.
- Skonnettjar tal-Enerġija: Dejjem skonnettja l-enerġija mis-circuit breaker jew mill-kaxxa tal-fjużijiet qabel ma tinstalla, tagħmel manutenzjoni, jew tnaddaf l-apparat tad-dawl.
- Voltage Kompatibilità: Tiżgura l-provvista voltage is compatible with the fixture's requirements.
- Użu fuq ġewwa biss: This product is designed for indoor applications. Do not expose to moisture or outdoor elements.
- L-ebda Partijiet li jistgħu jservu mill-utent: The LED module is integrated and not user-replaceable. Do not attempt to disassemble the fixture.
- Heat and UV Emission: This LED fixture generates minimal heat and does not emit harmful UV rays, ensuring a safe and comfortable environment.
3. Karatteristiċi tal-prodott
- LED integrat: Features integrated LED chips for a compact design, significant energy savings, and extended lifespan.
- Output tal-Enerġija: 24 watt.
- Angolu tar-raġġ: Wide 150° light dispersion for effective illumination of large areas and uniform coverage.
- Temperatura tal-Kulur: Day Light (6500K), providing bright and clear illumination.
- Recessed Cut-out: Designed for a standard 28 cm (approximately 11 inches) recessed cut-out.
- Materjal: Constructed from durable aluminum.
- Effiċjenza tal-Enerġija: Offers 75-90% energy savings compared to traditional lighting.
- Ħajja twila: Engineered for a long operational life.
Image 3.1: Visual representation of energy savings (75-90%) and long lifespan, alongside different light temperature options (3000K Warm, 4000K White, 6500K Day Light). This specific model is Day Light.
Image 3.2: Illustration of architectural lighting, highlighting LED technology and visual comfort. It explains that downlights conceal the electrical components above the ceiling.
4. Kontenut tal-Pakkett
Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni.
- 1 x Tecnolite Integrated LED Downlight
- 1 x Karta tal-Garanzija
5. Setup u Installazzjoni
Importanti: Installation must be carried out by a qualified electrician. Ensure power is disconnected at the main circuit breaker before proceeding.
- Ipprepara ż-Żona tal-Installazzjoni: Turn off the main power supply to the installation area.
- Create the Cut-out: Using a suitable tool, create a circular cut-out in the ceiling with a diameter of approximately 28 cm (11 inches). Refer to the product dimensions for precise measurements.
- Qabbad il-Wiring: Carefully connect the electrical wires from the ceiling to the fixture's terminals. Ensure proper polarity (Live, Neutral, Ground) according to local electrical codes.
- Sikura l-Armatura: Gently push the downlight into the prepared cut-out. The spring clips on the sides of the fixture will secure it in place against the ceiling.
- Irrestawra l-Enerġija: Once the fixture is securely installed, restore power at the main circuit breaker.
Image 5.1: Technical diagram illustrating the dimensions of the downlight (295mm diameter, 12mm thickness, 280mm cut-out diameter). The second image shows the physical size of the lamp, held in a hand, confirming the 295mm diameter.
Immaġni 5.2: Eż.ample of the Tecnolite LED downlight installed in a modern living room, demonstrating its flush-mount appearance.
6. Istruzzjonijiet Operattivi
Once installed and power is restored, the Tecnolite Integrated LED Downlight operates like any standard light fixture.
- Tixgħel/Jitfi: Uża s-swiċċ tal-ħajt imqabbad mal-apparat tad-dawl biex tixgħel jew titfi d-dawl.
Image 6.1: This image illustrates the ideal applications for 6500K Day Light illumination, including commercial spaces, laundries, workshops, and areas requiring concentration such as hospitals, clothing stores, bathrooms, kitchens, businesses, and offices.
7. Manutenzjoni
The Tecnolite Integrated LED Downlight requires minimal maintenance.
- Tindif: Kun żgur li l-elettriku jkun mitfi qabel ma tnaddaf. Imsaħ l-apparat b'ċarruta ratba, niexfa, jew kemxejn imxarrba.amp drapp. Tużax tindif jew solventi li joborxu.
- Ebda Sostituzzjoni tal-Bozza: As the LED is integrated, there are no bulbs to replace.
8 Issolvi l-problemi
If the fixture does not operate correctly, refer to the following common issues:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Id-dawl ma jixgħelx. | Ebda provvista ta 'enerġija. Konnessjoni tal-wajers sfużi. Swiċċ tal-ħajt difettuż. | Iċċekkja circuit breaker/fjus. Kun żgur li l-elettriku huwa mitfi, imbagħad iċċekkja l-konnessjonijiet tal-wajers. Ittestja jew ibdel is-swiċċ tal-ħajt. |
| Teptip ħafif. | Provvista tal-enerġija instabbli. Wiring maħlul. | Consult an electrician to check power stability. Kun żgur li l-elettriku huwa mitfi, imbagħad iċċekkja l-konnessjonijiet tal-wajers. |
If the problem persists after attempting these solutions, contact Tecnolite customer support or a qualified electrician.
9. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Teknoloġija |
| Numru tal-Mudell | 7501668558818 |
| Output ta 'Qawwa | 24 W |
| Temperatura tal-Kulur | Day Light (6500K) |
| Angolu tar-raġġ | 150° |
| Materjal | Aluminju |
| Kulur | Abjad |
| Sors tal-Enerġija | Corded Elettriku |
| Tip ta' bozza | LED (Integrat) |
| Immuntar Profile | Immuntar tas-Saqaf (Imdaħħal) |
| Dimensjonijiet tal-Prodott | 29.5 x 29.5 x 1.2 ċm (Tul x Wisa x Għoli) |
| Piż tal-oġġett | 480 g |
| Recessed Cut-out Diameter | Appross. 28 ċm (11 pulzier) |

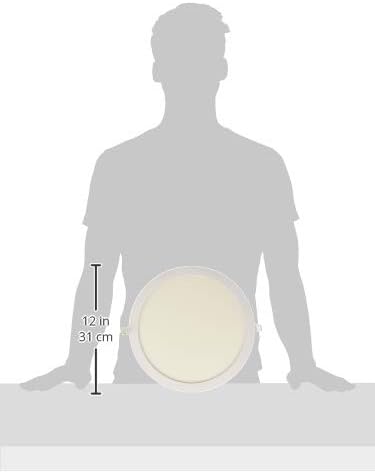

Image 9.1: Size comparison of the downlight, indicating a diameter of approximately 12 inches (31 cm).
10. Garanzija u Appoġġ
Tecnolite offers a warranty for its LED products.
- Perjodu ta' Garanzija: Up to 5 years on LED products. Please refer to the included warranty card for specific terms and conditions.
- Appoġġ għall-Klijent: For technical assistance, warranty claims, or further inquiries, please contact Tecnolite customer service. Visit the official Tecnolite websit għal informazzjoni ta' kuntatt.
Image 10.1: Graphic indicating "Up to 5 Years Warranty on LED Products."
