1. Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of the Zurn AquaSense ZER6000AV-HET-TM EZ Gear-Driven 1.28 GPF Exposed Sensor Water Closet Flush Valve. This high-efficiency flush valve is designed for commercial restroom applications, offering reliable, hands-free operation and water conservation.
The ZER-TM Series features a ceramic disc cartridge and motor gear-driven operation for durability and precision. Its 1.28 GPF (Gallons Per Flush) rate contributes to water savings, while the polished chrome-plated finish and quiet diaphragm operation make it suitable for various commercial environments.
Figure 1: Zurn AquaSense ZER6000AV-HET-TM Flush Valve
2. Informazzjoni dwar is-Sigurtà
Please read all instructions carefully before installation and operation. Failure to follow these instructions may result in property damage, personal injury, or improper product function.
- Kun żgur li l-provvista tal-ilma tkun mitfija qabel tibda kwalunkwe installazzjoni jew manutenzjoni.
- Ilbes tagħmir protettiv personali (PPE) xieraq, bħal nuċċalijiet u ingwanti tas-sigurtà, waqt l-installazzjoni.
- All plumbing work should comply with local codes and regulations.
- Do not use abrasive cleaners or tools that may damage the chrome finish or internal components.
- Keep batteries out of reach of children. Dispose of batteries according to local regulations.
3. X'hemm fil-Kaxxa
Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:
- Zurn AquaSense ZER6000AV-HET-TM Flush Valve Assembly
- 4 Batteriji AA (inklużi)
- Installation Hardware (e.g., vacuum breaker, tailpiece, spud coupling)
- Manwal għall-Utent (dan id-dokument)
4. Prodott Aktarview

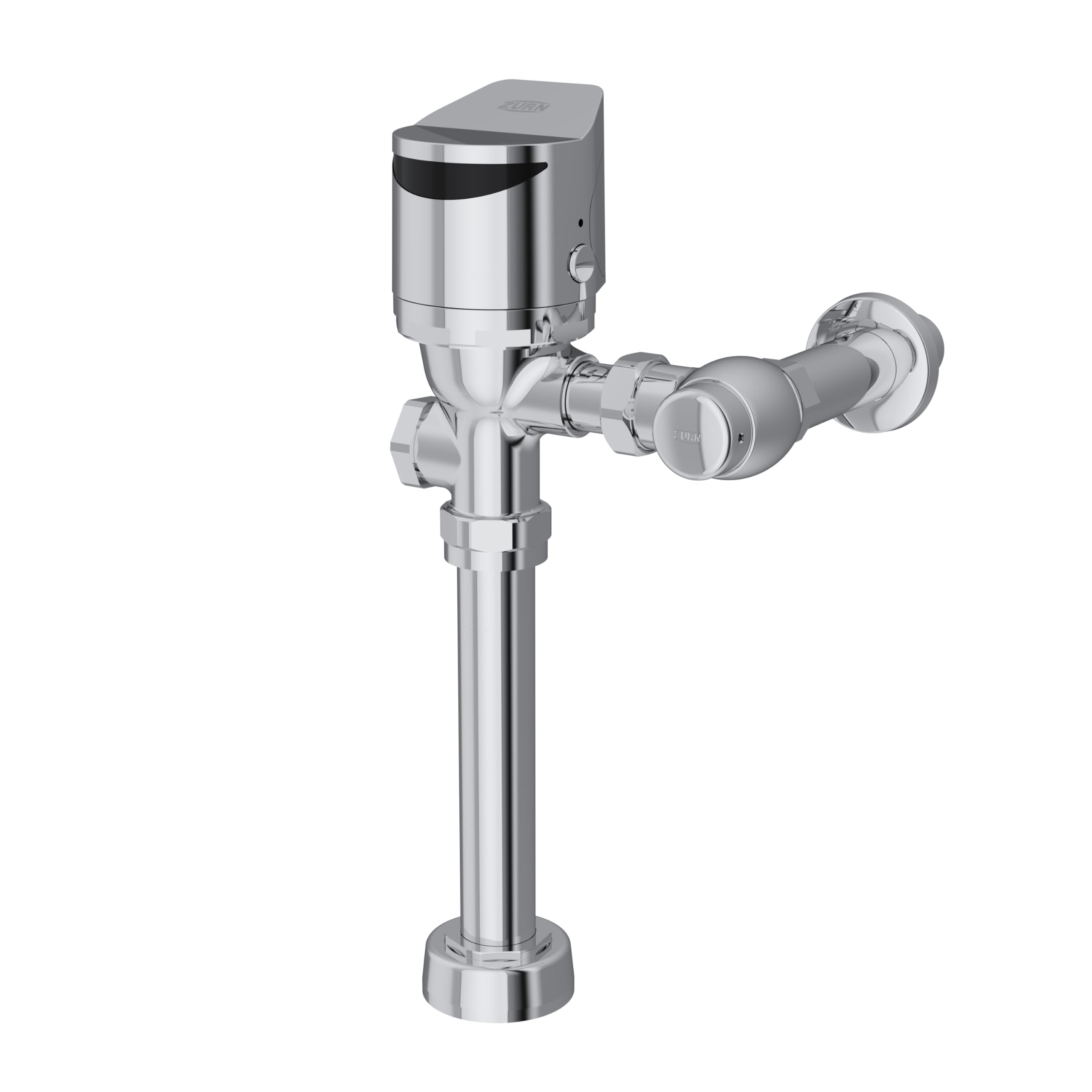

Familiarize yourself with the various views of the Zurn AquaSense ZER6000AV-HET-TM flush valve.
Figura 2: Quddiem View
Figura 3: Lura View
Figura 4: Ġenb View (Sensor)
Figura 5: Ġenb View
5. Istruzzjonijiet ta 'installazzjoni
Professional installation is recommended. Ensure all necessary tools and materials are available before starting.
5.1 Kontrolli ta' qabel l-installazzjoni
- Confirm the water supply line is compatible with the flush valve's inlet connection type (Solvent Weld).
- Ensure the water closet (toilet) spud is compatible with the flush valve's outlet connection size (3 Inches).
- Verify that the rough-in dimensions match the requirements for the ZER6000AV-HET-TM model.
5.2 Installazzjoni Pass Pass
- Itfi l-Provvista tal-Ilma: Locate the main water shut-off valve for the restroom or building and turn it off. Flush the toilet to relieve pressure.
- Remove Existing Flush Valve (if applicable): Carefully disconnect and remove the old flush valve assembly.
- Prepare Inlet and Outlet: Clean and prepare the water supply pipe and the toilet spud for connection.
- Assemble Flush Valve Components: Attach the tailpiece, vacuum breaker, and spud coupling to the main flush valve body as per the diagram provided with the product packaging.
- Qabbad mal-Provvista tal-Ilma: Securely connect the flush valve inlet to the water supply pipe.
- Connect to Toilet Spud: Attach the spud coupling to the toilet spud, ensuring a watertight seal.
- Installa Batteriji: Open the battery compartment (typically located on the top cover) and insert the 4 AA batteries, observing correct polarity. Close the compartment securely.
- Ixgħel il-Provvista tal-Ilma: Iftaħ bil-mod il-valv prinċipali tal-għeluq tal-ilma. Iċċekkja għal tnixxijiet fil-konnessjonijiet kollha.
- Operazzjoni tat-Test: Allow the sensor to detect presence and initiate a flush. Adjust the sensor range if necessary (refer to the operating instructions).
Figure 6: Flush Valve Installed in a Restroom Setting
Figure 7: Close-up of Installed Flush Valve
6. Istruzzjonijiet Operattivi
The Zurn AquaSense ZER6000AV-HET-TM flush valve operates automatically using an infrared (IR) sensor.
6.1 Sensor Operation
- The advanced IR sensor detects presence both forward and downward.
- After a user departs the sensor's detection zone, the valve will initiate a precisely timed 1.28 GPF flush.
- The sensor is designed to prevent false flushes and ensure optimal water usage.
6.2 Manwal Override
In case of power failure or for manual flushing, a manual override button is typically located on the flush valve cover. Press this button firmly to initiate a flush.
7. Manutenzjoni
Regular maintenance ensures optimal performance and longevity of your Zurn flush valve.
7.1 Tindif
- Clean the exterior of the flush valve with a soft cloth and mild, non-abrasive cleaner.
- Do not use harsh chemicals, abrasive pads, or polishes as they can damage the polished chrome finish.
- Imsaħ il-lenti tas-sensorju perjodikament b'ċarruta ratba u damp cloth to ensure clear detection.
7.2 Sostituzzjoni tal-batterija
The flush valve is powered by 4 AA batteries, which typically last for 3 years under normal usage. A low battery indicator (if present) will signal when replacement is needed.
- Itfi l-Provvista tal-Ilma: Turn off the water supply to the flush valve.
- Aċċess għall-Kompartiment tal-Batterija: Locate and open the battery compartment cover, usually on the top or front of the sensor housing.
- Ibdel il-batteriji: Remove old batteries and insert new 4 AA alkaline batteries, ensuring correct polarity (+/-).
- Kompartiment Sikur: Agħlaq l-għatu tal-kompartiment tal-batterija sew.
- Irrestawra l-Provvista tal-Ilma: Turn the water supply back on and test the flush valve operation.
8 Issolvi l-problemi
Irreferi għat-tabella t'hawn taħt għal kwistjonijiet komuni u s-soluzzjonijiet tagħhom.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| No flush when sensor is activated | Dead batteries; Water supply off; Sensor obstruction; Internal valve issue | Replace batteries; Check water supply valve; Clean sensor lens; Contact Zurn support |
| Fwawar kontinwu | Sensor malfunction; Debris in valve; Diaphragm issue | Clean sensor; Inspect and clean valve components; Replace diaphragm; Contact Zurn support |
| Fulħa dgħajfa | Low water pressure; Partially closed stop valve; Clogged diaphragm filter | Check building water pressure; Ensure stop valve is fully open; Clean or replace diaphragm filter |
| Tnixxijiet minn konnessjonijiet | Loose connections; Damaged gaskets/seals | Tighten connections; Replace gaskets/seals |
9. Speċifikazzjonijiet
Key technical specifications for the Zurn AquaSense ZER6000AV-HET-TM flush valve:
| Karatteristika | Speċifikazzjoni |
|---|---|
| Numru tal-Mudell | ZER6000AV-HET-TM |
| Aħsel Volum | 1.28 GPF (Galluni Għal Kull Tlaħliħ) |
| Operazzjoni | EZ Gear-Driven, Sensor Activated |
| Materjal | Heavy-duty Brass Body |
| Temm | Chrome illustrat |
| Tip ta' Konnessjoni tad-Dħul | Solvent Weld |
| Tip ta' Konnessjoni tal-Ħut | NPT |
| Daqs tal-Konnessjoni tal-Ħutlet | 3 Pulzier |
| Sors tal-Enerġija | 4 Batteriji AA (inklużi) |
| Ħajja tal-batterija | Madwar sentejn |
| Durabilità | Ceramic gear-driven operation withstands over 500,000 cycles |
| Klassifikazzjoni Ambjentali | IP65 rated construction |
| Ċertifikazzjonijiet | Konformi mal-ADA |
| Dimensjonijiet tal-Prodott | 8.13 x 9.75 x 16.75 pulzieri |
| Piż tal-oġġett | 10.9 Liri |
10. Garanzija u Appoġġ
The Zurn AquaSense ZER6000AV-HET-TM Flush Valve comes with a Garanzija limitata ta 'sena mid-data tax-xiri. Din il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu u servizz normali.
For warranty claims, technical assistance, or to purchase replacement parts, please contact Zurn Industries customer support:
- Websit: www.zurn.com
- Servizz tal-Klijent: Refer to the Zurn websit għal informazzjoni ta' kuntatt attwali (numri tat-telefon, email).
Please have your model number (ZER6000AV-HET-TM) and date of purchase available when contacting support.
