Introduzzjoni
Thank you for choosing the TRUSTECH Countertop Ice Maker. This manual provides important information regarding the setup, operation, maintenance, and troubleshooting of your new appliance. Please read it thoroughly before use to ensure safe and efficient operation.
The TRUSTECH Countertop Ice Maker, designed for convenience and efficiency.
Informazzjoni Importanti dwar is-Sigurtà
Biex tnaqqas ir-riskju ta’ nar, xokk elettriku, jew korriment, dejjem segwi l-prekawzjonijiet bażiċi ta’ sigurtà meta tuża dan l-apparat:
- Read all instructions before operating the ice maker.
- Do not touch the evaporator or ice cubes when the machine is operating.
- Tgħaddasx il-korda tal-enerġija, il-plagg, jew kwalunkwe parti tal-apparat fl-ilma jew f'likwidi oħra.
- Issorvelja t-tfal mill-qrib meta l-apparat ikun qed jintuża.
- Tħaddimx l-apparat b'korda jew plagg bil-ħsara.
- Place the ice maker on a stable, flat surface away from heat sources and direct sunlight.
- Kun żgur ventilazzjoni adegwata madwar l-apparat.
- Uża biss ilma tajjeb għax-xorb fir-riżervwar tal-ilma.
X'hemm fil-Kaxxa
Upon opening your package, please ensure all components are present and in good condition:
- Ice Maker x1
- Scoop tas-Silġ
- Basket tas-Silġ
- Manwal għall-Utent (dan id-dokument)
Gwida ta' Setup
- Ħoll u Spezzjona: Carefully remove the ice maker from its packaging. Check for any shipping damage.
- Allow to Rest: Before plugging in, allow the ice maker to stand upright for at least 24 hours. This allows the refrigerant to settle, ensuring optimal performance.
- Tindif Inizjali: Before first use, clean the interior of the ice maker, including the water reservoir and ice basket, with a soft cloth and mild detergent. Rinse thoroughly and wipe dry.
- Pjazzament: Place the ice maker on a level, stable surface. Ensure there is at least 6 inches of clearance around the unit for proper ventilation. Avoid placing it near heat sources or in direct sunlight.
- Żid l-Ilma: Open the top cover and fill the water reservoir with potable water up to the MAX water level mark. Do not overfill.
- Qabbad l-Enerġija: Ipplaggja l-korda tad-dawl fi żbokk elettriku ertjat.
Simple three-step process for quick ice production.
Istruzzjonijiet Operattivi
Your TRUSTECH Ice Maker is designed for intelligent one-touch operation:
- Qawwa Mixgħul: Press the ON/OFF button to start the ice making process.
- Agħżel id-Daqs tas-Silġ: Use the 'S' (Small) or 'L' (Large) buttons to choose your preferred ice cube size. The selected size will be indicated by an illuminated LED.
- Produzzjoni tas-Silġ: The ice maker will begin producing ice. You can expect 9 ice cubes to be ready in approximately 6-8 minutes.
- Monitor Indikaturi:
- Il- 'WATER' indicator light will illuminate when the water reservoir needs refilling. Add more water to continue ice production.
- Il- 'FULL' indicator light will illuminate when the ice basket is full. Remove ice from the basket to allow the machine to resume ice making.
- Ħsad tas-Silġ: Uża l-mgħarfa tas-silġ provduta biex tneħħi s-silġ mill-basket.
The intuitive control panel allows for easy one-touch operation.
Choose between two convenient ice cube sizes.

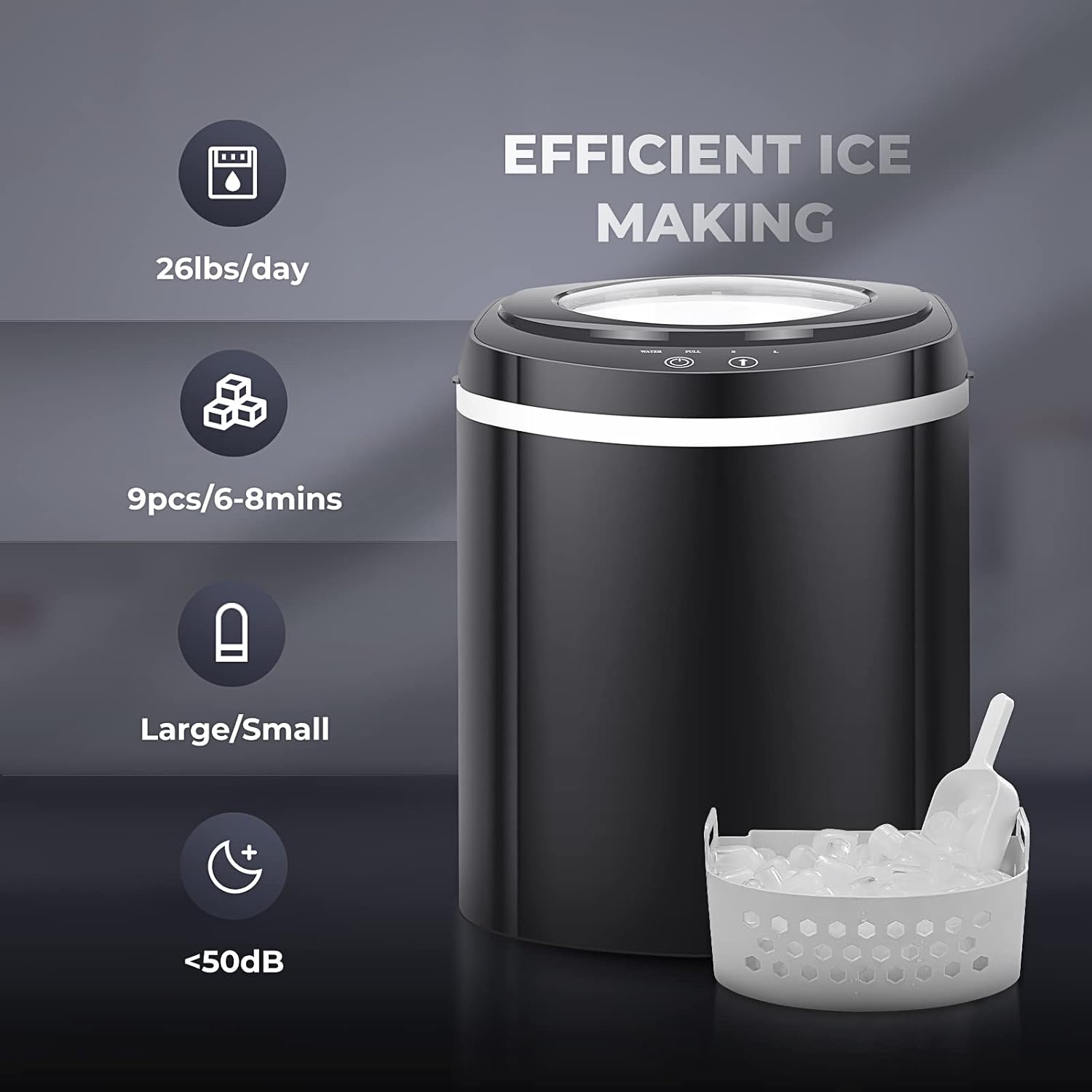

Efficient ice production with low noise levels.
The compact design makes it suitable for various indoor and outdoor settings.
Versatile uses for the ice produced by your machine.
Manutenzjoni u Tindif
Regular maintenance ensures the longevity and hygiene of your ice maker.
- Funzjoni ta' Awto-Tindif: Your ice maker features a convenient self-cleaning mode. To activate, press and hold the ON/OFF button for 5 seconds. The machine will automatically run a cleaning cycle.
- Tindif regolari:
- Aqla 'l-apparat qabel it-tindif.
- Remove the ice basket and clean it with warm, soapy water. Rinse and dry.
- Drain any remaining water from the reservoir by removing the drain plug located at the bottom of the unit.
- Naddaf l-intern b'ċarruta ratba dampened with a mild detergent solution. Wipe thoroughly with a clean, damp drapp biex tneħħi kwalunkwe residwu.
- Imsaħ il-barra b'artab, damp drapp.
- Ħażna: If the ice maker will not be used for an extended period, drain all water, clean the unit thoroughly, and allow it to dry completely before storing in a cool, dry place.
Activate the self-cleaning function for easy maintenance.
Issolvi l-problemi
If you encounter issues with your ice maker, please refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-magna tas-silġ mhux qed tipproduċi silġ. | Ebda ilma fil-ġibjun. | Fill water reservoir to MAX level. |
| Il-magna tas-silġ mhux qed tipproduċi silġ. | Il-basket tas-silġ huwa mimli. | Neħħi s-silġ mill-basket. |
| Ice cubes are too small or not forming properly. | It-temperatura tal-ilma hija għolja wisq. | Use colder water. Ensure unit is in a cool environment. |
| Ice maker is noisy. | Normal operation sounds (compressor, fan, water pump). | This is normal. Noise levels are typically below 50dB. Ensure unit is on a stable, level surface. |
| Tnixxija tal-ilma. | Drain plug not properly sealed. | Ensure the drain plug is securely inserted. |
Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.
Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | TRUSTECH |
| Isem tal-Mudell | ZB-12A / ZBJ-12A |
| Dimensjonijiet tal-Prodott | 10.27"D x 14.37"W x 13.27"H |
| Kapaċità | 26.5 Libbra (produzzjoni tas-silġ kull 24 siegħa) |
| Ħażna tas-Silġ | 1.5 Liri |
| Wattage | 120 watt |
| Voltage | 120 Volts |
| Refriġerant | R600a |
| Materjal | Stainless Steel |
| Livell ta' Storbju | 60 dB (typically below 50dB during operation) |
| Tip ta' Installazzjoni | Countertop |
| Kulur | Iswed Dawl |
Product dimensions for easy placement.
Garanzija u Appoġġ
For detailed warranty information, please refer to the official user manual provided with your product or visit the TRUSTECH official websit.
If you require further assistance or have questions not covered in this manual, please contact TRUSTECH customer support:
- Appoġġ onlajn: Żur il- TRUSTECH Store on Amazon għal informazzjoni dwar il-prodott u riżorsi ta' appoġġ.
- Manwal tal-Utent (PDF): Verżjoni elettronika tal-manwal tal-utent hija disponibbli biex titniżżel hawn.
