DEPSTECH 5.0MP USB Borescope Instruction Manual

1. Introduzzjoni

This manual provides comprehensive instructions for the DEPSTECH 5.0MP USB Borescope, Model 86T-5MP. This device is a versatile inspection camera designed for examining hard-to-reach areas, offering high-resolution imaging and broad compatibility with various operating systems.

Figure 1: DEPSTECH 5.0MP USB Borescope connected to a smartphone, showing its compact design and connectivity.

2. Karatteristiċi ewlenin

• Ultra HD 5MP (2592*1944) Camera: Equipped with a 0.33-inch ultra-thin probe for inspecting confined spaces. Captures 2592x1944P photos and smooth videos.
• USB Connection, Easy Set-up: Connects to Android smartphones, Windows computers, and MacBooks via Micro USB, USB, and Type-C adapters. Requires driver download for real-time image display.
• Waterproof Probe & Semi-Rigid Cable: The camera probe is waterproof, allowing for underwater inspections. The snake-shaped cable maintains its form for precise positioning in tight areas.
• 6 Brightness Adjustable LED: Integrated LED lights provide illumination in dark environments, with adjustable brightness for optimal image capture.
• Użu Multifunzjonali: Suitable for inspecting household appliances, electronic equipment, automotive issues, and retrieving dropped items in inaccessible locations.

Figure 2: Bluart 2.0 technology enhances image clarity in various lighting conditions, as demonstrated by the comparison of images.

3. Gwida ta' Setup

3.1. Kompatibilità

The DEPSTECH 5.0MP USB Borescope is compatible with:

• Android smartphones (Android 4.4+ with OTG & UVC function)
• Windows computers (Windows 7/8/10)
• MacBook OS

Note: This device is not compatible with iOS iPhones or iPads. It does not support the use of adapters to connect to other devices, nor does it support iPhones with Type-C interfaces (e.g., iPhone 15).

3.2. Installazzjoni tas-softwer

To use the borescope, you need to install the appropriate software:

• Għal Telefowns Android:
  • Verify that your device supports OTG and USB UVC.
  • Check OTG settings and activate OTG in your phone's settings.
  • For Android OS 5.0+, download "DEPSTECH-View" from the Google Play Store.
  • For Android OS 10+, visit DEPSTECH's official website to install the updated version APP.
  • Ensure camera and storage permissions are granted for USB OTG function.
• Għall-Kompjuters tal-Windows:
  • Download the ad-free "DEPSTECH-View" from Microsoft's Store or DEPSTECH's official websit.
  • Alternatively, you can use the built-in "Camera" software from the Microsoft Application Store.
• For Mac OS Users:
  • Simply use the "PhotoBooth" application to capture images in real-time.

Figure 3: The borescope offers wide compatibility with various USB ports, including Micro-USB, Type-C, and standard USB.

4. Istruzzjonijiet Operattivi

4.1. Connecting the Borescope

1. Ensure the required software (DEPSTECH-View, Camera, or PhotoBooth) is installed and running on your device.
2. Connect the borescope's USB connector to your smartphone, tablet, or computer. Use the appropriate adapter (Micro USB, Type-C, or standard USB) if necessary.
3. Once connected, the software should automatically detect the borescope and display the live feed.

Figure 4: The semi-rigid cable allows for precise positioning and maneuverability in tight spaces.

4.2. Aġġustament tal-Luminożità tal-LED

The borescope features 6 adjustable LED lights to illuminate dark inspection areas. Locate the dimming roller on the cable and rotate it to increase or decrease the brightness as needed for optimal visibility.

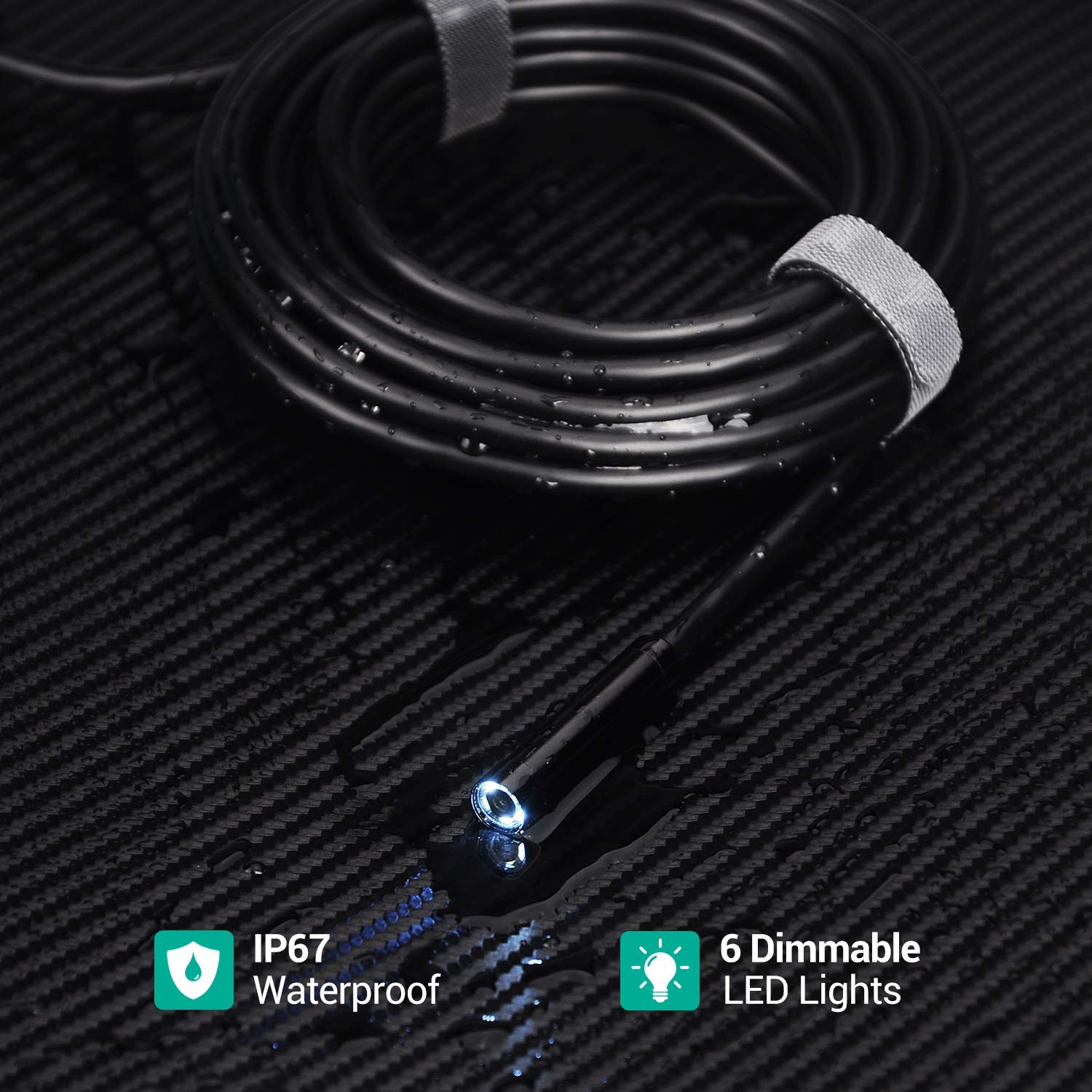

Figure 5: The borescope probe is IP67 waterproof and equipped with 6 dimmable LED lights for clear imaging in various conditions.

4.3. Qbid ta' Stampi u Vidjows

Use the controls within the installed software to capture still images or record videos of your inspection. Refer to the software's specific instructions for detailed operation.

Figure 6: The DEPSTECH borescope is suitable for a wide range of applications, from automotive to home maintenance.

5. Manutenzjoni

• Tindif tal-Lenti: Gently wipe the camera lens with a soft, dry cloth to remove any dust or debris. For stubborn grime, use a lens cleaning solution applied to the cloth, not directly to the lens.
• Ħażna: Store the borescope in a cool, dry place away from direct sunlight and extreme temperatures. Coil the cable loosely to prevent kinks or damage.
• Espożizzjoni għall-Ilma: While the probe is waterproof, ensure the USB connectors are dry before connecting to any device to prevent electrical damage.

6 Issolvi l-problemi

6.1. No Picture Display on Android Phone

If the USB borescope does not show pictures after connecting to an Android phone:

1. Check whether the correct APP "Depstech-View" is downloaded on the Android phone.
2. Check whether the Android phone has OTG function and whether the function is turned on. If the endoscope failed to get access to capture the real-time image, it may be caused by the UVC protocol function of your Android phone being disabled. Please update the Android version or change the phone and try it again.
3. Unplug and plug again. Connect the USB endoscope to an Android phone with the USB connector.
4. Aġġusta r-roller tad-dimming stepless u ċċekkja jekk id-dawl tal-lenti jixgħel/jidgħajx b'mod normali.
5. Oħroġ mill-APP, iftaħ mill-ġdid l-APP, u mbagħad qabbad mal-prodott.
6. Plug and unplug the product several times to see if the product can produce pictures and making sure the port is connected normally to see if it can be used normally.

6.2. No Picture Display on Windows/Mac OS

If the USB borescope does not show pictures after connecting to a Windows User/MAC OS:

1. Check the correct APP for download: Windows User - APP "Depstech-View" or "Camera". MAC OS User - App "PhotoBooth".
2. Iċċekkja jekk l-adapter tal-USB huwiex imqabbad sew u ipprova erġa' waħħalha fuq in-naħa l-oħra tal-adapter.
3. Aġġusta r-roller tad-dimming stepless u ċċekkja jekk id-dawl tal-lenti jixgħel/jidgħajx b'mod normali.
4. Qabbad il-borescope USB mal-Windows User/MAC OS biex tara jekk l-immaġni tistax tiġi ġġenerata.

6.3. LED Light Not Lighting Up

Jekk id-dawl LED ma jixgħelx, dan ifisser li l-prodott ġie skonnettjat. Jekk jogħġbok erġa' waħħalha biex tara jekk huwiex normali.

6.4. LED Light On, But Brightness Cannot Be Adjusted

If the LED light is on and the brightness can be adjusted, please exit the APP and reset the product.

7. Speċifikazzjonijiet

8. Appoġġ & Garanzija

For any questions or further assistance, please feel free to contact DEPSTECH's after-sales support via email: support@depstech.com.

DEPSTECH is committed to providing 24-hour worry-free professional service and a 100% satisfactory shopping experience.
