Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of your Jensen JWM1A AM|FM|AUX 2-Speaker (4 Speaker Output) Bluetooth Stereo. Please read this manual thoroughly before using the product to ensure proper operation and to prevent damage.
Karatteristiċi tal-Prodott
The Jensen JWM1A is a versatile wall-mount stereo designed for various applications, offering a range of audio playback options and control features.
- Mechless design (no CD/DVD player)
- Electronic AM/FM Tuner (US only)
- Bluetooth Ready with A2DP/AVRCP for streaming audio from any Bluetooth enabled device
- APP Ready: jControl downloadable app controls the functions of your stereo
- Front Auxiliary Audio Input (3.5mm Jack)
- 20 programmable station presets (18FM, 12AM)
- Auto-store/preset scan
- Two-zone audio selectable via A/B switch (4 speaker output, 2 zones)
- 10 level user selectable dimming display
- Kontrolli u Wiri backlit
- 12V DC qawwa
- Two-wire power system
- Alarm clock and sleep timer
Figure 1: List of key product features for the Jensen JWM1A stereo.
Kontrolli u Funzjonijiet
Familiarize yourself with the front panel controls of your JWM1A stereo.
Figura 2: Panew ta 'quddiem view of the Jensen JWM1A stereo, showing all buttons and the display.
- POWER / BAND Button: Press to turn the unit ON/OFF. Press to select between AM and FM bands.
- AUX IN: Jack ta' 3.5mm għall-konnessjoni ta' apparati awdjo esterni.
- SPKR A / SPKR B Buttons: Press to enable or disable speaker zones A and B.
- MODE / MENU Button: Press to cycle through available audio sources (AM, FM, AUX, Bluetooth). Press and hold for menu options.
- MUTE / LOUD Button: Press to mute/unmute audio. Press and hold to activate/deactivate loudness compensation.
- A.P.S / T/F Buttons: Auto Preset Store / Tune/Folder Up/Down.
- Track Skip / Seek Buttons (◀◀ / ▶▶): Skip tracks in Bluetooth/AUX mode, seek stations in AM/FM mode.
- Play/Pause (▶||) Button: Play or pause audio in Bluetooth/AUX mode.
- Volume Up/Down (VOL +/-) Buttons: Aġġusta l-livell tal-volum ewlieni.
- Buttuni Predefiniti (1-6): Aħżen u sejjaħ lura l-presets tal-istazzjonijiet tar-radju.
- Buttuna Bluetooth: Jibda l-modalità ta' tqabbil Bluetooth.
Setup u Installazzjoni
Proper installation is crucial for the performance and longevity of your JWM1A stereo. It operates on a 12V DC power system.
Konsiderazzjonijiet ta 'Immuntar
Ensure the mounting location provides adequate space for the unit and its wiring, and is protected from direct water exposure. Refer to the dimensions below for precise cutout requirements.

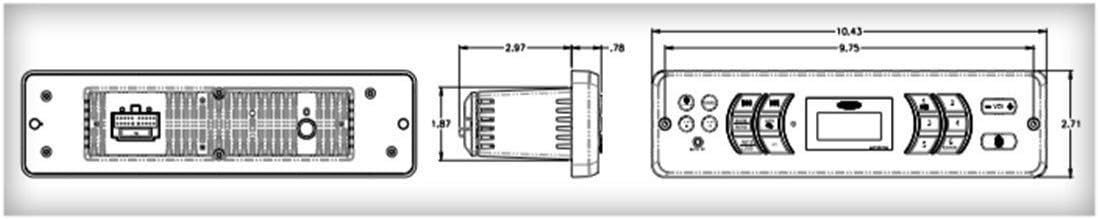

Figure 3: Detailed dimensions of the Jensen JWM1A stereo for installation planning.
- Dimensjonijiet tal-qtugħ: Approximately 7.2"W x 1.92"H x 9.75"D
- Dimensjonijiet ġenerali: Approximately 10.43"W x 2.75"H x 3.5"D
Wiring
The JWM1A uses a two-wire power system. Connect the red wire to a switched 12V DC power source and the black wire to ground. Ensure all connections are secure and properly insulated to prevent short circuits.
Istruzzjonijiet Operattivi
Qawwa mixgħul/mitfi
Agħfas il- QAWWA buttuna biex tixgħel jew titfi l-unità.
Għażla tas-Sors
Agħfas il- MODALITÀ button repeatedly to cycle through available audio sources: AM, FM, AUX, and Bluetooth.
Operazzjoni tar-Radju AM/FM
- Għażla tal-Banda: Agħfas il- BANDA buttuna biex taqleb bejn il-frekwenzi AM u FM.
- Irfinar Manwali: Agħfas il- ◀◀ or ▶▶ buttons briefly to tune the frequency step by step.
- Fittex l-Irfinar: Agħfas u żomm il- ◀◀ or ▶▶ buttuni biex tfittex awtomatikament l-istazzjon qawwi li jmiss.
- Ħażna ta 'Presets: Tune to your desired station. Press and hold one of the preset buttons (1-6) until the display confirms the station is stored.
- Filwaqt li jfakkru l-Presets: Briefly press a preset button (1-6) to recall a stored station.
- Auto Store (A.P.S): Agħfas u żomm il- A.P.S buttuna biex tiskennja awtomatikament u taħżen l-istazzjonijiet l-aktar b'saħħithom fil-presets.
Operazzjoni Bluetooth
- Tqabbil: Select Bluetooth mode. On your Bluetooth device, search for "JWM1A" and connect. If prompted for a password, enter "0000".
- Awdjo Streaming: Once paired, you can stream audio from your device to the JWM1A. Use the ▶||, ◀◀, u ▶▶ buttuni biex jikkontrollaw daqq.
Auxiliary Input (AUX-In)
Connect an external audio device (e.g., MP3 player, smartphone) to the 3.5mm AUX IN jack on the front panel. Select AUX mode using the MODALITÀ button. Audio will play through the stereo speakers.
App Control (jControl)
Download the jControl app to your smartphone or tablet. This app allows you to control various functions of your JWM1A stereo remotely, including source selection, volume, and tuning.
Speaker Zone Control
Uża l- SPKR A u SPKR B buttons to independently enable or disable the two speaker output zones.
Display Dimming
The display brightness can be adjusted to 10 different levels for optimal viewing in various lighting conditions. Refer to the full manual for specific steps to access and adjust the dimming settings via the MENU button.
Manutenzjoni
To ensure long-lasting performance of your Jensen JWM1A stereo, follow these simple maintenance guidelines:
- Tindif: Use a soft, dry cloth to clean the front panel. For stubborn dirt, dampen the cloth lightly with water. Do not use harsh chemicals or abrasive cleaners.
- Konnessjonijiet: Iċċekkja l-konnessjonijiet tal-wajers kollha perjodikament biex tiżgura li huma sikuri u ħielsa mill-korrużjoni.
- Ambjent: Evita li tesponi l-unità għal temperaturi estremi, dawl tax-xemx dirett għal perjodi twal, jew umdità eċċessiva.
Issolvi l-problemi
If you encounter issues with your JWM1A stereo, refer to the following common problems and solutions:
- Ebda Qawwa:
- Check the vehicle's fuse box for blown fuses.
- Ensure the power and ground wires are securely connected.
- Iċċekkja li l-batterija tal-vettura għandha biżżejjed ċarġ.
- Ebda Ħsejjes:
- Check if the unit is muted (press the MUTE buttuna).
- Żid il-livell tal-volum.
- Kun żgur li l-wajers tal-ispiker huma konnessi sew u mhux f'xort.
- Verify that speaker zones A and B are enabled using the SPKR A / SPKR B buttuni.
- If using AUX-In, ensure the external device's volume is up and the cable is fully inserted.
- Kwistjonijiet ta' Tqabbil tal-Bluetooth:
- Ensure Bluetooth is enabled on your device and the JWM1A is in Bluetooth mode.
- Delete "JWM1A" from your device's paired list and try pairing again.
- Mexxi l-apparat tiegħek eqreb lejn l-istereo.
- Restart both the stereo and your Bluetooth device.
- Riċeviment tar-Radju Fqir:
- Iċċekkja l-konnessjoni tal-antenna.
- Try a different location if possible, as environmental factors can affect reception.
If problems persist after attempting these solutions, please contact Jensen customer support.
Speċifikazzjonijiet
Below are the technical specifications for the Jensen JWM1A stereo:
Figure 4: Detailed technical specifications for the Jensen JWM1A stereo.
| Kategorija | Speċifikazzjoni |
|---|---|
| Sistema tal-Enerġija | 12V DC (2-wire) |
| Vol Operattivtage Firxa | 10V sa 16V |
| Current Draw @ 12V (Quiescent) | 0 A |
| Current Draw @ 12V (Standby) | 20 mA |
| Current Draw @ 12V (Nominal) | 1 A |
| Current Draw @ 12V (Maximum) | 3 A |
| Firxa tat-Temperatura Operattiva | -4°F sa 149°F (-20°C sa 65°C) |
| Firxa tat-Temperatura tal-Ħażna | -22°F sa 158°F (-30°C sa 70°C) |
| Umdità Relattiva Massima | 95% |
| Dimensjonijiet ġenerali (W x H x D) | 10.43" x 2.75" x 3.5" |
| Piż tal-Prodott (mhux ippakkjat) | 1.0 lb (0.45 kg) |
| Sensittività FM | 5µV |
| Sensittività AM | 17µV |
| Qawwa massima tal-Ħruġ | 4 x 6 Watts Total |
| Distorsjoni Armonika Totali | 1% |
| Applied Test Suite | ASA ES0001 |
| Ċertifikazzjoni Regolatorja | FCC Parti 15B |
Garanzija u Appoġġ
For warranty information and technical support, please refer to the documentation included with your purchase or visit the official Jensen website. ASA Electronics is the manufacturer of this product.
For further assistance, you may contact Jensen customer service directly. Please have your model number (JWM1A) and purchase details ready when contacting support.
