Manwal tal-Utent tal-Fann tas-Saqaf tal-Gvernatur MARTEC MGF153OT

1. Introduzzjoni

Grazzi tax-xiriasing the MARTEC MGF153OT Governor Ceiling Fan. This manual provides important information regarding the installation, operation, and maintenance of your new ceiling fan. Please read this manual thoroughly before installation and keep it for future reference.

The Governor ceiling fan is designed for optimal airflow performance in large spaces, featuring a powerful 70W AC motor and aerodynamic, computer-balanced ABS blades. Its robust design makes it suitable for both indoor and covered outdoor use.

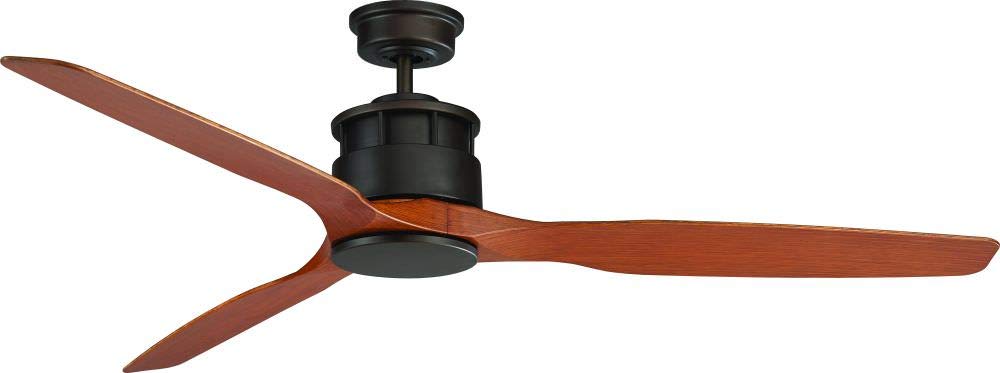

Image 1.1: The MARTEC MGF153OT Governor Ceiling Fan with its aged bronze motor housing and wood-colored ABS blades.

2. Istruzzjonijiet tas-Sigurtà

Always follow basic safety precautions when installing, operating, or maintaining electrical appliances to reduce the risk of fire, electric shock, or personal injury.

• Aqra l-istruzzjonijiet kollha: Before beginning installation, read all instructions and safety information.
• Sigurtà Elettrika: All electrical work must be performed by a qualified and licensed electrician. Disconnect power at the main circuit breaker before installation or servicing.
• Immuntar: Ensure the mounting structure is capable of supporting the fan's weight (approximately 2.5 kg) and the dynamic load of the fan in operation.
• Spazju tax-Xafra: Ensure there is adequate clearance from walls, furniture, and other objects for the blades to rotate freely.
• Post tal-fann: Do not install the fan in a location where it can be easily reached by people or pets.
• Use only as intended: This fan is designed for air circulation. Do not use it for any other purpose.
• Tindif: Always disconnect power before cleaning the fan. Use a soft, damp drapp; qatt tużax prodotti tat-tindif li joborxu.

3. Kontenut tal-Pakkett

Carefully unpack your ceiling fan and ensure all items are present and undamaged. If any items are missing or damaged, contact your retailer immediately.

• Ceiling Fan Motor Housing (Aged Bronze)
• 3 x ABS Blades (Wood-colored)
• Bracket u Hardware tal-Immuntar
• Kontroll mill-bogħod
• Kontrollur tal-Immonta tal-Ħajt
• Manwal għall-Utent (dan id-dokument)

4. Setup u Installazzjoni

Professional installation by a qualified electrician is highly recommended for safety and optimal performance.

4.1. Kontroll ta' Qabel l-Installazzjoni

• Ensure the power supply is disconnected at the circuit breaker.
• Verify that the ceiling joist or support structure can hold the fan's weight.
• Confirm that the installation location allows for a minimum of 2.3 meters (7.5 feet) clearance from the floor to the fan blades.

4.2. Immuntar tal-Fann

1. Attach the mounting bracket securely to the ceiling junction box or support structure using appropriate hardware.
2. Carefully lift the fan motor housing and hang it from the mounting bracket.
3. Connect the electrical wiring according to local electrical codes and the wiring diagram provided in the fan's packaging. Ensure all connections are secure.

4.3. Attaching the Blades

1. Attach each of the three ABS blades to the motor housing using the provided screws. Ensure they are firmly secured.
2. Double-check all connections and ensure no wires are pinched.

Image 4.1: Diagram illustrating the dimensions of the MARTEC MGF153OT Governor Ceiling Fan for installation planning.

5. Istruzzjonijiet Operattivi

Your MARTEC MGF153OT Governor Ceiling Fan can be operated using the included remote control or the wall mount controller.

5.1. Operazzjoni ta 'Kontroll mill-Bogħod

Image 5.1: The remote control for the MARTEC MGF153OT Governor Ceiling Fan.

• Power On/Off: Agħfas il-buttuna tal-qawwa biex tixgħel jew titfi l-fann.
• Kontroll tal-veloċità: Use the speed buttons to cycle through the 3 available fan speeds (Low, Medium, High).
• Modalità Sajf/Xitwa: Locate the reverse switch on the fan motor housing (or a dedicated button on the remote if available). In summer, blades rotate counter-clockwise to create a downdraft. In winter, blades rotate clockwise at a lower speed to circulate warm air.

5.2. Wall Mount Controller Operation

The included wall mount controller provides an alternative method to control the fan's speed. Refer to the controller's specific instructions for wiring and operation.

6. Manutenzjoni

Manutenzjoni regolari tiżgura l-lonġevità u l-prestazzjoni ottimali tal-fann tas-saqaf tiegħek.

• Tindif: Periodically clean the fan blades and motor housing with a soft, lint-free cloth. Do not use water directly on the fan or harsh chemicals. Ensure power is off before cleaning.
• Issikka l-Qfieli: Over time, screws and fasteners may loosen. Annually check and tighten all screws on the fan blades and mounting hardware.
• Bilanċ tax-Xafra: If the fan wobbles, check that all blades are securely attached and that their weights are balanced. Balancing kits can be purchased if necessary.

7 Issolvi l-problemi

If you experience issues with your fan, consult the following common problems and solutions:

If the problem persists after attempting these solutions, please contact a qualified electrician or your retailer for assistance.

8. Speċifikazzjonijiet

Detailed technical specifications for the MARTEC MGF153OT Governor Ceiling Fan:

9. Informazzjoni dwar Garanzija

For information regarding the warranty of your MARTEC MGF153OT Governor Ceiling Fan, please refer to the warranty card included with your purchase or contact your original retailer. Warranty terms and conditions may vary by region and retailer.

10. Appoġġ

If you require further assistance or have questions not covered in this manual, please contact MARTEC customer support or your authorized retailer. When contacting support, please have your model number (MGF153OT) and purchase details ready.
