Introduzzjoni
Welcome to the user manual for your MSPA LITE Inflatable Spa. This manual provides essential information for the safe and efficient operation, setup, and maintenance of your spa. Please read it thoroughly before initial use and keep it for future reference.
Figure 1: MSPA LITE Inflatable Spa (Round, 6-person)
Informazzjoni dwar is-Sigurtà
Always follow basic safety precautions when installing and using this electrical appliance. Failure to do so may result in serious injury or death.
- Do not operate the spa if the power cord is damaged.
- Kun żgur li l-spa titqiegħed fuq wiċċ ċatt u stabbli.
- Keep children under supervision around the spa.
- Tużax apparati elettriku ħdejn l-spa.
- Consult a physician before use if you have health concerns.
Gwida ta' Setup
1. L-Għażla tas-Sit
Choose a suitable location for your spa. The surface must be flat, smooth, and capable of supporting the weight of the filled spa (approx. 930 kg + occupants). Ensure adequate drainage and proximity to a grounded power outlet.
Figure 2: Ideal outdoor placement for the MSPA LITE Spa.
2. Inflazzjoni
Unfold the spa liner and lay it flat. Connect the inflation hose to the spa's air valve and the control unit's inflation port. Turn on the inflation function. Inflate until the spa walls are firm but not rigid. Do not over-inflate.
Figure 3: Manual pump for inflation (if applicable, otherwise use integrated pump).
3. Imla l-Spa
Once inflated, fill the spa with fresh water using a garden hose. Fill to the minimum water line indicated on the spa wall. Do not exceed the maximum fill line.
Figure 4: Detail showing the minimum water line and filter location.
4. Initial Heating
Connect the control unit to a grounded power outlet. Use the control panel or remote to set the desired water temperature. Heating may take several hours (e.g., 12-24 hours) depending on ambient temperature and desired heat level. The system performs a startup test to ensure safety.
Istruzzjonijiet Operattivi
Funzjonijiet ta 'Kontroll mill-bogħod
The MSPA LITE spa is operated via a user-friendly remote control. This remote allows you to manage temperature, activate bubble jets, and provides filter change reminders. It also includes a child safety lock.
Figure 5: MSPA LITE Remote Control/Control Panel.
- Buttuna tal-Heater: Jattiva jew jiddiżattiva l-funzjoni tat-tisħin.
- Buttuna tal-bużżieqa: Turns the 138 air jets on or off. Note that the bubble function may automatically turn off after 10-20 minutes to prevent overheating of the pump. Allow a short cool-down period before reactivating.
- Buttuna tal-Filtru: Indicates when the filter needs changing.
- Buttuna tat-Tajmer: For setting heating schedules.
- Vleġeġ 'il fuq/'l isfel: Adjusts the desired water temperature.
- Sigurtà tat-Tfal: Refer to the remote control's specific instructions for activating and deactivating the child safety lock.
Figure 6: Active bubble jets providing a relaxing massage.
Manutenzjoni
Trattament tal-Ilma
Maintaining proper water chemistry is crucial for hygiene and spa longevity. Use appropriate spa chemicals, such as bromine, to keep the water clean and balanced. Regularly test water parameters (pH, alkalinity, sanitizer levels) and adjust as needed.
Sostituzzjoni tal-Iskartoċċ tal-Filtru
The remote control will indicate when the filter needs changing. Regularly clean and replace the filter cartridge to ensure optimal filtration and water quality. Refer to Figure 4 for the filter location.
Tindif u Ħażna
When not in use, especially for extended periods, cover the spa with the provided cover. The cover features clips for secure fastening (see Figure 7). For long-term storage, drain the spa completely, clean the interior, and ensure it is thoroughly dry before deflating and packing. Store in a cool, dry place.
Figure 7: MSPA LITE Spa with protective cover installed.
Figure 8: Spa packed for storage.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Spa deflates | Small leak, valve not sealed, over-inflation. | Check for punctures, ensure valves are tightly closed. Avoid over-inflation. |
| Ilma mhux tisħin | Heater not activated, low water level, ambient temperature too low. | Ensure heater is on. Check water level. Heating takes time, especially in cold weather. |
| Bubble function stops | Automatic shut-off for pump protection. | Wait a few minutes for the pump to cool down before reactivating. |
| Control panel/remote not responding | Power issue, remote battery low, child safety lock active. | Check power connection. Replace remote batteries. Deactivate child safety lock. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Isem tal-Mudell | Tekapo 6 places |
| Referenza tal-Prodott | LR06-NA |
| Kapaċità | 6 persuni |
| Kapaċità tal-Ilma | 930 Litru |
| Dimensions (External) | Ø 204cm x H 70cm (80.3in x 27.6in) |
| Dimensions (Internal) | Ø 160cm (63in) |
| Materjal | 6-layer reinforced PVC |
| Number of Air Jets | 138 |
| Voltage | 220 Volts |
| Piż (vojta) | 25 Kilogrammi |

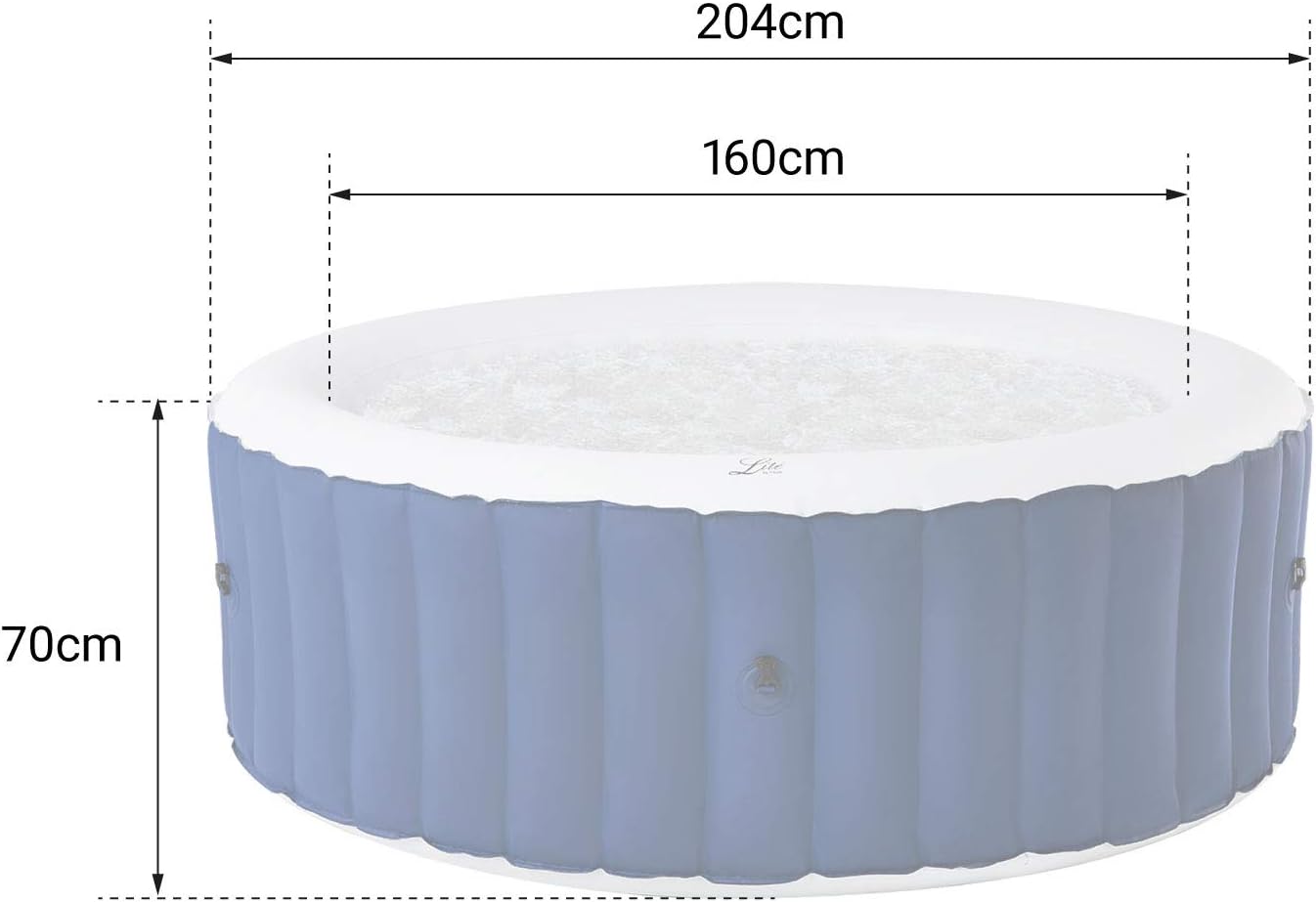

Figure 9: MSPA LITE Spa Dimensions.
Garanzija u Appoġġ
This MSPA LITE Inflatable Spa comes with a garanzija ta 'senaJekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
For technical support, spare parts, or warranty inquiries, please contact Happy Garden customer service. Contact information can typically be found on the product packaging or the Happy Garden official websit.
Online resources such as setup and maintenance tutorials may also be available on video platforms (e.g., YouTube) by searching for "MSPA LITE setup" or "Happy Garden spa maintenance".
