1. Introduzzjoni
This manual provides detailed instructions for the setup, operation, and maintenance of your 8Bitdo N30 2.4G Wireless Gamepad. This controller is designed to offer a wireless gaming experience for your Original Nintendo Entertainment System (NES) console, combining classic design with modern 2.4G wireless technology.
Il-karatteristiċi ewlenin jinkludu:
- 2.4G wireless connectivity for your original NES system.
- Integrated Turbo function via dedicated Turbo A and Turbo B buttons.
- A Home button for convenient access to the Analogue NT Mini home menu.
- Lag-free performance for an authentic gaming experience.
- Rechargeable built-in Lithium-Ion battery.
- Nota: Bluetooth connection is not supported by this device.
2. Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:
- 8Bitdo N30 2.4G Controller
- 8Bitdo 2.4G Wireless Receiver
- Cable tal-Iċċarġjar tal-USB
- Manwal ta 'Istruzzjoni (dan id-dokument)
Figura 1: Contents of the 8Bitdo N30 2.4G Wireless Gamepad package.
3. Prodott Aktarview
The 8Bitdo N30 2.4G Wireless Gamepad is designed to replicate the feel of the original NES controller while providing modern wireless convenience.
Figura 2: The 8Bitdo N30 2.4G Wireless Gamepad, designed to resemble the classic NES controller, shown alongside its dedicated 2.4G wireless receiver.

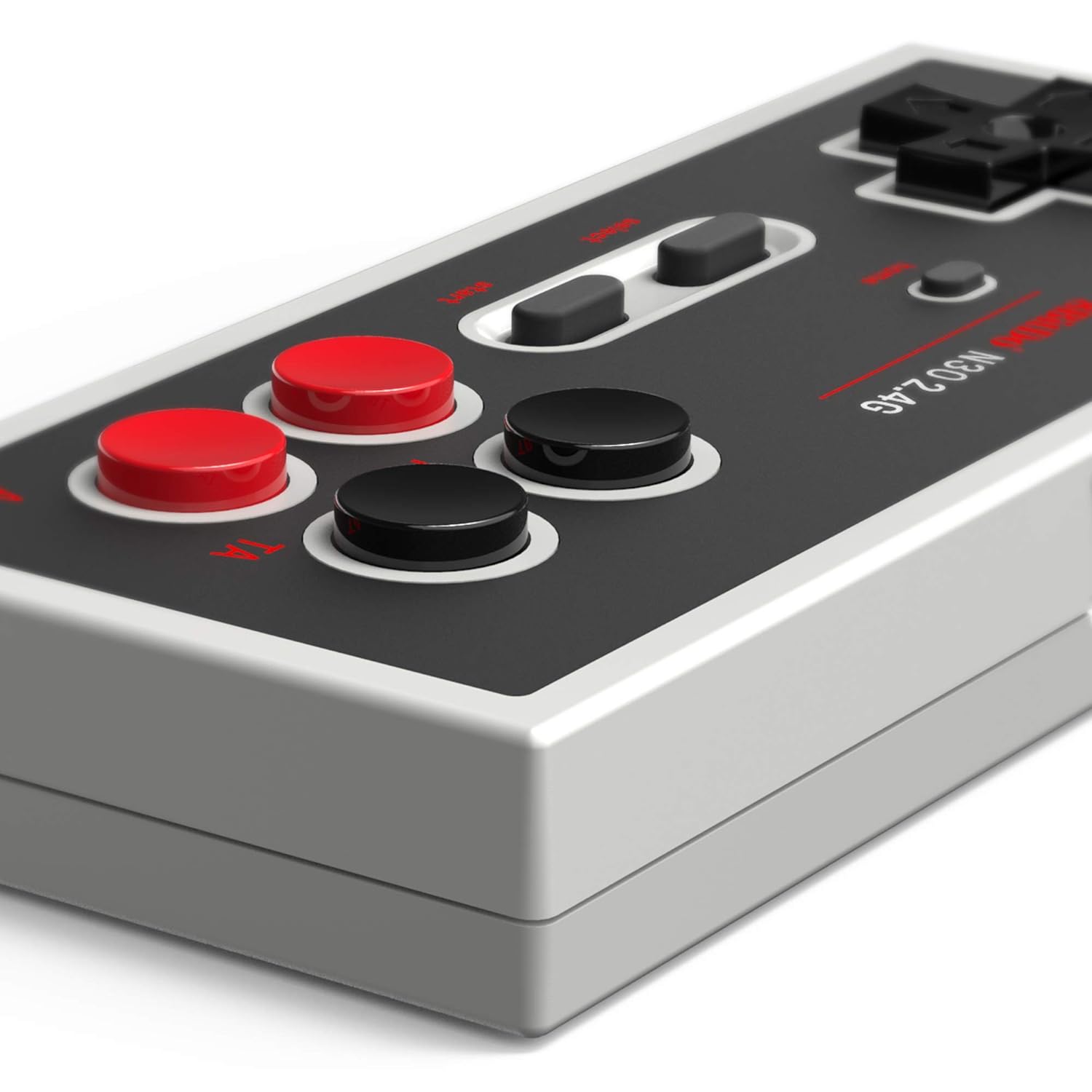

Figura 3: A dettaljata view of the controller's face, highlighting the D-pad, A, B, Turbo A, Turbo B, Select, Start, and Home buttons.
Figura 4: The side of the controller, featuring the USB-C charging port for convenient power replenishment.
Figura 5: A detailed image of the compact 2.4G wireless receiver, which plugs into the NES console.
4. Istruzzjonijiet ta' Setup
- Iċċarġja l-Kontrollur: Before first use, connect the 8Bitdo N30 2.4G Wireless Gamepad to a USB power source using the provided USB charging cable. The LED indicator on the controller will show charging status. A full charge typically takes 1-2 hours.
- Qabbad ir-Riċevitur: Insert the 8Bitdo 2.4G Wireless Receiver into a controller port on your Original NES console. Ensure it is firmly seated.
- Power On the Console: Turn on your NES console.
- Power On the Controller: Press the Start button on the 8Bitdo N30 controller to power it on. The controller and receiver should automatically pair. The LED on both devices will indicate a successful connection (e.g., solid light).
- Begin Gaming: Once connected, you can start playing your NES games wirelessly.
Figura 6: The 8Bitdo N30 2.4G Wireless Gamepads connected to an Original NES console via their receivers.
5. Istruzzjonijiet Operattivi
5.1 Kontrolli Bażiċi
The controller features the standard NES button layout:
- D-Pad: For directional movement.
- Buttuna: Buttuna ta' azzjoni primarja.
- Buttuna B: Buttuna ta' azzjoni sekondarja.
- Buttuna tal-Ibda: Pauses games or confirms selections.
- Agħżel Buttuna: Changes game options or selections.
- Buttuna tad-dar: Specifically designed to access the Analogue NT Mini home menu wirelessly.
5.2 Funzjoni Turbo
The N30 2.4G Gamepad includes dedicated Turbo A (TA) and Turbo B (TB) buttons for rapid-fire input. Press and hold the respective Turbo button along with the A or B button to activate the turbo function.
5.3 Ġestjoni tal-Enerġija
- Modalità Sleep Awtomatika: The controller will enter sleep mode after 1 minute if no connection is detected, or after 15 minutes of inactivity while connected.
- Qum: Press any button to wake the controller from sleep mode.
- Itfi: To manually power off the controller, hold the Start button for 3 seconds.
6. Kompatibilità
The 8Bitdo N30 2.4G Wireless Gamepad is compatible with the following systems:
- Original NES (Nintendo Entertainment System)
- Famicom (Model HVC-101)
- Analogue Nt / Nt Mini
7. Speċifikazzjonijiet
| Mudell | Gamepad bla fili N30 2.4G |
| Konnettività | 2.4G Wireless Technology (Bluetooth not applicable) |
| Tip ta 'batterija | 180mAh Li-on battery, rechargeable |
| Ħajja tal-batterija | 18-20 hours of play on a full charge |
| Ħin tal-Iċċarġjar | 1-2 sigħat |
| Dimensjonijiet (Kontrollur) | 123.8 x 53.5 x 19.7 mm |
| Piż (Kontrollur) | 72.5 g |
| Manifattur | 8Bitdo |
| Numru tal-Mudell tal-Oġġett | 6922621501220 |
8 Issolvi l-problemi
- Il-kontrollur mhux qed jikkonnettja:
- Ensure the 2.4G receiver is securely plugged into the NES console.
- Verify the controller is charged. Connect it to a USB power source to charge.
- Power off and on both the NES console and the controller to re-establish connection.
- Lag tad-dħul:
- The 8Bitdo N30 2.4G is designed for lag-free performance. Ensure there are no significant obstructions between the controller and the receiver.
- Minimize interference from other 2.4G wireless devices in the vicinity.
- For optimal performance with older consoles, playing on a CRT television can further reduce display-related lag.
- Battery not holding charge / short battery life:
- Ensure the USB charging cable is properly connected to both the controller and a working USB power source.
- Ħalli 1-2-il siegħa għal ħlas sħiħ.
- If battery life significantly degrades over time, contact customer support.
9. Garanzija u Appoġġ
For warranty information, technical support, or further assistance, please visit the official 8Bitdo webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom. Żomm il-prova tax-xiri tiegħek għal talbiet ta’ garanzija.
8Bitdo Uffiċjali Websit: www.8bitdo.com
