1. Introduzzjoni
Thank you for choosing the RYOBI RJS1050-KA5 Pendulum Jigsaw. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your tool. Please read these instructions carefully before use and keep them for future reference.
2. Istruzzjonijiet Ġenerali dwar is-Sigurtà
Always follow basic safety precautions when using electric tools to reduce the risk of fire, electric shock, and personal injury. Keep this manual handy for quick reference.
Sigurtà taż-Żona tax-Xogħol
- Żomm iż-żona tax-xogħol nadifa u mdawwal sew. Żoni imbarazz jew mudlama jistiednu inċidenti.
- Tħaddimx għodod elettriċi f'atmosferi splussivi, bħal fil-preżenza ta' likwidi, gassijiet jew trab li jaqbdu. Għodod tal-enerġija joħolqu xrar li jistgħu jaqbdu t-trab jew dħaħen.
- Żomm lit-tfal u lil dawk li jkunu fil-qrib 'il bogħod waqt li tħaddem għodda tal-enerġija. Distrazzjonijiet jistgħu jikkawżaw inti titlef il-kontroll.
Sigurtà Elettrika
- Il-plaggs tal-għodda tal-enerġija għandhom jaqblu mal-iżbokk. Qatt mmodifika l-plagg bl-ebda mod.
- Evita l-kuntatt tal-ġisem ma 'uċuħ ertjati jew ertjati bħal pajpijiet, radjaturi, firxiet, u refriġeraturi. Hemm riskju akbar ta 'xokk elettriku jekk ġismek ikun ertjat jew ertjat.
- Tesponix l-għodod elettriċi għax-xita jew kundizzjonijiet imxarrba. L-ilma li jidħol f'għodda tal-enerġija jżid ir-riskju ta 'xokk elettriku.
- Tabbużax mill-korda. Qatt tuża l-korda biex iġorr, tiġbed jew tneħħi l-plagg tal-għodda tal-enerġija. Żomm il-korda 'l bogħod mis-sħana, żejt, truf li jaqtgħu, jew partijiet li jiċċaqilqu.
Sigurtà Personali
- Dejjem ilbes protezzjoni għall-għajnejn. Uża nuċċalijiet tas-sigurtà, gogils protettivi, jew viżiera.
- Ilbes sew. Tilbesx ħwejjeġ maħlula jew dehbijiet. Żomm ix-xagħar u l-ilbies tiegħek 'il bogħod minn partijiet li jiċċaqilqu.
- Oqgħod attent, oqgħod attent x'qed tagħmel, u uża s-sens komun meta tħaddem għodda tal-enerġija.
- Use safety equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection when appropriate.
Użu u Kura tal-Għodda tal-Enerġija
- Tisforzax l-għodda tal-enerġija. Uża l-għodda tal-enerġija korretta għall-applikazzjoni tiegħek.
- Skonnettja l-plagg mis-sors tal-enerġija qabel ma tagħmel xi aġġustamenti, tbiddel l-aċċessorji, jew taħżen għodda tal-enerġija.
- Aħżen l-għodda tal-enerġija inattivi fejn ma tintlaħaqx mit-tfal u tħallix persuni li mhumiex familjari mal-għodda tal-enerġija jew dawn l-istruzzjonijiet biex joperaw l-għodda tal-enerġija.
- Żomm power tools. Iċċekkja jekk hemmx allinjament ħażin jew twaħħil ta 'partijiet li jiċċaqalqu, ksur ta' partijiet, u kwalunkwe kundizzjoni oħra li tista 'taffettwa l-operazzjoni tal-għodda tal-enerġija.
- Uża clamps jew mod prattiku ieħor biex tassigura u tappoġġja l-biċċa tax-xogħol għal pjattaforma stabbli. Li żżomm ix-xogħol bl-idejn jew kontra ġismek hija instabbli u tista 'twassal għal telf ta' kontroll.
3. Prodott Aktarview
The RYOBI RJS1050-KA5 is a powerful 680W pendulum jigsaw designed for various cutting tasks in wood and metal. It features a 105mm cutting capacity in wood and a variable speed control for optimal performance across different materials.
Immaġni: Quddiem view of the RYOBI RJS1050-KA5 Pendulum Jigsaw, showcasing its ergonomic design and blade area.
Karatteristiċi Ewlenin
- Kontroll tal-Veloċità Varjabbli: Centrally located for adjustable speed up to 3000 strokes per minute, adapting to different cutting requirements.
- Flat Front Housing and Integrated Blower: Ensures maximum visibility of the cutting line at all times.
- Azzjoni tal-Pendlu bi 4 Pożizzjonijiet: Adjusts blade oscillation based on material and cut type for faster cutting or finer finishes.
- SURELOCK Tool-Free Blade Change: Quick and easy blade replacement with a visual locking indicator for secure operation.
- STRAIGHTFIN Divider Knife: Retractable cutting guide for improved tracking of the cutting line.
- Illuminazzjoni LED: Enhances visibility of the workpiece.
- GripZone Micro-Dimpled Handle: Provides a firm and comfortable grip.
- Cable Retaining Clip: Prevents accidental cable cuts.
- Trigger with Lock Button: Reduces fatigue during extended use.
- Base Plate Tilt: Adjustable from 0° to 45° for bevel cuts.
- PROSTROKE Blade Support System: Minimizes vibrations for better control, comfort, and performance.
4. Setup
4.1 Blade Installation (SURELOCK System)
- Kun żgur li l-jigsaw huwa skonnettjat mis-sors tal-enerġija.
- Locate the SURELOCK blade clamp lever at the front of the tool.
- Imbotta l-lieva biex tiftaħ il-klaċċ tax-xafraamp.
- Insert the shank of the jigsaw blade fully into the clamp opening with the teeth facing forward.
- Release the lever. The visual indicator should show that the blade is securely locked. Gently pull on the blade to confirm it is firmly seated.
- To remove, repeat steps 2 and 3, then pull the blade out.
Image: Close-up of the RYOBI RJS1050-KA5 Jigsaw's front, showing the blade area and base plate.
4.2 Base Plate Adjustment (Bevel Cuts)
- Spluggja l-għodda.
- Loosen the screws or lever that secure the base plate to the main body of the jigsaw.
- Tilt the base plate to the desired angle (0° to 45°). Use the angle scale for accuracy.
- Tighten the screws or lever firmly to secure the base plate in position.
4.3 Estrazzjoni tat-Trab
Attach the provided aspiration nozzle to the dust port on the jigsaw. Connect a suitable vacuum cleaner to the nozzle for effective dust removal during operation, ensuring a cleaner work area and better visibility.
5. Istruzzjonijiet Operattivi
5.1 Tixgħel/Jitfi
- To start the jigsaw, press the trigger switch.
- Għal tħaddim kontinwu, agħfas il-buttuna tal-illokkjar waqt li l-grillu jkun magħfus.
- To stop the tool, release the trigger. If locked on, press the trigger again to release the lock-on button.
5.2 Kontroll tal-Veloċità Varjabbli
The variable speed dial allows you to adjust the cutting speed from 0 to 3100 strokes per minute. Select a lower speed for harder materials like metal or for intricate cuts, and a higher speed for softer materials like wood or for faster, rougher cuts.
5.3 Aġġustament tal-Azzjoni tal-Pendlu
The 4-position pendulum action lever controls the orbital movement of the blade. Adjust this setting based on the material and desired cut quality:
- Pożizzjoni 0 (Mingħajr Pendulu): For fine, precise cuts in all materials, especially metal and plastics.
- Pożizzjonijiet 1-3 (Żiedaasing Pendulu): For faster cutting in wood and softer materials. Higher settings provide more aggressive cutting but may result in a rougher finish.
5.4 Tekniki tat-Tqattigħ
- Qatgħat Dritta: Guide the jigsaw along a marked line, keeping the base plate flat on the workpiece.
- Qatgħat tal-Kurva: Use a narrower blade and guide the tool slowly along the curve. Avoid forcing the blade.
- Qatgħat bil-Qabża: For internal cuts without a pilot hole, tilt the jigsaw forward so the front of the base plate rests on the workpiece. Start the tool, then slowly lower the blade into the material. Exercise extreme caution.

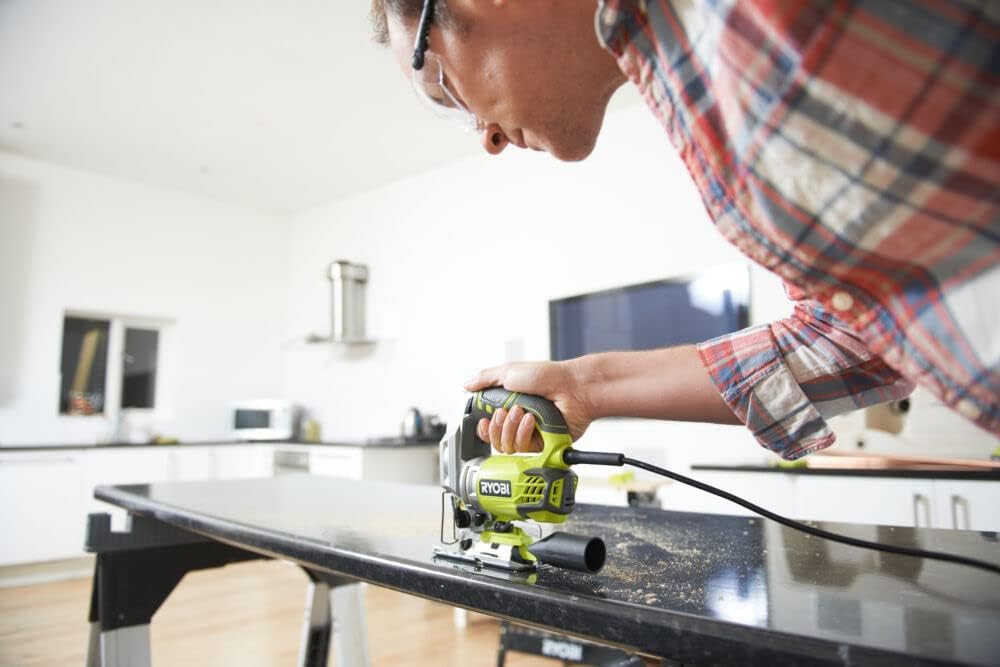

Image: A person demonstrating the use of the RYOBI jigsaw for a precise cut on a dark surface, highlighting the tool's maneuverability.
Image: A person wearing safety glasses operating the RYOBI jigsaw on a workbench, illustrating proper safety and cutting posture.
6. Manutenzjoni
Regular maintenance ensures the longevity and safe operation of your RYOBI jigsaw.
6.1 Tindif
- Dejjem aqla l-għodda qabel tnaddaf.
- Uża pinzell artab jew arja kkompressata biex tneħħi t-trab u l-fdalijiet mill-fetħiet tal-ventilazzjoni.
- Imsaħ il-kisi tal-għodda b'reklamaramp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.
- Ensure the blade clamp area is free of sawdust and debris for proper blade seating.
6.2 Kura tax-Xafra
- Always use sharp blades appropriate for the material being cut. Dull blades can cause overheating, poor cut quality, and increased strain on the tool.
- Inspect blades for damage or wear before each use. Replace damaged blades immediately.
6.3 Korda tal-Enerġija
Regularly inspect the power cord for any signs of damage. If the cord is damaged, have it replaced by a qualified service technician to avoid electrical hazards. Utilize the cable retaining clip to prevent accidental cuts to the cord.
7 Issolvi l-problemi
If you encounter issues with your jigsaw, refer to the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Għodda ma tibda | Ebda provvista ta 'enerġija Korda tad-dawl bil-ħsara Swiċċ difettuż | Iċċekkja s-sokit tal-enerġija u s-circuit breaker Spezzjona l-korda għal ħsara; ibdel jekk meħtieġ Ikkuntattja ċentru ta' servizz awtorizzat |
| Kwalità ħażina tat-tqattigħ / Tqattigħ bil-mod | Xafra matta jew mhux korretta Issettjar tal-veloċità mhux korrett Incorrect pendulum setting | Replace blade; ensure it's suitable for material Adjust speed dial for material Adjust pendulum action (lower for finer cuts) |
| Vibrazzjoni eċċessiva | Xafra maħlula Worn blade guide Xafra bil-ħsara | Kun żgur li x-xafra hija magħluqa sewamped Inspect and replace blade guide if worn Ibdel ix-xafra |
| Is-sħana żejda | Slots tal-ventilazzjoni mblukkati Forzament tal-għodda Xafra matt | Slots tal-ventilazzjoni nadif Reduce feed pressure Ibdel ix-xafra |
8. Speċifikazzjonijiet
Here are the technical specifications for the RYOBI RJS1050-KA5 Pendulum Jigsaw:
- Qawwa: 680 Watts
- Veloċità mingħajr tagħbija: 0-3100 puplesiji/min
- Tul tal-puplesija: 23 mm
- Cutting Capacity (Wood): 105 mm
- Cutting Capacity (Metal): 12 mm
- Base Plate Tilt: -45° sa 45°
- Piż: 2.2 Kilogrammi
- Sors tal-Enerġija: Corded Elettriku
- Karatteristika Speċjali: Lock tal-magħżel
- Komponenti Inklużi: 1 x Pendulum Jigsaw 680 W - 105mm - RJS1050-KA5, 1 x Case, 5 x Wood Blades, 1 x Hex Key, 1 x Aspiration Nozzle
9. Informazzjoni dwar Garanzija
RYOBI products are manufactured to high-quality standards and are backed by a manufacturer's warranty. Please refer to the warranty card included with your product or visit the official RYOBI websit għal termini u kundizzjonijiet dettaljati tal-garanzija speċifiċi għar-reġjun tiegħek. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
10. Appoġġ għall-Klijent
For further assistance, technical support, or spare parts, please contact RYOBI customer service or visit the official RYOBI websit:
- Websit: www.ryobi.eu (or your regional RYOBI websit)
- Refer to your product packaging for specific contact numbers or service centers in your country.
Image: The RYOBI brand logo, representing quality and innovation in power tools.
11. No Official Product Videos Available
At this time, there are no official product videos from the seller available for embedding in this manual.
