Manwal tal-Istruzzjonijiet tal-Kontrollur Wireless Xbox Elite Series 2

Introduzzjoni

This manual provides detailed instructions for the setup, operation, customization, and maintenance of your Xbox Elite Series 2 Wireless Controller. Designed for enhanced performance and adaptability, this controller offers a professional-grade gaming experience on Xbox One, Xbox Series X|S, and Windows 10 devices.

Kontenut tal-Pakkett

• Xbox Elite Series 2 Wireless Controller
• Set of 6 thumbsticks (2 standard, 2 classic, 1 tall, 1 wide dome)
• Set of 4 paddles (2 medium, 2 mini)
• 2 D-pads (standard, faceted)
• Thumbstick-adjustment tool
• Baċir tal-iċċarġjar
• Kejbil USB-C
• Kaxxa tal-ġarr

Setup

Iċċarġjar Inizjali

Before first use, fully charge your controller. The controller features a built-in rechargeable battery with up to 40 hours of battery life, depending on usage and accessory attachment.

• Użu tal-Baċir tal-Iċċarġjar: Place the controller on the charging dock. The dock can be placed inside the carrying case or used externally.
• Direct USB-C Connection: Connect the included USB-C cable directly to the controller and a power source (e.g., Xbox console, PC, or USB wall adapter).

The Xbox Elite Series 2 Wireless Controller can be charged using the included charging dock or directly via the USB-C cable.

Konnessjoni mat-Tagħmir Tiegħek

The Xbox Elite Series 2 controller supports multiple connection methods:

• Xbox bla fili: Press the Pair button on the controller and your Xbox console. The Xbox button on the controller will flash and then become solid when connected.
• Bluetooth: Hold the Pair button on the controller for 3 seconds to enter Bluetooth pairing mode. On your Windows 10 PC or other Bluetooth-enabled device, go to Bluetooth settings and select the controller to pair.
• Kejbil USB-C: Connect the controller directly to your Xbox console or PC using the included USB-C cable for a wired connection.

It-tħaddim tal-Kontrollur

Komponenti interkambjabbli

The Elite Series 2 controller features interchangeable components to adapt to your play style:

• Thumbsticks: Easily swap between different thumbstick shapes and heights (standard, classic, tall, wide dome) by pulling them off and snapping new ones into place.
• D-pads: Choose between the standard cross-shaped D-pad or the faceted D-pad for precise directional input.
• Paddles: Attach up to four paddles to the back of the controller. These paddles can be mapped to any button function, allowing for advanced inputs without removing your thumbs from the thumbsticks.

The controller's rear features four customizable paddles for additional input options.

A ċara view of the back of the controller, showing where the paddles attach and the trigger lock switches.

Hair Trigger Locks

Activate the hair trigger locks on the back of the controller to reduce trigger travel, allowing for faster firing in games. There are three settings for each trigger (RT and LT).

The trigger locks offer three distinct positions to adjust the trigger pull distance.

Personalizzazzjoni u Personalizzazzjoni

The Xbox Accessories App (available on Xbox consoles and Windows 10) provides extensive customization options for your Elite Series 2 controller:

• Immappjar tal-buttuni: Remap any button, including the paddles, to suit your preferences.
• Stick Sensitivity: Adjust the sensitivity curves of the thumbsticks for precise control.
• Trigger Dead Zones: Fine-tune the activation and deactivation points of the triggers.
• Kontroll tal-Vibrazzjoni: Adjust the intensity of the controller's vibration motors.
• Profile Ġestjoni: Oħloq u ssejvja diversi pro personalizzatifiles for different games or play styles. You can store up to three profiles directly on the controller and switch between them using the Profile buttuna.

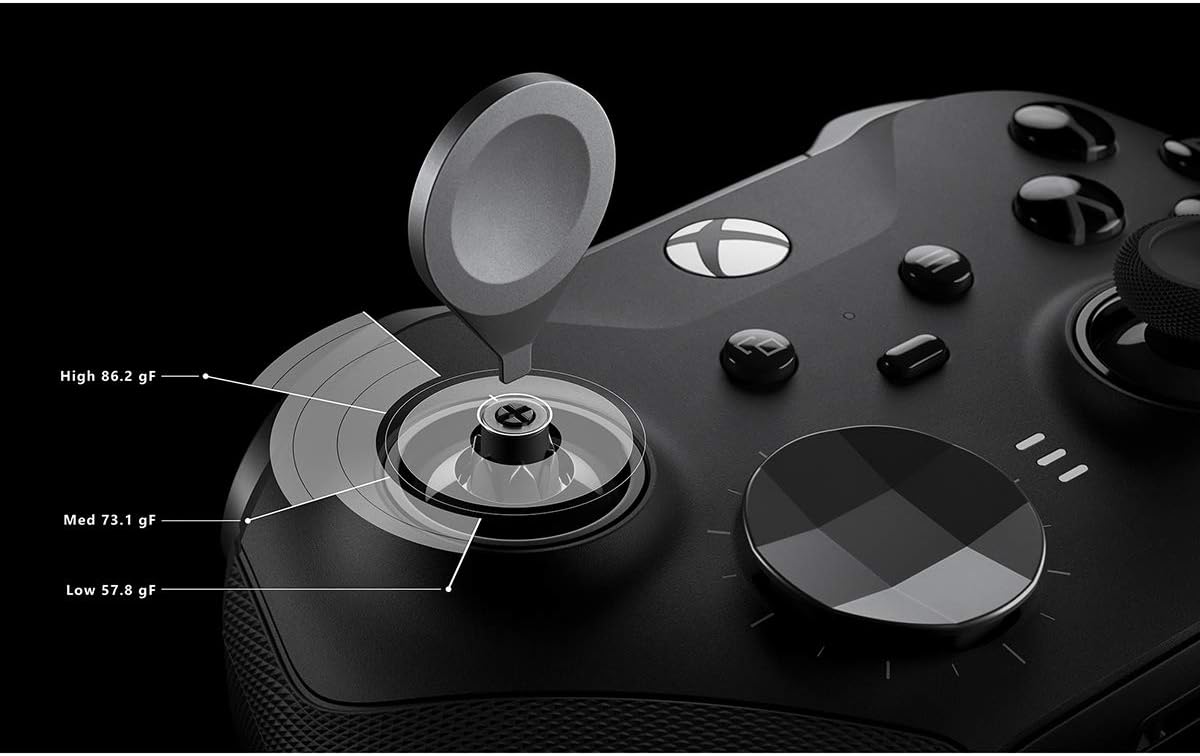

Thumbstick Tension Adjustment

Use the included thumbstick-adjustment tool to change the tension of each thumbstick. There are three tension settings (low, medium, high) to provide varying levels of resistance.

The thumbstick tension can be adjusted to three distinct levels using the provided tool.

Thumbstick set to low tension.

Thumbstick set to medium tension.

Thumbstick set to high tension.

The tall thumbstick option provides increased precision for aiming.

Manutenzjoni

Proper care will extend the life and performance of your controller:

• Tindif: Use a soft, dry cloth to clean the controller. Avoid abrasive cleaners or solvents.
• Ħażna: When not in use, store the controller and its components in the included carrying case to protect them from dust and damage.
• Kura tal-batterija: To maintain battery health, avoid fully discharging the battery frequently. Recharge the controller regularly.

The included carrying case provides secure storage for the controller and its accessories.

The durable carrying case protects the controller during transport and storage.

Issolvi l-problemi

Kwistjonijiet ta' Konnettività

• Kun żgur li l-kontrollur ikun iċċarġjat.
• Verify that your Xbox console or PC's wireless/Bluetooth is enabled.
• Try re-pairing the controller with your device.
• If using a wired connection, ensure the USB-C cable is securely connected to both the controller and the device.

Button or Stick Responsiveness

• Ensure no debris is lodged around buttons or sticks.
• Check the controller's calibration in the Xbox Accessories App.
• Update the controller's firmware via the Xbox Accessories App.

Aġġornament tal-Firmware

Regularly check for and install firmware updates for your controller using the Xbox Accessories App. Updates can improve performance, add features, and resolve issues.

Speċifikazzjonijiet

Garanzija u Appoġġ

The Xbox Elite Series 2 Wireless Controller typically comes with a manufacturer's warranty. Based on common warranty periods, a 3-month warranty from Microsoft is generally provided for this product. Please retain your proof of purchase for warranty claims.

For technical support, troubleshooting assistance, or warranty service, please visit the official Xbox Support website or contact Xbox customer service. Refer to the official Xbox webis-sit għall-aktar informazzjoni ta' appoġġ u dettalji ta' kuntatt aġġornati.
