1. Informazzjoni Importanti dwar is-Sigurtà
Before operating this appliance, please read all instructions thoroughly to ensure safe and efficient use. Retain this manual for future reference.
- Ensure the refrigerator is placed on a level surface to prevent instability. Adjustable legs are provided for this purpose.
- Allow the appliance to stand upright for at least 24 hours before plugging it in, especially if it has been tilted during transport. This allows refrigerants to settle.
- Taħżinx sustanzi splussivi bħal bottijiet aerosol bi propellant li jaqbad f'dan l-apparat.
- Żomm il-fetħiet tal-ventilazzjoni mingħajr xkiel.
2. Prodott Aktarview
The RCA RFR786-BLACK is a 7.5 cubic foot top-freezer refrigerator designed for efficient food storage. It features adjustable shelves, door bins, and a dedicated crisper for fruits and vegetables.
Figura 1: Quddiem view of the RCA RFR786-BLACK Refrigerator.

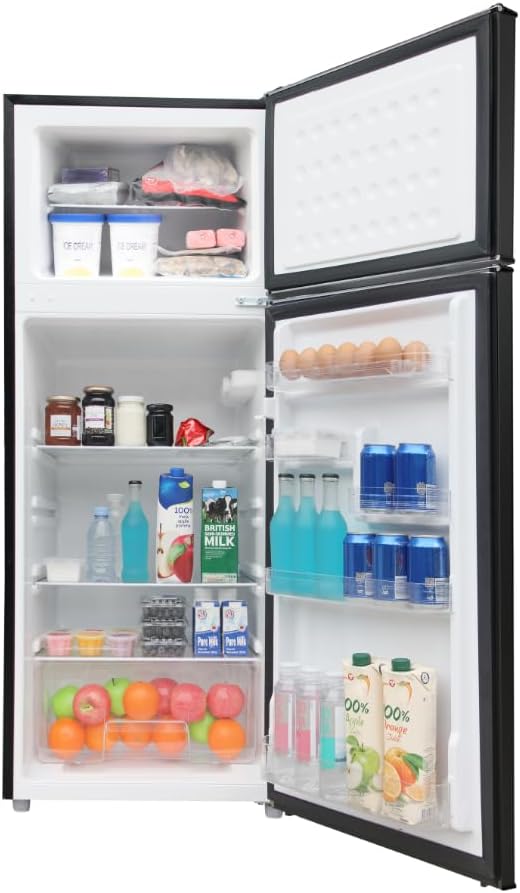

Figure 2: Interior layout of the refrigerator, displaying adjustable glass shelves, door bins, and a crisper drawer.
3. Setup
3.1 Disimballaġġ
Carefully remove all packaging materials. Ensure all components, including the refrigerator unit and any internal accessories (shelves, bins), are present and undamaged. The included components are the refrigerator unit itself.
3.2 Tqegħid
Position the refrigerator on a firm, level floor. Use the adjustable leveling legs at the bottom of the unit to ensure stability and proper door alignment. Allow adequate space around the unit for proper ventilation, typically 4 inches from walls and 12 inches from the ceiling.
3.3 Treġġigħ lura tal-Bieb
The refrigerator features a reversible door design, allowing the door swing to be changed from right to left, or vice versa, to suit your kitchen layout. Refer to the detailed diagram in the full product manual for specific instructions on reversing the door hinges.
3.4 Tixgħel Inizjali
After placement and leveling, wait at least 24 hours before plugging the refrigerator into a grounded electrical outlet. This waiting period allows the compressor oils and refrigerants to settle, preventing potential damage. Once plugged in, the internal lighting will activate, and the cooling system will begin operation.
4. Istruzzjonijiet Operattivi
4.1 Kontroll tat-Temperatura
The refrigerator is equipped with controls to regulate the temperature in both the fresh food and freezer sections. Locate the thermostat dial inside the fresh food compartment. Adjust the dial to your desired cooling level. A setting of '4' is often recommended for general use, but this can be adjusted based on ambient temperature and food load.
4.2 Ħażna tal-Ikel
- Xkafef aġġustabbli: The glass shelves can be repositioned to accommodate items of various heights. Lift and slide the shelves to adjust their placement.
- Bins tal-bibien: Storage bins located on the inside of the door are ideal for smaller items, bottles, and condiments.
- Crisper Bins: The transparent crisper drawer at the bottom of the fresh food compartment is designed to maintain optimal humidity for fruits and vegetables, preserving their freshness.
- Kompartiment tal-friża: The freezer includes a full-width, fixed wire shelf and a door bin for organized storage of frozen foods.
4.3 Dawl Intern
The refrigerator features bright incandescent lighting in both the fresh food and freezer compartments, ensuring visibility of stored items. The light activates automatically when the door is opened.
5. Manutenzjoni
5.1 Tindif
Regular cleaning helps maintain hygiene and efficiency. Unplug the refrigerator before cleaning. Wipe down interior surfaces with a mild detergent and warm water. The spill-proof glass shelves are designed to contain spills, simplifying cleanup. Avoid abrasive cleaners or sharp objects that could damage surfaces.
5.2 Defrosting
This refrigerator features a manual defrost mode for the freezer compartment. When ice buildup becomes excessive (approximately 1/4 inch thick), unplug the unit and allow the ice to melt naturally. Place towels at the bottom to absorb water. Do not use sharp objects to chip away ice, as this can damage the cooling elements.
6 Issolvi l-problemi
If you encounter issues with your refrigerator, consult the following table before contacting service.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-friġġ ma jaħdimx | No power to the unit; unit not properly settled after transport. | Check power cord connection and circuit breaker. Ensure unit has been upright for 24 hours before plugging in. |
| Excessive ice buildup in refrigerator section | Thermostat set too cold; door not sealing properly; frequent door openings. | Adjust thermostat to a warmer setting. Check door gasket for proper seal. Reduce frequency of door openings. |
| Ħsejjes mhux tas-soltu | Unit not level; items vibrating inside. | Adjust leveling legs to ensure stability. Rearrange items inside to prevent contact with walls or other items. |
| Food not cooling sufficiently | Door left open; thermostat set too warm; excessive food load. | Ensure door is closed completely. Adjust thermostat to a colder setting. Avoid overloading the refrigerator. |
7. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | RCA |
| Mudell Info | HBFR786BLACK6COM |
| Piż tal-oġġett | 60 liri |
| Dimensjonijiet tal-Prodott | 23 x 23 x 55 pulzieri (P x W x H) |
| Kapaċità | 7.5 Piedi kubi |
| Konsum Annwali tal-Enerġija | 5 Kilowatt Siegħa |
| Tip ta' Installazzjoni | Countertop |
| Fattur tal-Formola | Compact, Freezer Top |
| Karatteristiċi Speċjali | Xkafef aġġustabbli |
| Kulur | Iswed |
| Voltage | 110 |
| Sistema ta 'Defrost | Automatic (Refrigerator), Manual (Freezer) |
| Ċappetti tal-Bibien | Lemin (Riversibbli) |
| Tip ta' xkaffa | Ħġieġ |
| Numru ta' Xkafef | 3 |
| Ċertifikazzjoni | ETL |
| Tip ta' Materjal | Plastik |
| Numru Ta Bibien | 2 |
8. Garanzija u Appoġġ
This product comes with a manufacturer's warranty. Please refer to the warranty card included with your purchase for specific terms and conditions, including coverage duration and claim procedures. For customer support, please visit the official RCA website or contact their customer service line. Information regarding extended protection plans may also be available from your retailer.
