YETI Trailhead Kollassiva Camp Manwal għall-Utent tal-President

1. Introduzzjoni

This manual provides instructions for the proper setup, operation, and maintenance of your YETI Trailhead Collapsible Camp Chair. Designed for durability and comfort, this chair is suitable for various outdoor activities.

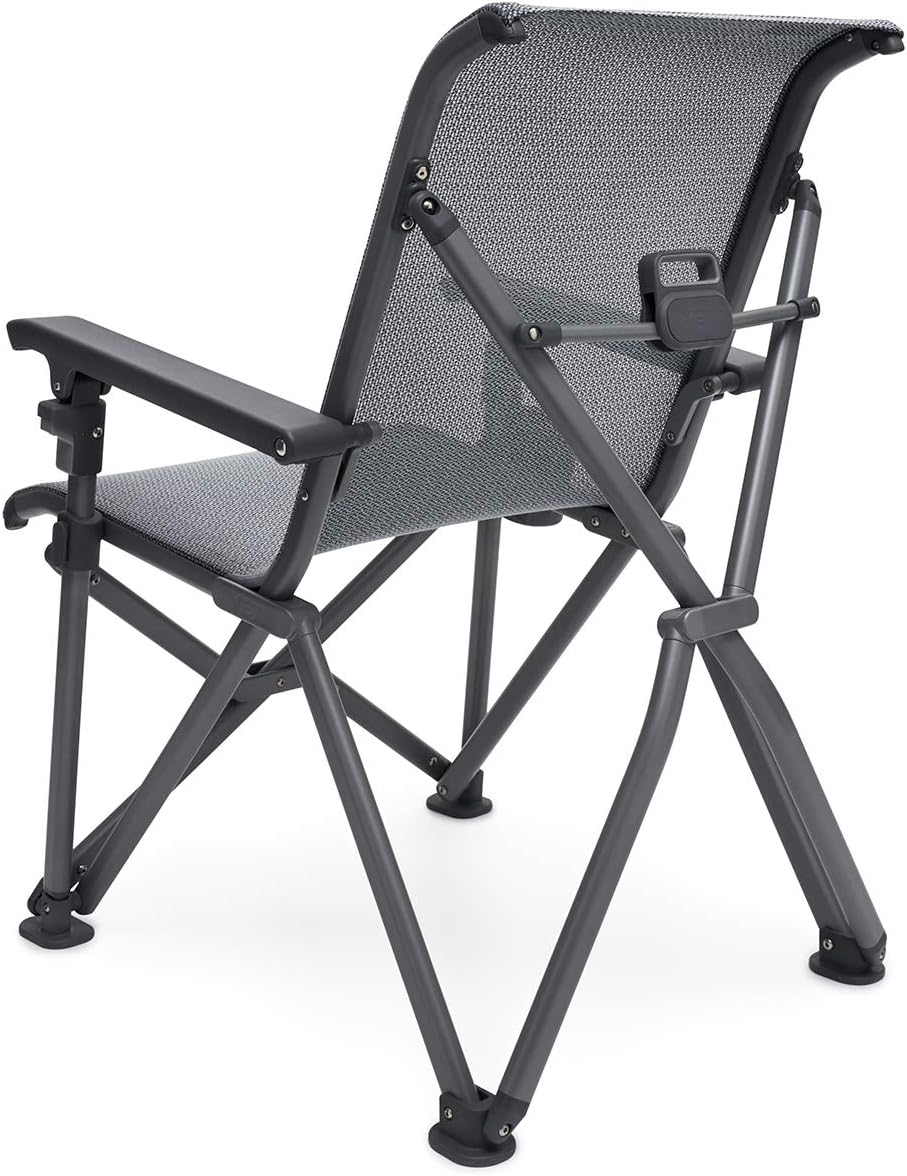

Figure 1: YETI Trailhead Collapsible Camp Chair (Charcoal)

2. Informazzjoni dwar is-Sigurtà

• Teċċedix ir-rakkomandazzjoni tal-piż massimu ta' 500 libbra.
• Ensure the chair is fully unfolded and locked into place before use.
• Use on stable, level ground to prevent tipping.
• Żomm idejk u subgħajk 'il bogħod mill-partijiet li jiċċaqalqu waqt it-tiwi u l-ftuħ.

3. Karatteristiċi ewlenin

• FlexGrid Fabric: Conforms to your natural curvature, eliminates pressure points, and supports up to 500 lbs. of weight.
• PackAway Frame: The lightweight geometry of this crossover frame makes it easy to pack and go.
• Lockdown Comfort: Color-coded tensioners on the back and arms of the chair lock into place to optimize the strength, stretch, and comfort of the fabric.
• Carry Bag Included: A strong two-strap carry bag allows for shoulder or backpack transport.
• UV-Rated: Dan camp chair is designed to resist breakdown from UV rays, preventing chipping paint or disintegrating fabric.
• GroundGrip Feet: Built for stability on various terrains.

Figure 2: FlexGrid Fabric for comfort and support.

Figure 3: PackAway Frame for easy transport.

Figure 4: Lockdown Comfort system for stability.

Figure 5: GroundGrip Feet for enhanced stability.

4. Istruzzjonijiet ta' Setup

1. Step 1: Remove from Carry Bag
   Slide the chair out of its two-strap carry bag and stand it upright.
2. Step 2: Unfold the Chair
   Push down on both armrests simultaneously until the chair locks into its open position. Then, push down on the color-coded tensioner handle located on the backside of the chair until the FlexGrid Fabric is taut.
3. Step 3: Attach Cup Holder (Optional)
   The included cup holder can be slid onto the designated slot on the armrest.

Figure 6: Visual guide for chair setup.

5. Tħaddim tas-Siġġu

The YETI Trailhead Camp Chair is designed for straightforward use. Once set up, simply sit back and enjoy its comfortable FlexGrid Fabric. The Lockdown Comfort system ensures the fabric remains taut for optimal support.

Figure 7: Enjoying the comfort of the chair.

6. Tiwi u Ħażna

1. Step 1: Release Locks
   Squeeze the release buttons located on the underside of both armrests. Pull up on the lift handle on the back of the chair.
2. Step 2: Collapse the Chair
   Bring opposite ends of the chair together – one armrest and its opposite chair back corner – to collapse it.
3. Step 3: Store in Carry Bag
   Place the collapsed chair into its carry bag, feet first, and secure the zipper.

Figure 8: Visual guide for folding and storing the chair.

7. Manutenzjoni

To ensure the longevity of your YETI Trailhead Collapsible Camp Chair, follow these simple maintenance guidelines:

• Tindif: Imsaħ nadif bl adamp cloth. Avoid harsh chemicals that may damage the fabric or frame.
• Ħażna: Store in the provided carry bag in a dry, cool place when not in use.
• Spezzjoni: Periodically inspect the frame, fabric, and locking mechanisms for any signs of wear or damage.

8. Speċifikazzjonijiet

Figure 9: Detailed dimensions of the chair.

9 Issolvi l-problemi

If you encounter any issues with your YETI Trailhead Collapsible Camp Chair, please refer to the setup and operation sections. Ensure all locking mechanisms are engaged correctly. For persistent problems or concerns, please contact YETI customer support.

10. Garanzija u Appoġġ

For information regarding warranty coverage and customer support for your YETI Trailhead Collapsible Camp Chair, please visit the official YETI webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom direttament. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta’ garanzija.
