1. Introduzzjoni
The ATEM POWER 12V 200AMP Power Analyzer is a high-precision watt, voltage, u amp meter designed for monitoring electrical parameters in various 12V systems. It provides real-time, high-contrast display of current, voltage, and power, along with sequential display of charge, energy, current peak, minimum voltage, and power peak. This robust device is ideal for applications in caravans, camping setups, dual battery systems, solar installations, RVs, and wind power systems, allowing users to accurately track energy flow and system performance. Its user-friendly design with pre-installed Anderson plugs ensures easy in-line connection without complex configuration.
2. Informazzjoni dwar is-Sigurtà
Please read and understand all safety instructions before operating the device. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Do not exceed rated current and voltage: Ensure the system's current and voltage do not exceed the meter's maximum ratings (200A, 60V).
- Proper connections: Always connect the meter in series with the load or source, ensuring correct polarity. Incorrect connections can damage the device or the system.
- Evita short circuits: Be careful to prevent short circuits during connection, especially with high-current systems.
- Ambjent operattiv: Use the device in a dry environment. Avoid exposure to water, moisture, or extreme temperatures.
- Immaniġġjar: Handle the device with care. Do not drop or subject it to strong impacts.
- Manutenzjoni: Tippruvax tiftaħ jew issewwi l-apparat. Irreferi għal kull manutenzjoni f'idejn persunal kwalifikat.
3. Prodott Aktarview
The ATEM POWER 12V 200AMP Power Analyzer is a compact and durable device designed for precise electrical measurement. It features a clear LCD display and robust Anderson plugs for easy integration into your power system.
Figura 3.1: Quddiem view of the ATEM POWER 12V 200AMP Power Analyzer, showing the LCD screen and Anderson plugs.
3.1 Komponenti
- LCD Digital Backlight Display: Provides real-time readings of various electrical parameters.
- Anderson Plugs: Pre-installed for quick and secure in-line connections.
- Ċ Durabbliasing: Made of ABS material with dense vents for efficient heat dissipation.
- Auxiliary Power Connector: Allows the meter to be powered externally for measurements in the 0-8V range or for more precise readings.

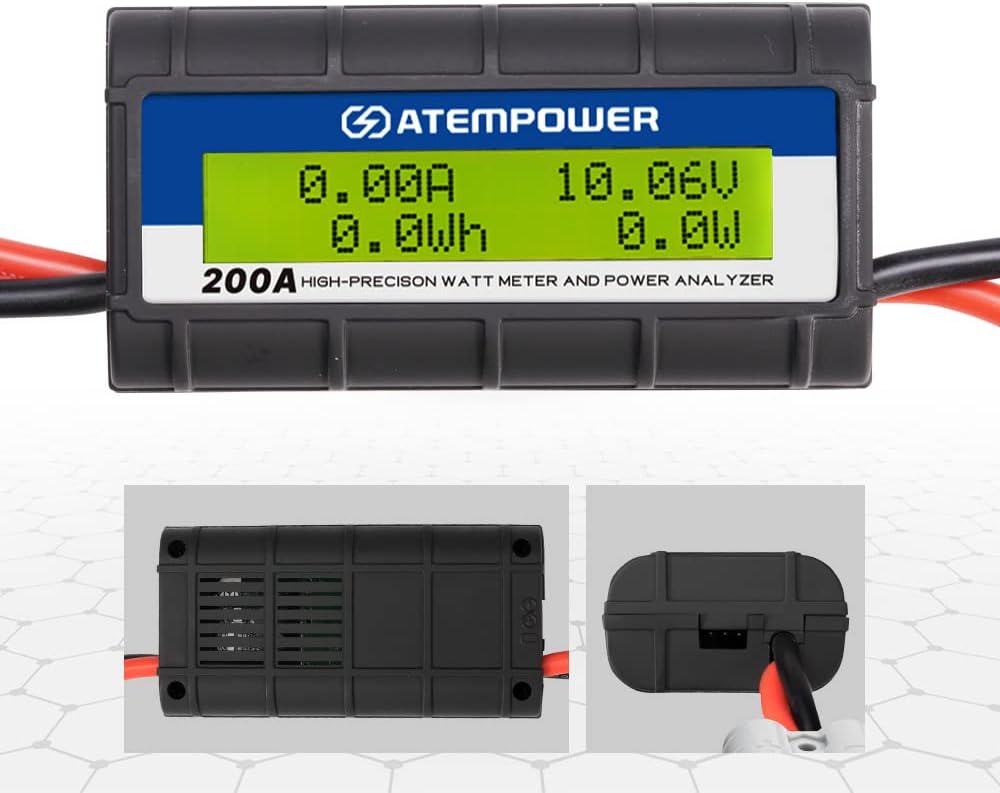

Figura 3.2: Close-up of the LCD display.
Figura 3.3: Ġenb view showing heat dissipation vents.
Figura 3.4: Wara view with auxiliary power port.
4. Setup
The ATEM POWER Analyzer is designed for easy, automatic operation with pre-installed Anderson plugs. No complex configuration is required.
4.1 Konnessjoni Bażika
- Identify the input and output sides of the power analyzer. The input side is typically marked or indicated by the direction of current flow you wish to measure (e.g., from a power source).
- Connect the Anderson plug from your power source (e.g., battery, solar panel) to the input Anderson plug of the power analyzer.
- Connect the Anderson plug from your load (e.g., fridge, inverter, DC-DC charger) to the output Anderson plug of the power analyzer.
- Ensure all connections are secure and properly seated. The meter will automatically power on and begin displaying readings once connected to a live circuit.
4.2 Auxiliary Power Option
For measuring very low voltages (0-8V) or for more precise measurements where the meter's own power consumption might affect readings, you can use the auxiliary power connector. Connect a separate 12V power source (e.g., a small 12V battery or power supply) to the auxiliary port. This allows the meter to operate independently of the main circuit being measured.
5. Istruzzjonijiet Operattivi
The power analyzer provides comprehensive real-time data on your electrical system. The LCD display shows key parameters continuously, with other values cycling every 2 seconds.
5.1 Qari tal-Wiri
The meter provides 8 electrical readings with high resolution:
- Kurrent (A): Amperes, showing the flow of electricity (resolution 0.01A).
- Voltage (V): Volts, indicating electrical potential (resolution 0.01V).
- Qawwa (W): Watts, representing the rate of energy transfer (resolution 0.1W).
- Charge (Ah): Ampere-hours, total electrical charge transferred (resolution 0.001Ah).
- Energy (Wh): Watt-hours, total electrical energy consumed or produced (resolution 0.1Wh).
- Current Peak (Ap): The maximum current recorded during the measurement period.
- Min Voltage (Vm): Il-volum minimutage recorded during the measurement period.
- Power Peak (Wp): The maximum power recorded during the measurement period.
5.2 Measurement Applications
The versatility of the ATEM POWER Analyzer makes it suitable for various monitoring tasks:

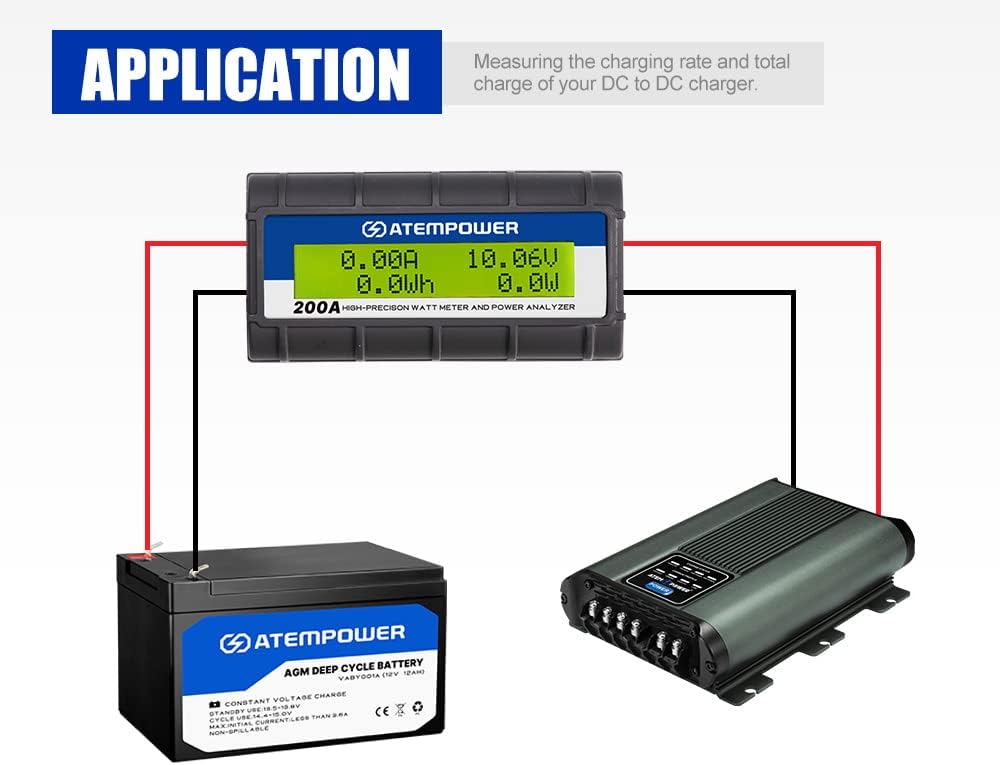

Figura 5.1: Measuring charging rate and total charge of a DC to DC charger.
Figura 5.2: Measuring the load of a power inverter and AC appliances.
Figura 5.3: Measuring the load of DC appliances (e.g., portable fridge).
Figura 5.4: Measuring the charging rate and total charge from solar panels.
6. Manutenzjoni
To ensure the longevity and accurate performance of your ATEM POWER Analyzer, follow these maintenance guidelines:
- Tindif: Imsaħ l-apparat b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif jew solventi li joborxu.
- Ħażna: Store the meter in a cool, dry place away from direct sunlight and extreme temperatures when not in use.
- Punti ta' Konnessjoni: Periodically inspect the Anderson plugs for any signs of wear, corrosion, or damage. Ensure they are clean and make secure connections.
- Evita Ħsara Fiżika: Protect the device from drops, impacts, and excessive vibration.
7 Issolvi l-problemi
If you encounter issues with your power analyzer, refer to the table below for common problems and solutions.
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Il-wiri huwa vojt | No power to the meter; incorrect connection; auxiliary power not connected (if measuring low voltagu). | Check all connections for proper seating and polarity. Ensure the power source is active. If measuring below 8V, connect auxiliary power. |
| Qari mhux eżatt | Loose connections; interference; device operating outside specified temperature range. | Secure all connections. Move the device away from strong electromagnetic fields. Ensure operation within recommended temperature limits. |
| Meter not responding | Internal fault; severe overload. | Disconnect from power source, wait a few minutes, then reconnect. If problem persists, contact customer support. Avoid exceeding maximum ratings. |
| Display difficult to read in sunlight | Direct sunlight glare. | Relocate the meter to a shaded area or angle it to reduce glare. |
8. Speċifikazzjonijiet
Technical specifications for the ATEM POWER 12V 200AMP Power Analyzer:
| Parametru | Valur |
|---|---|
| Manifattur | Atem Power |
| Brand | QAWWA ATEM |
| Numru tal-Mudell | CY200AA2 |
| Dimensjonijiet tal-Prodott (L x W x H) | 20.9 x 4.5 x 2.5 ċm |
| Piż tal-oġġett | 180 Gramma (0.18 Kilogrammi) |
| Sors tal-Enerġija | Mħaddma bil-batterija |
| Stil | Diġitali |
| Kurrent Max | 200A |
| Vol. Maxtage | 60V |
| Riżoluzzjoni kurrenti | 0.01A |
| Voltage Riżoluzzjoni | 0.01V |
| Riżoluzzjoni tal-Qawwa | 0.1W |
| Charge Resolution | 0.001Ah |
| Energy Resolution | 0.1Wh |
Figura 8.1: Product dimensions diagram.
9. Garanzija u Appoġġ
ATEM POWER products are manufactured to high-quality standards. For information regarding warranty coverage and terms, please refer to the product packaging or the official ATEM POWER website. If you require technical assistance or have questions about your ATEM POWER 12V 200AMP Power Analyzer, please contact ATEM POWER customer support through their official channels. Keep your purchase receipt as proof of purchase for any warranty claims.
Politika ta' Ritorn: This product is subject to a 30-day return policy for refund or replacement, as per standard retail terms.
