Manwal tal-Utent tal-firxa tal-gass freestanding ta' 24" tas-serje ILVE Nostalgie

Introduzzjoni u Informazzjoni dwar is-Sigurtà

This manual provides essential information for the safe and efficient operation, installation, and maintenance of your ILVE Nostalgie Series 24" Freestanding Gas Range. Please read this manual thoroughly before using the appliance and retain it for future reference.

Istruzzjonijiet Importanti dwar is-Sigurtà

• Always ensure proper ventilation when operating the gas range.
• Taħżinx materjali li jaqbdu ħdejn l-apparat.
• Żomm it-tfal u l-annimali domestiċi 'l bogħod mill-apparat waqt it-tħaddim.
• F'każ ta' tnixxija tal-gass, itfi l-provvista tal-gass immedjatament, iftaħ it-twieqi, u tħaddimx swiċċijiet jew apparati elettriċi. Ikkuntattja tekniku kwalifikat.
• Always use oven mitts when handling hot cookware.
• Kun żgur li l-apparat ikun ertjat sew qabel l-użu.
• Do not use water on grease fires; smother the fire or use a dry chemical or foam-type extinguisher.

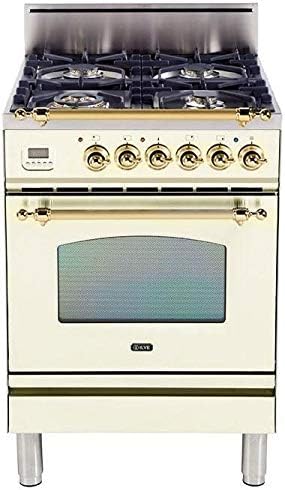

Figura 1: Quddiem view of the ILVE Nostalgie Series 24" Freestanding Gas Range.

Setup u Installazzjoni

Proper installation is crucial for the safe and efficient operation of your gas range. It is recommended that installation be performed by a qualified installer or service agency.

Spakkjar u Spezzjoni

• Neħħi bir-reqqa l-materjali kollha tal-ippakkjar mill-apparat.
• Spezzjona l-forn għal kwalunkwe ħsara waqt it-tbaħħir. Irrapporta kwalunkwe ħsara immedjatament lin-negozjant tiegħek.
• Ensure all accessories, such as oven racks and the gas conversion kit, are present.

Rekwiżiti tal-Post

The range must be installed on a level, stable surface. Ensure adequate clearance from combustible materials as specified by local building codes. Refer to the dimension diagram for precise measurements and clearances.

Figure 2: Product Dimensions and Installation Clearances.

Gas and Electrical Connections

• This appliance is designed for use with Natural Gas. A gas conversion kit is included for conversion to LP gas if required. Conversion must be performed by a qualified technician.
• The range requires a 120 Volt electrical supply for ignition and oven functions. Ensure the electrical outlet is properly grounded.
• Connect the gas supply line using a flexible connector approved for gas appliances. Perform a leak test after connection.

Istruzzjonijiet Operattivi

Burners tal-wiċċ

Your ILVE range is equipped with four semi-sealed brass burners, including a dual-ring burner for versatile cooking. The flame failure safety device ensures gas supply is cut off if the flame extinguishes.

1. Poġġi l-oġġetti tat-tisjir fuq il-gradilja fuq il-berner mixtieq.
2. Push in and turn the corresponding burner knob counter-clockwise to the "HIGH" position.
3. The igniter will click, and the burner will light. Once lit, release the knob.
4. Adjust the flame size by turning the knob between "HIGH" and "LOW" settings.
5. For the dual-ring burner, the inner and outer rings can be controlled independently or together depending on the knob position.
6. To turn off, turn the knob clockwise to the "OFF" position.

Figure 3: Illuminated gas burner with flame.

Figura 4: Dettaljat view of the brass burner components.

Figure 5: Cooktop with grates.

Figure 6: Cooktop without grates.

Operazzjoni tal-forn

The 2.44 cu. ft. oven features true European convection for even cooking, a viewing window, and two oven racks. It also includes a defrost function.

1. L-issettjar tat-temperatura: Turn the oven control knob to the desired temperature. The oven will begin to preheat.
2. Ħami bil-konvezzjoni: For faster and more even cooking, select the convection fan setting.
3. Funzjoni tad-defrost: Use the defrost setting to gently thaw frozen foods.
4. Xtillieri tal-forn: Position the two oven racks according to your cooking needs before preheating.
5. Dawl tal-forn: Use the oven light button to illuminate the oven interior through the viewtieqa.

Kexxun li jsaħħan

The full-width warming drawer is located beneath the oven and is ideal for keeping cooked food warm before serving.

• To activate the warming drawer, refer to the specific control knob or button on your model.
• Place heat-safe dishes in the drawer. Do not place plastic or flammable items.
• The warming drawer is not intended for cooking food.

Digital Clock and Timer

The digital clock and timer allow you to set cooking durations and monitor time.

• Refer to the display and control buttons for setting the current time.
• To set a cooking timer, press the timer button and use the adjustment buttons to set the desired duration. An alarm will sound when the time expires.

Manutenzjoni u Tindif

Regular cleaning and maintenance will ensure the longevity and optimal performance of your ILVE gas range.

Tindif tal-Cooktop

• Ħalli l-cooktop jiksaħ kompletament qabel tnaddaf.
• Remove grates and burner caps. Clean with warm soapy water. For stubborn stains, use a non-abrasive cleaner.
• Imsaħ il-wiċċ tal-istainless steel b'adamp drapp u deterġent ħafif. Nixxef sew biex tevita tbajja’ tal-ilma.
• Do not use abrasive cleaners, steel wool, or harsh chemicals on any surface.

Tindif tal-forn

The oven features a self-clean mode. A self-clean panel is sold separately and required for this function.

• Self-Clean Mode: If you have the self-clean panel, follow its instructions for activating the self-clean cycle. Ensure the oven is empty before starting.
• Tindif Manwali: For light cleaning, wipe the oven interior with warm soapy water. For baked-on spills, use an oven cleaner specifically designed for gas ovens, following the product instructions.
• Remove oven racks before cleaning the oven interior. Clean racks separately.

Tindif ta' barra

• Clean the exterior surfaces, including the brass trim and control knobs, with a soft cloth and mild, non-abrasive cleaner.
• For stainless steel, wipe in the direction of the grain.

Gwida dwar is-sejbien ta 'problemi

Before contacting service, please consult this section for common issues and their solutions.

Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja tekniku tas-servizz kwalifikat.

Speċifikazzjonijiet tal-Prodott

Garanzija u Appoġġ għall-Klijent

Informazzjoni dwar Garanzija

Specific warranty terms and conditions for the ILVE Nostalgie Series 24" Freestanding Gas Range are provided with your appliance documentation or can be found on the official ILVE websit. Jekk jogħġbok żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.

Appoġġ għall-Klijent

For technical assistance, service requests, or inquiries regarding your ILVE appliance, please contact ILVE customer support. Contact details can typically be found on the manufacturer's webis-sit jew fid-dokumentazzjoni inkluża mal-prodott tiegħek.

When contacting support, please have your model number (UPN-60-DVGG-ALP) and serial number readily available.
