TAKAVU Heavy Duty Foam Cannon User Manual

1. Introduzzjoni

Thank you for choosing the TAKAVU Heavy Duty Foam Cannon. This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your new foam cannon. Please read this manual thoroughly before use and retain it for future reference.

2. Informazzjoni dwar is-Sigurtà

Always follow basic safety precautions when using this product to reduce the risk of injury or damage. This foam cannon is designed for use with pressure washers. Ensure your pressure washer is in good working condition and follow its safety guidelines.

• Ilbes tagħmir protettiv personali xieraq, inkluż protezzjoni għall-għajnejn, waqt l-operazzjoni.
• Tippuntax il-kanun tal-fowm lejn nies, annimali domestiċi, jew sokits tal-elettriku.
• Use only recommended cleaning solutions designed for foam cannons and pressure washers.
• Żomm fejn ma jintlaħaqx mit-tfal.
• Kun żgur li l-konnessjonijiet kollha huma siguri qabel ma topera.
• Do not modify the foam cannon or its components.

3. Kontenut tal-Pakkett

Verify that all items are present and undamaged upon opening the package. If any items are missing or damaged, contact customer support.

• TAKAVU Foam Cannon body with adjustable spray nozzle and soap control knob
• 1-Liter (33.8 oz) reservoir bottle
• Suction tube with filter
• 1/4" Quick Connector

Immaġni: Splodiet view of the TAKAVU Foam Cannon showing the soap control knob, G1/4" Quick Connector, spray nozzle, hose & filter, and soap bottle.

4. Setup

1. Arma l-Kanun tal-Fowm:
   • Attach the suction tube with filter to the bottom of the foam cannon body.
   • Screw the reservoir bottle onto the foam cannon body, ensuring a tight seal.


   Image: The TAKAVU Foam Cannon fully assembled, showing the screw cap, thicker & heavier brass core, easy hold design, and mark line on the bottle.

2. Ipprepara s-Soluzzjoni tat-Tindif:
   • Fill the reservoir bottle with your desired car wash soap or cleaning solution. Refer to the cleaning solution's instructions for proper dilution ratios. The bottle has measurement markings for convenience.
3. Qabbad mal-Pressjoni tal-Ħasil:
   • Attach the 1/4" Quick Connector of the foam cannon to your pressure washer gun or lance. Ensure it clicks securely into place.

5. Istruzzjonijiet Operattivi

1. Aġġusta l-ħxuna tal-fowm:
   • The top knob on the foam cannon controls the water and soap ratio. Turn the knob clockwise for more foam (less water) and counter-clockwise for less foam (more water).


   Image: Close-up of the foam cannon's top knob, indicating adjustment for more foam (less water) or less foam (more water).

2. Aġġusta l-Mudell tal-Isprej:
   • The front nozzle can be rotated 360 degrees to change the spray pattern from a cylindrical jet to a wide fan shape.

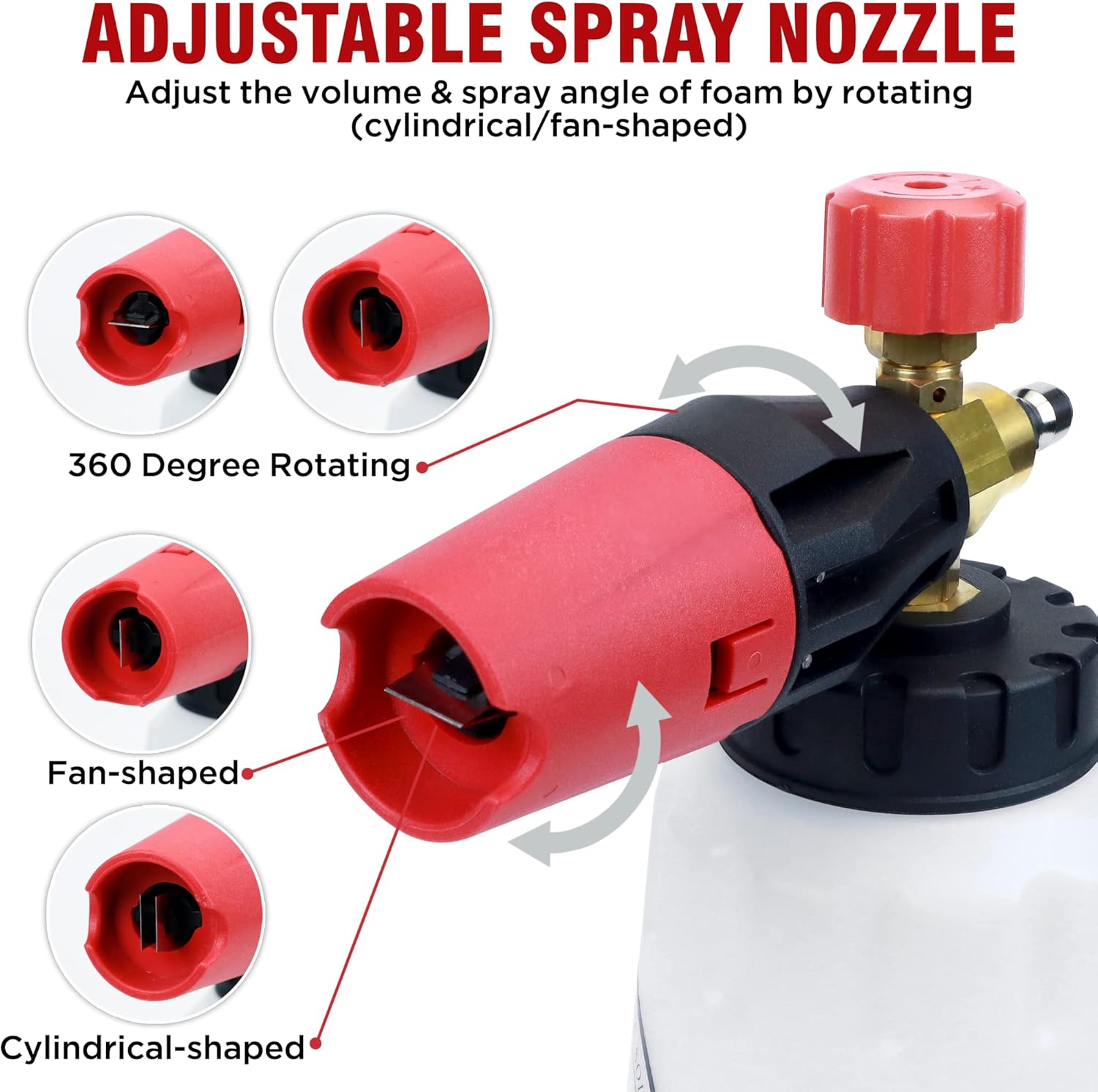

   Image: The adjustable spray nozzle showing 360-degree rotation options for fan-shaped and cylindrical-shaped spray patterns.
3. Applika r-Ragħwa:
   • Once connected and adjusted, activate your pressure washer and spray the foam onto the desired surface. Cover the entire surface evenly with a thick layer of foam.


   Image: A person using the TAKAVU Foam Cannon to apply a thick layer of foam to a car, demonstrating the product in action.

4. Ħin ta' Dwell:
   • Allow the foam to dwell on the surface for several minutes (typically 3-5 minutes) to loosen dirt and grime. Do not let the foam dry on the surface.
5. Laħlaħ:
   • After the dwell time, remove the foam cannon from the pressure washer gun and rinse the surface thoroughly with clean water using your pressure washer or a garden hose.

6. Manutenzjoni

• Wara Kull Użu: Rinse the foam cannon thoroughly with clean water to remove any remaining soap solution. This prevents clogging and extends the life of the unit.
• Ħażna: Store the foam cannon in a cool, dry place away from direct sunlight and freezing temperatures.
• Tindif tal-filtru: Periodically check and clean the filter on the suction tube to ensure optimal performance.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

TAKAVU offers a money-back guarantee for this product. If the Foam Cannon does not meet your expectations, please contact TAKAVU customer service for assistance. For further support or inquiries, refer to the contact information provided with your purchase or visit the official TAKAVU websit.

Note: This warranty information is based on the product description and may be subject to change. Always refer to the official warranty documentation included with your product.
