Manwal tal-Utent tad-Dwal tal-Istring LED ta' Barra Volteck SL-7L

1. Introduzzjoni

This manual provides essential instructions for the safe installation, operation, and maintenance of your Volteck SL-7L Outdoor LED String Lights. Please read this manual thoroughly before use and retain it for future reference.

The Volteck SL-7L is a 7.3-meter (24 ft) series of 12 LED lights designed for outdoor use, featuring a durable PVC cable and lamp holders, and controlled via a remote.

2. Informazzjoni dwar is-Sigurtà

• Aqra l-istruzzjonijiet kollha: Before installation and use, carefully read and understand all safety warnings and operating instructions.
• Użu fuq barra biss: This product is designed for outdoor use. Ensure all connections are secure and protected from moisture.
• Sors tal-Enerġija: Connect to a 127 Volt, 60 Hz power supply only. Do not overload circuits.
• Installazzjoni: Install the string lights securely. Do not hang the lights by the main electrical cord. Use appropriate mounting hardware.
• Sostituzzjoni tal-bozza: Always unplug the string lights from the power source before replacing bulbs. Use only LED filament bulbs of the specified wattage (12 watts total for the series).
• Spezzjoni tal-Ħsara: Regularly inspect the cable, plug, and lamp holders for any damage. Do not use if damaged.
• Espożizzjoni għall-Ilma: While rated IP65 for protection against dust and low-pressure water jets, avoid submerging the lights in water.
• Tfal u Pets: Żomm il-prodott fejn ma jintlaħaqx mit-tfal u l-annimali domestiċi.

3. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti u mhux imħassra malli tiftaħ il-pakkett:

• 1 x Volteck SL-7L LED String Lights (7.3 meters with 12 sockets)
• 12 x LED Filament Bulbs (Note: Product specifications indicate 10 x LED Filament Bulbs, but the string has 12 sockets. Please ensure you have 12 bulbs for all sockets.)
• 1 x Remote Control (for models with remote functionality)

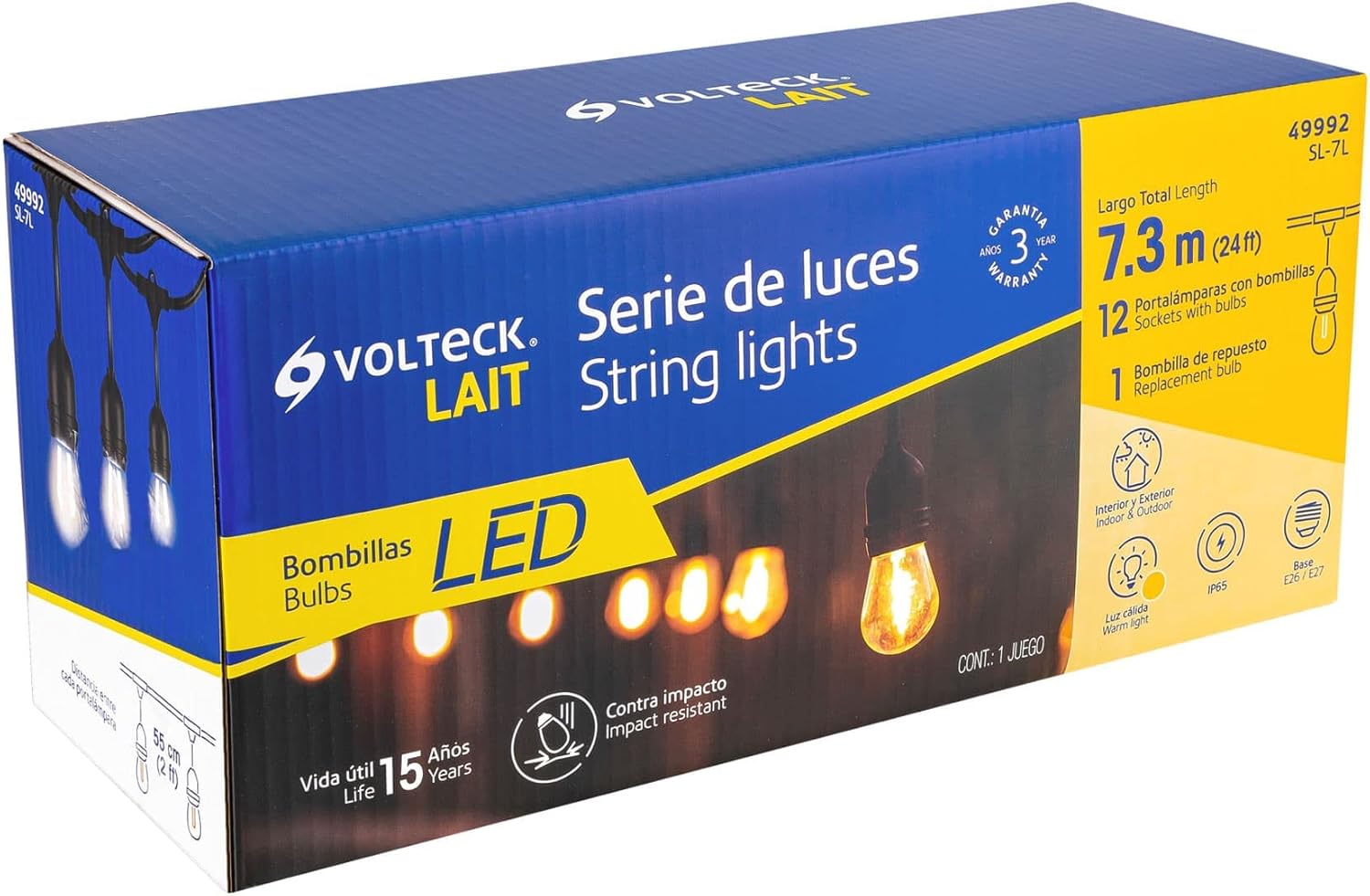

Figura 3.1: Packaging of the Volteck SL-7L LED String Lights. The box displays key features such as 7.3m length, 12 sockets, LED bulbs, and a 3-year warranty.

4. Prodott Aktarview

Familiarize yourself with the components of your Volteck SL-7L LED String Lights:

Figura 4.1: Labeled components of the Volteck SL-7L LED String Lights. This image shows the PVC cable, PVC lamp holders, LED lamps, the main plug, and a receptacle for connecting multiple series (up to 50 maximum).

Figura 4.2: Dimensions of the Volteck SL-7L LED String Lights. The total length is 7.3 meters, with a separation of 55 cm between each socket.

5. Speċifikazzjonijiet

Figura 5.1: Explanation of the IP65 protection rating. The first digit '6' indicates total protection against dust. The second digit '5' indicates protection against low-pressure water jets from any direction.

6. Setup u Installazzjoni

Segwi dawn il-passi għal installazzjoni sigura u xierqa:

1. Ippakkja: Neħħi bir-reqqa d-dwal tal-istring u l-komponenti kollha mill-imballaġġ.
2. Spezzjona: Before plugging in, inspect the entire string for any signs of damage to the cable, sockets, or bulbs. Do not proceed if damage is found.
3. Pjazzament tal-Pjan: Determine the desired location for your string lights. Ensure the power outlet is within reach of the plug and protected from direct water exposure if not rated for outdoor use.
4. Immuntar: Securely hang the string lights using appropriate outdoor-rated hooks, clips, or guide wires. Do not use the electrical cable itself to bear the weight of the lights. Ensure the lights are not twisted or tangled.
5. Installa Basal: Gently screw each LED filament bulb into its respective socket. Ensure bulbs are fully seated but do not overtighten.
6. Qabbad mal-Enerġija: Once the string lights are securely mounted and all bulbs are installed, plug the main power plug into a suitable 127V outdoor-rated electrical outlet.
7. Daisy-Chaining (Optional): Jekk tqabbad settijiet multipli, kun żgur li l-ilma totalitage does not exceed the maximum recommended load for your circuit. The receptacle at the end of the string allows for connecting up to 50 series maximum.

Figura 6.1: The Volteck SL-7L LED String Lights installed, showcasing the design and bulb appearance.

Figura 6.2: Eżample of the Volteck SL-7L LED String Lights illuminating an outdoor patio area, demonstrating their aesthetic effect.

7. Istruzzjonijiet Operattivi

The Volteck SL-7L LED String Lights are operated via a remote control.

• Power On/Off: Use the 'ON' and 'OFF' buttons on the remote control to turn the lights on or off.
• Għażla tal-Modalità: The remote control may offer various lighting modes (e.g., steady on, flashing, dimming). Refer to the remote's specific buttons for mode selection.
• Firxa remota: Ensure the remote control is pointed towards the receiver on the string lights for optimal functionality.

8. Manutenzjoni

Regular maintenance ensures the longevity and optimal performance of your string lights.

• Tindif: Disconnect from power before cleaning. Wipe the bulbs and cables with a soft, dry cloth. Do not use abrasive cleaners or immerse in water.
• Sostituzzjoni tal-bozza: If a bulb burns out, unplug the string lights. Carefully unscrew the old bulb and screw in a new LED filament bulb of the same type and wattage. Ensure the new bulb is securely seated.
• Ħażna: When not in use for extended periods, unplug the lights, clean them, and store them in a cool, dry place, away from direct sunlight and extreme temperatures.
• Spezzjoni Staġjonali: Before each season of use, inspect the entire string for any wear, fraying, or damage to the cable, sockets, or plug.

9 Issolvi l-problemi

If you encounter issues with your Volteck SL-7L LED String Lights, refer to the following common problems and solutions:

• Id-dwal ma jixegħlux:
  • Check if the string lights are securely plugged into a working power outlet.
  • Verify that the power outlet is receiving power (test with another appliance).
  • Ensure the remote control batteries are not depleted and are inserted correctly.
  • Check for any loose bulbs; tighten them if necessary.
  • Spezzjona l-kejbil għal kwalunkwe ħsara jew waqfa viżibbli.
• Some bulbs are not lighting up:
  • Unplug the string lights and replace the non-working bulbs with new ones.
  • Ensure bulbs are screwed in tightly.
• Il-kontroll remot mhux qed jaħdem:
  • Ibdel il-batteriji fil-kontroll remot.
  • Ensure there are no obstructions between the remote and the string lights' receiver.
  • Confirm the remote is within operating range.
• Dwal li jteptep:
  • Check for loose connections at the plug or individual bulb sockets.
  • Kun żgur li l-provvista tal-enerġija hija stabbli.

Jekk il-problemi jippersistu wara li tipprova dawn is-soluzzjonijiet, ikkuntattja l-appoġġ għall-klijenti.

10. Garanzija u Appoġġ

Volteck products are manufactured to high-quality standards. This product typically comes with a 3-year warranty against manufacturing defects. Please retain your proof of purchase for warranty claims.

For technical support, warranty inquiries, or replacement parts, please refer to the contact information provided on the product packaging or the official Volteck websit.
