RENPHO Foot Spa Bath Massager (Model JD-618) Instruction Manual

1. Informazzjoni Importanti dwar is-Sigurtà

Please read all instructions carefully before using the RENPHO Foot Spa Bath Massager. Keep this manual for future reference.

• Use the foot massager with caution around water and electricity.
• Ensure the power supply is compatible with the product's voltage and power (120V, 60Hz, 500W).
• Do not use without water. Always add water first before turning on the unit.
• Toqgħodx bilwieqfa fl-ispa tas-saqajn. Użaha waqt li tkun bilqiegħda.
• Avoid pulling the power cord forcefully, as this may disconnect internal wiring and prevent the machine from operating.
• Żomm fejn ma jintlaħaqx mit-tfal u l-annimali domestiċi.
• Jekk ikollok xi skumdità, waqqaf l-użu immedjatament.

2. Prodott Aktarview

The RENPHO Foot Spa Bath Massager is designed to provide a relaxing and therapeutic foot massage experience. It features motorized massage rollers, fast heating capabilities, powerful bubble jets, and automatic shiatsu massaging rollers to relieve discomfort and stress.

Karatteristiċi ewlenin:

• PTC Heater with Adjustable Temperature: Heats quickly and maintains a constant temperature between 95°F to 118°F (35°C to 48°C). Features overheating protection and multiple insulation for safety.
• Funzjoni Timer: Set the massage duration from 10 to 60 minutes.
• 3 Automatic Massage Modes: High-quality rollers target acupuncture points with continuous rolling, even time intervals, or unequal time intervals. Default massage time is 15 minutes.
• Powerful Bubble Jets: Provides invigorating bubbles for enhanced foot relaxation.
• Easy Portability & Drainage: Equipped with wheels and a handle for easy movement. Features a drain pipe for convenient water emptying without lifting.
• Removable Medicine Box: Allows for the addition of essential oils, bath salts, or other foot care products for a customized spa experience.

Figure 2.1: The RENPHO Foot Spa Bath Massager in its operational state.

Figure 2.2: Close-up of the intuitive control panel for easy operation.

Figura 2.3: Intern view showing the motorized massage rollers and bubble jet outlets.

3. Istruzzjonijiet ta' Setup

1. Unfold the Foot Spa: The foot spa is designed to be collapsible for easy storage. Gently pull up the sides of the unit until it fully expands into its operational shape.
2. Pożizzjonament: Place the foot spa on a flat, stable surface. Ensure the power cord can reach an outlet without being stretched or creating a tripping hazard.
3. Imla bl-Ilma: Fill the foot spa with water. For faster heating, you may use warm water initially. Do not exceed the "Max Water Line" indicated inside the basin.
4. Qabbad l-Enerġija: Plug the power cord into a compatible 120V, 60Hz electrical outlet.

Figure 3.1: Product dimensions and key components including the hidden handle and drain pipe.

4. Istruzzjonijiet Operattivi

Once the foot spa is set up and filled with water, you can begin your relaxing experience using the control panel.

1. Qawwa Mixgħul: Agħfas il-buttuna Power (ON/OFF) on the control panel to turn on the unit. The display will show the current water temperature.
2. Aġġusta t-Temperatura: Uża l- TEMP+ u TEMP- buttons to set your desired water temperature between 95°F and 118°F (35°C and 48°C). The PTC heater will quickly reach and maintain this temperature.
3. Agħżel il-Modalità tal-Massage: Agħfas il- MASSAĠĠ button to cycle through the 3 automatic massage modes: continuous rolling, even time intervals, and unequal time intervals. The default massage time is 15 minutes.
4. Activate Bubble Jets & Red Light: Agħfas il- RED LIGHT & BUBBLE button to activate the powerful bubble jets and the soothing red light function. Press again to turn off.
5. Issettja l-Timer: Agħfas il- TIMER button to set the desired duration for your foot spa session, from 10 to 60 minutes.
6. Using the Removable Medicine Box: Open the removable medicine box located inside the foot spa to add essential oils, bath salts, or other foot care products. Close securely before use.

Figure 4.1: The adjustable temperature feature ensures your water stays warm throughout your session.

Figure 4.2: The three automatic massage modes provide varied and targeted relief for your feet.

Figure 4.3: Enjoy the soothing red lights and invigorating bubbles for a complete spa experience.

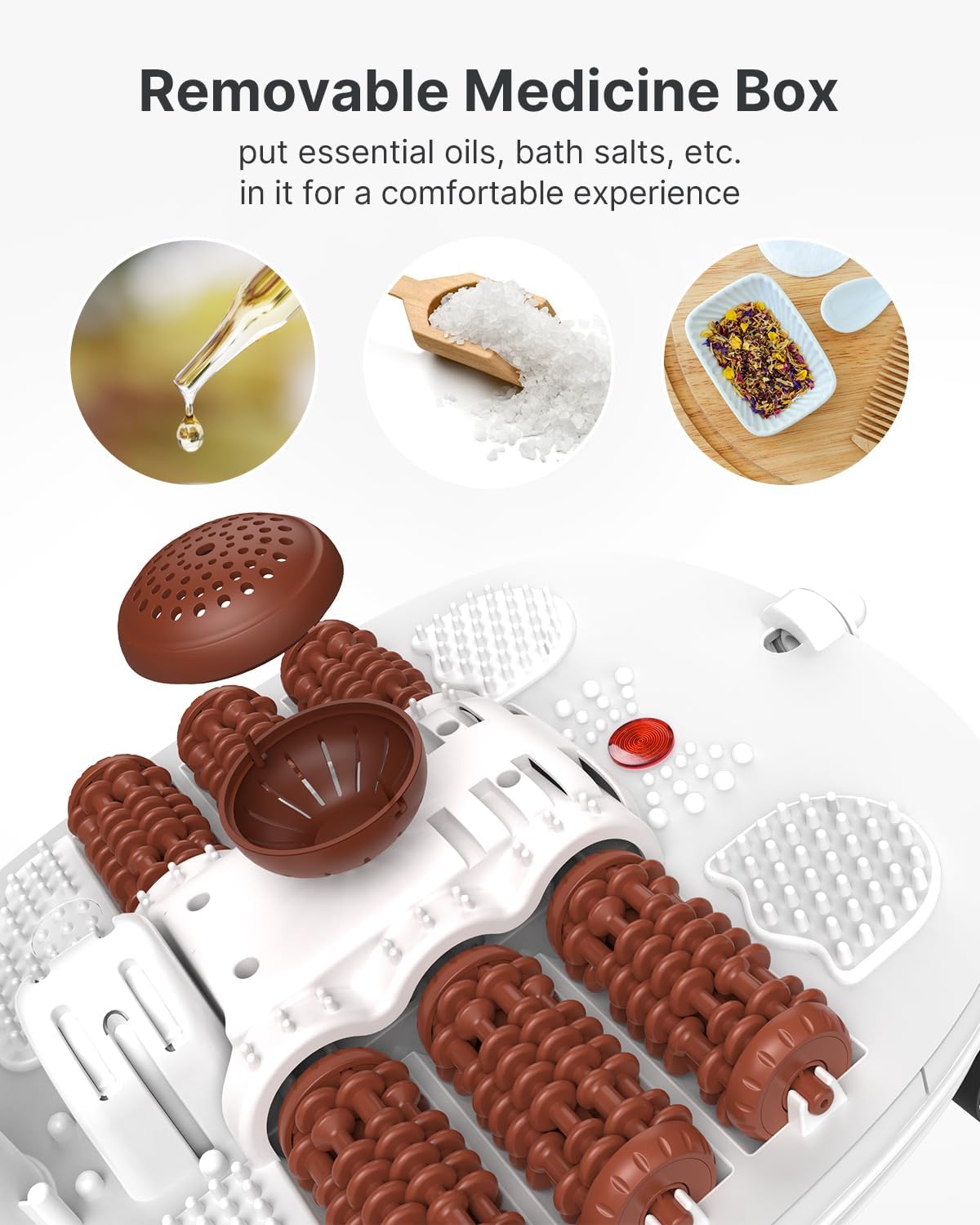

Figure 4.4: The removable medicine box allows for personalized aromatherapy or bath salt treatments.

5. Manutenzjoni u Tindif

1. Ixxotta l-Ilma: After use, unplug the unit. Use the integrated drain pipe to empty the water. This eliminates the need to lift the heavy unit when full.
2. Naddaf il-Basin: Laħlaħ il-basin with clean water. Use a soft cloth and mild soap to wipe down the interior and exterior surfaces. Avoid abrasive cleaners.
3. Nixxef sewwa: Ensure all parts are completely dry before folding and storing the unit.
4. Ħażna: Collapse the foot spa for compact storage. Use the hidden handle for easy transport.

Figure 5.1: The convenient drain pipe allows for easy water removal.

6 Issolvi l-problemi

• L-unità ma tixgħel:
  • Kun żgur li l-korda tad-dawl hija pplaggjata sew f'ħanut tax-xogħol.
  • Iċċekkja jekk is-swiċċ tal-enerġija huwiex fil-pożizzjoni "ON".
  • Verify that the internal wires are not disconnected due to forceful pulling of the power cord.
• L-ilma mhux qed jisħon:
  • Confirm that the temperature setting is activated and set to your desired level.
  • Ensure there is sufficient water in the basin, above the minimum water line.
• No bubbles or massage:
  • Check if the respective functions (Bubble/Red Light, Massage) are activated on the control panel.
  • Ensure the unit is properly powered and has water.

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

RENPHO products typically come with a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, or visit the official RENPHO websit għal informazzjoni dettaljata dwar il-garanzija u kuntatti għall-appoġġ għall-klijenti.

For any questions, technical assistance, or warranty claims, please contact RENPHO customer support.
