Introduzzjoni
Thank you for choosing the DEERC 1:16 Scale 40 KM/H 4WD Off Road Monster Truck. This high-speed remote control car is designed for thrilling off-road adventures, featuring robust construction and advanced control systems. Please read this manual thoroughly before operation to ensure safe and optimal performance.
Key features of your DEERC RC car include:
- Disinn imtejjeb: Larger tires with newly designed threads for stronger grip, and well-designed hub metal sheets to prevent deformation from collision.
- Sistema ta' Batteriji Doppju: Comes with two 7.4V/850mAh batteries, providing approximately 40+ minutes of driving time (20+ minutes per battery).
- Hobby Grade Control: 2.4GHz remote control system with proportional throttle and speed control, and adjustable steering trim for precise handling.
- Powerful Motor with Heat Sink: Equipped with 2 powerful motors for speeds up to 40+ km/h, featuring a metal heat sink for enhanced motor heat dissipation and extended life.
- Kapaċità għal kull Terren: Independent suspension design with damped metal shocks and four-wheel metal springs for support on unexpected drops and undulating ground.
X'hemm fil-Kaxxa
Your DEERC RC Monster Truck package includes the following components:
- DEERC 1:16 Scale 40 KM/H 4WD Off Road Monster Truck (Model 9300)
- Kontrollur Remote 2.4GHz
- Two 7.4V/850mAh Rechargeable Lithium Polymer Batteries
- Cable tal-Iċċarġjar tal-USB
- Tornavit
- Spare Screws and Hood Pins
- Pinzell tat-tindif
- Drawstring Storage Pocket
- Manwal ta' Istruzzjoni
Image: The DEERC RC Monster Truck with its remote control, two batteries, and charging cable.
Setup
- Installazzjoni tal-batterija: Carefully open the battery compartment on the RC truck. Insert one of the provided 7.4V/850mAh Lithium Polymer batteries, ensuring correct polarity. Secure the battery and close the compartment.
- Iċċarġjar tal-batteriji: Connect the USB charging cable to each 7.4V/850mAh battery. Plug the USB end into a compatible USB power source (e.g., computer USB port, USB wall adapter). The charging indicator light will show the charging status. Ensure batteries are fully charged before first use for optimal performance.
- Batteriji tal-Kontroll mill-bogħod: Install 3x AA batteries (not included) into the remote controller, observing correct polarity.
- Tqabbil tal-Kontroll mill-bogħod:
- Turn on the RC truck.
- Ixgħel il-kontrollur remot.
- The remote indicator light will become solid once successfully paired with the RC car.

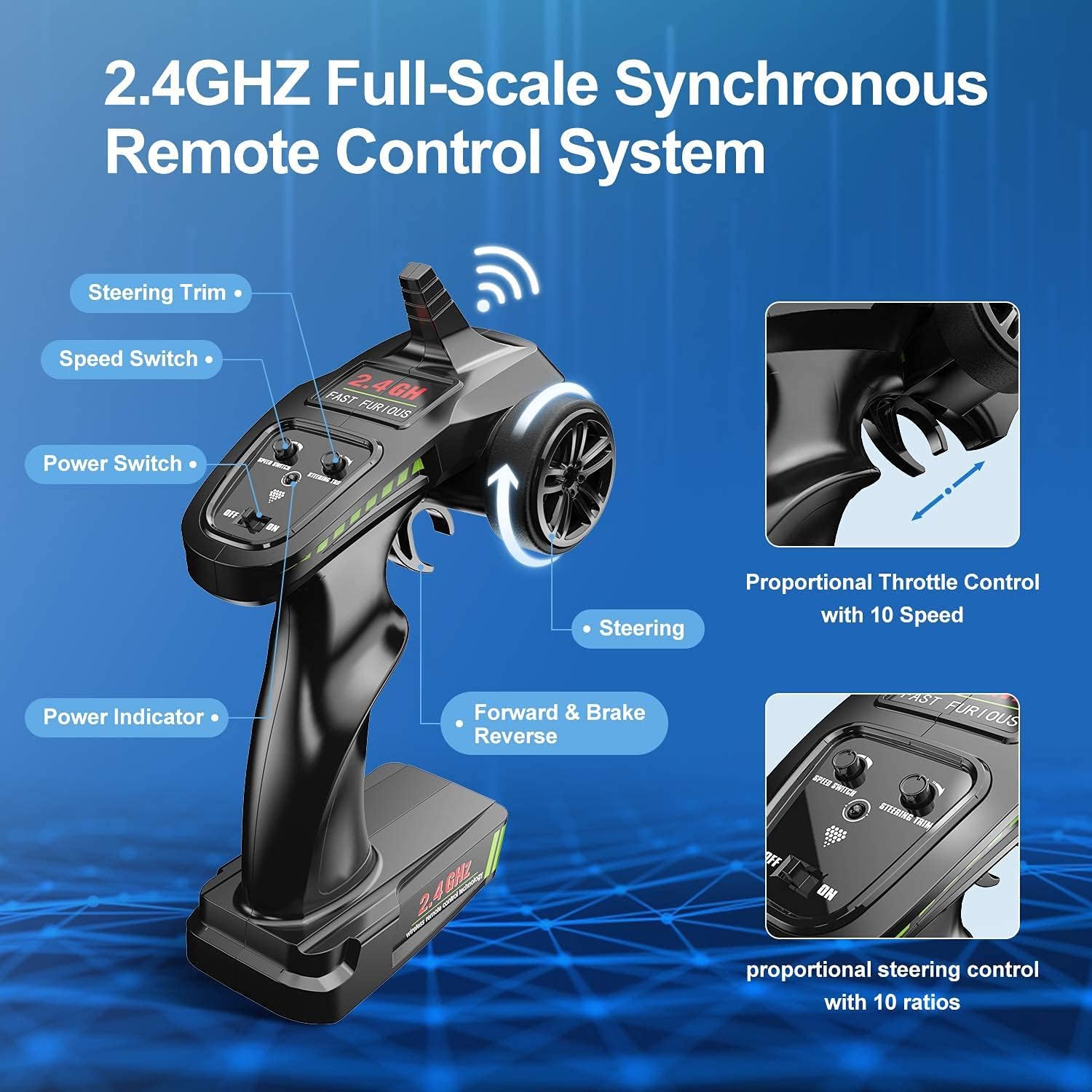

Image: The 2.4GHz remote control for the DEERC RC truck, showing the steering wheel, trigger, and various adjustment dials.
Operazzjoni
Your DEERC RC truck is designed for high-speed, all-terrain performance. Familiarize yourself with the controls for the best driving experience.
- Kontrolli tas-Sewqan: The 2.4GHz remote control allows for proportional control of both throttle and steering. Use the trigger for forward and reverse movement, and the steering wheel for left and right turns.
- Aġġustament tal-veloċità: Adjust the speed switch on the remote control clockwise to increase driving speed and counterclockwise to decrease it. This allows for adaptability to different skill levels and terrains.
- Ittrimm tal-Isteering: If the RC car does not drive straight, use the steering trim dial on the remote control to fine-tune the direction of the wheels.
- Prestazzjoni fuq kull Terren: The independent suspension and damped metal shocks provide excellent support and adaptability over various surfaces, including dirt, grass, and gravel. The large, newly designed rubber tires offer superior grip.
Image: The DEERC RC Monster Truck demonstrating its all-terrain capabilities on different surfaces.
Image: The DEERC RC Monster Truck driving through shallow water, showcasing its IPX4 waterproof level.
Manutenzjoni
- Motor Heat Dissipation: The motor is equipped with a metal heat sink to enhance heat dissipation. However, the motor can still get hot after prolonged use. It is recommended to pause intermittently after 15 minutes of continuous driving to allow the motor to cool down.
- Tindif: Use the provided cleaning brush to remove dirt and debris from the truck after use. The drawstring pocket can be used to store accessories and keep them tidy.
- Reżistenza għall-Ilma: The truck has an IPX4 waterproof level, protecting it from splashing water and waves. While it can handle wet conditions, avoid submerging the truck completely.
- Kura tal-batterija: Always fully charge batteries before storage and periodically recharge them if not used for extended periods to maintain battery health.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| RC car does not respond to remote. | Batteries low or not installed correctly; Not paired. | Ensure batteries are charged and correctly installed. Re-pair the remote control (remote indicator light should be solid). |
| Short driving time. | Batteries not fully charged; Old batteries. | Fully charge both batteries. Consider replacing old batteries if performance degrades significantly. |
| RC car pulls to one side. | It-trim tal-istering jeħtieġ aġġustament. | Adjust the steering trim dial on the remote control until the car drives straight. |
| Motor gets hot quickly. | Continuous high-speed operation. | Allow the motor to cool down by pausing operation for 15 minutes after continuous driving. |
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Numru tal-Mudell | 9300 |
| Skala | 1:16 |
| Veloċità Massima | 40+ KM/Siegħa |
| Sistema tas-sewqan | 4WD |
| Frekwenza tal-Kontroll | 2.4GHz |
| Batteriji | Two 7.4V/850mAh Lithium Polymer (included) |
| Approx. Driving Time | 20+ minutes per battery (40+ minutes total) |
| Livell li ma jgħaddix ilma minnu | IPX4 (li ma titlaqx) |
| Dimensjonijiet tal-Prodott | 9.25 x 7.28 x 4.13 pulzieri |
| Piż tal-oġġett | 2.94 liri |
| Età Rakkomandata | 8 snin 'il fuq |
| Manifattur | Deerc |
| Data ta' Rilaxx | 9 ta’ Ottubru, 2019 |
Garanzija u Appoġġ
For any product inquiries, technical support, or warranty claims, please contact DEERC customer service:
- Email (USA): usa@deerc.com
- Email (UE): eu@deerc.com
- Email (JP): jp@deerc.com
- Telefon: +1 (855) 777-8866
- Websit: www.deerc.com
Protection plans are available for purchase separately to extend coverage beyond the standard warranty. Please refer to your purchase details for more information on available protection plans.
Informazzjoni dwar is-Sigurtà
TWISSIJA:
- Għal użu estern biss.
- Evita kuntatt mal-għajnejn.
- Żomm 'il bogħod minn fjamma mikxufa jew sorsi diretti ta' sħana.
- Dejjem sorvelja lit-tfal waqt l-operazzjoni.
- Tħaddimx ħdejn nies, annimali domestiċi, jew ostakli.
- Read the instruction manual clearly before operating.
