JOOLA Inside 13 Indoor Table Tennis Table User Manual

1. Informazzjoni Importanti dwar is-Sigurtà

Please read all instructions carefully before assembling and using the JOOLA Inside 13 Table Tennis Table. Retain this manual for future reference.

• Superviżjoni għall-adulti: Children should always be supervised by an adult when using or near the table.
• Wiċċ Stabbli: Kun żgur li l-mejda titqiegħed fuq wiċċ ċatt u stabbli biex tevita li tinqaleb.
• Punti ta' Qbid: Be aware of pinch points during assembly, folding, and unfolding. Keep hands clear of moving parts.
• Roti li jissakkru: Always engage the locking mechanisms on the wheels when the table is in play or storage position to prevent unintended movement.
• Anti-Tilt Safety: The JOOLA Inside 13 features a double anti-tilt safety mechanism. Ensure this is properly engaged when the table is folded or in solo play mode.
• Limitu tal-Piż: Do not sit, stand, or place heavy objects on the table. It is designed for playing table tennis only.
• Użu fuq ġewwa biss: This table is designed for indoor use. Exposure to outdoor elements can damage the playing surface and frame.

2. Prodott Aktarview

The JOOLA Inside 13 is an indoor table tennis table designed for recreational play. It features a 12mm MDF playing surface for consistent ball bounce, a sturdy metal frame, and a foldable design for convenient storage and solo practice. The table comes 95% pre-assembled for quick setup.

Image: The JOOLA Inside 13 Table Tennis Table fully assembled and ready for play, showing its blue playing surface and black frame with net attached.

Karatteristiċi ewlenin:

• 12mm MDF Playing Surface: Provides a consistent and enjoyable ball bounce.
• Powder-Coated Metal Frame: Ensures durability and stability.
• Disinn li jintrewa: Each half folds independently for compact storage and solo play.
• Roti li jissakkru: Four high-quality wheels on each half for easy transport and secure positioning.
• Double Anti-Tilt Safety: Enhances safety during storage and solo play.
• Adjustable Height Feet: Allows for leveling the playing surface on uneven floors.
• Assemblaġġ ta 'malajr: 95% pre-assembled, requiring approximately 15-20 minutes for full setup.
• Included Net Set: Comes with a practical clamp-style net and post set.

3. Istruzzjonijiet ta' Setup

The JOOLA Inside 13 table is designed for quick assembly, with most components pre-installed. Two people are recommended for safe and efficient setup.

1. Ħoll il-Komponenti: Carefully remove all parts from the packaging. Check against the parts list (not provided in JSON, so general instruction).
2. Position Table Halves: Place each table half on a flat surface, ensuring enough space for unfolding. The table is delivered 95% pre-assembled, meaning the main frame and playing surface are largely connected.
3. Iftaħ saqajn: Carefully unfold the legs and support structures for each table half. Ensure all locking mechanisms click into place securely.
4. Connect Halves: Bring the two table halves together. Align the connecting brackets and secure them according to the specific mechanism (usually a latch or bolt system).
5. Waħħal ix-Xibka:


   Immaġni: Dettaljata view of the included net and its practical clamp attachment system, ready to be secured to the table.

   Attach the included net set to the center of the table. The net uses a practical clamp technique. Ensure the net is taut and at the correct height (15.25 cm or 6 inches).
6. Illivella l-Mejda: Use the adjustable feet on the table legs to ensure the playing surface is perfectly level.

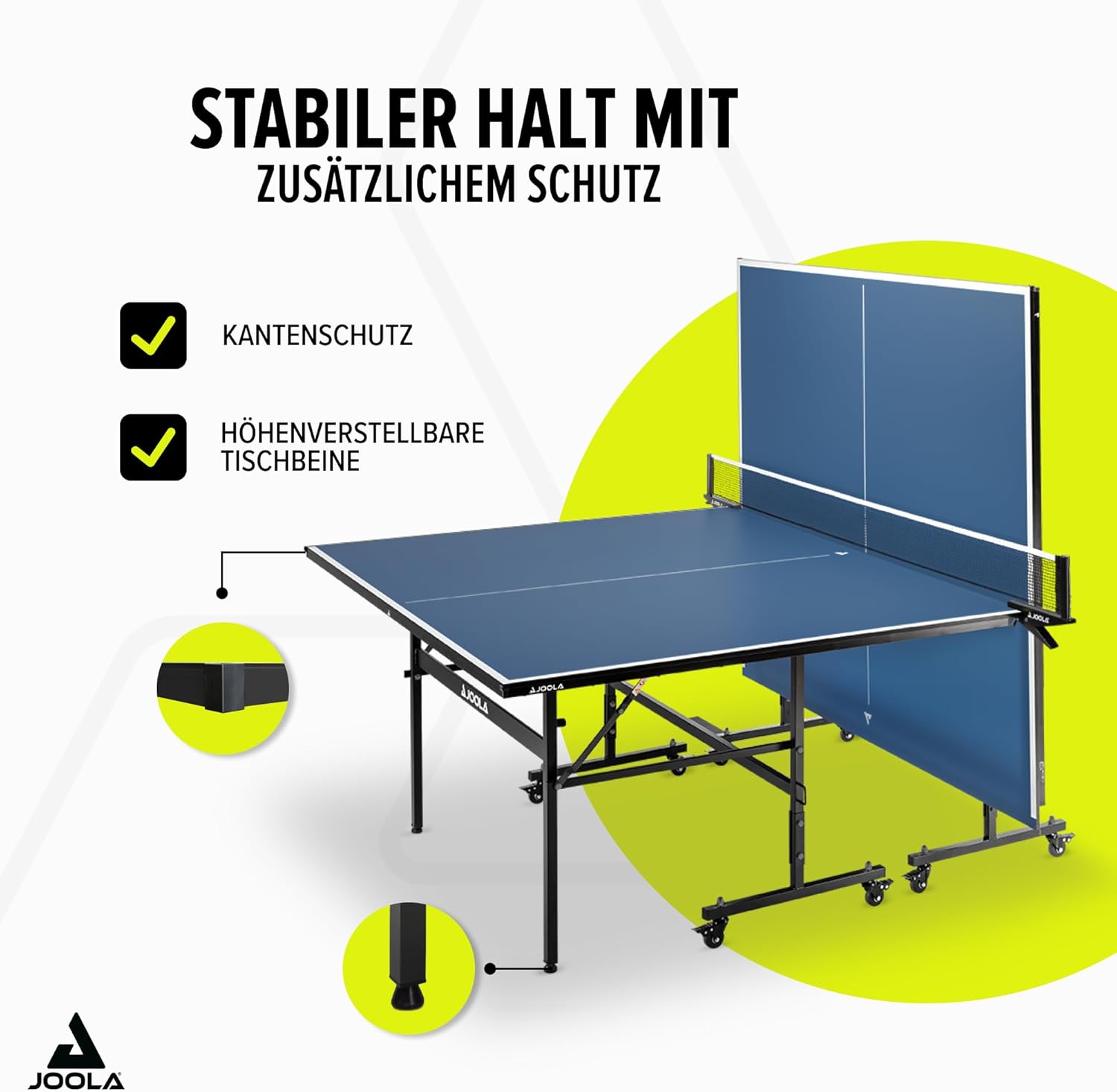

   Image: A close-up of a table leg showing the adjustable foot for leveling and the corner protection for added durability and safety.

7. Engage Wheel Locks: Lock the wheels to prevent the table from moving during play.

The entire assembly process should take approximately 15-20 minutes.

Image: An infographic highlighting the quick 20-minute assembly, the solo play mode feature, and the durable powder-coated metal undercarriage of the table.

4. Istruzzjonijiet Operattivi

4.1. Standard Play Mode (Full Table)

• Ensure both table halves are securely connected and the net is properly installed.
• Verify all wheel locks are engaged to prevent movement during play.
• Confirm the table surface is level using the adjustable feet.

4.2. Solo Play Mode (Folded Half)

The JOOLA Inside 13 allows for solo practice by folding up one half of the table.

1. Unlock and Separate: Unlock the connection between the two table halves.
2. Fold One Half: Carefully fold one half of the table upwards into the vertical storage position. Ensure the double anti-tilt safety mechanism engages.
3. Pożizzjoni għal-Logħob: Position the folded half at a suitable distance from the unfolded half for solo practice.
4. Engage Wheel Locks: Lock the wheels on both halves to ensure stability during solo play.

4.3. Tiwi għall-Ħażna

To store the table compactly, both halves can be folded vertically.

1. Remove Net: Detach the net from the table.
2. Unlock and Separate: Unlock the connection between the two table halves and separate them slightly.
3. Fold Each Half: Carefully fold each table half upwards into the vertical storage position. Ensure the double anti-tilt safety mechanism engages for each half.
4. Ħażna kompatta: Push the two folded halves together for compact storage. Engage all wheel locks.


   Image: The JOOLA Inside 13 table folded into its compact storage position, illustrating its space-saving design and the double anti-tilt safety feature.

Image: An illustration emphasizing the table's mobility and stability, highlighting the 12mm playing surface thickness and the secure 2-inch lockable wheels.

5. Manutenzjoni

• Cleaning the Playing Surface: Wipe the playing surface with a soft, damp cloth to remove dust and dirt. Avoid abrasive cleaners or solvents that could damage the finish.
• Qafas u Saqajn: Periodically check all bolts and screws for tightness and re-tighten if necessary. Wipe the metal frame with a damp drapp.
• Roti: Żomm ir-roti nodfa u ħielsa mill-fdalijiet biex tiżgura moviment bla xkiel.
• Net: Clean the net with a damp cloth. Store it properly when not in use to prevent damage.
• Ħażna: Store the table in a dry, indoor environment away from extreme temperatures and humidity to prevent warping or damage.

6 Issolvi l-problemi

7. Speċifikazzjonijiet

Image: A technical diagram illustrating the full dimensions of the JOOLA Inside 13 table tennis table, including length, width, and height, and its weight.

8. Garanzija u Appoġġ

For warranty information and customer support, please refer to the documentation included with your purchase or contact JOOLA directly. The manufacturer, JOOLA Tischtennis GmbH, can provide assistance with product-specific inquiries.

Manifattur: JOOLA Tischtennis GmbH

Please visit the official JOOLA webis-sit għall-aktar informazzjoni ta' appoġġ u dettalji ta' kuntatt aġġornati: www.joola.com
