Manwal tal-Utent tal-Kompjuter taċ-Ċiklu BONTRAGER NODE2.1

1. Introduzzjoni

The BONTRAGER NODE2.1 is an advanced cycle computer designed to provide cyclists with essential ride data. This manual will guide you through the setup, operation, and maintenance of your NODE2.1 to ensure optimal performance and longevity.

Key features include real-time display of speed, distance, time, cadence, and heart rate (with compatible sensors). Its intuitive interface allows for easy navigation and data tracking during your rides.

Quddiem view of the BONTRAGER NODE2.1 Cycle Computer display

Figura 1.1: Quddiem view of the BONTRAGER NODE2.1 Cycle Computer, showing the digital display with time, speed, and other metrics.

2. Kontenut tal-Pakkett

Before proceeding with the setup, please verify that all items listed below are present in your package. If any items are missing or damaged, please contact BONTRAGER customer support.

BONTRAGER NODE2.1 Cycle Computer Unit
Handlebar/Stem Mount
Speed/Cadence Sensor (DuoTrap S or similar, inferred from accessories)
Heart Rate Monitor Strap (if included in specific bundle)
Mounting Hardware (Zip ties, rubber pads, screws)
Manwal għall-Utent (dan id-dokument)

All components included in the BONTRAGER NODE2.1 Cycle Computer package

Figura 2.1: Aktarview of the BONTRAGER NODE2.1 Cycle Computer and its accessories, including the main unit, sensors, and mounting hardware, as packaged.

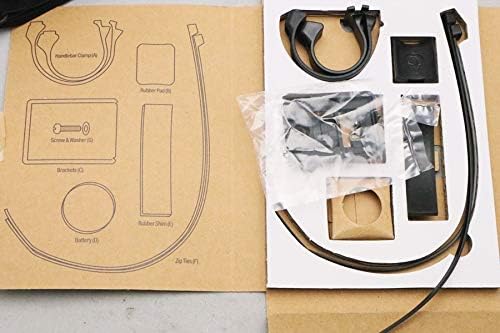

Dettaljati view of BONTRAGER NODE2.1 mounting hardware and accessories

Figure 2.2: Close-up of the mounting hardware and additional accessories, including handlebar clamps, rubber pads, screws, brackets, and zip ties, essential for installation.

3. Setup

3.1 Installazzjoni tal-batterija

The NODE2.1 uses a standard coin cell battery (e.g., CR2032). To install or replace the battery:

Sib l-għatu tal-batterija fuq wara tal-unità.
Use a coin or flat-head screwdriver to turn the battery cover counter-clockwise to the "OPEN" position.
Remove the old battery (if replacing) and insert the new battery with the positive (+) side facing up.
Align the battery cover and turn it clockwise to the "CLOSE" position until it clicks securely.

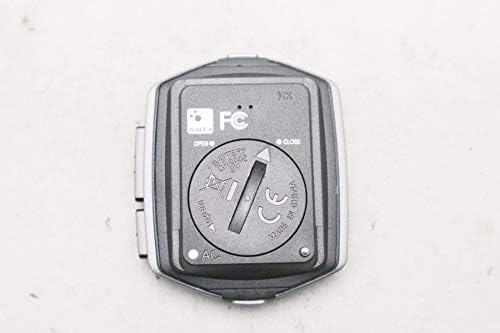

Lura view of the BONTRAGER NODE2.1 Cycle Computer showing the battery compartment

Figura 3.1: Wara view of the NODE2.1 unit, highlighting the battery compartment with "OPEN" and "CLOSE" indicators for battery installation or replacement.

3.2 Mounting the Cycle Computer

The NODE2.1 can be mounted on your bicycle's handlebar or stem using the provided mount.

Choose a suitable location on your handlebar or stem that provides clear visibility and does not obstruct your riding.
Attach the mount using the provided zip ties or screws, ensuring it is secure and stable.
Slide the NODE2.1 unit onto the mount until it clicks into place.

3.3 Installazzjoni u Tqabbil tas-Sensuri

For speed, cadence, and heart rate data, you will need to install and pair compatible ANT+ sensors (e.g., Bontrager DuoTrap S for speed/cadence, or a separate heart rate strap).

Speed/Cadence Sensor: Follow the sensor's specific instructions for installation on your bike's chainstay or wheel. Ensure the sensor is correctly aligned with the magnets.
Monitor tar-rata tal-qalb: Wear the heart rate strap directly on your skin, just below your chest muscles. Moisten the electrodes for better conductivity.
Tqabbil: Refer to the NODE2.1's on-screen menu for sensor pairing. Typically, you will navigate to a "Sensors" or "Pairing" menu, activate the sensor (e.g., spin the wheel, wear the HR strap), and select it when it appears on the computer's display.

Figure 3.2: The BONTRAGER heart rate monitor strap, designed to be worn around the chest for accurate heart rate tracking during cycling.

4. Istruzzjonijiet Operattivi

4.1 Power On/Off

Qawwa Mixgħul: Press any button to wake the unit from sleep mode or power it on.
Itfi: The unit typically enters sleep mode automatically after a period of inactivity to conserve battery. To manually power off, hold down a specific button (refer to on-screen prompts or quick start guide).

Ġenb view of the BONTRAGER NODE2.1 Cycle Computer showing a button and model name

Figura 4.1: Proġett tal-ġenbfile of the NODE2.1, illustrating the placement of a control button and the "node 2.1" branding.

Naħa oħra view of the BONTRAGER NODE2.1 Cycle Computer showing multiple buttons

Figure 4.2: An alternative side view of the NODE2.1, highlighting the array of control buttons on the unit's side, used for navigation and function selection.

4.2 Navigating Menus and Display Modes

The NODE2.1 features multiple display screens and menus to access various data and settings. Use the side buttons to navigate:

Buttuna tal-Modalità: Typically cycles through different display screens (e.g., current speed, average speed, distance, time, cadence, heart rate).
Set/Enter Button: Used to confirm selections or enter settings menus.
Buttuni 'l fuq /' l isfel: Used to scroll through options within menus.

Consult the on-screen prompts for specific button functions in different contexts.

4.3 Tibda u Twaqqaf Rikba

To record your ride data:

Ensure all sensors are paired and active.
The unit will typically start recording automatically when movement is detected or a sensor signal is received.
To pause or stop a ride, press the designated button (often the "Mode" or "Lap" button, or a dedicated "Start/Stop" button).
To save the ride, navigate to the "Save Ride" option in the menu.

5. Manutenzjoni

5.1 Tindif

To keep your NODE2.1 in optimal condition:

Imsaħ l-unità b'artab, damp drapp.
Do not use abrasive cleaners or solvents, as these can damage the display or casing.
Ensure the battery compartment is clean and dry when replacing the battery.

5.2 Sostituzzjoni tal-batterija

Replace the battery when the low battery indicator appears on the display. Refer to Section 3.1 for detailed instructions on battery installation.

5.3 Ħażna

If storing the unit for an extended period, remove the battery to prevent leakage and potential damage to the device.

6 Issolvi l-problemi

Problema	Kawża Possibbli	Soluzzjoni
L-ebda display/L-unità ma tixgħelx	Dead battery; Unit in sleep mode; Battery incorrectly installed.	Replace battery; Press any button to wake; Reinstall battery correctly.
No speed/cadence data	Sensor not paired; Sensor battery low; Sensor misaligned; Magnet missing.	Re-pair sensor; Replace sensor battery; Adjust sensor/magnet position; Ensure magnet is present.
Ebda data dwar ir-rata tal-qalb	HR strap not paired; HR strap battery low; Electrodes not moistened; Strap not positioned correctly.	Re-pair HR strap; Replace HR strap battery; Moisten electrodes; Adjust strap position.
Inaccurate data readings	Incorrect wheel size setting; Sensor interference; Loose sensor.	Verify wheel size in settings; Move away from strong electromagnetic sources; Secure all sensors.

If you encounter issues not listed here, or if the suggested solutions do not resolve the problem, please contact BONTRAGER customer support.

7. Speċifikazzjonijiet

Ditta: BONTRAGER
Mudell: NODE2.1
Konnettività: ANT+ (for sensors)
Wiri: LCD
Tip ta 'batterija: CR2032 (main unit)
Funzjonijiet: Speed (Current, Average, Max), Distance (Trip, Odometer), Time (Ride, Clock), Cadence, Heart Rate (with compatible sensors)
ASIN: B07X4FW26K
L-Ewwel Data Disponibbli: 2019/8/30

8. Garanzija u Appoġġ

For warranty information, product registration, or technical support, please visit the official BONTRAGER webis-sit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom. Żomm il-prova tax-xiri tiegħek għal talbiet ta’ garanzija.

Uffiċjali Websit: www.trekbikes.com/us/en_US/bontrager/ (This is a general link, specific support page might vary)

Servizz tal-Klijent: Irreferi għall-informazzjoni ta' kuntatt ipprovduta fuq il-paġna uffiċjali websit għar-reġjun tiegħek.
