Introduzzjoni
This manual provides detailed instructions for the installation, operation, and maintenance of your RYDEEN JB01 Jeep Spare Tire Backup Camera Bracket. The JB01 is designed to securely mount compatible RYDEEN MINy backup cameras to the spare tire carrier of Jeep Wrangler vehicles, offering a stable and integrated solution for rear-view viżibilità.
Karatteristiċi Ewlenin
- Designed specifically for RYDEEN MINy backup cameras.
- Constructed from sturdy metal for durability.
- Rigid design ensures stable camera mounting.
- Integrates seamlessly with Jeep spare tire carriers.
Setup u Installazzjoni
Proper installation of the RYDEEN JB01 bracket is crucial for optimal performance of your backup camera. Please follow these steps carefully.
Figure 1: The RYDEEN JB01 Jeep Spare Tire Backup Camera Bracket. This sturdy metal bracket is designed to securely hold a backup camera behind the spare tire of a Jeep.
Figura 2: Close-up view of the JB01 bracket with a compatible RYDEEN MINy backup camera attached. The camera is secured to the upper portion of the bracket using screws.
Figure 3: The backup camera, mounted on the JB01 bracket, positioned within the spokes of a Jeep spare tire wheel. This placement allows for a clear view wara l-vettura.
Figure 4: An exterior view of a Jeep spare tire, showing the discreet placement of the backup camera through the wheel spokes. The camera is positioned to provide an unobstructed rear view.

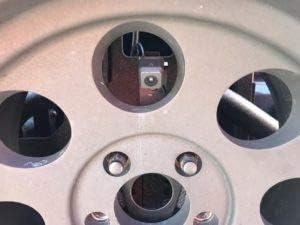

Figura 5: A view from inside the spare tire wheel, illustrating how the backup camera is securely mounted to the JB01 bracket and positioned to look out through a wheel spoke.
Figure 6: A detailed perspective of the camera and bracket assembly, showing its integration within the wheel structure. The bracket's design allows for precise camera positioning.
Figure 7: Another close-up of the JB01 bracket with a RYDEEN MINy backup camera attached, highlighting the secure fastening points and the camera's orientation.
Operazzjoni
The RYDEEN JB01 is a mounting bracket and does not require active operation. Once installed, it provides a stable platform for your RYDEEN MINy backup camera. The camera's operation will be governed by its own instruction manual and your vehicle's electrical system.
Manutenzjoni
- Spezzjoni regolari: Periodically check the bracket and camera for any signs of looseness, damage, or corrosion. Ensure all mounting screws are tight.
- Tindif: Clean the bracket and camera housing with a soft, damp cloth. Avoid abrasive cleaners or solvents that could damage the finish or camera lens.
- Fatturi Ambjentali: While designed for outdoor use, extreme weather conditions (e.g., heavy snow, ice, prolonged direct sunlight) may require more frequent inspection.
Issolvi l-problemi
Camera Not Stable
If the camera appears loose or vibrates excessively, check all mounting points on the JB01 bracket and ensure they are securely fastened. Also, verify that the bracket itself is tightly secured to the vehicle's spare tire carrier.
Ostakolat View
Ensure that the camera lens is clean and free from dirt, mud, or snow. Verify that no part of the spare tire or wheel is obstructing the camera's field of view. Adjust the camera angle if necessary, following the instructions provided with your RYDEEN MINy camera.
Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Dimensjonijiet tal-Prodott | 4.5 x 0.2 x 12 pulzieri |
| Piż tal-oġġett | 5 liri |
| Numru tal-Mudell | JB01 |
| Manifattur | Rydeen |
| Kulur | Iswed |
| Karatteristiċi Speċjali | Aġġustabbli |
| Apparati Kompatibbli | RYDEEN MINy Backup Cameras |
| Tip ta 'Immuntar | Vehicle Mount (Spare Tire) |
Garanzija u Appoġġ
Informazzjoni dwar Garanzija
The RYDEEN JB01 bracket is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty documentation included with your purchase or visit the official Rydeen websit għal termini u kundizzjonijiet speċifiċi.
Appoġġ għall-Klijent
For technical assistance, installation questions, or warranty claims, please contact Rydeen customer support. Contact information can typically be found on the Rydeen webis-sit jew fil-materjali tal-ippakkjar.
Rydeen Websit: www.rydeenmobile.com
