Introduzzjoni
This manual provides essential information for the installation, operation, and maintenance of your COMAP Thermostatic Head Senso S631252. Please read these instructions carefully before using the product to ensure safe and efficient operation.
Prodott Overview
The COMAP Thermostatic Head Senso S631252 is designed to regulate the temperature of individual rooms by controlling the flow of hot water through a radiator. It features a liquid sensor for reliable and responsive temperature control.
Image: The COMAP Thermostatic Head Senso S631252, shown in its retail packaging. The packaging highlights features such as energy efficiency and French manufacturing.
Karatteristiċi ewlenin:
- Thermostatic Head Senso: Provides precise temperature control for your heating system.
- Liquid Sensor: Ensures high reliability, longevity, sensitivity, and quick response time for optimal performance.
- Disinn Kontemporanju: Features a discreet and modern aesthetic with stylized openings.
- Installazzjoni mingħajr Għodda: Designed for easy mounting and temperature limitation adjustment without the need for special tools, making it ideal for renovation projects.
- Captive Stop System: Includes a limitation ring and a captive stop system on the front, a patented COMAP exclusivity.
Informazzjoni dwar is-Sigurtà
Jekk jogħġbok osserva l-linji gwida tas-sigurtà li ġejjin:
- Ensure the heating system is depressurized and cooled down before attempting installation or maintenance.
- Do not attempt to modify the thermostatic head.
- Żomm fejn ma jintlaħaqx mit-tfal.
- If you are unsure about any installation steps, consult a qualified heating engineer.
Setup u Installazzjoni
The COMAP Thermostatic Head Senso S631252 is designed for straightforward installation on M30 radiator valves.

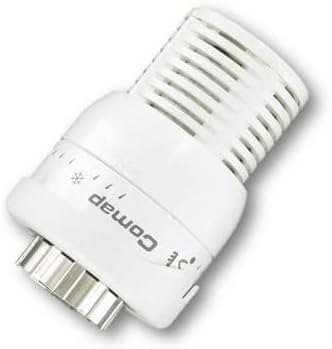

Immaġni: Naħa waħda view of the COMAP Thermostatic Head Senso, clearly showing the threaded M30 connection point at the base, which attaches to the radiator valve.
- Preparazzjoni: Ensure the radiator valve is clean and free from debris. If replacing an old head, remove it carefully.
- Immuntar: Align the thermostatic head with the M30 threaded connection on your radiator valve.
- Issikkar: Screw the head onto the valve by hand until it is firmly seated. No tools are typically required for this step. Do not overtighten.
- Temperature Limitation (Optional): The head features a limitation ring and captive stop system. Refer to the markings on the head to set minimum and maximum temperature limits if desired. This can be done without tools.
Once installed, the heating system can be repressurized if necessary.
Istruzzjonijiet Operattivi
The COMAP Thermostatic Head allows for manual temperature control within the room.
- Aġġusta tat-Temperatura: Rotate the ring on the thermostatic head to select your desired temperature setting. The head typically has numerical markings (e.g., 1 to 5 or specific temperature indicators) corresponding to different heat levels.
- Livelli tal-issettjar:
- The snowflake symbol (*) usually indicates a frost protection setting (around 6-7°C).
- Lower numbers (e.g., 1, 2) correspond to lower temperatures.
- Higher numbers (e.g., 3, 4, 5) correspond to higher temperatures.
- Regolamentazzjoni Awtomatika: The liquid sensor inside the head will automatically open or close the valve to maintain the selected room temperature.
For optimal energy efficiency, avoid setting the head to maximum when a lower comfortable temperature is sufficient.
Manutenzjoni
The COMAP Thermostatic Head requires minimal maintenance to ensure long-term performance.
- Tindif: Wipe the head periodically with a soft, damp drapp. Tużax tindif jew solventi li joborxu.
- Tneħħija tat-Trab: Ensure the stylized openings are free from dust or obstructions, as these are crucial for the sensor's accurate temperature detection.
- Iċċekkja tal-Funzjoni: Occasionally rotate the head through its full range of settings to ensure the valve pin moves freely. If the pin appears stuck, gently press it a few times.
Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Radiator not heating up. | Thermostatic head set too low, valve pin stuck, air in radiator, central heating system off. | Increase setting on head. Gently press valve pin to free it. Bleed the radiator. Check central heating system. |
| Room is too hot despite low setting. | Thermostatic head faulty, external heat source influencing sensor, valve pin stuck open. | Ensure no direct sunlight or other heat sources are affecting the head. Check valve pin. Consider replacing the head if problem persists. |
| Head is loose on the valve. | Not tightened sufficiently during installation. | Gently re-tighten the head by hand onto the valve. |
If troubleshooting steps do not resolve the issue, please contact a qualified technician or COMAP support.
Speċifikazzjonijiet
| Attribut | Dettall |
|---|---|
| Brand | Comap |
| Numru tal-Mudell | S631252 |
| Isem tal-Mudell | Radiator Head |
| Kulur | Abjad |
| Piż tal-oġġett | 140 gramma |
| Dimensjonijiet tal-Pakkett | 14.5 x 9.7 x 5 ċm |
| Voltage | 230 Volt (Dipendenti mis-Sistema) |
| Tip ta' Kontrollur | Ċirku |
| Tip ta' Kontroll tat-Temperatura | Manwal |
| Użi Speċifiċi | Tisħin |
| Komponenti Inklużi | 1 Thermostatic Head |
| Sors tal-Enerġija | Operated by hydraulic force (within the heating system) |
| Forma | Round |
| Pajjiż ta' Oriġini | Franza |
Informazzjoni dwar Garanzija
Specific warranty details for the COMAP Thermostatic Head Senso S631252 are not provided in the product information. Please refer to the retailer's purchase terms or contact COMAP directly for warranty information.
Appoġġ
For further assistance, technical support, or inquiries regarding your COMAP Thermostatic Head, please contact:
- Your product retailer.
- The official COMAP websit għall-informazzjoni ta' kuntatt: www.comap.com.
When contacting support, please have your product model number (S631252) and purchase details ready.
