Manwal tal-Utent tas-Sistema ta' Allarm tas-Sigurtà b'2 Modi għall-Muturi steelmate 986XO

1. Prodott Aktarview

The steelmate 986XO is an advanced 2-WAY motorcycle security and anti-theft system designed to protect your vehicle. It features a remote engine starter, keyless operation, and a comprehensive alarm system that notifies you of any abnormalities. The system includes a high-sensitivity shock sensor with adjustable sensitivity and various convenient functions for daily use.

Image: The retail packaging for the steelmate 986XO motorcycle alarm system, featuring the product name and key functionalities.

2. Karatteristiċi ewlenin

• 2-WAY Two-way Communication: Remote monitoring capability with an approximate transmission range of 150M and reception range of 1000M. Notifies the remote control when an abnormality is detected on the motorcycle.
• Security Anti-theft Function: Alarms with a siren and flashing turn signals. A light alarm sounds if the shock sensor detects an initial abnormality. If shock is detected again within 15 seconds, turn signals flash, the engine locks, and the siren sounds for 15 seconds. The remote control is also notified.
• Engine Starter & Keyless Operation: Remotely start the engine, ideal for warming up the motorcycle.
• Anti-hijack Function: Forcibly stops the engine. After pressing the stop button, an alarm sounds after 10 seconds, and the engine stops.
• Built-in High-Sensitivity Shock Sensor: Three-level sensitivity adjustment via the remote control.
• Time Display & Alarm Setting: Functions displayed on the remote control.
• Parking Location Confirmation: Convenient for finding your vehicle in a parking lot.
• Batterija Voltage Monitoraġġ: Useful for battery management.
• Received Signal Strength Indicator: Allows checking the receivable area.
• Ultra-compact Remote Controls: Comes with two remote controls.
• LED tas-Sigurtà: Included for visual deterrence.

Image: The back of the steelmate 986XO product box, highlighting the main features and specifications of the alarm system.

3. Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:

• Control Box Main Unit (daily waterproof specification)
• Unità Prinċipali ta' Allarm
• 2 Remote Controls (built-in rechargeable lithium battery)
  • 1-WAY remote control x1
  • 2-WAY remote control x1
• Cable tal-Iċċarġjar tal-USB
• Sett ta' xedd
• Instruction Manual (Japanese version, please refer to this document for English instructions)

Image: The steelmate 986XO alarm system components neatly arranged in their packaging tray, including the main unit, remote controls, and wiring.

Image: A complete set of steelmate 986XO alarm system components laid out, showing the control box, alarm, remote controls, wiring harness, USB cable, and fuses.

Image: The steelmate 986XO alarm system components, including the main unit, remote controls, and wiring, displayed alongside the Japanese instruction manual.

4. Installazzjoni

Installation of this product requires specialized knowledge. It is highly recommended to have the system installed by a professional technician to ensure proper functionality and safety. Refer to the wiring diagrams below for connection details.

4.1. Wiring Diagram (AC Power Generation)

Image: Detailed wiring diagram for the steelmate 986XO alarm system when connected to an AC power generation system, showing connections to the ECU, battery, siren, LED, and turn signals.

4.2. Wiring Diagram (DC Power Generation)

Image: Detailed wiring diagram for the steelmate 986XO alarm system when connected to a DC power generation system, including connections to the ECU, battery, siren, LED, and turn signals, with a normal close relay.

Nota: Ensure all connections are secure and insulated to prevent short circuits. Incorrect installation can damage the system or the motorcycle's electrical components.

5. Istruzzjonijiet Operattivi

The steelmate 986XO system is operated primarily via the remote controls. Familiarize yourself with the remote control buttons and display icons.

5.1. Kontroll mill-Bogħod Fuqview

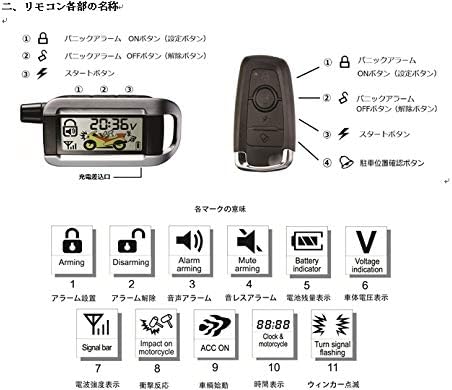

Image: Diagram illustrating the buttons and display icons on the steelmate 986XO remote controls, with explanations for each function and indicator.

Buttuni tal-Kontroll mill-Bogħod:

• Button 1 (Lock Icon): Panic Alarm ON / Arming (Setting Button)
• Button 2 (Unlock Icon): Panic Alarm OFF / Disarming (Release Button)
• Button 3 (Lightning Bolt Icon): Start Button (Engine Start)
• Button 4 (Bell Icon): Parking Position Confirmation

Remote Control Display Icons:

5.2. Operazzjonijiet Bażiċi

• Armar tal-Allarm: Agħfas il- Lock button once. The system will arm, and the remote will display the arming icon.
• Id-diżarm tal-allarm: Agħfas il- Nisfruttaw button once. The system will disarm, and the remote will display the disarming icon.
• Remote Engine Start: Agħfas il- Ibda button twice in quick succession. The engine will attempt to start.
• Anti-hijack Engine Stop: F'każ ta' emerġenza, agħfas u żomm il-buttuna Nisfruttaw button for 3 seconds. An alarm will sound after 10 seconds, and the engine will stop.
• Adjusting Shock Sensor Sensitivity: Refer to the remote control's menu or specific button combinations (not detailed in provided images, typically involves pressing a combination of buttons or navigating a menu on the 2-WAY remote). The sensitivity can be adjusted to three levels.
• Parking Location Search: Agħfas il- Qanpiena button. The motorcycle's turn signals will flash, and the alarm may sound briefly to help locate it.
• L-issettjar tal-ħin u l-allarm: Use the 2-WAY remote control's interface to set the time and configure alarm schedules.

6. Manutenzjoni

• Batterija tal-Kontroll mill-bogħod: The 2-WAY remote control has a built-in rechargeable lithium battery. Recharge it using the provided USB charging cable when the battery indicator shows low power.
• Tindif tas-Sistema: Keep the main unit and remote controls clean and free from dust and debris. Use a soft, dry cloth for cleaning.
• Reżistenza għall-Ilma: The control box main unit has a daily waterproof specification. Avoid submerging it in water or exposing it to heavy rain for extended periods.
• Spezzjoni tal-Wiring: Periodically check the wiring connections for any signs of wear, corrosion, or loose connections. Ensure all connections are secure.

7 Issolvi l-problemi

If the problem persists after attempting these solutions, please contact a professional technician or customer support.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

Dan il-prodott jiġi ma 'a garanzija ta 'sena from the date of purchase. In case of a malfunction within the warranty period, free repair or replacement will be provided. This warranty does not cover malfunctions or damage caused by human error, natural disasters, or other external factors.

For support or warranty claims, please contact your retailer or a professional service provider. It is recommended to entrust product transactions and servicing to a specialist.

10. Informazzjoni Importanti dwar is-Sigurtà

Please read and understand the following safety information before using the product:

• This product is designed for 12V DC vehicle systems only. Do not attempt to install it on vehicles with different voltagsistemi e.
• Improper installation can lead to electrical shorts, fire, or damage to the motorcycle's electrical system. Always seek professional installation.
• The operating range of the system may be affected by weather conditions, nearby radio stations, structures, and other environmental factors.
• Ensure the motorcycle is in a safe and stable position before attempting remote engine start.
• Do not attempt to disassemble or modify the main unit or remote controls. This will void the warranty and may cause malfunction or injury.
• Żomm il-prodott 'il bogħod minn temperaturi estremi, dawl tax-xemx dirett, u umdità għolja.
