Hi-Spec 12V Cordless Drill Set

1. Prodott Aktarview

The Hi-Spec 12V Cordless Drill Set is designed for light drilling and fast screw driving tasks around the home and garage. This versatile tool comes with a comprehensive set of drill bits and driver bits, all conveniently stored in a durable toolbox case.

Image 1.1: The Hi-Spec 12V Cordless Drill Set, showcasing the drill, battery, charger, and various drill and screwdriver bits, all neatly organized within its robust carrying case.

2. Kontenut tal-Pakkett

Jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma inklużi fil-pakkett tiegħek:

• 1 x Hi-Spec 12V Cordless Drill Driver
• 1 x 12V 1300mAh Li-ion Rechargeable Battery
• 1 x Ċarġer tal-Ħajt
• 1 x Compact Blow Mold Carrying Case
• 5 x HSS Metal Drill Bits (various sizes)
• 5 x Brad Point Wood Drill Bits (various sizes)
• 5 x Masonry Drill Bits (various sizes)
• 29 x Screwdriver Bits (Hex, Torx, Phillips, Slotted, Pozi, Square)
• 2 x Spade Wood Drill Bits (1/2" and 5/8" flat)

Image 2.1: A detailed breakdown of the 50-piece set, highlighting the cordless drill, various HSS, masonry, and wood drill bits, along with the 29-piece screwdriver bit set.

3. Twaqqif u Użu Inizjali

3.1 Iċċarġjar tal-batterija

Before first use, fully charge the 12V 1300mAh Li-ion battery. Connect the included wall charger to the battery and plug it into a standard electrical outlet. The battery typically charges in 3 to 5 hours.

3.2 It-twaħħil tal-batterija

Align the battery with the base of the drill handle and slide it in until it clicks securely into place. To remove, press the battery release button (if present) and slide the battery out.

3.3 Inserting Drill/Screwdriver Bits

1. Dawwar iċ-chuck kontra l-arloġġ biex tiftaħ ix-xedaq.
2. Insert the desired drill bit or screwdriver bit into the chuck, ensuring it is seated firmly.
3. Rotate the chuck clockwise to tighten the jaws securely around the bit. Ensure the bit is centered and cannot be pulled out easily.

Image 3.1: The Hi-Spec 12V Cordless Drill and its accessories, including the charger, neatly stored within the custom-fit carrying case, ready for transport or storage.

4. Istruzzjonijiet Operattivi

4.1 Trigger tal-Veloċità Varjabbli

The drill features a variable speed trigger. Press the trigger gently for lower speeds (up to 350 RPM) for precision screwdriving or starting holes. Press the trigger further for higher speeds (up to 1350 RPM) for rapid drilling.

4.2 Direction Switch (Forward/Reverse)

A switch located above the trigger controls the rotation direction. Push it to the left for forward (clockwise) rotation for drilling and driving screws. Push it to the right for reverse (counter-clockwise) rotation for removing screws or backing out bits.

4.3 Issettjar tat-torque

The drill features 18 torque settings, allowing you to adjust the amount of rotational force applied. Lower settings are ideal for driving small screws into soft materials to prevent overtightening or stripping. Higher settings provide more power for larger screws or drilling. The maximum torque is 15 Newton Meters (Nm).

4.4 Dawl tax-Xogħol LED

A built-in LED light illuminates the work area when the trigger is pressed, improving visibility in dimly lit spaces.

Image 4.1: Key features of the drill, including the 18 torque settings, LED work light, variable speed trigger, ergonomic TPR grip, and battery release mechanism.

4.5 Applikazzjonijiet

This drill is suitable for:

• Drilling into wood, plastic, drywall/plasterboard, ceramics, and soft metals.
• Driving and removing screws for assembling furniture, installing shelves, hanging frames, and other light-duty fastening tasks.

Nota Importanti: This drill is le suited for drilling into hardened metals, brick, concrete, porcelain, or floor tiles. Using it on these materials may damage the tool or the material.

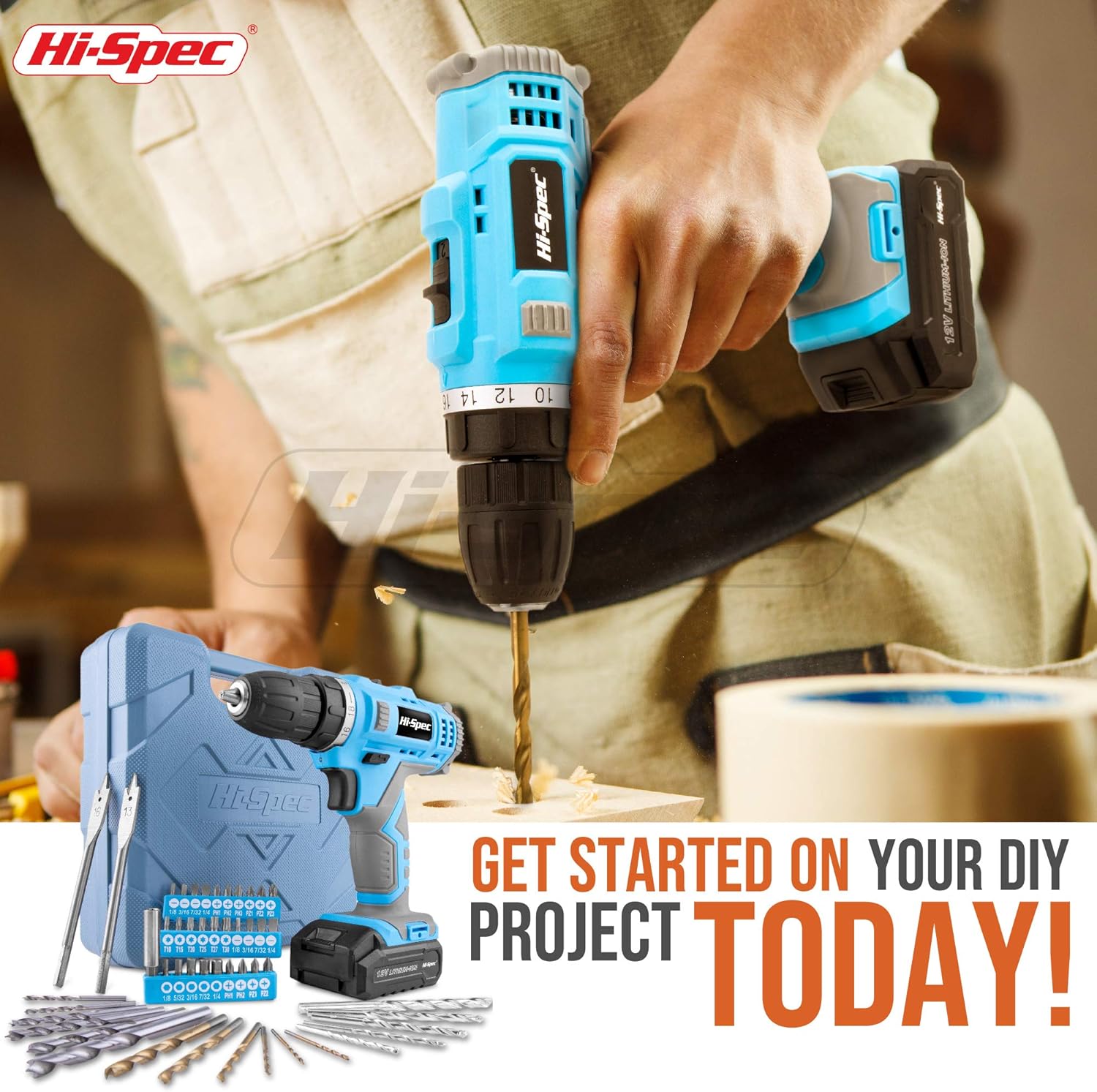

Image 4.2: The cordless drill in action, demonstrating its use for drilling into wood, a common DIY application.

Image 4.3: The cordless drill being used to drive a screw into a wooden fence post, illustrating its utility for fastening tasks.

5. Manutenzjoni

5.1 Tindif

Regularly clean the drill and its accessories. Use a dry cloth to wipe away dust and debris. Do not use harsh chemicals or abrasive cleaners. Keep the ventilation openings clear to prevent overheating.

5.2 Kura tal-Batterija

To prolong battery life, avoid fully discharging the battery before recharging. Store the battery in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the battery to approximately 50% capacity.

5.3 Bit Care and Storage

After use, clean any debris from the drill bits and screwdriver bits. Store all components in the provided toolbox case to protect them from damage and loss.

6 Issolvi l-problemi

7. Speċifikazzjonijiet

8. Garanzija u Appoġġ

8.1 Informazzjoni dwar Garanzija

Hi-Spec warrants all of its products against defective workmanship and faulty materials. Hi-Spec undertakes, at its option, to repair or replace, free of charge, each product thereof from the date of purchase, with conditions, together with a valid purchase order identification number or valid proof of purchase.

• Għodod tal-Enerġija: 3 snin
• Batteries & Chargers: 1 sena
• Għodda tal-idejn: Lifetime of tool

8.2 Appoġġ għall-Klijent

For any questions, technical assistance, or warranty claims, please contact Hi-Spec customer support through the retailer's platform or visit the official Hi-Spec websit għad-dettalji tal-kuntatt.
