1. Introduzzjoni
This manual provides detailed instructions for the proper installation, operation, and maintenance of your DROK TDA7377 30W+30W Class AB Stereo Amplifier Module. Please read this manual thoroughly before use to ensure safe and optimal performance.
2. Karatteristiċi tal-prodott
- Ħruġ ta' Enerġija Għolja: Delivers 30W + 30W stereo output, suitable for various audio applications.
- Class AB Design: Utilizes the TDA7377 chip for efficient and high-fidelity audio amplifikazzjoni.
- VoltagFirxa e: Operates on DC 12V, with a maximum supply voltage ta' 18V.
- Dual Audio Inputs: Features both a 3.5mm audio input jack and a 3P expansion input port for versatile connectivity.
- Komponenti Premium: Equipped with high-quality KEMET and NICHICON capacitors, pure black pure steel terminals, multi-layer capacitors, metal film resistors, and diodes for stable performance.
- Immersion Gold PCB: Ensures excellent conductivity and durability.
- Volum aġġustabbli: Integrated high-grade potentiometer for precise volume control.
- Karatteristiċi ta' Protezzjoni: Designed with multiple protection circuits for enhanced safety and longevity.
- Disinn kompatt: Comes with an acrylic case for protection and easy integration into DIY projects.
Figura 1: Aktarview of the DROK TDA7377 Amplifier Module with key components labeled, including KEMET and NICHICON capacitors, gold-plated 3.5mm audio input, 3P expansion input, immersion gold PCB, pure black pure steel terminals, multi-layer capacitors, metal film resistors, diodes, and a high-grade potentiometer.
3. Istruzzjonijiet tas-Sigurtà
- Always use a DC power supply within the specified voltage firxa (12V sa 18V).
- Ensure correct polarity when connecting the power supply to avoid damage to the module.
- Avoid short-circuiting the output terminals or power input.
- Do not operate the module in wet or excessively humid environments.
- Keep the module away from children and pets.
- Ensure adequate ventilation around the heatsink to prevent overheating, especially during prolonged high-power operation.
- Skonnettja l-enerġija qabel ma tagħmel xi konnessjonijiet jew skonnessjonijiet.
4. Kontenut tal-Pakkett
Ivverifika li l-oġġetti kollha huma preżenti fil-pakkett tiegħek:
- DROK TDA7377 Amplifier Module with Heatsink
- Acrylic Case Components (top, bottom, and side panels)
- Ħardwer tal-Immuntar (viti, standoffs)
- Shielded 3P Audio Input Cable

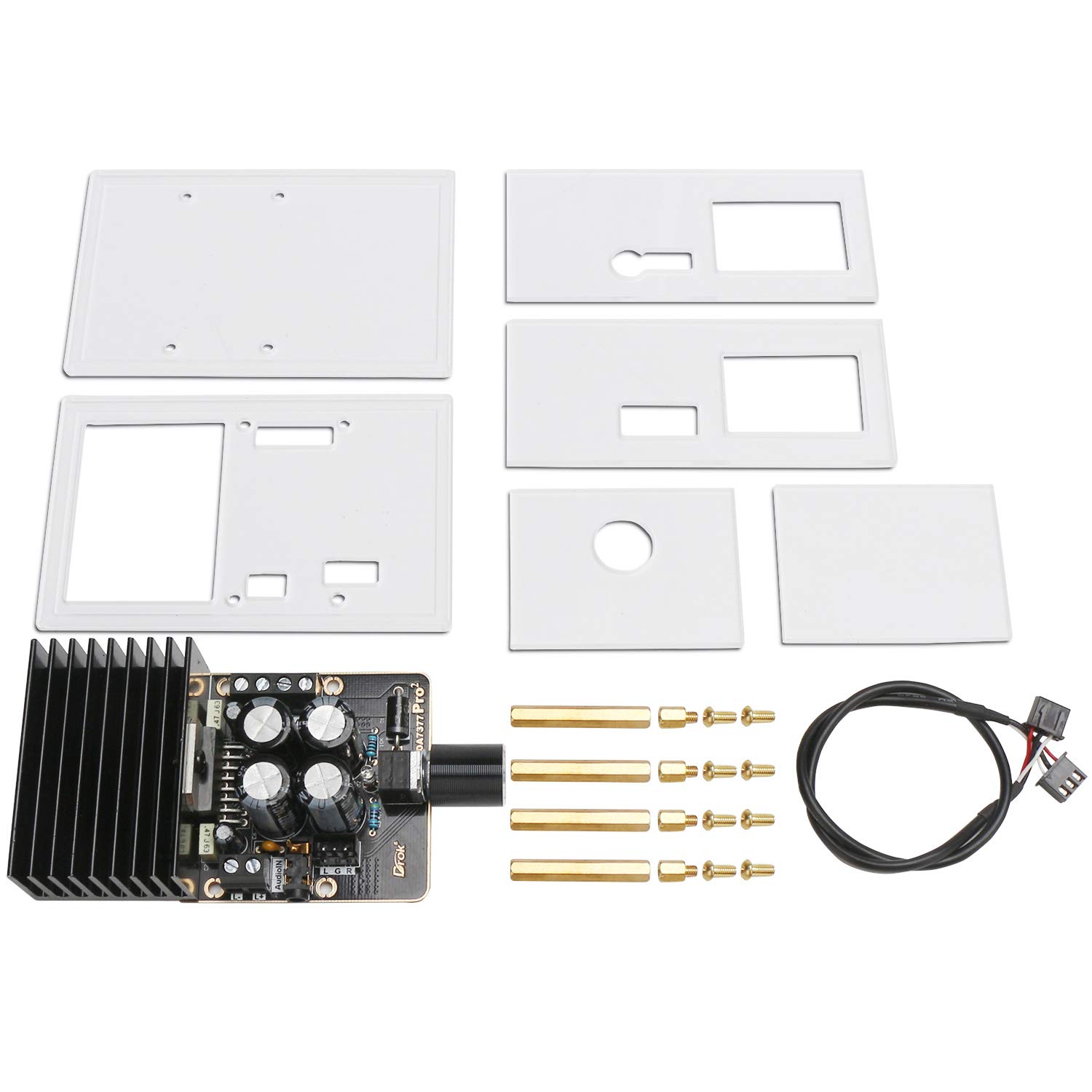

Figure 2: Contents of the DROK TDA7377 amplifier module kit, including the amplifier board, acrylic case panels, mounting hardware, and a shielded audio cable.
5. Istruzzjonijiet ta' Setup
5.1. Acrylic Case Assembly
- Carefully remove the protective film from both sides of all acrylic case panels.
- Immonta l- amplifier board onto the bottom acrylic panel using the provided standoffs and screws.
- Assemble the side panels and top panel around the mounted board, securing them with the remaining screws. Ensure all cutouts align with the module's ports and potentiometer.
5.2. Konnessjonijiet tal-Wiring
Irreferi għad-dijagramma tal-wajers hawn taħt għal konnessjonijiet xierqa.
Figure 3: Detailed wiring diagram showing connections for power, speakers, and audio input to the DROK TDA7377 ampmodulu lifier.
- Konnessjoni tal-Provvista tal-Enerġija: Connect a DC 12V power supply to the "DC 12V" terminals. Ensure the positive (+) and negative (-) terminals are connected correctly. The module supports a maximum of 18V DC.
- Konnessjonijiet tal-Ispeaker:
- Connect the left channel speaker to the "L+" and "L-" terminals.
- Connect the right channel speaker to the "R+" and "R-" terminals.
- Ensure speakers have an impedance of 4-8 ohms.
- Konnessjoni tal-Input Awdjo: Agħżel wieħed mill-metodi li ġejjin:
- Connect your audio source (e.g., smartphone, MP3 player) to the 3.5mm audio input jack.
- Alternatively, use the provided 3P shielded audio cable to connect to the 3P audio input port for custom installations.
Figura 4: Close-up view tal- amplifier module highlighting the left and right channel speaker outputs, DC power input, 3.5mm audio input, 3P audio input, and the volume adjustment knob.
6. Istruzzjonijiet Operattivi
- After completing all connections, ensure the volume knob is set to a low level (fully anticlockwise).
- Applika l-enerġija għall-modulu.
- Ibda ddoqq l-awdjo mis-sors konness tiegħek.
- Slowly rotate the volume knob clockwise to increase the audio output to your desired level. Rotate anticlockwise to decrease volume.
7. Manutenzjoni
- Żomm il- amplifier module clean and dry. Avoid exposure to dust, moisture, and extreme temperatures.
- Iċċekkja l-konnessjonijiet tal-wajers kollha perjodikament biex tiżgura li huma sikuri u ħielsa mill-korrużjoni.
- Ensure the heatsink remains free of obstructions to allow for proper heat dissipation.
- For optimal thermal performance, it is recommended to ensure thermal compound is applied between the TDA7377 IC and the heatsink. If not present, carefully apply a thin layer of high-quality thermal paste.
8 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Ebda output tal-ħoss |
|
|
| Ħoss distort jew mhux ċar |
|
|
| Is-sħana żejda tal-modulu |
|
|
9. Speċifikazzjonijiet
| Parametru | Valur |
|---|---|
| Mudell | TDA7377 |
| Brand | DROK |
| Qawwa tal-Ħruġ | 30W + 30W (Stereo) |
| Numru ta 'Kanali | 2.0 (Stereo) |
| Vol Operattivtage | DC 12V |
| Provvista Massima Voltage | DC 18V |
| Impedenza tal-Ispeaker | 4-8 Ohms (Recommended) |
| Input Awdjo | 3.5mm Jack, 3P Expansion Port |
| Tip ta 'Immuntar | Immonta fil-wiċċ |
| Item Weight (Board Only) | 0.01 Uqija (madwar 0.28g) |
Figure 5: Dimensions of the DROK TDA7377 amplifier module when assembled in its acrylic case, showing approximate measurements of 101mm x 64mm x 45mm.
10. Garanzija u Appoġġ
DROK products are designed for reliability and performance. For technical assistance, troubleshooting, or warranty inquiries, please contact DROK customer service through the retailer's platform or the official DROK website. Please have your product model number (TDA7377) and purchase information ready when contacting support.
