Introduzzjoni
This manual provides instructions for the installation, operation, and maintenance of your Hansgrohe Ecostat Comfort Thermostatic Shower Mixer, Model 13116700. Please read these instructions carefully before installation and use to ensure safe and efficient operation of the product. Keep this manual for future reference.

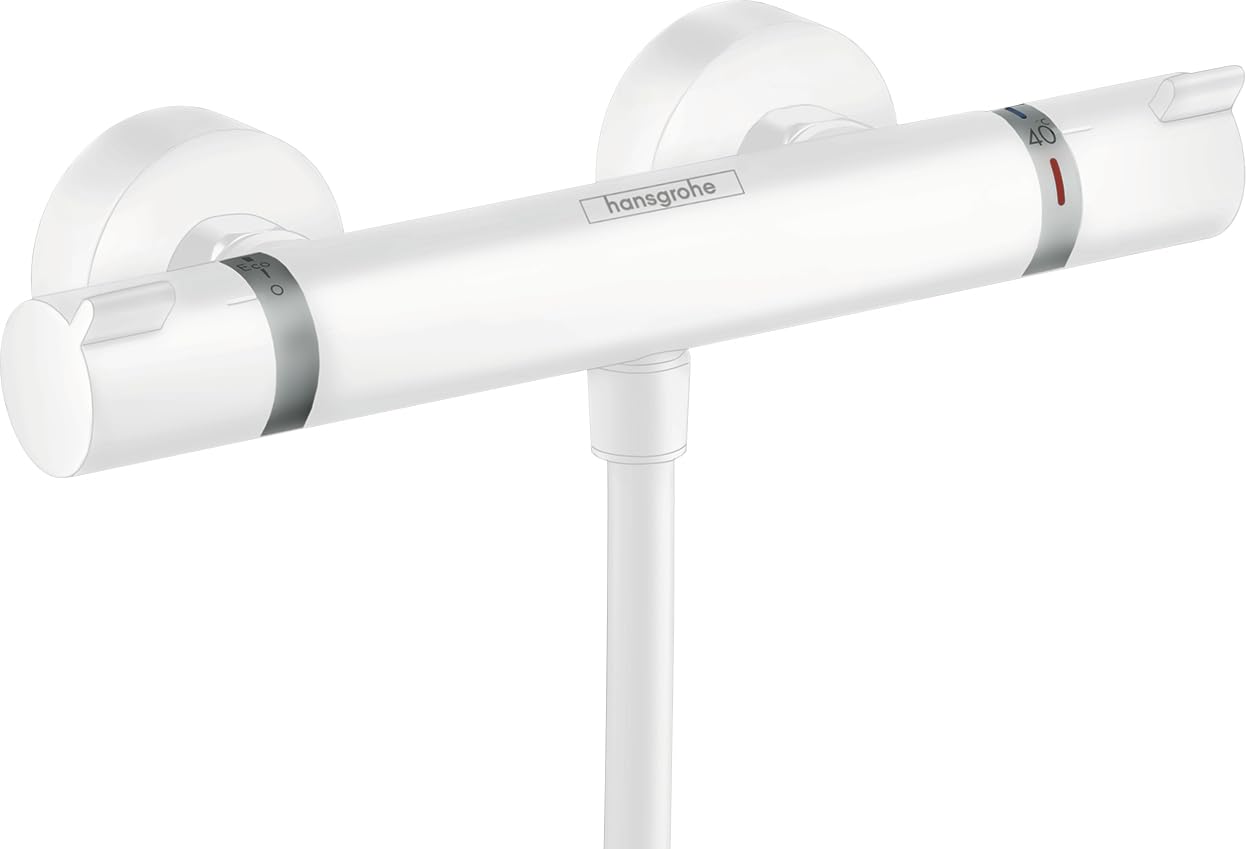

Immaġni: Quddiem view of the Hansgrohe Ecostat Comfort Thermostatic Shower Mixer in matte white.
Setup u Installazzjoni
The Hansgrohe Ecostat Comfort Thermostatic Shower Mixer is designed for surface mounting and is compatible with existing standard S-connections (G ½, DN15). Professional installation is recommended to ensure proper function and prevent damage.
Komponenti Inklużi:
- Thermostatic shower mixer unit
- Rosettes (cover plates)
- Konnessjonijiet S
- Istruzzjonijiet tal-immuntar (dan il-manwal)
Passi ta' Installazzjoni (Ġenerali Fuqview):
- Kun żgur li l-provvista prinċipali tal-ilma tkun mitfija qabel tibda l-installazzjoni.
- Remove any existing mixer or fittings.
- Install the S-connections into the wall water outlets, ensuring they are correctly spaced (150 ± 12 mm center-to-center) and level.
- Attach the rosettes over the S-connections.
- Connect the thermostatic mixer to the S-connections. Use appropriate sealing materials (e.g., PTFE tape) to prevent leaks.
- Issikka l-konnessjonijiet kollha sew, iżda tissikkax iżżejjed.
- Ixgħel il-provvista tal-ilma prinċipali u ċċekkja għal tnixxijiet.
- Calibrate the thermostat if necessary (refer to the operating section for temperature adjustment).
Image: Technical drawing showing dimensions and connection points for the mixer. Note the 150mm center-to-center distance for S-connections.
Istruzzjonijiet Operattivi
The Ecostat Comfort mixer features two handles for controlling water flow and temperature.
Kontroll tal-Fluss tal-Ilma:
The left handle controls the water flow. Rotate the handle to increase or decrease the water volume. The maximum flow rate is approximately 17 liters per minute at 3 bar pressure.
Kontroll tat-temperatura:
The right handle controls the water temperature. Rotate the handle to adjust the temperature. For safety, the mixer includes a SafetyStop feature, which typically limits the temperature to 40°C. To exceed this temperature, you must press a button or override mechanism on the handle while rotating it further. This prevents accidental scalding.
The thermostatic function ensures that the water temperature remains constant, even if the pressure in the hot or cold water supply fluctuates.
Kura u Manutenzjoni
To maintain the appearance and functionality of your Hansgrohe Ecostat Comfort mixer, follow these care instructions:
- Tindif: Clean the mixer regularly with a soft cloth and a mild, non-abrasive cleaning agent. Avoid using cleaners containing alcohol, hydrochloric acid, formic acid, acetic acid, or phosphoric acid, as these can damage the matte white finish.
- Tlaħliħ: After cleaning, rinse the mixer thoroughly with clean water to remove any cleaning agent residue.
- Tnixxif: Dry the mixer with a soft cloth to prevent water spots and limescale buildup.
- Tneħħija tal-Ġir: For limescale deposits, use a descaling agent specifically designed for bathroom fixtures and follow the manufacturer's instructions. Ensure the product is suitable for matte finishes.
- Komponenti Interni: Internal components, such as the thermostatic cartridge, may require periodic inspection and cleaning or replacement, especially in areas with hard water. This should be performed by a qualified plumber.
Issolvi l-problemi
If you experience issues with your thermostatic mixer, consult the following common problems and solutions:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Temperatura tal-Ilma Inkonsistenti |
|
|
| Flow Ilma Baxx |
|
|
| Leaks from Mixer |
|
|
Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja plamer kwalifikat jew l-appoġġ għall-klijenti ta' Hansgrohe.
Speċifikazzjonijiet
- Ditta: Hansgrohe
- Numru tal-Mudell: 13116700
- Dimensjonijiet tal-Prodott (L x W x H): 9.5 x 30.4 x 14.4 ċm
- Piż: 2.04 kg
- Kulur: Abjad Matte
- Materjal: Ram
- Metodu ta' Installazzjoni: Surface-mounted (connects to two wall outlets)
- Rata tal-fluss: 17 Liters per minute (at 3 bar)
- Number of Wall Connections: 2
- Numru ta 'Mankijiet: 2
- Materjal tal-manku: Ram
- Karatteristiċi Speċjali: Adjustable temperature limit (SafetyStop)
- Komponenti Inklużi: Thermostatic shower mixer, rosettes, S-connections, mounting instructions
Informazzjoni dwar Garanzija
Hansgrohe products are manufactured to high-quality standards. For specific warranty terms and conditions applicable to your Ecostat Comfort Thermostatic Shower Mixer, please refer to the warranty card included with your product or visit the official Hansgrohe websit. Żomm il-prova tax-xiri tiegħek għal talbiet ta' garanzija.
Appoġġ għall-Klijent
For further assistance, technical support, or spare parts, please contact Hansgrohe customer service or visit their official websit:
Uffiċjali ta' Hansgrohe Websit: www.hansgrohe.com
Jekk jogħġbok żomm in-numru tal-mudell tiegħek (13116700) u d-data tax-xiri lesti meta tikkuntattja l-appoġġ.
