1. Introduzzjoni
Thank you for choosing the Secura 500ml Touchless Automatic Soap Dispenser. This device is designed to provide a hygienic and convenient way to dispense liquid soap, hand sanitizer, or other compatible liquids. Its touchless operation helps minimize germ transfer, making it ideal for kitchens, bathrooms, and various other settings.

Image: Secura 500ml Touchless Automatic Soap Dispenser in Dark Gunmetal, dispensing blue liquid soap into a hand.
2. Informazzjoni dwar is-Sigurtà
- Use only 4*AA alkaline batteries. Do le use rechargeable batteries, as their lower voltage may cause the product to malfunction.
- Avoid placing the soap dispenser in direct sunlight, near incandescent/halogen lights, or reflective surfaces (mirrors, stainless steel) to prevent interference with the infrared sensor.
- Do le use thick or lotion-based soap, as this may cause clogging or dispensing failure.
- Keep the outside of the dispenser dry to prevent water or liquid soap from corroding the battery compartment.
- Avoid splashing or immersing the volume control dial in water.
3. Setup
3.1. Installazzjoni tal-batterija
- Locate the battery compartment on the back of the dispenser.
- Use a Phillips head screwdriver to loosen the screws and open the battery cover.
- Insert four (4) new AA alkaline batteries, ensuring correct polarity (+/-).
- Ibdel l-għatu tal-batterija u issikka l-viti sew.

Image: Quick Start Tips diagram illustrating battery installation and maintenance guidelines.
3.2. Imla d-Dispenser
- Remove the top lid of the dispenser.
- Pour your desired liquid soap into the clear container. The dispenser has a 17 oz (500ml) capacity.
- Replace the top lid securely.

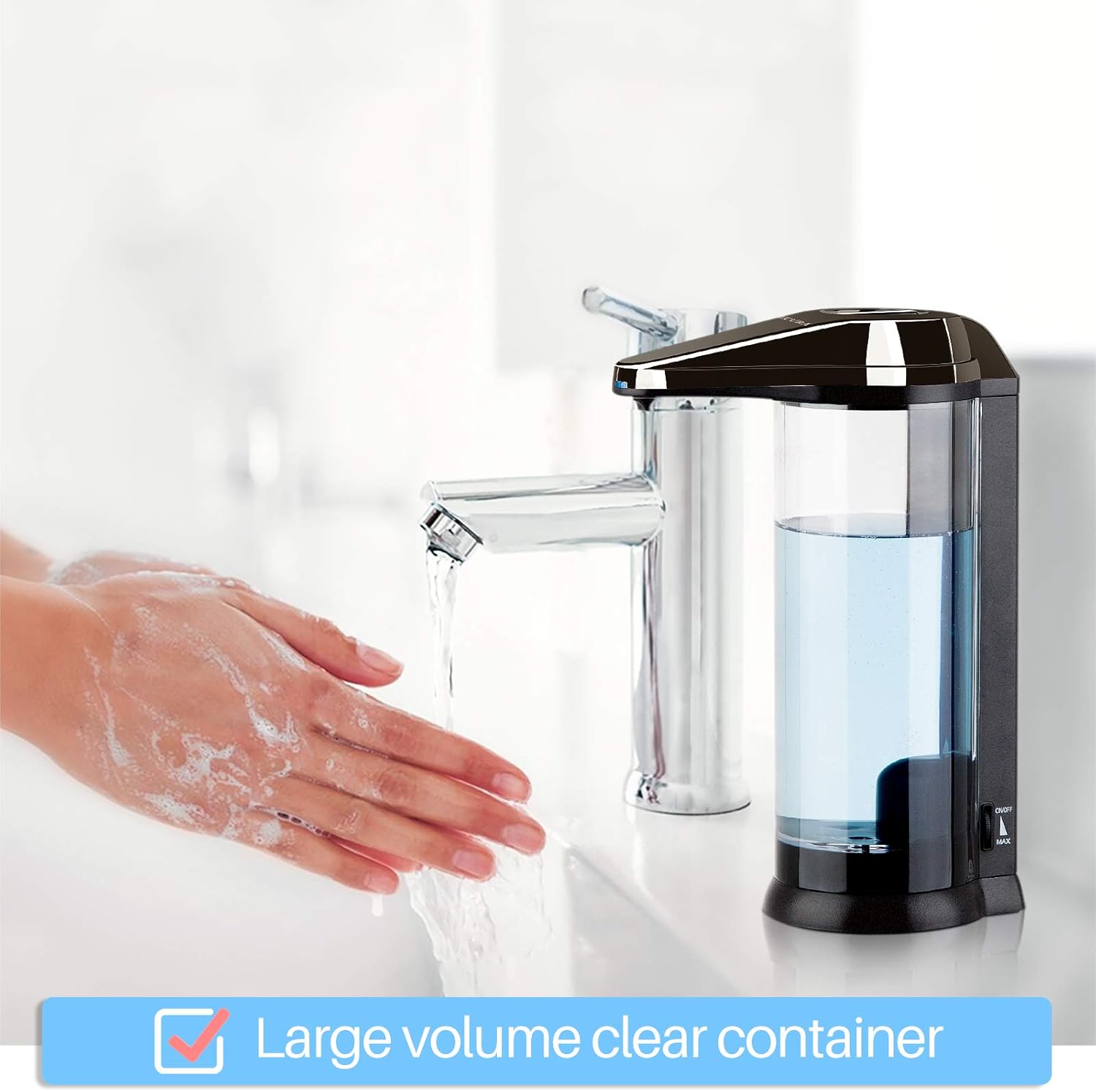

Image: The Secura soap dispenser featuring a large volume clear container, positioned next to a sink.
3.3. Użu Inizjali
For first-time use, it is recommended to adjust the dispensing volume to the maximum output. This ensures the pump has sufficient power to discharge the liquid and prime the system effectively.
4. Istruzzjonijiet Operattivi
4.1. Tixgħel/Jitfi
The dispenser includes an ON/OFF switch. Locate this switch and slide it to the 'ON' position to activate the device. Slide it to 'OFF' to power down.
4.2. Dispensing Soap
Place your hand approximately 2.75 inches (7 cm) under the infrared sensor. The dispenser will automatically dispense a pre-set amount of soap. The infrared sensor detects your hand from as far away as 2.75 inches.

Image: The Secura soap dispenser in action, highlighting its touchless operation for enhanced hygiene.
4.3. Adjusting Dispensing Volume
The dispenser features an adjustable soap dispensing volume control dial. This dial allows you to select the desired amount of soap dispensed per activation, ranging from 0.03 to 0.19 oz.
4.4. Display Indikatur LED
The LED light on the dispenser provides status information:
- When turned ON and working, the LED light is blue.
- When turned OFF or batteries are low, the LED light will flash.

Image: The Secura soap dispenser illustrating its LED indicator display, showing blue light when active.
5. Manutenzjoni
5.1. Tindif
- Keep the outside of the dispenser dry to prevent water or liquid soap from corroding the battery compartment.
- Over time, liquid soap may thicken, potentially clogging the feed tube. To clean the feed tube:
- Turn off the dispenser. Pour the liquid soap from the dispenser into a cup and save it for later use.
- Add 1/4 cup rubbing alcohol or warm water into the soap dispenser.
- Turn on the dispenser and pass your hand under the sensor 5-10 times to pump the alcohol/water into the feed tube. Allow the alcohol to soak for approximately 15 minutes.
- Add water into the soap dispenser. Pass your hand under the sensor to pump out all the liquid.
- Add the reserved liquid soap to the dispenser and use as usual.
5.2. Ħażna fit-Tul
If the dispenser will not be used for a long time, empty the remaining soap from the container to prevent clogging and maintain dispenser longevity.
6 Issolvi l-problemi
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Dispenser not working / LED flashing | Low batteries or incorrect battery type. | Replace with new 4*AA alkaline batteries. Ensure correct polarity. Do not use rechargeable batteries. |
| No soap dispensed / Clogging | Soap too thick or feed tube clogged. | Use thinner liquid soap. Perform feed tube cleaning procedure (Section 5.1). |
| Accidental dispensing | Interference with infrared sensor. | Relocate dispenser away from direct sunlight, bright lights, or reflective surfaces. |
7. Speċifikazzjonijiet
- Ditta: Secura
- Numru tal-Mudell: V-470
- Kulur: Dark Gunmetal
- Materjal: Plastik (ABS)
- Dimensjonijiet tal-Prodott: 6.1"T x 3.3"W x 8.7"Għ
- Volum tal-Likwidu: 500 Millilitru (17 oz)
- Piż tal-oġġett: 1.25 liri
- Batteriji Meħtieġa: Yes (4*AA alkaline, not included)
8. Garanzija u Appoġġ
This Secura product comes with a garanzija ta 'sena. For any queries or assistance, please feel free to contact us at support@thesecura.com. We are happy to assist you quickly and conveniently.
9. Vidjows tal-Prodott
Secura 18.6 oz. Automatic Soap Dispenser
Video: An official product video from Secura demonstrating the features and usage of the 18.6 oz automatic soap dispenser.
Secura 500ml/17 oz Touchless Automatic Soap Dispenser
Video: A demonstration of the Secura 500ml/17 oz touchless automatic soap dispenser, showcasing its functionality and ease of use.
