Cabletech UCH0198-2 Full Motion TV Wall Mount Instruction Manual

1. Introduzzjoni

This manual provides detailed instructions for the safe and proper installation, operation, and maintenance of your Cabletech UCH0198-2 Full Motion TV Wall Mount. Please read this manual thoroughly before installation and retain it for future reference. This wall mount is designed to securely hold flat-panel or curved LED televisions ranging from 32 to 55 inches, with a maximum weight capacity of 35 kg (77 lbs).

2. Informazzjoni Importanti dwar is-Sigurtà

• Kapaċità tal-piż: Do not exceed the maximum weight capacity of 35 kg (77 lbs). Exceeding this limit can result in serious injury or property damage.
• Daqs tal-iskrin: This mount is designed for TVs between 32 and 55 inches. While some larger TVs may fit VESA patterns, ensure they do not exceed the weight limit.
• Kompatibbiltà VESA: Verify your TV's VESA mounting pattern is compatible with the mount's supported patterns (75x75, 100x100, 100x150, 150x100, 150x150, 200x100, 100x200, 300x200, 300x300, 400x200, 400x300, 400x400).
• Struttura tal-Ħajt: Ensure the mounting surface (wall) can safely support the combined weight of the mount and your television. For wood stud installation, ensure studs are solid. For concrete or brick walls, use appropriate anchors (not always included). Consult a professional installer if unsure about your wall's integrity.
• Għodod: Uża għodda xierqa għall-installazzjoni. Dejjem ilbes nuċċalijiet tas-sigurtà.
• Assemblea: Do not attempt to install this product alone if the TV is heavy. Two or more people are recommended for safe installation.
• Tfal: Żomm lit-tfal 'il bogħod waqt l-installazzjoni. Partijiet żgħar jistgħu jkunu perikolużi biex wieħed jifga.
• Ħsara: Do not install if any parts are missing or damaged. Contact customer support for replacement parts.

3. Kontenut tal-Pakkett

Please check to ensure all components are present and undamaged before beginning installation. If any parts are missing or damaged, do not proceed with installation and contact customer support.

• Assemblea tal-Pjanċa tal-Ħajt
• Dirgħajn tal-Bracket tat-TV (2x)
• Kit tal-Ħardwer tal-Immuntar (diversi viti, woxers, spacers għat-TV u l-ħajt)
• Wall Anchors (for concrete/brick, if included)
• Livell
• Manwal ta' Istruzzjoni

Figura 1: Quddiem view of the wall mount components.

4. Speċifikazzjonijiet tal-Prodott

5. Setup u Installazzjoni

Before you begin, ensure you have all necessary tools and have read the safety information. Two people are recommended for installation.

5.1 Għodda Meħtieġa (Mhux Inkluża)

• Lapes
• Sib l-Istrutturi tal-Injam (għal ħitan b'strutturi tal-injam)
• Drill with appropriate drill bits (e.g., 10mm for concrete, 5.5mm for wood studs)
• Ċavetta tas-Sokit jew Ċavetta Aġġustabbli
• Tornavit tar-ras Phillips
• Tejp tal-Kejl
• Nuċċalijiet tas-Sigurtà

5.2 Attaching TV Brackets to Your TV

1. Poġġi t-TV tiegħek b'attenzjoni wiċċu 'l isfel fuq wiċċ artab u nadif biex tevita li l-iskrin isir ħsara.
2. Identifika t-toqob tal-immuntar tal-VESA fuq wara tat-TV tiegħek.
3. Select the correct diameter and length screws from the hardware kit that fit your TV's mounting holes. Use washers and spacers if necessary to ensure the screws do not penetrate too deeply or leave the bracket loose.
4. Attach the two vertical TV bracket arms to the back of your TV using the selected screws. Ensure the hooks on the bracket arms are facing upwards (or towards the top of the TV) and are level with each other. Do not overtighten.

5.3 Immuntar tal-Pjanċa tal-Ħajt mal-Ħajt

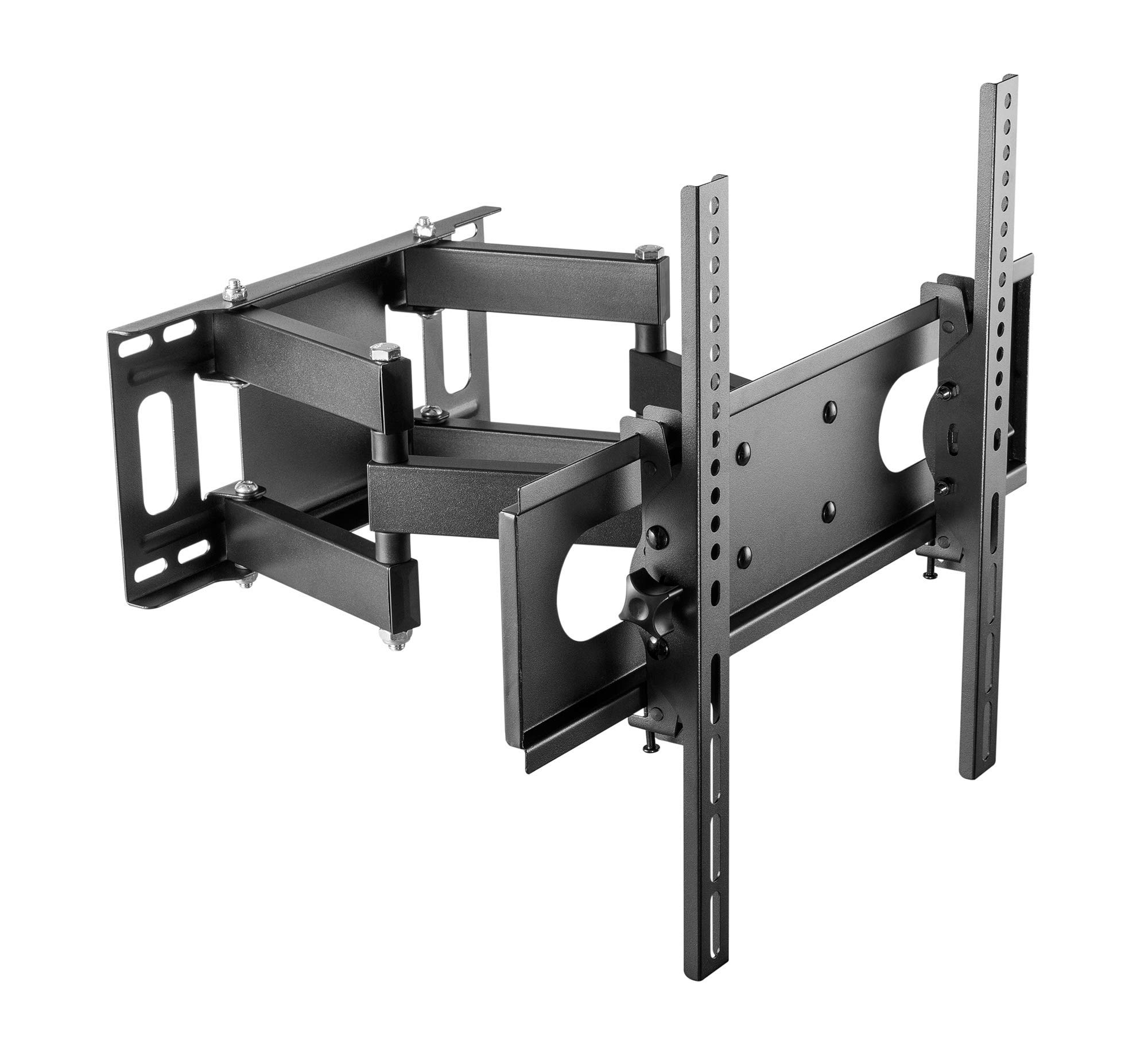

Figure 2: Cabletech UCH0198-2 wall mount in extended position.

1. Iddetermina Post tal-Immuntar: Decide on the desired height for your TV. Mark the center point on the wall.
2. Sib l-Istuds (għal ħitan bl-injam): Use a stud finder to locate the edges and center of two adjacent wood studs. The wall plate must be mounted to at least two studs for secure installation.
3. Pożizzjoni tal-Pjanċa tal-Ħajt: Hold the wall plate against the wall at your desired height and center. Use a level to ensure it is perfectly horizontal. Mark the drilling locations through the holes on the wall plate.
4. Drill Pilota Toqob:
   • Għal Studs tal-injam: Drill pilot holes using a 5.5mm drill bit to a depth of approximately 60mm.
   • Għal Solid Concrete/Brick Walls: Drill pilot holes using a 10mm drill bit to a depth of approximately 60mm. Insert the concrete anchors into the drilled holes until they are flush with the wall surface.
5. Waħħal il-Pjanċa tal-Ħajt: Align the wall plate with the drilled holes. Secure it to the wall using the lag bolts and washers provided in the hardware kit. Tighten all bolts firmly, but do not overtighten.

5.4 Iddendel it-TV

1. With assistance, carefully lift the TV (with brackets attached) and hook the TV bracket arms onto the wall plate.
2. Ensure the TV is securely seated on the wall plate. The safety screws or locking mechanisms on the bottom of the TV bracket arms should be engaged to prevent accidental dislodging.
3. Gently test the stability of the mounted TV before releasing it completely.

6. Istruzzjonijiet Operattivi (Aġġustamenti)

Your Cabletech UCH0198-2 mount offers various adjustments for optimal viewing.

6.1 Extending and Retracting the TV

Figure 3: Wall mount extended, showing adjustable distance from wall.

• Gently pull or push the TV to extend it away from the wall (up to 400mm) or retract it closer to the wall (minimum 78mm).
• Ensure cables are not pinched or strained during movement.

6.2 Tilting the TV

• The mount allows for a tilt range of 0° to -20° (downwards).
• Loosen the tilt adjustment knobs or bolts on the TV bracket arms.
• Adjust the TV to the desired tilt angle.
• Retighten the knobs/bolts to secure the TV in position.

6.3 Swiveling the TV (Horizontal Adjustment)

• The articulating arm allows you to swivel the TV horizontally to achieve various viewangoli.
• Gently push or pull the side of the TV to rotate it left or right.
• The mount also features a small horizontal level adjustment of +3° to -3° to correct for minor leveling issues after installation. This is typically adjusted by loosening specific bolts on the TV plate, leveling, and retightening. Refer to the detailed diagrams for specific adjustment points.

6.4 Ġestjoni tal-Cable

• The mount includes a cable winder or clips to help organize and route cables along the articulating arm.
• Secure cables to prevent them from dangling or getting caught during TV movement. Ensure enough slack is provided for full range of motion.

7. Manutenzjoni

• Tindif: Imsaħ il-muntatura b'ċarruta ratba u niexfa. Tużax prodotti tat-tindif jew solventi li joborxu.
• Kontrolli perjodiċi: Iċċekkja l-viti u l-boltijiet kollha perjodikament biex tiżgura li jibqgħu ssikkati u mwaħħlin sew. Erġa' ssikkahom jekk meħtieġ.
• Moviment: If the mount's movement becomes stiff, a small amount of silicone-based lubricant can be applied to the pivot points, avoiding contact with painted surfaces.

8 Issolvi l-problemi

9. Garanzija u Appoġġ għall-Klijent

This Cabletech UCH0198-2 TV Wall Mount comes with a manufacturer's warranty of 2 snin mid-data tax-xiri.

For warranty claims, technical assistance, or if you have any questions regarding the installation or operation of your product, please contact Cabletech customer support through your retailer or the official Cabletech website. Please have your model number (UCH0198-2) and proof of purchase ready when contacting support.
