1. Introduzzjoni
Thank you for choosing the Parrot Uncle 52-inch Chandelier Ceiling Fan. This fan combines the functionality of a ceiling fan with the elegance of a crystal chandelier, designed for various indoor and covered outdoor spaces. It features a quiet, reversible motor and convenient remote control operation. This manual provides essential information for safe installation, operation, and maintenance of your new ceiling fan.
2. Informazzjoni dwar is-Sigurtà
- Dejjem itfi l-enerġija mis-circuit breaker qabel l-installazzjoni jew il-manutenzjoni.
- Il-wajers kollha għandhom ikunu skont il-kodiċijiet elettriċi nazzjonali u lokali. Jekk m'intix familjari mal-wajers, ikkonsulta elettriċista kwalifikat.
- Kun żgur li s-sit tal-installazzjoni jista' jsostni l-piż tal-fann (madwar 22-il libbra).
- Tgħawwiġx il-holders tax-xafra waqt l-installazzjoni jew it-tindif.
- Żomm it-tfal 'il bogħod mill-fann waqt it-tħaddim.
3. Kontenut tal-Pakkett
Iċċekkja li l-komponenti kollha huma preżenti qabel tibda l-installazzjoni:
- Djar tal-Mutur tal-Fann tas-Saqaf
- 5 Xfafar tal-Plajwudd
- Crystal Light Kit
- Kontroll mill-bogħod
- 2 Downrods (4-inch and 10-inch)
- Ħardwer tal-Immuntar
4. Setup u Installazzjoni
Professional installation is recommended for electrical wiring. Follow these general steps:
- Itfi l-Enerġija: Kun żgur li l-enerġija hija skonnettjata mis-circuit breaker prinċipali.
- Bracket tal-immuntar: Securely attach the mounting bracket to the ceiling junction box. This fan supports downrod mounting and can be installed on angled ceilings up to 15 degrees.
- Assemblea Downrod: Choose the appropriate downrod (4-inch or 10-inch) for your ceiling height and assemble it with the fan motor.
- Wiring: Qabbad il-wajers elettriċi tal-fann mal-wajers tad-dar tiegħek skont id-dijagramma tal-wajers ipprovduta. Kun żgur li l-konnessjonijiet kollha huma sikuri.
- It-twaħħil tax-xafra: Attach the 5 plywood blades to the motor housing using the provided screws.
- Crystal Light Kit Installation: Install the crystal light kit to the bottom of the fan motor.
- Installazzjoni tal-bozza: Insert 4 E12 base bulbs (max 25 watts each, not included) into the light kit sockets.
Figura 4.1: Fuqview of fan components and simplified installation steps, including the powerful copper motor, plywood blades, and sparkling crystal decoration.
Figura 4.2: Detailed dimensions of the 52-inch fan and illustrations of the two mounting options: downrod mount for flat ceilings and angled mount for sloped ceilings (up to 15 degrees).
5. Istruzzjonijiet Operattivi
Il-fann tas-saqaf Parrot Uncle tiegħek jitħaddem permezz tal-kontroll remot inkluż.
5.1 Funzjonijiet ta' Kontroll mill-bogħod
- Veloċità tal-fann: Select from 3 available speeds (low, medium, high).
- Kontroll tad-Dawl: Turn the light on or off independently from the fan.
- Timer: Issettja l-fann biex jintefa awtomatikament wara 2, 4, jew 8 sigħat.
5.2 Reversible Motor
The fan features a reversible motor for year-round comfort. A switch on the fan housing allows you to change the direction of blade rotation:
- Clockwise Rotation (Summer Mode): Creates a downdraft, providing a cooling effect.
- Counter-Clockwise Rotation (Winter Mode): Creates an updraft, circulating warm air throughout the room.

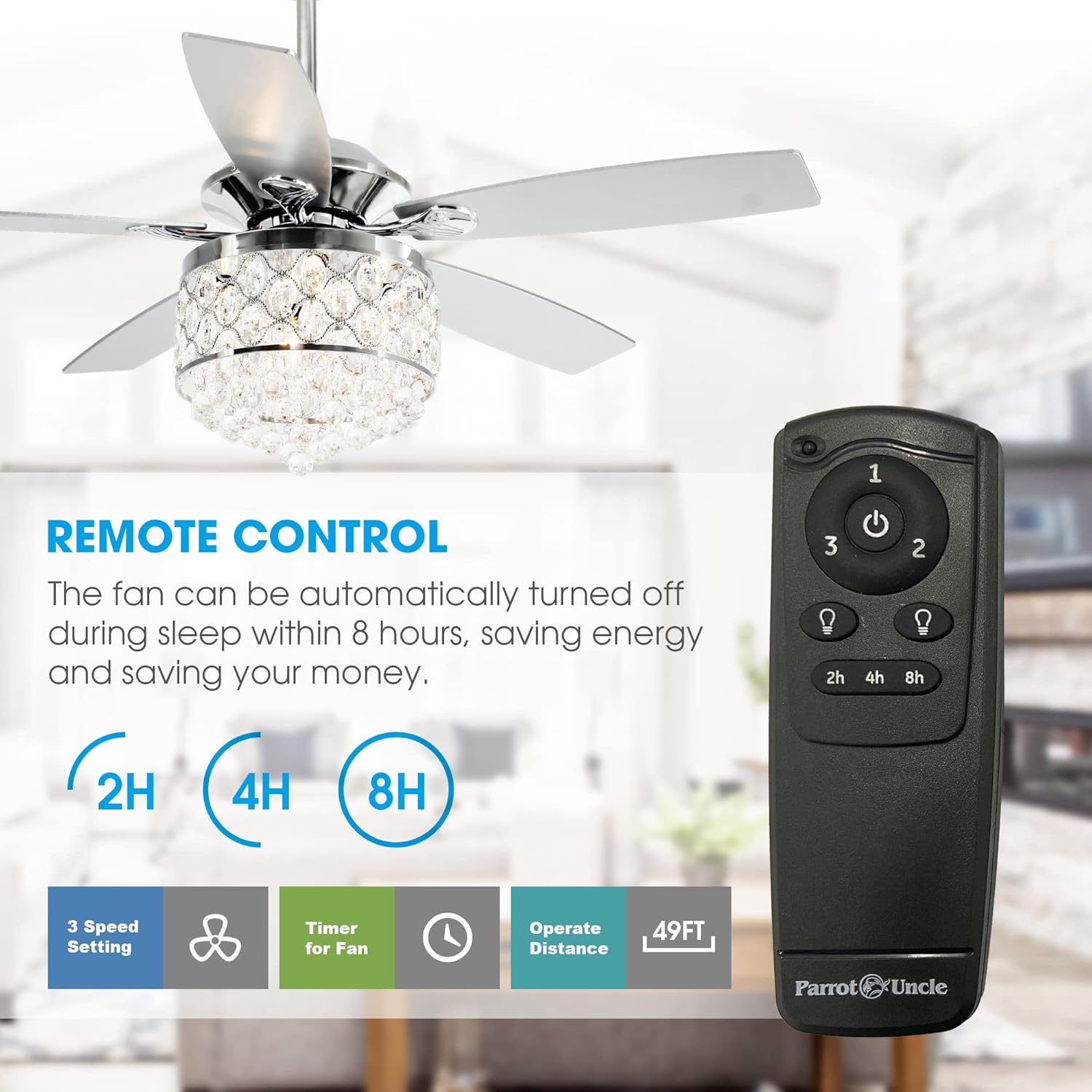

Figura 5.1: The remote control allows for adjustment of fan speed, light operation, and setting a timer for automatic shut-off.
Figura 5.2: Visual representation of the reversible motor's function, showing clockwise rotation for cooling in summer and counter-clockwise rotation for air circulation in winter.
6. Manutenzjoni
Manutenzjoni regolari tiżgura prestazzjoni ottimali u lonġevità tal-fann tiegħek.
- Tindif: Dust the blades and fan housing periodically with a soft, lint-free cloth. For the crystal light kit, gently wipe with a damp cloth and mild cleaner, then dry immediately. Do not use abrasive cleaners.
- Sostituzzjoni tal-bozza: When replacing bulbs, ensure the power is off. Use 4 E12 base bulbs, with a maximum wattage ta '25 watts kull bozza.
- Issikka l-Viti: Periodically check and tighten all screws on the fan blades and mounting hardware to prevent wobbling or noise.
7 Issolvi l-problemi
Jekk tiltaqa' ma' problemi, irreferi għas-soluzzjonijiet komuni li ġejjin:
| Problema | Kawża Possibbli | Soluzzjoni |
|---|---|---|
| Fan ma jibda | No power to fan; Remote control battery low/dead; Incorrect wiring. | Check circuit breaker; Replace remote battery; Verify wiring connections. |
| Id-dawl ma jaħdimx | Bulbs loose or burnt out; Incorrect wiring. | Tighten or replace bulbs; Check light kit wiring. |
| Il-fann jitbandal b'mod eċċessiv | Loose blade screws; Unbalanced blades; Loose mounting hardware. | Tighten all blade screws; Use a balancing kit (not included); Ensure mounting bracket is secure. |
| Operazzjoni storbjuża | Viti maħlula; Problemi bil-mutur. | Check and tighten all screws; If noise persists, contact customer service. |
For issues not listed or if problems persist, please contact Parrot Uncle customer service.
8. Speċifikazzjonijiet
| Karatteristika | Dettall |
|---|---|
| Brand | Ziju Pappagall |
| Numru tal-Mudell | F6218FD |
| Daqs | 52 Pulzier |
| Dimensjonijiet tal-Prodott | 52"T x 52"W x 28.3"Għ |
| Kulur | Chrome |
| Materjal | Injam Inġinerizzat, Ħġieġ, Ħadid |
| Tip ta' Sors tad-Dawl | Incandescent (E12 base) |
| Numru ta' Sorsi tad-Dawl | 4 |
| Max Wattage (għal kull bozza) | 25 watt |
| Metodu ta' Kontroll | Kontroll mill-bogħod |
| Karatteristiċi Speċjali | Remote Controlled, Reversible Motor, Timer |
| Użu fuq ġewwa/barra | Indoor (Covered Patios) |
| Piż tal-oġġett | 22 Liri |
9. Garanzija u Appoġġ
Parrot Uncle offers a 30-day return and replacement service for this product. Additionally, lifetime professional customer service is provided to assist with any questions or concerns you may have regarding your ceiling fan.
For support, please refer to the contact information provided with your purchase or visit the official Parrot Uncle websit.
