ANTOP AT-800SBS HDTV u FM AmpManwal tal-Utent tal-Antenna lifikat

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of your ANTOP AT-800SBS HDTV & FM Amplified Antenna. This antenna is designed to receive free over-the-air (OTA) digital TV signals and FM radio signals, offering a versatile solution for your home entertainment needs. Please read this manual thoroughly before installation and use.

2. Prodott Aktarview

The ANTOP AT-800SBS is an amplified antenna featuring a Smart Boost System and dual outputs, allowing connection to multiple devices simultaneously. Its design integrates an FM antenna and includes a 4G LTE filter for clear reception. It is built for both indoor and outdoor use, with a durable, waterproof design.

Karatteristiċi ewlenin:

Smart Boost System: Built-in adjustment dial for balancing reception range from 0 to 85 miles.
Konnettività Doppju: Connects to a second device (e.g., second TV, FM stereo, OTA-ready streaming device) via a secondary output.
Integrated FM Antenna: Allows reception of FM radio stations.
4G LTE Filter: Blocks 3G and 4G signals to prevent interference, ensuring clear picture and stable channel reception.
Multi-directional Functionality: Designed for optimal signal reception.
VHF Enhancer Rods: Detachable rods to strengthen VHF reception.
Installazzjoni flessibbli: Suitable for table standing, wall mounting, or outdoor pole mounting.
Disinn Durabbli: Waterproof with UV coating, suitable for various weather conditions.

Internal Structure and Components:

ANTOP AT-800SBS Internal Components Diagram — Figura 1: Sploda view diagram of the ANTOP AT-800SBS antenna, highlighting its internal components including innovative mechanical elements, Smartpass amplifier with 4G LTE filter, and VHF rods.

The AT-800SBS incorporates advanced elements for superior performance:

Innovative Mechanical Elements: Engineered for optimal reception and high gain.
Smartpass Amplifier & 4G LTE Filter: Ensures balanced reception and blocks unwanted 3G/4G interference.
VHF Rods: Enhance reception for VHF channels.

Kontenut tal-Pakkett:

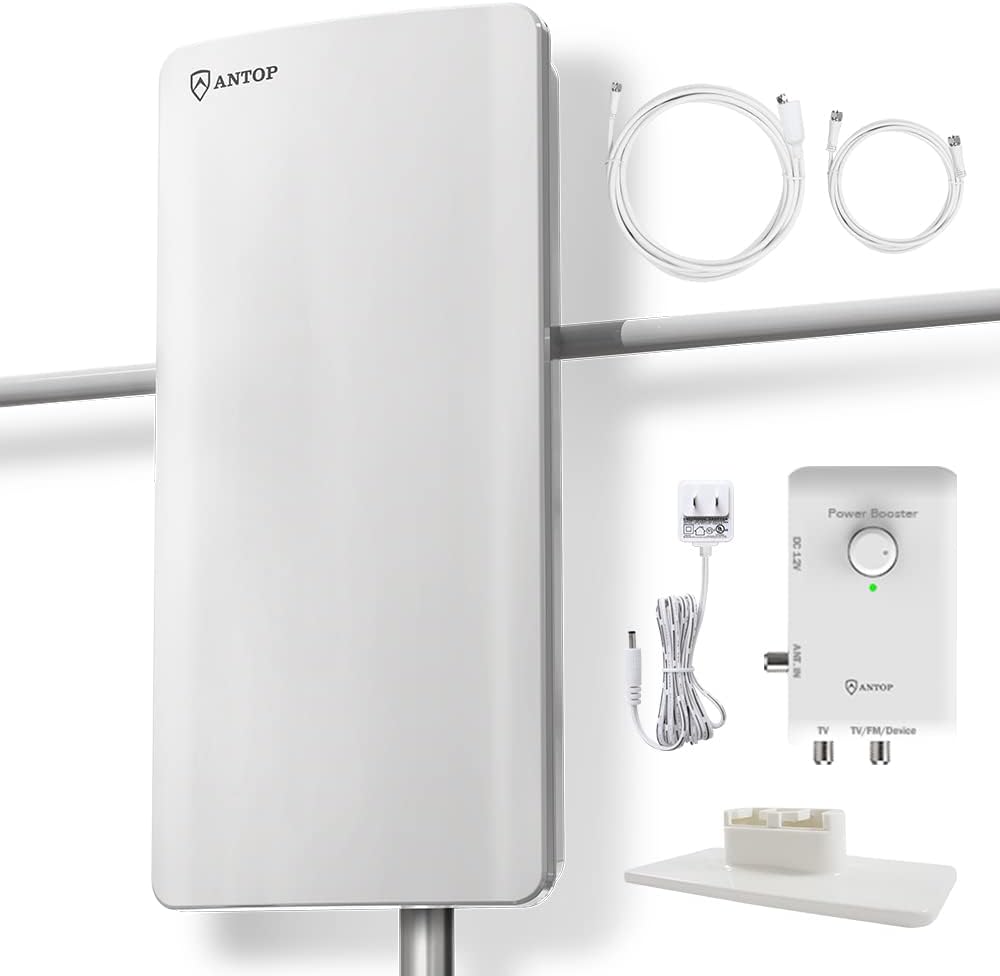

ANTOP AT-800SBS Antenna and Accessories — Figure 2: ANTOP AT-800SBS Antenna and included accessories. This image displays the main antenna unit, the Smart Boost System amplifier, power adapter, coaxial cables, and various mounting hardware.

ANTOP AT-800SBS Antenna Unit
Smart Boost System Amplifier with Adjustment Dial
Adapter tal-Enerġija (DC 12V)
Kejbils koassjali
VHF Enhancer Rods
Stand tad-Desktop
Wall/Pole Mounting Kits

ANTOP AT-800SBS Antenna installed on a roof during a storm — Figure 3: The ANTOP AT-800SBS antenna installed on a rooftop, demonstrating its robust design for outdoor use and ability to maintain signal reception even during inclement weather conditions.

3. Istruzzjonijiet ta' Setup

Follow these steps to properly set up your ANTOP AT-800SBS antenna for optimal reception.

3.1. Site Selection and Antenna Placement

Check Available Channels: Żur dtv.gov to confirm available channels in your area and locate broadcast towers.
Consider Obstructions: Areas with large obstructions like valleys or mountains may reduce effective range.
Pjazzament Inizjali: Place the antenna on a window for initial testing. Try different locations, positioning the antenna as high as possible.
Indoor/Outdoor Flexibility: The antenna can be used indoors (table stand, wall mount) or outdoors (pole mount).

ANTOP Smart Boost System Connection Diagram — Figure 4: Diagram illustrating the connection of the ANTOP AT-800SBS antenna with the Smart Boost System to a TV and a second device. This shows the antenna, pre-amplifier, power adapter, Smart Boost System, and connections to a TV and an FM stereo/OTA device.

3.2. Tqabbad l-antenna

Qabbad Kejbil Coaxial: Connect the coaxial cable from the antenna to the 'ANT IN' port on the Smart Boost System ampaktar ħaj.
Qabbad mat-TV: Connect another coaxial cable from the 'TV' output on the Smart Boost System to the 'Ant In' or 'Cable In' port on the back of your HDTV or TV converter box.
Qabbad l-Adapter tal-Enerġija: Plug the power adapter into the Smart Boost System and then into a power outlet.
Second Device Connection (Optional): If connecting a second device (e.g., FM stereo, second TV, streaming device), connect a coaxial cable from the 'TV/FM/Device' output on the Smart Boost System to the respective input on your second device.

3.3. Konfigurazzjoni tat-TV

TV Input/Source: Set your TV's input or source to 'Antenna' or 'Air'.
Scan tal-Kanal: Access your TV's setup menu and perform a 'Channel Search' or 'Channel Scan'. This process may take several minutes.
Rescan After Relocation: Always rescan for channels after moving the antenna to a new position.

4. Istruzzjonijiet Operattivi

4.1. Adjusting Reception with Smart Boost System

Smart Boost System Amplifier Dial — Figure 5: Close-up of the Smart Boost System amplifier with its adjustable dial. The dial allows users to fine-tune the antenna's reception power from minimum (0 miles) to maximum (85 miles) range.

The Smart Boost System features an adjustment dial to optimize signal reception based on your location's specific needs. Turn the dial to balance the reception range from 0 to 85 miles.

Short Range (within 35 Miles): If you are very close to broadcast towers, a lower setting (closer to 'MIN' or '0') might be better to prevent signal overload.
Long Range (up to 85 Miles): For greater distances from broadcast towers, adjust the dial towards 'MAX' or '85' to amplify weaker signals.
Irfinar: Experiment with different dial positions and perform a channel scan after each adjustment to find the optimal setting for the best picture quality and number of channels.

4.2. Using the FM Antenna Feature

The integrated FM antenna allows you to receive local FM radio stations. Connect the 'TV/FM/Device' output of the Smart Boost System to your FM stereo receiver's antenna input. Tune your FM receiver to scan for available radio stations.

5. Manutenzjoni

The ANTOP AT-800SBS antenna is designed for durability and requires minimal maintenance.

Tindif: Wipe the antenna unit with a soft, damp drapp. Tużax kimiċi ħarxa jew tindif li joborxu.
Installazzjoni fuq barra: Periodically check outdoor mounted antennas for secure mounting and cable integrity, especially after severe weather. The antenna features a waterproof design with UV coating for protection.
Spezzjoni tal-Cable: Ensure all coaxial cable connections are tight and free from damage.

6 Issolvi l-problemi

If you experience issues with your antenna, refer to the following common solutions:

Problema	Kawża / Soluzzjoni Possibbli
L-ebda sinjal jew kwalità ħażina tal-istampa	Tqegħid ta' l-antenna: Try repositioning the antenna. Higher locations and windows often yield better results. Scan tal-Kanal: Perform a new channel scan on your TV after any antenna adjustments. Smart Boost System Dial: Aġġusta l- amplifier dial. If too close to broadcast towers, a lower setting might be better; if far, a higher setting. Konnessjonijiet tal-kejbil: Ensure all coaxial cables are securely connected. Ostruzzjonijiet: Large obstructions (buildings, trees, terrain) can block signals.
Missing specific channels	Aġġustament Direzzjonali: While the antenna is multi-directional, slight adjustments in orientation can sometimes improve reception for specific channels. VHF Rods: Ensure VHF enhancer rods are properly attached if you are trying to receive VHF channels. Qawwa tas-Sinjal: Some channels may have weaker signals in your area. Check dtv.gov for signal strength information.
Interference from mobile signals	The built-in 4G LTE filter should mitigate this. Ensure the amplifier is powered correctly. Try moving the antenna away from mobile devices or cellular towers if possible.

4G LTE Filter in action — Figure 6: Visual representation of the 4G LTE filter's function, showing how it reduces picture pixelation caused by mobile signals. The image depicts a split screen, with one side showing a pixelated image and the other showing a clear image after filtering.

7. Speċifikazzjonijiet

Karatteristika	Dettall
Numru tal-Mudell	AT-800SBS
Brand	ANTOP
Firxa ta 'Akkoljenza	Up to 85 Miles (adjustable)
Medda ta' Frekwenzi	VHF: 47-230MHz, UHF: 470-700MHz
Impedenza	75 Ohm
Outputs	Dual (TV, TV/FM/Device)
Iffiltra	Built-in 4G LTE Filter
Provvista tal-Enerġija	DC 12V (via Smart Boost System)
Dimensjonijiet	Madwar 23 x 11.5 x 7 pulzieri (Dimensjonijiet tal-Pakkett)
Piż	Appross. 8.13 liri
Kulur	Abjad
UPC	682604901183, 682604901336

8. Garanzija u Appoġġ

ANTOP provides customer support for its products. For warranty information, technical assistance, or any installation issues, please contact ANTOP customer service.

ANTOP Customer Support Information — Figure 7: Image displaying ANTOP customer support contact information, including an email address for inquiries.

Appoġġ bl-Email: support@antopantenna.com

Please refer to the product packaging or the official ANTOP website for the most current warranty details and support contact information.
