Manwal għall-Utent

1. Prodott Aktarview

The Symcode 2D Bluetooth Ring Barcode Scanner is a wearable, wireless, and compact device designed for efficient barcode reading. Its ring design allows for comfortable wear on the finger, enhancing user satisfaction and productivity. This scanner supports a wide range of 1D and 2D barcodes and offers versatile connectivity options for various operating systems and devices.

Figure 1: Symcode 2D Bluetooth Ring Barcode Scanner

2. Kontenut tal-Pakkett

Malli tiftaħ il-pakkett, jekk jogħġbok ivverifika li l-oġġetti kollha elenkati hawn taħt huma preżenti u f'kundizzjoni tajba:

• 1 x Mini Barcode Scanner
• 1 x English Version User Manual
• 1 x USB Cable
• 1 x Charger Head
• 1 x Mobile Phone 4.0 Receiver (Bluetooth Dongle)

Figura 2: Kontenut tal-Pakkett

3. Karatteristiċi

• Disinn taċ-Ċirku li Jintlibes: Allows for comfortable use on the finger, left or right, increasing satisfaction and comfort during extended use.
• Konnettività Wireless Doppja: Supports both 2.4G Wireless (via dongle) and Bluetooth 4.0 for flexible connection to various devices.
• Kompatibilità Wiesgħa: Compatible with Microsoft Windows XP/7.0/8.0/10, Android, and iOS devices.
• Extensive Barcode Support: Scans 1D codes (UPC, EAN, Code128, Code39, Code11, Interleaved 2 of 5, Codabar, etc.) and 2D codes (PDF417, Data Matrix, QR Code, etc.).
• Distanza Twila ta' Trażmissjoni: Up to 30 feet (10m) for Bluetooth and up to 492ft (150m) in barrier-free environments for 2.4G wireless.
• Żewġ Modi ta' Tlugħ: Supports Instant Upload Mode (synchronous data upload) and Storage Mode (stores up to 50,000 barcodes in 512KB memory for later upload).
• Batterija fit-tul: Provides up to 6 hours of continuous scanning and a standby time of up to 720 hours. Fully recharges in approximately 1.5 hours.

4. Setup

4.1 Iċċarġjar tal-Iskaner

Before initial use, fully charge the scanner using the provided USB cable and charger head. Connect the USB cable to the scanner's charging port and the other end to a power source. The charging indicator light will show the charging status.

Figure 3: Battery Information

4.2 Konnessjoni ma' Apparat

The scanner offers two primary connection methods: 2.4G Wireless via dongle and Bluetooth 4.0.

4.2.1 2.4G Wireless Connection (via Dongle)

1. Plug the 2.4G wireless receiver (dongle) into an available USB port on your laptop, PC, or POS system.
2. Ixgħel l-iskaner tal-barcode. Għandu jingħaqad awtomatikament mad-dongle.
3. A successful connection will be indicated by a specific sound or light on the scanner.

4.2.2 Konnessjoni Bluetooth 4.0

1. Ensure Bluetooth is enabled on your mobile phone, tablet, or computer.
2. Ixgħel l-iskaner tal-barcode.
3. On your device, search for available Bluetooth devices. The scanner should appear as "Barcode Scanner HID" or similar.
4. Select the scanner to pair. A successful connection will be indicated by a specific sound or light on the scanner.

Figure 4: Wireless Connection Options

Figure 5: Transmission Distance

5. Istruzzjonijiet Operattivi

5.1 Wearing the Scanner

The ring scanner is designed to be worn on your finger. Adjust the strap for a comfortable and secure fit. The scanner head can be rotated 180 degrees to accommodate different scanning angles and user preferences.

Figure 6: 180 Degree Rotation

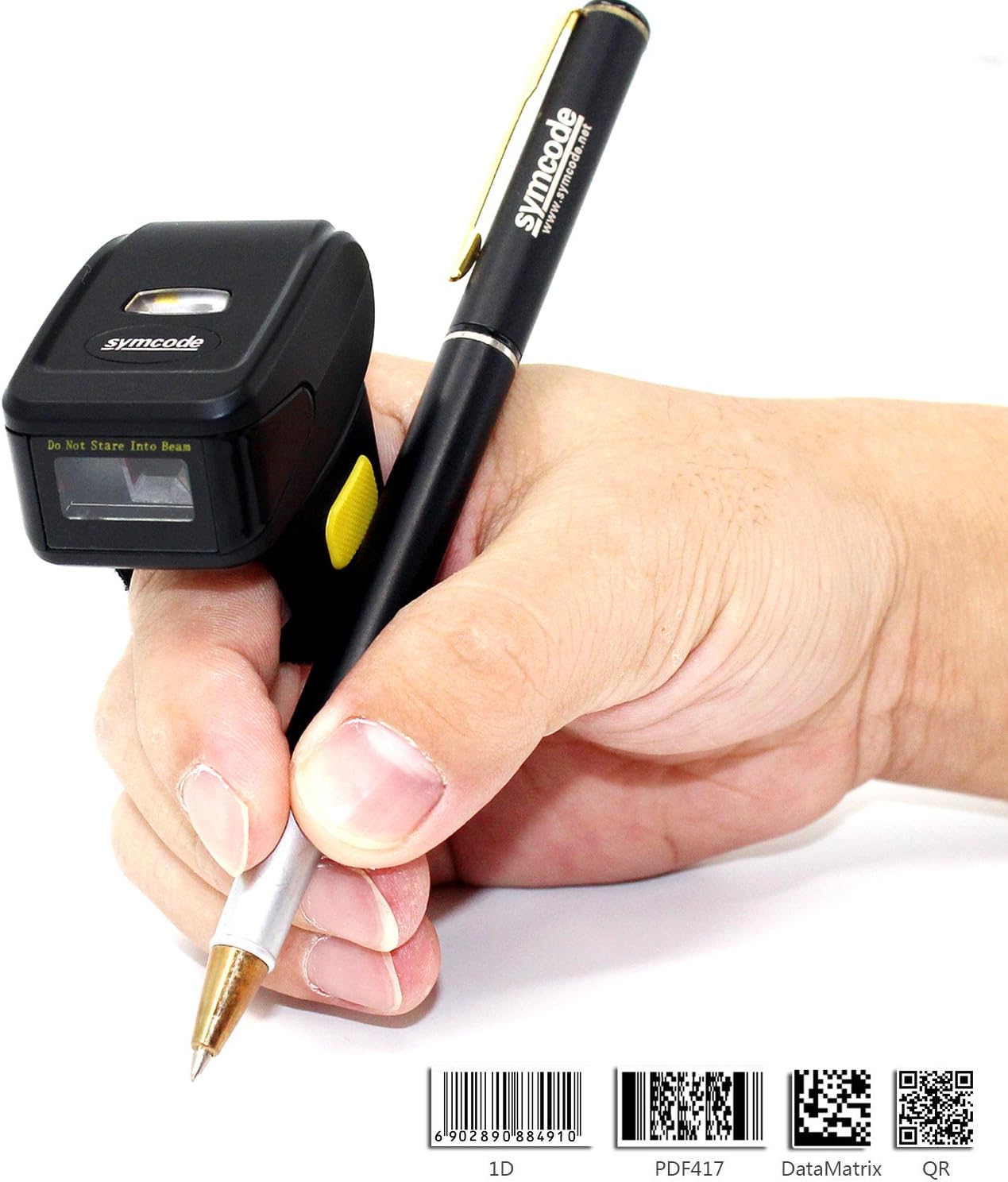

Figure 7: Ergonomic Use

5.2 Skennjar ta' Barcodes

Once connected, point the scanner's laser at the barcode you wish to scan and press the trigger button. The scanner will emit a beep and/or flash to indicate a successful scan. The scanned data will appear on your connected device.

5.3 Modi ta' Tella'

L-iskaner jappoġġja żewġ modi ta' upload tad-dejta:

• Modalità ta' Upload Instant: Data is synchronously uploaded to your device as soon as a barcode is scanned. This is ideal for real-time inventory management or POS systems.
• Mod ta 'Ħażna: Barcode data is stored in the scanner's internal memory (up to 512KB, capable of holding over 50,000 barcodes). This mode is useful when working out of range of your device. Data can be uploaded later when a connection is re-established. Refer to the included user manual for specific instructions on switching between modes and uploading stored data.

Figure 8: Two Upload Modes

6. Speċifikazzjonijiet

7. Manutenzjoni

Biex tiżgura l-lonġevità u l-prestazzjoni ottimali tal-iskaner tal-barcode Symcode tiegħek, segwi dawn il-linji gwida tal-manutenzjoni:

• Tindif: Use a soft, dry cloth to clean the scanner's exterior. For the scanning window, use a lens cleaning cloth to avoid scratches. Do not use abrasive cleaners or solvents.
• Ħażna: Aħżen l-iskaner f'post frisk u niexef 'il bogħod mix-xemx diretta u minn temperaturi estremi.
• Kura tal-batterija: Avoid fully discharging the battery frequently. Recharge the scanner when the battery low indicator appears. If storing for an extended period, charge the battery to about 50% and recharge every few months.
• Immaniġġjar: Immaniġġja l-iskaner b'attenzjoni. Evita li twaqqgħu jew li tissottomettih għal impatti qawwija, għax dan jista' jagħmel ħsara lill-komponenti interni.

8 Issolvi l-problemi

If you encounter issues with your scanner, please refer to the following common troubleshooting steps:

• Scanner not turning on: Ensure the battery is charged. Connect the scanner to the charger and try again.
• No data transmitted after scanning: Verify that the scanner is properly connected to your device (Bluetooth or 2.4G wireless). Check the device's input settings to ensure it's ready to receive data.
• Ma tistax tqabbad permezz tal-Bluetooth: Ensure the scanner is in pairing mode. On your device, try forgetting the scanner and re-pairing. Make sure no other Bluetooth devices are interfering.
• Poor scanning performance: Ensure the barcode is clean and not damaged. Adjust the distance and angle of the scanner to the barcode. Check for sufficient lighting.
• Ħruġ ta' dejta mhux korrett: Verify the scanner's configuration settings. You may need to scan specific configuration barcodes from the full user manual to adjust settings like prefix/suffix or data format.

For more detailed troubleshooting or issues not covered here, please consult the comprehensive user manual included in your package or contact Symcode customer support.

9. Garanzija u Appoġġ

Symcode products are designed for reliability and performance. For information regarding product warranty, please refer to the warranty card included with your purchase or visit the official Symcode website. For technical support, product inquiries, or service requests, please contact Symcode customer service through the channels provided on their official webis-sit jew l-imballaġġ tal-prodott.
