Commercial Electric 24-inch 2,000-Lumen White Integrated LED Wraparound Light Fixture User Manual

1. Informazzjoni Importanti dwar is-Sigurtà

Read and understand all instructions before beginning installation. Failure to follow these instructions may result in electric shock, fire, or other hazards that could cause personal injury or property damage.

• TWISSIJA: Riskju ta' xokk elettriku. Skonnettja l-enerġija fil-fjus jew circuit breaker qabel l-installazzjoni jew is-servizz.
• ATTENZJONI: Risk of fire. Consult a qualified electrician to ensure correct branch circuit conductor minimum supply conductors.
• Dan l-apparat huwa maħsub għall-użu fuq ġewwa biss.
• Kun żgur li l-konnessjonijiet kollha huma siguri u iżolati kif suppost.
• Tippruvax timmodifika l-apparat. Kwalunkwe modifika tista' tħassar il-garanzija u toħloq perikli għas-sigurtà.
• Ilbes nuċċalijiet u ingwanti tas-sigurtà waqt l-installazzjoni.

2. Prodott Aktarview

The Commercial Electric 24-inch 2,000-Lumen White Integrated LED Wraparound light fixture is designed for various indoor applications, providing efficient and long-lasting illumination. This fixture features an integrated LED light source, delivering 2,000 lumens of bright white light. It is engineered for energy efficiency and a long operational life of approximately 50,000 hours, making it a suitable replacement for traditional fluorescent fixtures.

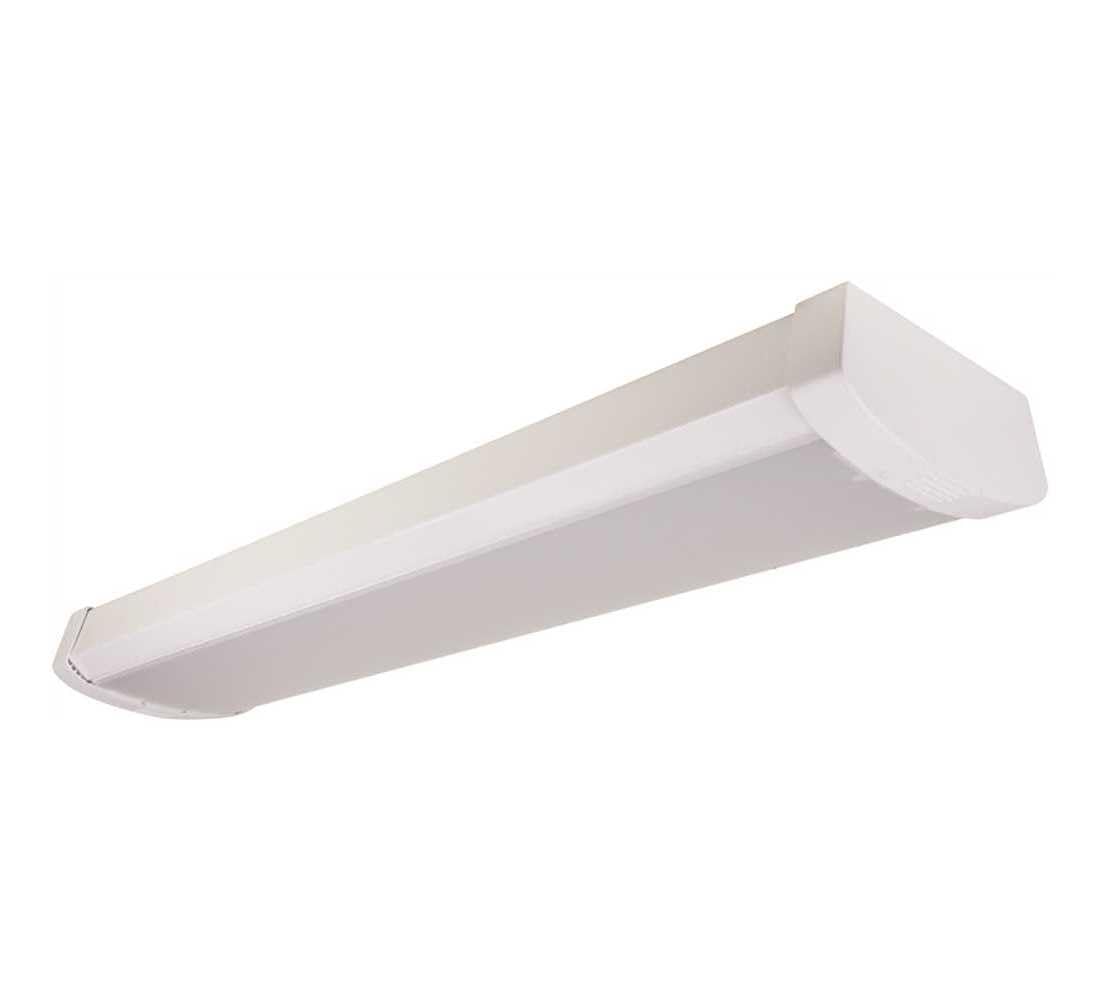

Immaġni: Quddiem view of the Commercial Electric 24-inch LED Wraparound Light Fixture.

3. Kontenut tal-Pakkett

Carefully unpack the fixture and ensure all items are present and undamaged. If any parts are missing or damaged, do not attempt to assemble or install the product. Contact customer service for assistance.

• Integrated LED Wraparound Light Fixture (1)
• Kontroll mill-bogħod (1)
• Installation Hardware (e.g., mounting screws, wire nuts)

Image: Packaging box for the Commercial Electric 24-inch LED Wraparound Light Fixture, showing contents and details.

4. Speċifikazzjonijiet

5. Istruzzjonijiet ta 'installazzjoni

This fixture is designed for surface mounting. Professional installation by a qualified electrician is recommended to ensure compliance with local electrical codes and safety standards.

5.1 Preparazzjoni

1. Itfi l-Enerġija: Sib is-circuit breaker jew il-kaxxa tal-fjusijiet u itfi l-enerġija fiż-żona fejn se jiġi installat l-apparat. Ivverifika li l-enerġija hija mitfija billi tuża voltagtester.
2. Iġbor Għodod: You will need a screwdriver, wire strippers, electrical tape, and potentially a drill and mounting hardware (if not included or suitable for your surface).
3. Identifika l-Post tal-Immuntar: Choose a suitable, sturdy location on the ceiling for mounting the fixture.

5.2 Immuntar tal-Fitture

1. Carefully remove the diffuser or lens from the fixture to access the mounting holes.
2. Position the fixture against the ceiling at the desired location. Mark the positions for the mounting screws.
3. Drill pilot holes if necessary, then secure the fixture to the ceiling using appropriate mounting screws. Ensure the fixture is firmly attached.

Immaġni: Ġenb view of the fixture, illustrating its profile for mounting considerations.

5.3 Konnessjonijiet tal-Wiring

1. Feed the electrical supply wires through the appropriate opening in the fixture.
2. Connect the wires according to standard electrical practices:
   • Qabbad il- iswed (hot) wire from the supply to the iswed wire of the fixture.
   • Qabbad il- abjad (neutral) wire from the supply to the abjad wire of the fixture.
   • Qabbad il- aħdar or bare copper (ground) wire from the supply to the art wire or screw on the fixture.
3. Secure all wire connections with approved wire nuts and electrical tape.
4. Carefully tuck all wires into the junction box or fixture housing.

Immaġni: Angolata view of the fixture, showing the diffuser which needs to be reattached after wiring.

5.4 Assemblea Finali

1. Reattach the diffuser or lens to the fixture, ensuring it is securely fastened.
2. Erġa 'daħħal l-enerġija fis-circuit breaker jew fil-kaxxa tal-fjus.
3. Test the fixture to ensure proper operation.

6. Operazzjoni

This LED wraparound fixture is controlled using the included remote control. Ensure the remote control has functional batteries installed.

• Power On/Off: Press the 'ON' button to turn the light on, and the 'OFF' button to turn it off.
• Aġġustament tal-luminożità: If your remote control includes brightness adjustment features, use the designated buttons to increase or decrease the light intensity.

Point the remote control directly towards the fixture for optimal response.

7. Manutenzjoni

The integrated LED design of this fixture requires minimal maintenance. No bulb replacement is necessary.

• Tindif: Disconnect power to the fixture before cleaning. Use a soft, dry, or slightly damp cloth to wipe the exterior surfaces. Do not use abrasive cleaners, solvents, or cleaners containing alcohol, as these can damage the finish or electrical components.
• Spezzjoni: Spezzjona l-apparat perjodikament għal xi sinjali ta’ ħsara jew konnessjonijiet laxki. Jekk issib xi problemi, skonnettja l-provvista tal-enerġija u kkonsulta elettriċista kwalifikat.

8 Issolvi l-problemi

If you experience issues with your LED wraparound fixture, refer to the following troubleshooting guide:

Jekk dawn il-passi ma jsolvux il-problema, ikkuntattja l-appoġġ għall-klijenti jew elettriċista kwalifikat.

9. Garanzija u Appoġġ

This Commercial Electric 24-inch 2,000-Lumen White Integrated LED Wraparound light fixture is backed by a Garanzija limitata ta 'senaDin il-garanzija tkopri difetti fil-materjali u l-abbilità taħt użu u servizz normali.

For warranty claims, technical assistance, or to obtain replacement parts, please refer to the contact information provided with your purchase documentation or visit the official Commercial Electric website. Please have your model number (LED24Wraparound) and proof of purchase available when contacting support.
