Sperry Instruments DM6410 Digital Multimeter User Manual

1. Introduzzjoni

This manual provides detailed instructions for the safe and effective use of the Sperry Instruments DM6410 8 Function Digital Multimeter. This device is designed for measuring AC/DC voltage, AC/DC current, resistance, continuity, diode, and battery testing (1.5V, 9V). It features a large LCD display, data hold function, and is built to industry standards for durability and safety.

2. Informazzjoni dwar is-Sigurtà

WARNING: To avoid electric shock or personal injury, read and understand all instructions before using this multimeter. Always adhere to local and national safety codes.

• Applikax aktar mill-vol nominalitage, kif immarkat fuq il-meter, bejn it-terminals jew bejn kwalunkwe terminal u ground ground.
• Oqgħod attent meta taħdem bil-voltag'il fuq minn 30V AC RMS, 42V peak, jew 60V DC. Dawn il-volumitages joħolqu periklu ta' xokk.
• Dejjem skonnettja l-wajers tat-test miċ-ċirkwit qabel ma tbiddel il-funzjonijiet jew il-firxiet.
• Ensure the test leads are in good condition, free from cracks or damaged insulation.
• Tħaddimx il-miter jekk jidher li għandu l-ħsara jew jekk il-kaxxa tkun miftuħa.
• This meter is rated CAT III 600V. Adhere to these safety categories for appropriate measurement environments.
• Ibdel il-batterija hekk kif jidher l-indikatur ta' batterija baxxa biex tiżgura qari preċiż.

3. Prodott Aktarview

The Sperry Instruments DM6410 Digital Multimeter is a compact and robust tool for electrical measurements. Below are the key components and their functions.

Figura 3.1: Quddiem view of the DM6410 Multimeter with key features labeled, including the 2000-count LCD screen, SELECT and HOLD buttons, rotary switch, and input jacks. It highlights compliance with ETL listed to UL and CSA standards and CAT III 600V design.

• Display LCD: Large 2000-count digital display for clear readings.
• Swiċċ li jdur: Użat biex jagħżel il-funzjoni u l-firxa tal-kejl mixtieqa.
• Buttuna Agħżel: Toggles between AC/DC functions or other sub-functions within a range.
• Buttuna ŻOMM: Jiffriża l-qari attwali fuq id-displej.
• Ġakkijiet tad-dħul: Terminals for connecting test leads (A, COM, mA µA VΩ).

Figura 3.2: The DM6410 Digital Multimeter shown alongside its red and black test leads, which are essential for making electrical measurements.

4. Setup

4.1 Installazzjoni tal-batterija

The DM6410 multimeter requires two AAA batteries for operation. The unit includes an auto-off function to conserve battery life.

1. Kun żgur li l-multimetru huwa MITFI.
2. Sib il-kompartiment tal-batterija fuq wara tal-miter.
3. Uża tornavit biex tneħħi l-kamin li jżomm l-għatu tal-batterija.
4. Insert two AAA batteries, observing the correct polarity (+ and -).
5. Ibdel l-għatu tal-batterija u waħħalha bil-kamin.

Figura 4.1: The rear of the DM6410 Multimeter, displaying the battery compartment cover and safety warnings. The compartment requires two 1.5V AAA batteries.

4.2 Konnessjoni tal-wajer tat-test

Konnessjoni xierqa tal-wajers tat-test hija kruċjali għal kejl preċiż u sikur.

1. Daħħal il-wajer tat-test iswed fil-jack tad-dħul 'COM' (komuni).
2. Għal ħafna mill-volumtage, resistance, continuity, and diode measurements, insert the red test lead into the 'VΩ' input jack.
3. Għal kejl tal-kurrent (Amps), insert the red test lead into the 'A' or 'mA µA' input jack, depending on the expected current range.

Figura 4.2: The DM6410 Multimeter with the black test lead connected to the 'COM' jack and the red test lead connected to the 'VΩ' jack, ready for voltage jew kejl tar-reżistenza.

5. Istruzzjonijiet Operattivi

Follow these steps for various measurement functions.

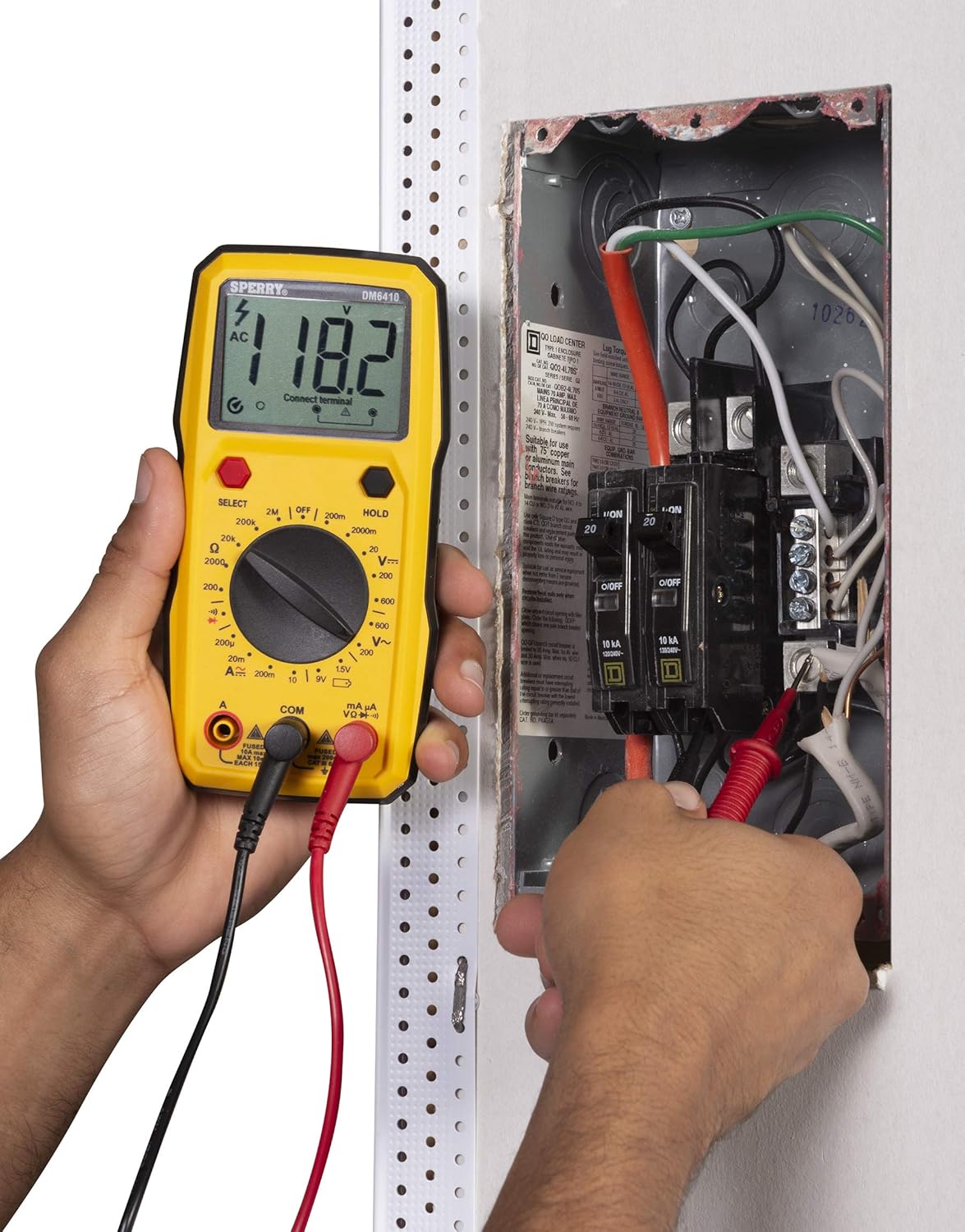

5.1 Kejl AC/DC Voltage

1. Connect the red test lead to the 'VΩ' jack and the black test lead to the 'COM' jack.
2. Turn the rotary switch to the desired 'V~' (AC Voltage) or 'V--' (DC Voltage) range. If the voltage is unknown, start with the highest range and decrease as needed.
3. Press the 'SELECT' button if you need to switch between AC and DC voltage within a combined range.
4. Qabbad il-probi tat-test b'mod parallel madwar iċ-ċirkwit jew il-komponent li għandu jitkejjel.
5. Aqra l-voltage valur fuq il-wiri LCD.

Figura 5.1: A user measuring AC voltage from a standard wall outlet using the DM6410 multimeter. The display shows a reading of 118.1 AC volts.

5.2 Kejl tar-Reżistenza (Ω)

1. Connect the red test lead to the 'VΩ' jack and the black test lead to the 'COM' jack.
2. Turn the rotary switch to the desired 'Ω' (Resistance) range.
3. Kun żgur li ċ-ċirkwit jew il-komponent ma jkollux l-enerġija qabel ma tkejjel ir-reżistenza.
4. Qabbad il-probi tat-test mal-komponent.
5. Aqra l-valur tar-reżistenza fuq id-displej LCD.

5.3 Test ta' Kontinwità

1. Connect the red test lead to the 'VΩ' jack and the black test lead to the 'COM' jack.
2. Dawwar is-swiċċ rotatorju għas-simbolu tal-kontinwità (ikona tal-ispiker).
3. Kun żgur li ċ-ċirkwit ma jkollux l-enerġija.
4. Connect the test probes across the circuit path. An audible tone indicates continuity (low resistance).

5.4 Test tad-Diode

1. Connect the red test lead to the 'VΩ' jack and the black test lead to the 'COM' jack.
2. Turn the rotary switch to the diode symbol.
3. Qabbad is-sonda ħamra mal-anodu u s-sonda sewda mal-katodu tad-dijodu. Id-displej se juri l-volum 'il quddiem.tage drop. Reverse the probes; the display should show 'OL' (Open Loop) for a good diode.

5.5 Battery Test (1.5V, 9V)

1. Connect the red test lead to the 'VΩ' jack and the black test lead to the 'COM' jack.
2. Turn the rotary switch to the '1.5V' or '9V' battery test position.
3. Qabbad is-sonda l-ħamra mat-terminal pożittiv u s-sonda s-sonda s-sewda mat-terminal negattiv tal-batterija.
4. Aqra l-batterija voltage fuq il-wiri LCD.

Figura 5.2: A user measuring the voltage of a AA battery with the DM6410 multimeter. The display shows a reading of 1.565 volts DC.

5.6 Funzjoni ta' Żamma tad-Data

To freeze the current reading on the display, press the 'HOLD' button. Press it again to release the hold and resume live readings.

6. Manutenzjoni

6.1 Tindif

Imsaħ il-miter b'reklamaramp cloth and mild detergent. Do not use abrasives or solvents. Keep the display clean and dry.

6.2 Sostituzzjoni tal-batterija

Refer to Section 4.1 for battery installation instructions. Replace batteries when the low battery indicator appears on the display to ensure accurate measurements.

6.3 Sostituzzjoni tal-Fjus

If the current measurement function fails, the fuse may need replacement. Only replace with fuses of the specified type and rating:

• For 'A' input: Fused 10A max, 10 sec EACH 15min.
• For 'mA µA' input: Fused max 200mA CAT II 600V.

WARNING: To prevent electric shock, remove test leads before opening the case or battery cover. Do not operate with the battery cover open.

7 Issolvi l-problemi

If the multimeter is not functioning as expected, consider the following common issues:

• Ebda Display: Iċċekkja l-installazzjoni tal-batterija u kun żgur li l-batteriji mhumiex eżawriti. Ibdel jekk meħtieġ.
• Qari Skorrett: Verify that the correct function and range are selected for the measurement. Ensure test leads are properly connected and in good condition. Check battery level.
• Current Measurement Failure: Check the fuse for the current input jack being used. Replace if blown.
• Wiri 'OL' (Tagħbija żejda): This indicates the measured value exceeds the selected range. Switch to a higher range or ensure the circuit is within the meter's capabilities.

Jekk il-problemi jippersistu, ikkuntattja l-appoġġ tal-klijent.

8. Speċifikazzjonijiet

9. Garanzija

The Sperry Instruments DM6410 Digital Multimeter comes with a limited warranty. For specific details regarding warranty coverage and duration, please refer to the warranty card included with your product or visit the official Sperry Instruments websit.

10. Appoġġ

Għal aktar assistenza, appoġġ tekniku, jew biex view additional product information, please visit the official Sperry Instruments websit jew ikkuntattja lid-dipartiment tas-servizz tal-konsumatur tagħhom.
