CASTLECREEK 8' Window Door Awning User Manual

1. Introduzzjoni

This manual provides essential information for the proper installation, operation, and maintenance of your CASTLECREEK 8' Window Door Awning. Designed to provide shade and protection, this awning helps keep your home cooler and can contribute to reduced energy consumption. Please read this manual thoroughly before installation and use to ensure safety and optimal performance.

2. Informazzjoni dwar is-Sigurtà

TWISSIJA:

• Always ensure proper anchoring to the surface.
• Do not install in areas prone to high winds or heavy snow loads.
• Keep clear of moving parts during operation.
• Consult professional help if unsure about installation or maintenance.

3. Prodott Aktarview u Karatteristiċi

The CASTLECREEK 8' Window Door Awning is designed to fit windows and doors ranging from 73" to 96" in width. It features a 6" decorative valance, a 2'2" projection, and a 2'2" drop, providing ample shade and protection from the elements.

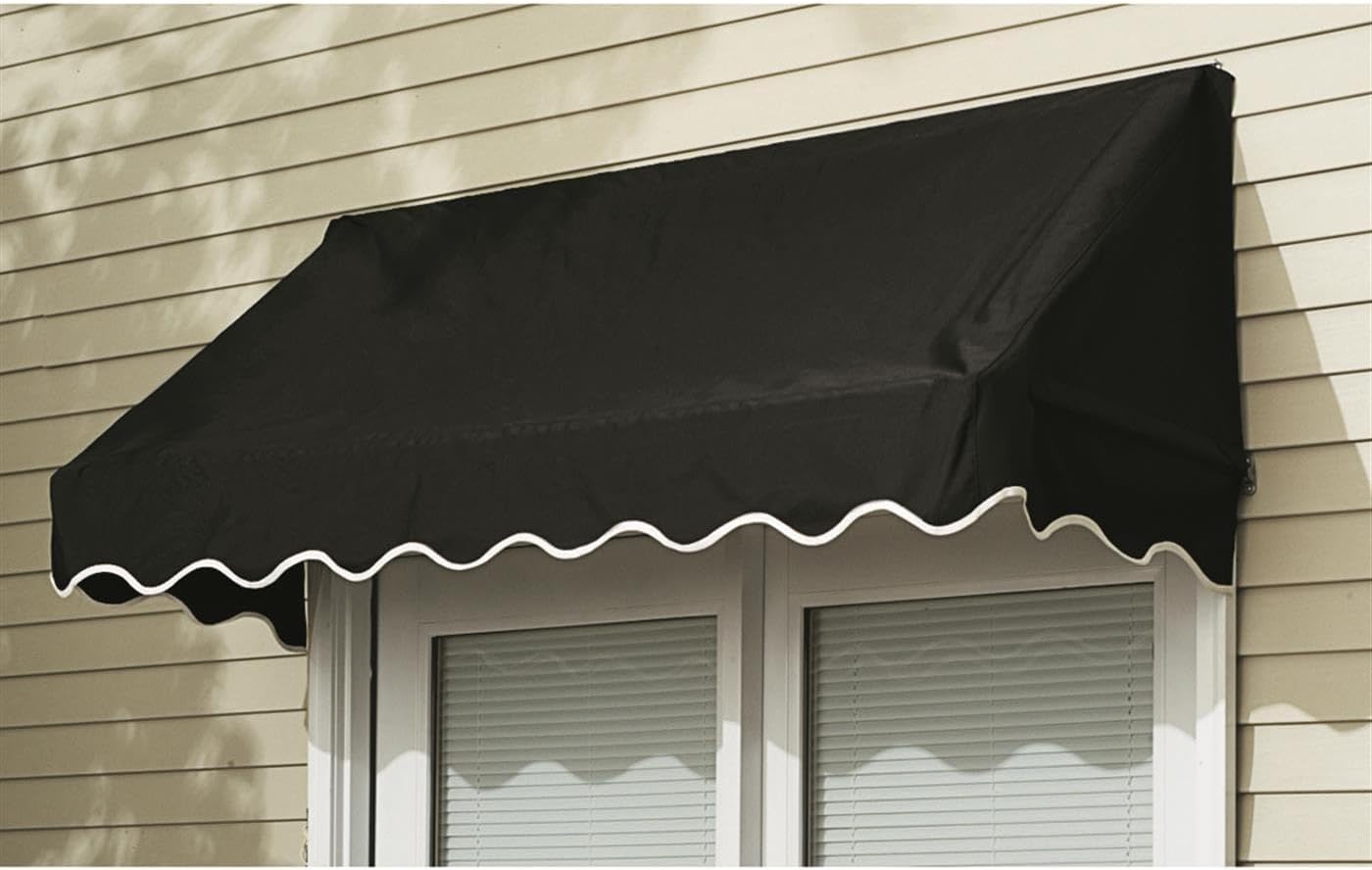

Figure 3.1: Black CASTLECREEK 8' Window Door Awning.

Figure 3.2: Linen colored CASTLECREEK 8' Window Door Awning.

Karatteristiċi ewlenin:

• Blocks Out Sun's Rays: Helps keep your home cooler and can reduce energy bills.
• Keeps Dirt and Water Away: The polyester fabric is designed to repel dirt and water, maintaining its appearance.
• Quality Polyester Fabric: Available in various shades to complement home aesthetics.
• Użu versatili: Suitable for both residential and commercial applications.
• Kostruzzjoni Durabbli: Features a sturdy stainless steel frame.
• Installazzjoni DIY: Includes necessary hardware for installation on wood, vinyl, aluminum, or concrete/brick surfaces with proper anchors.

Vidjow tal-Prodott:

4. Setup u Installazzjoni

The CASTLECREEK Awning is designed for DIY installation. Ensure you have the correct anchors for your specific mounting surface (wood, vinyl, aluminum, or concrete/brick).

Għodod Meħtieġa (Mhux Inklużi):

• Drill
• Tejp tal-Kejl
• Livell
• Lapes/Marker
• Appropriate Anchors for your wall type

Passi ta' Installazzjoni:

1. Ħoll il-Komponenti: Carefully remove all parts from the packaging and verify against the parts list (refer to included diagram in physical manual).
2. Agħżel Post: Select a suitable location above your window or door, ensuring sufficient clearance (minimum 13 inches) and a stable mounting surface. Avoid areas prone to extreme weather conditions.
3. Arma qafas: Follow the assembly instructions provided with the hardware to construct the stainless steel frame. Ensure all connections are secure.
4. Waħħal id-Drapp: Securely attach the polyester awning fabric to the assembled frame.
5. Immarka l-Punti tal-Immuntar: Hold the assembled awning in place and use a level to mark the drilling points for the mounting brackets on your wall.
6. Drill Pilota Toqob: Drill pilot holes at the marked locations, using a drill bit appropriate for your chosen anchors and wall material.
7. Installa l-Ankri: Insert the appropriate anchors into the pilot holes.
8. Mount Awning: Secure the awning to the wall using the provided hardware and installed anchors. Ensure it is firmly attached and level.
9. Kontroll Finali: Double-check all connections and mounting points for stability before use.

Figure 4.1: Sturdy Stainless Steel Frame.

Figure 4.2: Included Hardware for DIY Installation.

5. Istruzzjonijiet Operattivi

The CASTLECREEK Awning operates manually. Once installed, it provides continuous shade and protection. There are no moving parts for daily operation beyond initial setup.

• Ensure the awning is securely mounted before relying on its shade or protection.
• Periodically check mounting points for any loosening, especially after strong winds.

6. Manutenzjoni

Regular maintenance will extend the life and appearance of your CASTLECREEK Awning.

• Tindif: The polyester fabric is designed to repel dirt and water. For general cleaning, simply rinse with water. For more stubborn dirt, use a mild soap solution and a soft brush, then rinse thoroughly. Avoid harsh chemicals or abrasive cleaners.
• Kura tad-drapp: While the fabric is UV-treated, prolonged exposure to direct sunlight can lead to fading over time. Consider removing the fabric cover during extended periods of non-use or harsh weather conditions to preserve its color and integrity.
• Spezzjoni tal-qafas: Annually inspect the stainless steel frame for any signs of rust, damage, or loose connections. Tighten any loose bolts or screws.
• Ħażna fix-Xitwa (Mhux obbligatorja): In areas with heavy snow or ice, it is recommended to remove the fabric cover during winter months to prevent damage from snow accumulation and freezing temperatures. Store the fabric in a clean, dry place.

Figure 6.1: UV-Treated Polyester Fabric.

7 Issolvi l-problemi

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

For information regarding warranty coverage, returns, or technical support for your CASTLECREEK 8' Window Door Awning, please contact the retailer or manufacturer directly. Refer to your purchase receipt or the product packaging for specific contact details.

Manufacturer: Castlecreek

Seller: The Sportsman's Guide
