Manwal tal-Istruzzjonijiet tal-Buttuna tal-Metall Lowrance AUTO-STBY

1. Introduzzjoni

This manual provides detailed instructions for the installation, operation, and maintenance of your Lowrance AUTO-STBY Button Metal. Please read this manual thoroughly before use to ensure proper function and longevity of the product. This button is designed to integrate with compatible Lowrance marine electronic devices, enabling a convenient way to manage their standby state.

2. Informazzjoni dwar is-Sigurtà

Always observe the following safety precautions to prevent injury or damage to the product or other equipment:

• Skonnettja l-Enerġija: Always disconnect power to the marine electronic system before attempting any installation, wiring, or maintenance.
• Wiring kif suppost: Ensure all wiring connections are secure and correctly polarized (positive to positive, negative to negative/ground) to prevent electrical shorts or damage.
• Protezzjoni Ambjentali: While designed for marine environments, ensure the button is installed in a location that minimizes exposure to direct water spray or submersion unless explicitly rated for such conditions.
• Installazzjoni professjonali: If you are unsure about any part of the installation process, consult a qualified marine electronics technician.

3. Prodott Aktarview

The Lowrance AUTO-STBY Button Metal is a robust, momentary push-button switch designed for integration with Lowrance marine electronics. It features a durable metal construction and pre-attached wiring for straightforward connection to your device's AUTO-STBY input.

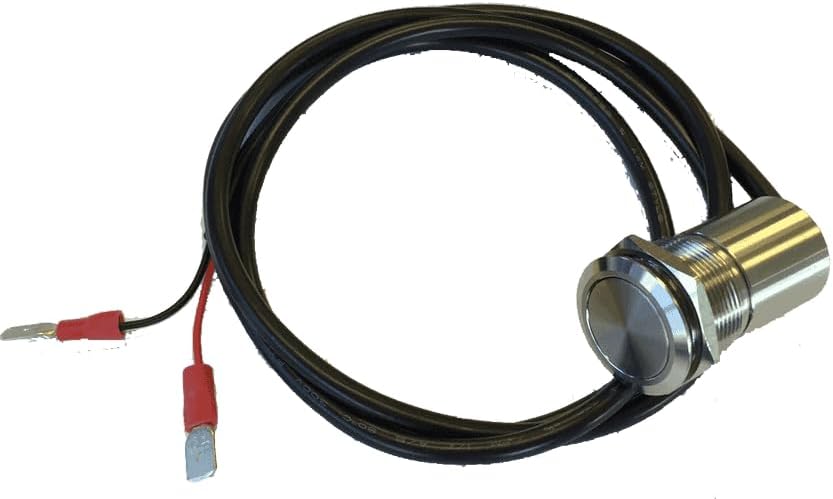

Figura 3.1: Quddiem view of the Lowrance AUTO-STBY Button Metal, showing the polished metal button and its attached black cable, terminating in red and black spade connectors.

Figura 3.2: Angolat view of the Lowrance AUTO-STBY Button Metal, highlighting the threaded body and securing nut, indicating its panel-mount design.

4. Konfigurazzjoni u Installazzjoni

Follow these steps for proper installation of your AUTO-STBY Button Metal:

1. Agħżel Post tal-Immuntar: Select a suitable location on your boat's dashboard or panel that is easily accessible and provides adequate protection from direct water exposure. Ensure there is sufficient space behind the panel for the button's body and wiring.
2. Prepare Mounting Hole: Drill a hole of the appropriate diameter (refer to specifications for exact size) in the chosen mounting surface. Deburr the edges of the hole to prevent damage to the wiring.
3. Immonta l-Buttuna: Insert the threaded body of the button through the drilled hole. Secure it in place using the provided nut on the backside of the panel. Tighten firmly but do not overtighten.
4. Konnessjonijiet tal-Wiring:
   • Identify the AUTO-STBY input on your Lowrance marine electronic device. Consult your device's specific user manual for the correct wiring diagram and pinout.
   • Qabbad il- wajer aħmar from the AUTO-STBY button to the positive (+) input terminal designated for the AUTO-STBY function on your Lowrance device.
   • Qabbad il- wajer iswed from the AUTO-STBY button to the negative (-) or ground terminal designated for the AUTO-STBY function on your Lowrance device.
   • Kun żgur li l-konnessjonijiet kollha huma siguri u iżolati biex jipprevjenu short circuits.
5. Funzjonalità tat-Test: Once installed and wired, reconnect power to your marine electronic system. Test the button by pressing it and observing if your Lowrance device enters or exits standby mode as expected.

5. Istruzzjonijiet Operattivi

The AUTO-STBY Button Metal functions as a momentary switch. Its primary purpose is to toggle the standby mode of compatible Lowrance marine electronic devices. The exact behavior (e.g., whether it puts the device into standby or wakes it up) depends on the specific Lowrance device it is connected to and its current state.

• To Activate/Deactivate Standby: Simply press and release the AUTO-STBY button.
• Device Specific Behavior: Refer to the user manual of your specific Lowrance fish finder, chartplotter, or other marine electronic device for detailed information on how it interprets the AUTO-STBY input and what functions are associated with it.

6. Manutenzjoni

The AUTO-STBY Button Metal is designed for durability and requires minimal maintenance. However, regular inspection and cleaning will ensure its longevity and reliable operation:

• Tindif: Wipe the button surface with a soft, damp cloth to remove salt residue, dirt, or grime. Do not use abrasive cleaners, solvents, or harsh chemicals, as these may damage the metal finish or internal components.
• Spezzjoni: Periodically inspect the button and its wiring for any signs of wear, corrosion, fraying, or damage. Pay close attention to the connections at the back of the panel.
• Prevenzjoni tal-Korrużjoni: In highly corrosive marine environments, consider applying a thin layer of dielectric grease to exposed electrical connections to prevent corrosion.

7 Issolvi l-problemi

If your AUTO-STBY Button Metal is not functioning as expected, consider the following:

If the problem persists after attempting these solutions, it may indicate an internal fault with the button or the connected device. In such cases, it is recommended to contact Lowrance customer support or a qualified marine electronics technician.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

Warranty information for the Lowrance AUTO-STBY Button Metal is currently unknown. For product support, technical assistance, or to inquire about warranty details, please contact Lowrance customer service directly or visit their official store.

You can find more information and contact options by visiting the Lowrance Store on Amazon.
