Manwal tal-Utent tal-Iskala tal-Komputazzjoni tal-Prezzijiet Diġitali Kummerċjali li ma jgħaddix ilma minnha CAMRY ACS-30-JC81W

1. Introduzzjoni

This manual provides comprehensive instructions for the safe and efficient operation of your CAMRY ACS-30-JC81W Waterproof Commercial Digital Price Computing Scale. Designed for commercial use in environments such as farmers' markets, seafood counters, and delis, this scale offers high precision, durability, and ease of use. Its IPX7 waterproof rating ensures reliable performance even when exposed to water, and the dual LCD display facilitates clear readings for both operator and customer.

Figure 1.1: CAMRY ACS-30-JC81W Digital Price Computing Scale, highlighting its waterproof design and suitability for weighing items like seafood.

Figure 1.2: Visual representation of the scale's IPX7 waterproof capability, indicating its resilience to water exposure.

2. Setup

2.1 Tneħħija tal-kaxxa u Kontroll tal-Komponenti

Neħħi bir-reqqa l-komponenti kollha mill-imballaġġ. Ivverifika li l-oġġetti li ġejjin huma preżenti:

• CAMRY ACS-30-JC81W Digital Price Computing Scale unit
• Weighing platform (stainless steel)
• Adapter tal-enerġija AC
• Manwal għall-Utent (dan id-dokument)

2.2 Tqegħid u Livellar

Place the scale on a stable, flat surface away from vibrations, drafts, and direct sunlight. Ensure the surface is level to guarantee accurate readings. The scale is equipped with adjustable leveling feet. Rotate these feet until the bubble in the level indicator (if present) is centered, or until the scale feels stable and does not wobble.

2.3 Iċċarġjar inizjali

Before first use, fully charge the built-in rechargeable battery. Connect the AC power adapter to the scale's charging port and plug it into a standard electrical outlet. The charging indicator will illuminate. A full charge can provide up to 3 months of use, depending on usage patterns.

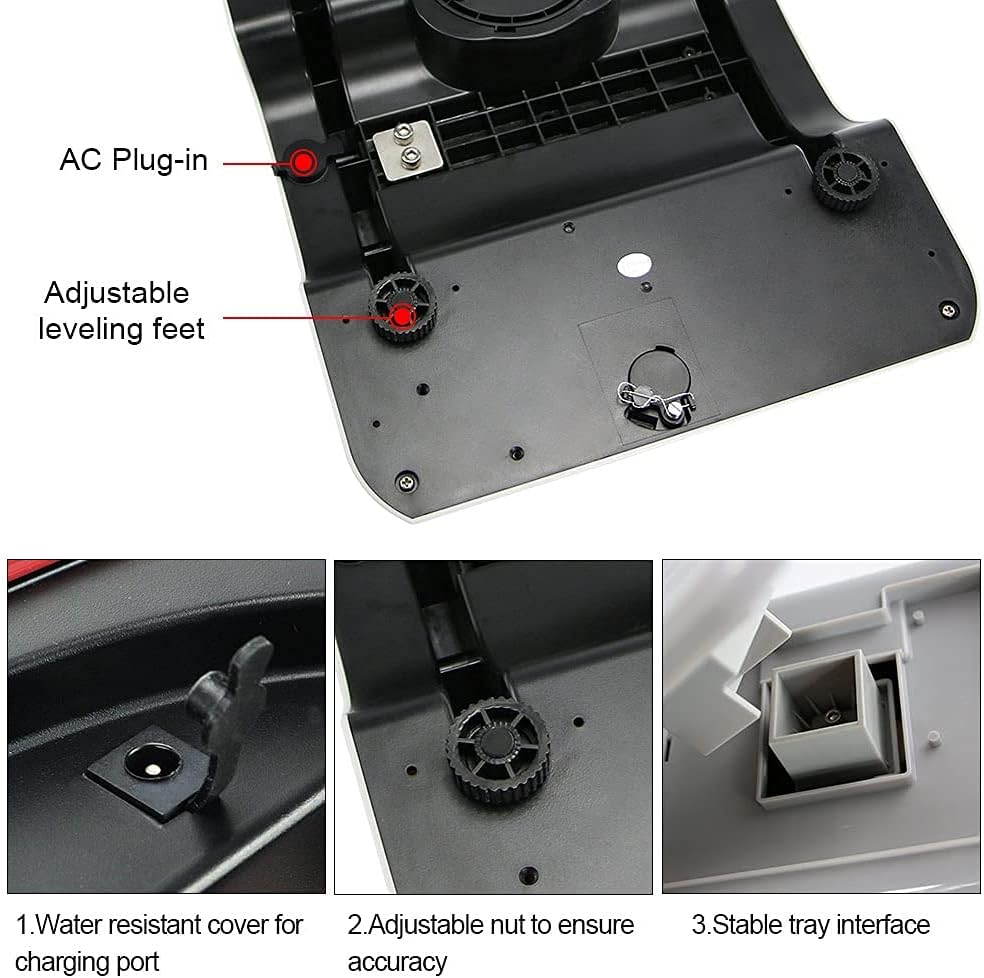

Figure 2.1: Location of the AC plug-in port and adjustable leveling feet for proper scale setup.

3. Istruzzjonijiet Operattivi

3.1 Power On/Off

• Biex tixgħel: Agħfas il-buttuna ON/OFF button. The display will light up and perform a self-check.
• Biex titfi: Agħfas u żomm il-buttuna ON/OFF buttuna sakemm il-wiri jintefa.

3.2 Użin Bażiku

1. Ensure the scale is powered on and the display shows '0.000'.
2. Place the item to be weighed onto the center of the weighing platform.
3. Read the weight displayed on the 'Weight' LCD screen.

3.3 Unit Conversion (KG/LB)

The scale supports weighing in kilograms (kg) and pounds (lb). To switch between units:

• Agħfas il- KG/LB button. The unit displayed on the 'Weight' screen will change accordingly.

Figure 3.1: Demonstrating the KG/LB unit conversion feature on the scale's control panel.

3.4 Funzjoni tat-tara

The tare function allows you to subtract the weight of a container, so only the net weight of the contents is measured.

1. Poġġi kontenitur vojt fuq il-pjattaforma tal-użin.
2. Agħfas il- TARE buttuna. Id-displej jerġa' lura għal '0.000'.
3. Add the items to be weighed into the container. The display will show the net weight of the items.

3.5 Price Computing

Din l-iskala tista' tikkalkula l-prezz totali bbażat fuq il-piż u l-prezz unitarju.

1. Place the item on the weighing platform.
2. Enter the unit price using the numeric keypad. The 'Unit Price' display will show the entered value.
3. The 'Total Price' display will automatically calculate and show the total cost.
4. Uża l- PLU buttons (P1-P5) to store and recall frequently used unit prices.
5. Il- M+ button can be used for accumulation of multiple items.

3.6 Wirja Doppja

The scale features dual LCD displays, allowing both the operator and the customer to view the weight, unit price, and total price simultaneously.

Figure 3.2: Illustration of the easy-to-read dual display feature for both operator and customer visibility.

4. Manutenzjoni

4.1 Tindif

Due to its IPX7 waterproof design and stainless steel platform, the scale is easy to clean. Use a damp cloth with mild soap to wipe down the platform and body. Avoid abrasive cleaners or harsh chemicals that could damage the display or finish. Ensure the charging port cover is securely closed before cleaning with water.

Figure 4.1: Cleaning the stainless steel platform of the scale.

4.2 Kura tal-Batterija

To prolong battery life, charge the scale when the low battery indicator appears. Avoid completely draining the battery frequently. If the scale will not be used for an extended period, charge it fully before storage and recharge every few months.

Figure 4.2: Battery charging and endurance illustration.

5 Issolvi l-problemi

If you encounter issues with your scale, refer to the following common problems and solutions:

• L-iskala ma tixgħelx:
  Ensure the battery is charged. Connect the AC adapter and try again. If using battery power, check if the battery is properly connected (if user-serviceable).
• Qari mhux preċiż:
  Verify the scale is on a stable, level surface. Ensure no objects are touching the platform. Perform a tare operation before weighing. Avoid placing items off-center.
• Display shows 'OVERLOAD':
  The item on the platform exceeds the maximum weight capacity (66lb / 30kg). Remove the item immediately to prevent damage.
• Allarm tal-batterija baxxa:
  The battery indicator will show when the battery is low. Connect the AC adapter to recharge the scale.

6. Speċifikazzjonijiet

Detailed technical specifications for the CAMRY ACS-30-JC81W scale:

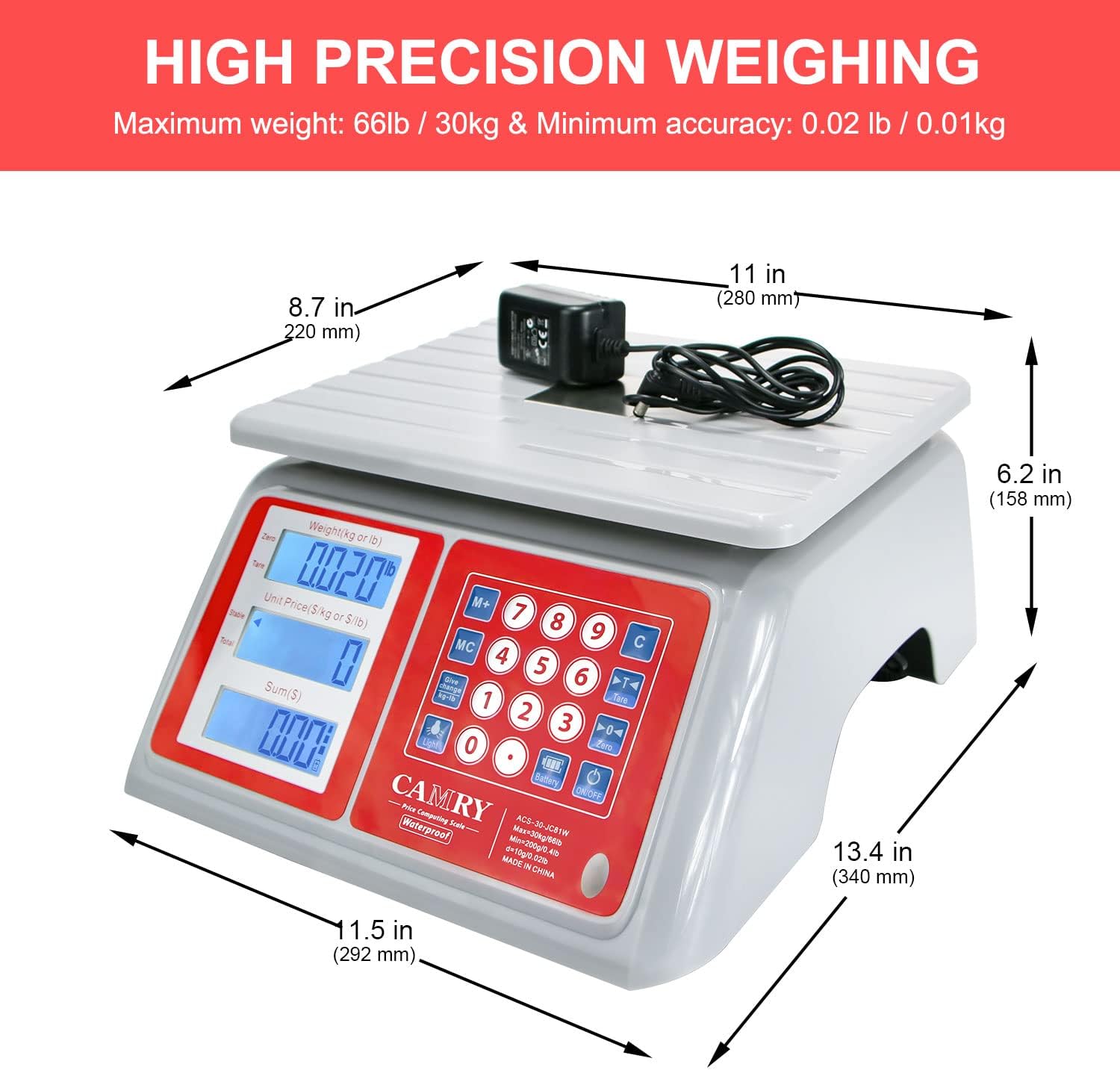

Figure 6.1: Product dimensions of the scale.

Figure 6.2: Illustration of the durable ABS material used for the scale's body.

7. Garanzija u Appoġġ

7.1 Informazzjoni dwar Garanzija

This CAMRY product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase or contact customer support for specific warranty terms and conditions.

7.2 Appoġġ għall-Klijent

For technical assistance, troubleshooting, or warranty claims, please contact CAMRY customer support. Contact details can typically be found on the product packaging or the official CAMRY websit.
