Homall Gaming Racing Office Chair S-Racer Series Instruction Manual

1. Informazzjoni dwar is-Sigurtà

Jekk jogħġbok aqra l-istruzzjonijiet kollha bir-reqqa qabel l-assemblaġġ u l-użu. Żomm dan il-manwal għal referenza futura.

Assembly may require tools and careful handling.
Teċċedix ir-rakkomandazzjoni tal-piż massimu ta' 280 liri għal użu sigur.
Kun żgur li l-viti u l-boltijiet kollha jkunu ssikkati sew qabel l-użu.
Evita li toqgħod bilwieqfa fuq is-siġġu jew li tużah bħala banketta.
Żomm it-tfal u l-annimali domestiċi 'l bogħod miż-żona tal-assemblaġġ.

2. Kontenut tal-Pakkett

Ivverifika li l-komponenti kollha huma preżenti qabel tibda l-assemblaġġ. Jekk xi partijiet huma nieqsa jew bil-ħsara, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

Serħ id-dahar
Sedil
Armrests (2)
Headrest Pillow
Kuxxin Lumbari
Base (Star Base)
Wheels (Casters) (5)
Hydraulic Piston (Gas Lift)
Pjanċa tal-Mekkaniżmu
Assembly Hardware (screws, washers, Allen wrenches)
Installation Instruction Book

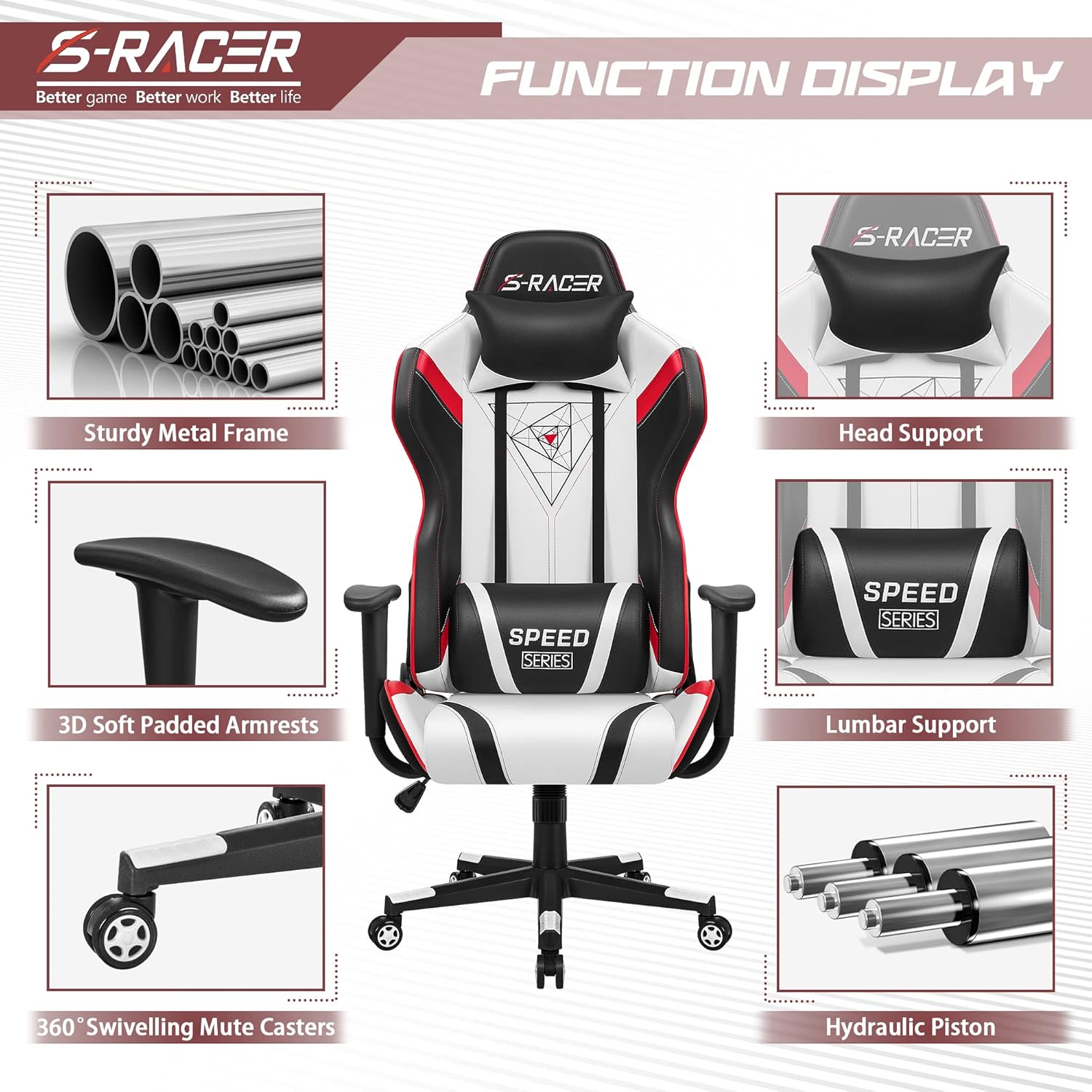

Homall Gaming Chair Function Display showing various components like sturdy metal frame, head support, 3D soft padded armrests, lumbar support, 360 degree swiveling mute casters, and hydraulic piston.

Figura 2.1: Aktarview of chair components.

3. Setup u Assemblea

Assembly typically takes less than 45 minutes. Follow the detailed steps in the included instruction book. The following provides a general overview:

Waħħal ir-Roti mal-Bażi: Insert the five casters into the holes on the star base.
Insert Hydraulic Piston: Place the hydraulic piston into the center hole of the star base.
Waħħal il-Pjanċa tal-Mekkaniżmu mas-Sedil: Secure the mechanism plate to the underside of the seat using the provided screws. Ensure the front side of the plate aligns with the front of the seat.
Connect Seat to Piston: Carefully place the assembled seat onto the hydraulic piston.
Waħħal Armrests: Secure the armrests to the sides of the seat using the provided hardware.
Waħħal id-Dahar: Connect the backrest to the seat and armrests using the appropriate screws.
Installa l-Imħaded: Attach the headrest pillow and lumbar cushion using their elastic straps. The lumbar cushion is adjustable and can be moved up or down, or removed if preferred.

Assembled Homall Gaming Racing Office Chair in black and white with red accents, featuring a headrest and lumbar support pillow.

Figure 3.1: Fully assembled Homall S-Racer Series Gaming Chair.

4. Istruzzjonijiet Operattivi

The Homall S-Racer Series chair offers multiple adjustment options for personalized comfort.

Aġġustament Għoli: Use the lever located under the seat on the right side to adjust the chair's height. Pull the lever up to raise the seat; sit on the chair and pull the lever up to lower it.
Funzjoni ta' Mimdud: The chair features a 90 to 180-degree backwards movement. Use the recline lever on the side of the seat to adjust the backrest angle. Push the lever down to recline, and pull it up to lock the desired position.
Funzjoni tat-tbandil: An enjoyable rocking function is available. This can typically be enabled or disabled via a knob or lever under the seat, which controls the tension of the rocking mechanism.
Aġġustament tad-dirgħajn: The armrests are designed for smooth adjustment. Refer to the specific mechanism on your armrests for height or swivel adjustments.
Headrest and Lumbar Support: The headrest pillow and lumbar cushion are removable and adjustable via elastic straps, allowing you to position them for optimal ergonomic support.
Serħan tas-saqajn li jinġibed lura: Some models may include a retractable footrest for added comfort during recline. To extend, pull the footrest out from under the seat. To retract, push it back in.

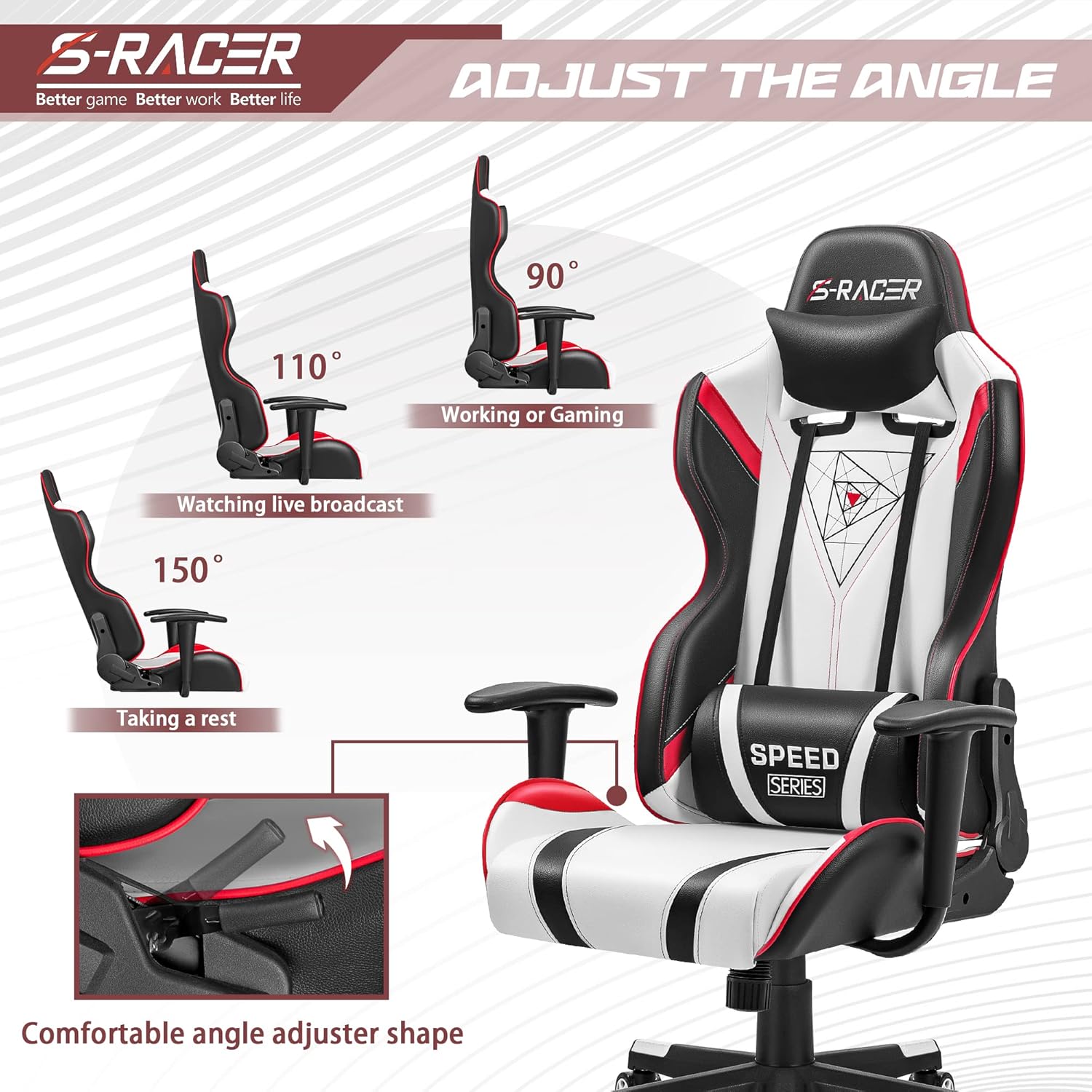

Diagram showing the Homall Gaming Chair's angle adjustment from 90 degrees for working/gaming, 110 degrees for watching, to 150 degrees for resting, with a close-up of the comfortable angle adjuster shape.

Figure 4.1: Chair angle adjustments for various activities.

Diagram illustrating the ergonomic design of the Homall Gaming Chair, showing how it provides head support, fits the back, and reduces waist fatigue, aligning with the natural curve of the spine.

Figure 4.2: Ergonomic design for comfort and support.

5. Manutenzjoni

Proper maintenance ensures the longevity and appearance of your chair.

Tindif: For the PU leather, use a dedicated leather cleaner and a soft cloth to wipe down the surfaces every couple of weeks. Avoid harsh chemicals or abrasive materials.
Xandara: Periodically check the 360-degree swiveling mute casters for any debris (hair, dust) that might hinder smooth movement. Clean as needed.
Ħardwer: Regularly inspect all screws and bolts to ensure they remain tight. Tighten any loose connections to maintain stability and prevent noise.

6 Issolvi l-problemi

Jekk tiltaqa' ma' xi problemi bis-siġġu tiegħek, ikkunsidra dan li ġej:

Ħoss/Tgergir: Ensure all bolts are tightened. Applying white lithium grease to exterior metal contact points and springs may help reduce noise.
Diffikultà fl-Aġġustament tal-Għoli: Check if the hydraulic piston is correctly seated and free from obstructions. Ensure the lever mechanism is functioning properly.
Unstable Chair: Verify that the base is fully assembled and all casters are securely in place. Re-tighten all assembly screws.

7. Speċifikazzjonijiet

Karatteristika	Dettall
Brand	Homall
Isem tal-Mudell	Racing Office Chair High Back PU Leather Computer Desk Chair
Kulur	Abjad u Iswed
Dimensjonijiet tal-Prodott	20"D x 21.5"W x 51"H
Rakkomandazzjoni tal-Piż Massimu	280 Liri
Materjal	PU Leather, Foam (Fill Material), Metal (Form Factor)
Karatteristiċi Speċjali	Ergonomic, Arm Rest, Swivel, Adjustable Height, Head Support, Removable Cover, Rolling, Reclining (3 positions)
Komponenti Inklużi	Backrest, Seat, Armrest, Headrest, Base, Feet, Wheels

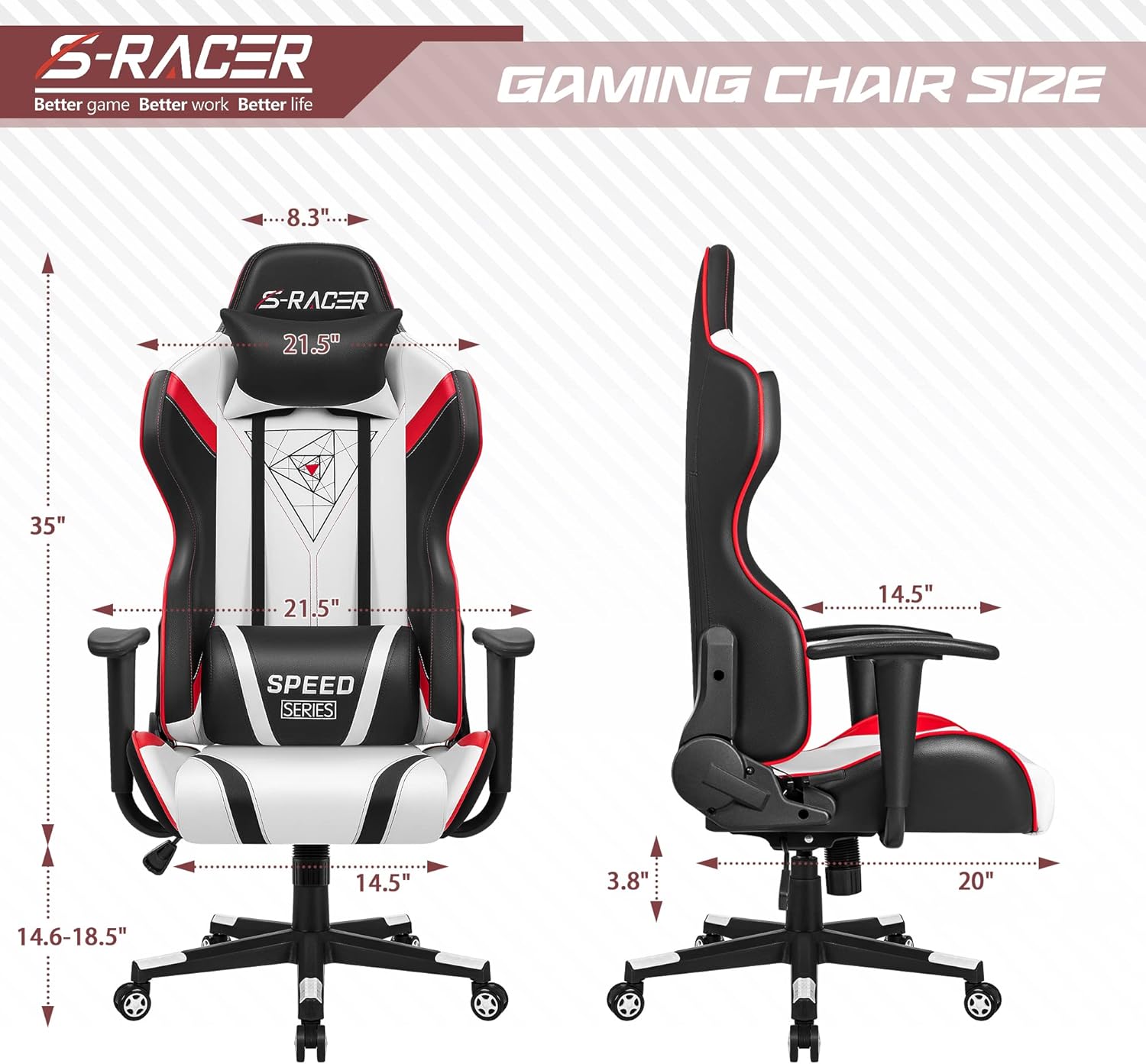

Diagram showing the dimensions of the Homall S-Racer Gaming Chair, including seat width, backrest height, and adjustable seat height range.

Figure 7.1: Detailed dimensions of the Homall S-Racer Gaming Chair.

8. Garanzija u Appoġġ

Homall provides support for product-related issues.

Homall Exchange: Free exchange is offered for installation problems, damage, and missing parts.
If you are not satisfied with your purchase, Homall is glad to exchange your replacement or refund your money, with no extra fee required.
For further assistance, please refer to the customer support information provided with your purchase or visit the official Homall websit.
