1. Introduzzjoni
This manual provides essential information for setting up, operating, and maintaining your VIZIO V-Series 50-inch Class 4K HDR Smart TV. Please read these instructions thoroughly before using your television to ensure proper functionality and safety.

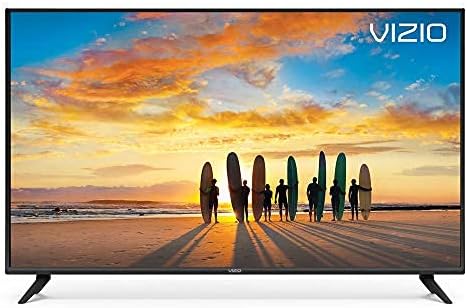

Figura 1: Quddiem view of the VIZIO V-Series 50-inch 4K HDR Smart TV.
2. X'hemm fil-Kaxxa
Iċċekkja li l-oġġetti kollha huma preżenti fl-imballaġġ:
- VIZIO V-Series 50-inch Class 4K HDR Smart TV
- Kejbil tal-Enerġija
- Kontroll mill-bogħod
- Stand (2 biċċiet)
3. Setup
3.1 It-twaħħil tal-Istand
- Poġġi l-iskrin tat-TV b'attenzjoni 'l isfel fuq wiċċ artab u nadif biex tevita l-ħsara.
- Allinja kull biċċa tal-istand mas-slots korrispondenti fil-qiegħ tat-TV.
- Waħħal l-istands billi tuża l-viti pprovduti. Kun żgur li huma mwaħħlin sew.
Figure 2: VIZIO V-Series TV with its two-piece stand attached.
3.2 Konnessjoni tal-Enerġija u Apparati Esterni
- Qabbad il-kejbil tal-enerġija mad-dħul tal-enerġija tat-TV u mbagħad ma' sokit tal-ħajt.
- For external devices (e.g., cable box, gaming console, Blu-ray player), use HDMI ports. The TV features multiple HDMI inputs.
- For internet connectivity, connect an Ethernet cable to the LAN port or connect wirelessly via Wi-Fi during the initial setup.
- USB devices can be connected to the USB port for media playback.
Figure 3: Close-up of the rear input ports, including HDMI, USB, Ethernet, and audio outputs.
3.3 Wizard tas-Setup Inizjali
Upon first power-on, the TV will guide you through an on-screen setup wizard to configure language, network settings, and channel scanning.
4. It-tħaddim tat-TV
4.1 Funzjonijiet ta' Kontroll mill-bogħod
The included remote control provides access to all TV functions. It features dedicated buttons for popular streaming apps and navigation controls.

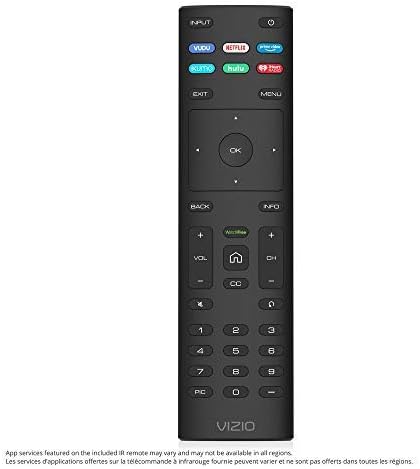

Figure 4: The VIZIO Smart TV remote control with quick access buttons for streaming services.
4.2 SmartCast 3.0
VIZIO SmartCast 3.0 provides an intuitive interface to access streaming apps, live TV, and inputs. Navigate using the remote's directional pad and the 'Home' button.
4.3 Kontroll tal-Vuċi
The TV supports hands-free voice control through compatible devices like Amazon Alexa or Google Assistant. Follow the on-screen instructions to link your voice assistant device.
4.4 VIZIO Watch Free
Access over 100 free streaming channels, including news, movies, and sports, directly through the VIZIO Watch Free+ app.
4.5 Chromecast Built-in and Screen Mirroring
Utilize Chromecast built-in to stream content from thousands of compatible apps on your smartphone or tablet directly to the TV. Screen mirroring allows you to display your device's screen on the TV.
Figura 5: Eżample of screen mirroring from a smartphone to the VIZIO Smart TV.
5. Karatteristiċi ewlenin
- Dolby Vision HDR: Capable of displaying a wider spectrum of colors and detail, including HDR10 and HLG content support.
- Dawl ta' wara LED b'firxa sħiħa: Evenly distributes LEDs across the screen's backlight for superior light uniformity and picture performance.
- 4K Ultra HD: Offers four times the resolution of 1080p with over 8 million pixels for enhanced clarity.
- Octal-Core Processor: A high-powered processor ensures less lag in smart home apps and during activity switching.
6. Speċifikazzjonijiet
| Karatteristika | Speċifikazzjoni |
|---|---|
| Brand | VIZIO |
| Numru tal-Mudell | V505-G9 |
| Daqs tal-Iskrin | 50 Inches (49.5" Diag.) |
| Riżoluzzjoni | 4K Ultra HD (3840x2160) |
| Teknoloġija tal-Wiri | LED |
| Riffriskar Rata | 120 Hz |
| Karatteristika Speċjali | Ċatt |
| Proporzjon ta' l-aspett | 16:9 |
| Dimensjonijiet tal-Prodott | 44.13 x 2.42 x 25.59 pulzieri |
| Piż tal-oġġett | 21.2 libbra (9600 Gramm) |
| Voltage | 120 Volts (AC) |
| Wattage | 135 watt |
| Teknoloġija tal-Konnettività | Ethernet, HDMI, USB |
Figure 6: Energy Guide label for the VIZIO V505-G9 TV, showing estimated yearly energy cost.
7. Manutenzjoni
7.1 Tindif tal-Iskrin
Biex tnaddaf l-iskrin, imsaħ bil-mod b'ċarruta ratba u mingħajr suf. Għal marki persistenti, imsaħ bil-modampLaħlaħ id-drapp bl-ilma jew b'prodott speċjalizzat għat-tindif tal-iskrin. Evita li tuża kimiċi ħarxa jew materjali li joborxu.
7.2 Kura Ġenerali
Keep the TV in a well-ventilated area. Avoid blocking ventilation openings. Do not expose the TV to direct sunlight, extreme temperatures, or high humidity.
8 Issolvi l-problemi
- Ebda Qawwa: Kun żgur li l-kejbil tal-enerġija huwa konness sew kemm mat-TV kif ukoll mas-sokit tal-ħajt. Ipprova sokit differenti.
- Ebda Stampa/Ħoss: Verify that the correct input source is selected. Check all cable connections to external devices.
- Kwistjonijiet ta' Konnessjoni man-Netwerk: Restart your router and modem. Re-enter your Wi-Fi password in the TV's network settings. For wired connections, ensure the Ethernet cable is properly connected.
- Remote Mhux Jirrispondi: Ibdel il-batteriji fir-remote control. Kun żgur li m'hemm l-ebda ostaklu bejn ir-remote u s-sensor tat-TV.
9. Garanzija u Appoġġ
For warranty information, product registration, and technical support, please refer to the official VIZIO website or contact VIZIO customer service. Keep your purchase receipt for warranty claims.
