Manwal ta' Istruzzjoni tar-Radju Two-Way FRS ta' 36 Kanal Midland T71VP3

1. Prodott Aktarview

The Midland T71VP3 X-TALKER Two-Way Radio provides reliable point-to-point communication. This license-free FRS/GMRS radio features 36 channels, 121 privacy codes, and a communication range of up to 38 miles in optimal conditions. It includes NOAA Weather Scan and Alert for severe weather updates and eVOX hands-free operation for convenience.

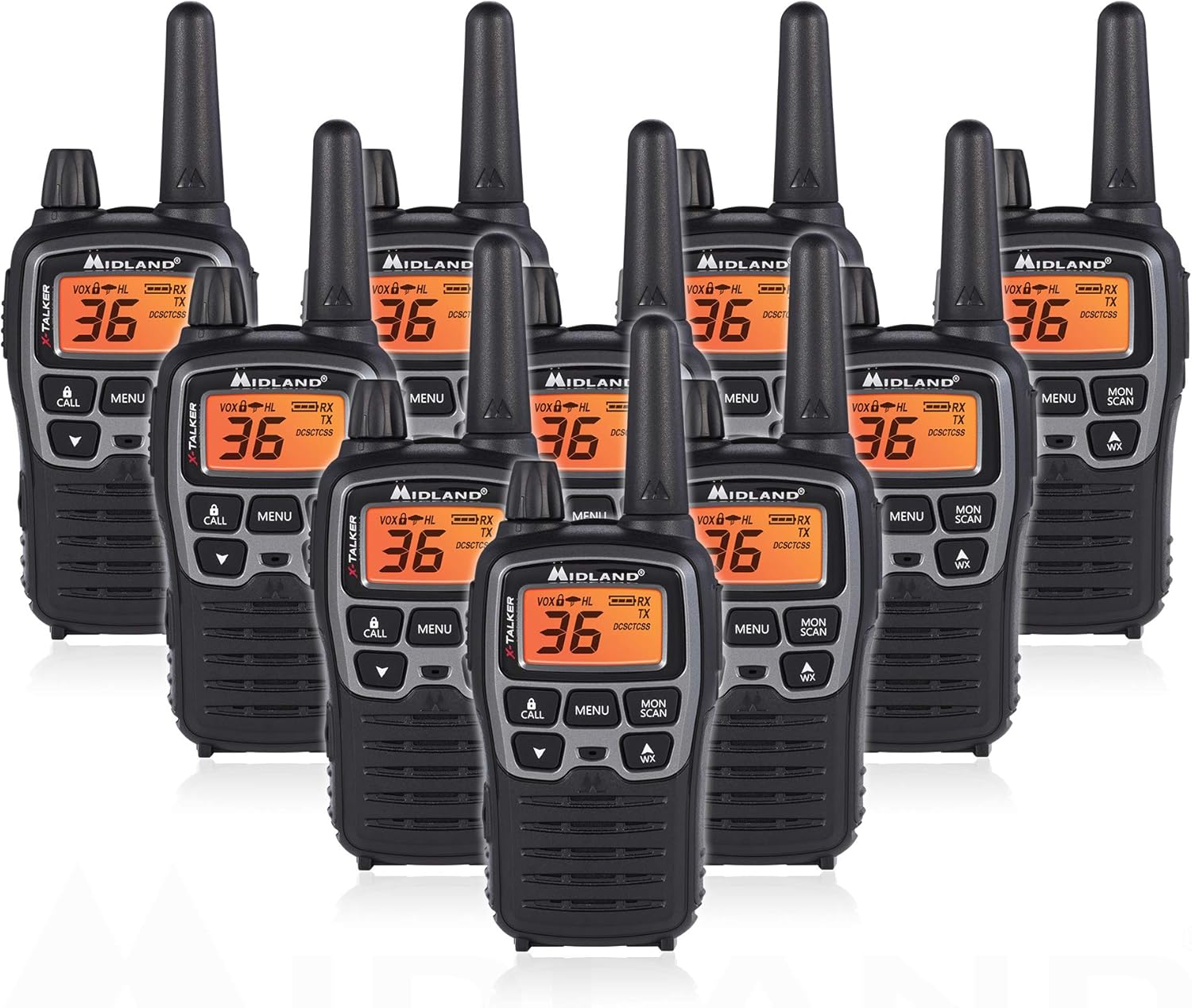

Figure 1: Midland T71VP3 Two-Way Radios (10-Pack)

2. X'hemm fil-Kaxxa

• 10 x T71VP3 Radios
• 10 x Clips taċ-ċinturin
• 10 x 700mAh Rechargeable Battery Packs
• 1 x Desktop Charger (for two radios)
• 1 x Cable tal-Iċċarġjar Mikro USB
• 1 x Manwal tas-Sid

3. Karatteristiċi tal-prodott

• 36 FRS/GMRS Channels: Provides a wide selection of communication channels.
• 121 CTCSS Privacy Codes: Offers up to 2,662 channel options to minimize interference.
• Up to 38-Mile Range: Achieves long-range communication in open areas with minimal obstructions.
• Skennjar tat-Temp tal-NOAA + Twissija: Automatically scans 10 weather band channels and alerts to severe weather.
• eVOX Hands-Free Operation: Voice and sound activated transmission with 9 sensitivity levels.
• Għażliet ta' Enerġija Doppju: Operates with included 1000mAh rechargeable battery packs or 3 'AA' alkaline batteries (not included).
• Operazzjoni Siekta: Turns off all tones for discreet use.
• Reżistenti għall-Ilma: Designed to withstand light exposure to water.

Figure 2: Key Features of the T71VP3

4. Setup

4.1 Installazzjoni tal-batterija

The T71VP3 radio can be powered by either the included rechargeable battery pack or three AAA alkaline batteries (not included).

1. Kun żgur li r-radju jkun mitfi.
2. Sib l-għatu tal-kompartiment tal-batterija fuq wara tar-radju.
3. Press down on the tab and slide the cover downwards to remove it.
4. Insert the rechargeable battery pack, ensuring the contacts align correctly, or insert three AAA alkaline batteries according to the polarity markings.
5. Erġa’ poġġi l-għatu tal-kompartiment tal-batterija billi tiżżerżaq 'il fuq sakemm tikklikkja f'postu.

Figure 3: Battery Compartment with AAA Batteries

4.2 Iċċarġjar tal-batteriji

The rechargeable battery packs can be charged using the included desktop charger or directly via the micro USB port on the radio.

1. Użu tal-Ċarġer tad-Desktop: Connect the micro USB charging cable to the desktop charger and a power source (AC wall adapter or USB car charger). Place up to two radios into the charging bays. The charging indicator light will illuminate to show charging status. Full charge typically takes 4-5 hours.
2. Direct USB Charging: Connect the micro USB charging cable directly to the micro USB charging jack on the side of the radio and a power source.

Note: Alkaline batteries are not rechargeable and should not be placed in the charger or charged via the USB port.

Figure 4: Radio Display with Battery Indicator

5. Istruzzjonijiet Operattivi

5.1 Radio Controls and Display

Figura 5: Kontrolli tal-Panel ta' Quddiem

Figure 6: Top and Side Components

5.2 Power On/Off

To power on the radio, rotate the Pum tal-Qawwa/Volum clockwise until you hear a click and the display illuminates. To power off, rotate the knob counter-clockwise until you hear a click.

5.3 Aġġustament tal-Volum

Dawwar il- Pum tal-Qawwa/Volum clockwise to increase the volume and counter-clockwise to decrease it.

5.4 Għażla tal-Kanal

The T71VP3 has 36 FRS/GMRS channels. To change channels:

1. Agħfas il- MENU button once. The current channel number will flash.
2. Uża l- UP or 'L isfel arrow buttons to select the desired channel.
3. Agħfas il- MENU button again or wait 5 seconds for the selection to be saved.

5.5 Kodiċi ta' Privatezza (CTCSS)

Privacy codes help reduce interference from other users on the same channel. The T71VP3 offers 121 CTCSS codes.

1. Agħfas il- MENU button twice. The current privacy code will flash.
2. Uża l- UP or 'L isfel arrow buttons to select the desired privacy code.
3. Agħfas il- MENU button again or wait 5 seconds for the selection to be saved.

5.6 Trażmissjoni u Riċeviment

Biex tittrażmetti, agħfas u żomm il-buttuna PTT (Push-To-Talk) button on the side of the radio and speak clearly into the microphone. Release the PTT button to receive.

5.7 NOAA Weather Scan + Alert

This feature allows the radio to scan 10 available NOAA weather band channels and alert you to severe weather conditions.

1. To activate Weather Scan, press the WX button (located below the DOWN arrow).
2. Ir-radju se jiskennja għal allerti tat-temp attivi.
3. To enable Weather Alert, refer to the owner's manual for specific menu navigation.

5.8 Hands-Free Operation (eVOX)

The eVOX feature enables voice-activated transmission without pressing the PTT button. It has 9 sensitivity levels.

1. Agħfas il- MENU button until the eVOX icon flashes.
2. Uża l- UP or 'L isfel arrow buttons to select the desired sensitivity level (1-9, with 9 being most sensitive).
3. Agħfas il- MENU button again or wait 5 seconds to save.

6. Range Considerations

The advertised range of up to 38 miles is achieved under optimal conditions (e.g., open areas with clear line of sight). Actual range can vary significantly based on terrain, weather, electromagnetic interference, and obstructions.

• Medda massima: Achieved with no obstructions (e.g., over water or in open fields).
• Medda Medja: Achieved with partial obstructions (e.g., light foliage, rolling hills).
• Medda Qasira: Experienced with major obstructions (e.g., dense urban areas, heavy forests, mountainous terrain).

Figure 7: Communication Range Scenarios

7. Manutenzjoni

• Tindif: Uża artab, damp cloth to clean the radio's exterior. Do not use abrasive cleaners or solvents.
• Kura tal-batterija: For optimal battery life, fully charge rechargeable batteries before first use. If storing the radio for extended periods, remove alkaline batteries to prevent leakage.
• Ħażna: Store the radio in a cool, dry place away from extreme temperatures.

8 Issolvi l-problemi

9. Speċifikazzjonijiet

• Numru tal-Mudell: T71X10VP3
• Numru ta' kanali: 36 FRS/GMRS Channels
• Kodiċijiet tal-Privatezza: 121 CTCSS Codes
• Medda ta' Frekwenzi: 400-470 MHz
• Maximum Talking Range: Up to 38 Miles (optimal conditions)
• Sors tal-Enerġija: 1000mAh Rechargeable Battery Pack (included) or 3 AAA Batteries (not included)
• Livell ta' Reżistenza għall-Ilma: Not Water Resistant (designed to be water resistant, but not fully waterproof)
• Piż tal-oġġett: 7.5 liri (għall-pakkett ta' 10)
• Dimensjonijiet tal-Prodott: 3.3 x 9.3 x 10.8 pulzieri

10. Garanzija u Appoġġ

The Midland T71VP3 Two-Way Radio comes with a 3-Sena Garanzija from the manufacturer, Midland Radio Corporation. For technical support, service, or warranty claims, please refer to the contact information provided in your owner's manual or visit the official Midland websit.
