Manwal tal-Utent tal-Purifikatur tal-Arja Cuckoo Mudell C (B-CAC-C1210FW)

1. Introduzzjoni

This manual provides essential information for the safe and effective operation, maintenance, and troubleshooting of your Cuckoo Air Purifier C Model (B-CAC-C1210FW). Please read this manual thoroughly before using the appliance and retain it for future reference.

The Cuckoo Air Purifier C Model is designed to improve indoor air quality by filtering airborne particles and allergens. It features a multi-stage filtration system including a True HEPA filter, Pre-filter, and Active Carbon filter, capable of removing up to 99.97% of airborne particles as small as 0.3µg.

2. Istruzzjonijiet tas-Sigurtà

• Ensure the power cord is securely plugged into a suitable electrical outlet.
• Tħaddimx l-apparat b'korda jew plagg bil-ħsara.
• Keep the air purifier away from water or other liquids. Do not immerse the unit.
• Do not block the air inlet or outlet vents. Maintain adequate clearance around the unit.
• Aqla’ l-purifikatur tal-arja mill-plagg qabel ma tnaddaf jew tagħmel xi manutenzjoni.
• Dan l-apparat huwa għall-użu fuq ġewwa biss.
• Do not allow children to operate the air purifier without supervision.
• Do not use the appliance near flammable gases or combustible materials.

3. Prodott Aktarview

3.1 Komponenti

The Cuckoo Air Purifier C Model consists of the main unit, a multi-stage filter set, and a power cord.

Figura 3.1: Quddiem view of the Cuckoo Air Purifier C Model. This image shows the sleek white design of the air purifier with the CUCKOO logo on the front panel and the illuminated top air outlet.

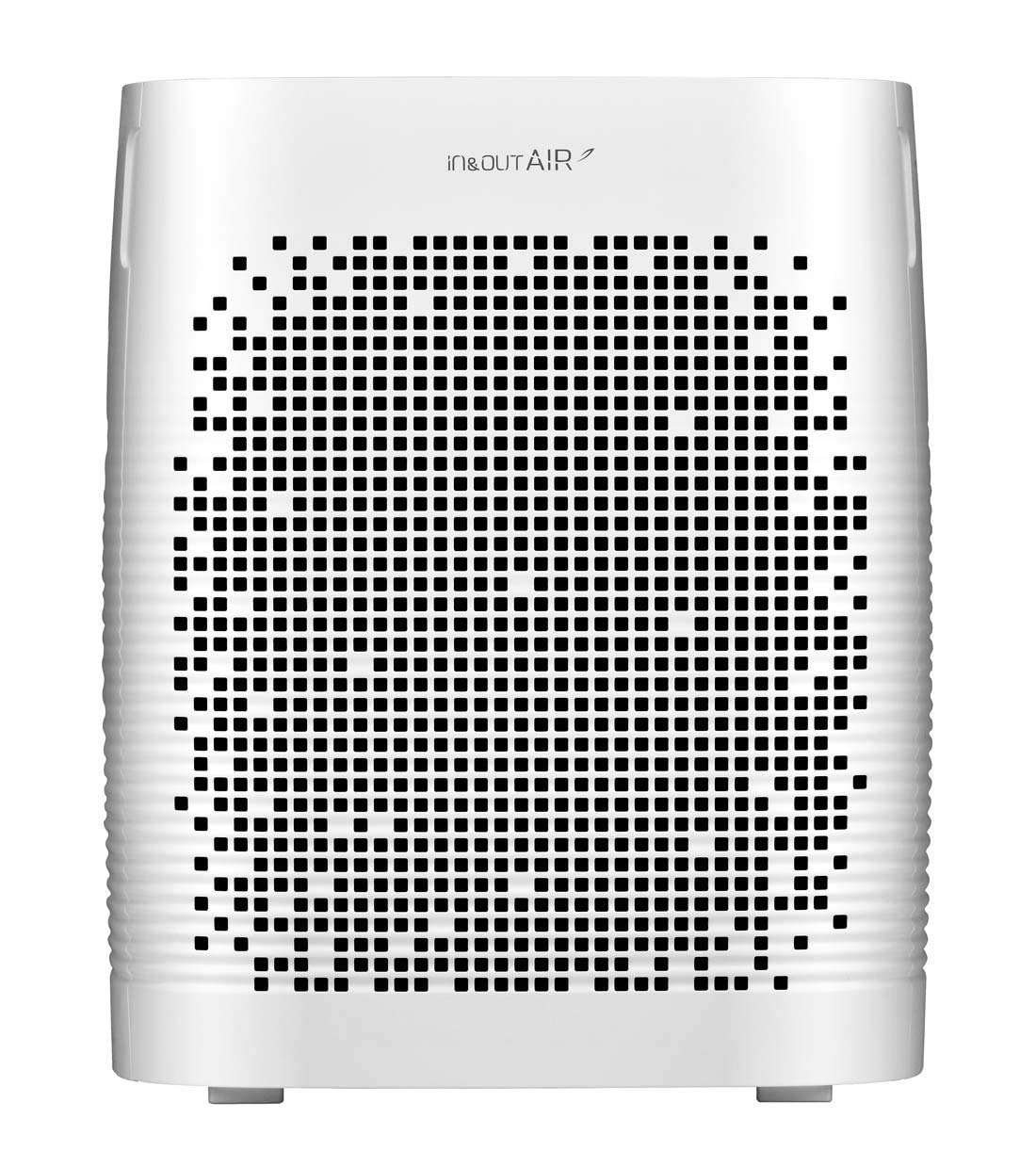

Figura 3.2: Wara view of the Cuckoo Air Purifier C Model. This image displays the back panel of the air purifier, featuring the air intake grille and the 'in&outAIR' branding.

Figura 3.3: Fuq view of the Cuckoo Air Purifier C Model control panel. This image highlights the intuitive touch control panel with various function buttons and a digital display, surrounded by the illuminated air outlet.

3.2 Sistema ta 'Filtrazzjoni

The Cuckoo Air Purifier C Model employs a comprehensive multi-stage filtration process to ensure clean air:

• Filtru minn qabel: Captures large particles such as dust, dirt, and pet dander.
• Filtru tad-deodorizzazzjoni: Eliminates unpleasant odors, volatile organic compounds (VOCs), smoke, and harmful gases.
• Ultra PM 2.5 HEPA Filter: Removes ultra-fine dust, PM2.5 particles, pollen, and dead body of mites with 99.97% efficiency.

Figure 3.4: Diagram illustrating the multi-stage filtration process. This image visually explains how the Pre-filter, Deodorization Filter, and Ultra PM 2.5 HEPA Filter work in sequence to purify the air, showing harmful elements being captured and clean air being released.

Figura 3.5: Close-up view of the individual filter layers. This image provides a detailed look at the structure of the Pre-filter, Deodorization Filter, and Ultra PM 2.5 HEPA Filter, highlighting their distinct designs and functions.

4. Setup

1. Spakkjar: Carefully remove the air purifier from its packaging. Remove all protective films and packaging materials.
2. Installazzjoni tal-Filtru: Open the filter cover (usually located at the back or side) and ensure all filters are correctly installed. Remove any plastic bags from the filters before use.
3. Pjazzament: Place the air purifier on a flat, stable surface. Ensure there is at least 20-30 cm (8-12 inches) of clear space around the air inlet and outlet for optimal airflow. Avoid placing it directly against a wall or furniture.
4. Konnessjoni tal-Enerġija: Ipplaggja l-korda tad-dawl fi żbokk elettriku standard.

5. Istruzzjonijiet Operattivi

5.1 Funzjonijiet tal-Panew tal-Kontroll

Irreferi għall-Figura 3.3 għad-disinn tal-pannell tal-kontroll.

• Buttuna ON/OFF: Jixgħel jew jitfi l-unità.
• Buttuna MODE: Cycles through various operating modes (e.g., Auto, Sleep, Turbo).
• Buttuna tal-VELOĊITÀ TAL-FAN: Adjusts the fan speed manually.
• Buttuna ĦIN: Jissettja t-tajmer tat-tħaddim.
• Buttuna LOCK: Activates or deactivates the child lock function.
• AIR CLEANLINESS Indicator: Displays the current air quality level.

5.2 Modi Operattivi

The Cuckoo Air Purifier C Model offers several specialized modes:

• Modalità Awtomatika: Jaġġusta awtomatikament il-veloċità tal-fann skont il-kwalità tal-arja skoperta.
• Sleep Mode (Silent Mode): Operates at the lowest fan speed with reduced light indicators for quiet operation during sleep.
• Modalità Turbo: Runs at maximum fan speed for rapid air purification.
• Modalità tat-trabi: Optimized for environments with infants, providing gentle and effective purification.
• Heavy Dust Mode: Specifically designed to handle high levels of dust and particulate matter.
• Irrepeti Modalità: Cycles through specific settings or modes.

Figura 5.1: Aktarview of Cuckoo Air Purifier C Model features. This image lists key functionalities such as HEPA/Ultra PM 2.5 pollution sensor, Energy Eye, Air Curator mode, Auto mode, Sleep mode, Turbo mode, Baby mode, Heavy Dust mode, Repeat mode, and Air Cleanliness indicator.

5.3 Energy Eye Feature

The Energy Eye feature detects ambient light conditions. In dark environments, it automatically lowers power consumption and reduces display brightness to save energy.

Figure 5.2: Illustration of the Energy Eye feature. This image depicts the air purifier detecting light/dark conditions and automatically adjusting its operation to save energy, represented by icons for power plug and muted sound.

5.4 Air Circulation

The air purifier is designed to effectively circulate purified air throughout various room sizes.

Figure 5.3: Diagram showing air circulation patterns for small, medium, and large rooms. This image illustrates how the air purifier effectively distributes clean air across different room dimensions, with blue arrows indicating airflow.

6. Manutenzjoni

Manutenzjoni regolari tiżgura prestazzjoni ottimali u testendi l-ħajja tal-purifikatur tal-arja tiegħek.

6.1 Cleaning the Pre-filter

• The pre-filter should be cleaned regularly, typically every 2-4 weeks, depending on air quality.
• Spluggja l-unità qabel it-tindif.
• Neħħi l-prefiltru mill-unità.
• Use a vacuum cleaner to remove dust or rinse it under running water. If washing, ensure it is completely dry before re-installing.

6.2 Replacing Deodorization and HEPA Filters

• The deodorization and HEPA filters are not washable and must be replaced periodically.
• Filter replacement frequency depends on usage and air quality, typically every 6-12 months.
• Refer to the filter indicator light on the control panel for replacement alerts.
• To replace, unplug the unit, open the filter cover, remove the old filters, and insert new ones in the correct order.
• Dispose of used filters responsibly.

7 Issolvi l-problemi

Jekk il-problema tippersisti wara li tipprova dawn is-soluzzjonijiet, jekk jogħġbok ikkuntattja l-appoġġ għall-klijenti.

8. Speċifikazzjonijiet

9. Garanzija u Appoġġ

9.1 Informazzjoni dwar Garanzija

This Cuckoo Air Purifier C Model comes with a 1-year warranty from the date of purchase. Please retain your purchase receipt as proof of warranty. The warranty covers manufacturing defects and malfunctions under normal use. It does not cover damage caused by misuse, accidents, unauthorized repairs, or normal wear and tear.

9.2 Reġistrazzjoni tal-Prodott

To ensure hassle-free service and support, it is recommended to register your product.

Figure 9.1: Product registration and support contact details. This image provides instructions to visit cuckooindia.in for product registration and lists contact information for support.

Żur: www.cuckooindia.in and click on 'product registration' to fill in your details.

9.3 Appoġġ għall-Klijent

For any support or inquiries, please contact Cuckoo customer service:

• Numru bla ħlas: 1800 212 1978
• Email: info@cuckooindia.in
