Manwal tal-Istruzzjonijiet tal-Forn Mini VonShef Compact 30L

Prodott Overview

This 30L Mini Oven is an ideal addition to various spaces like kitchens, caravans, or small apartments. Its generous 30L capacity caters to diverse culinary needs. Despite its compact size, it's packed with functionality, fitting perfectly into any kitchen size. The adjustable temperature range of 90-230C ensures versatility in cooking. With 1600W power, it performs like a conventional oven. The 60-minute timer prevents overcooking, while the top and bottom heating elements, usable individually or together, allow for grilling, baking, or roasting. The cool touch housing and rubber anti-slip feet ensure safety and stability. The full glass front panel provides clear visibility of your food, preventing burning.

Karatteristiċi Ewlenin

• Spacious Cooking: Ideal for various dishes with its 30L capacity
• Compact yet Functional: Suits all kitchen sizes
• Sħana aġġustabbli: Cook between 90-230C
• Prestazzjoni qawwija: 1600W for conventional oven-like cooking
• Timer tas-Sigurtà: No overcooking with 0-60 minute timer
• Tisħin Versatili: Individual or simultaneous top/bottom element use for grilling, baking, or roasting
• Karatteristiċi tas-Sigurtà: Cool touch housing and anti-slip feet for secure placement

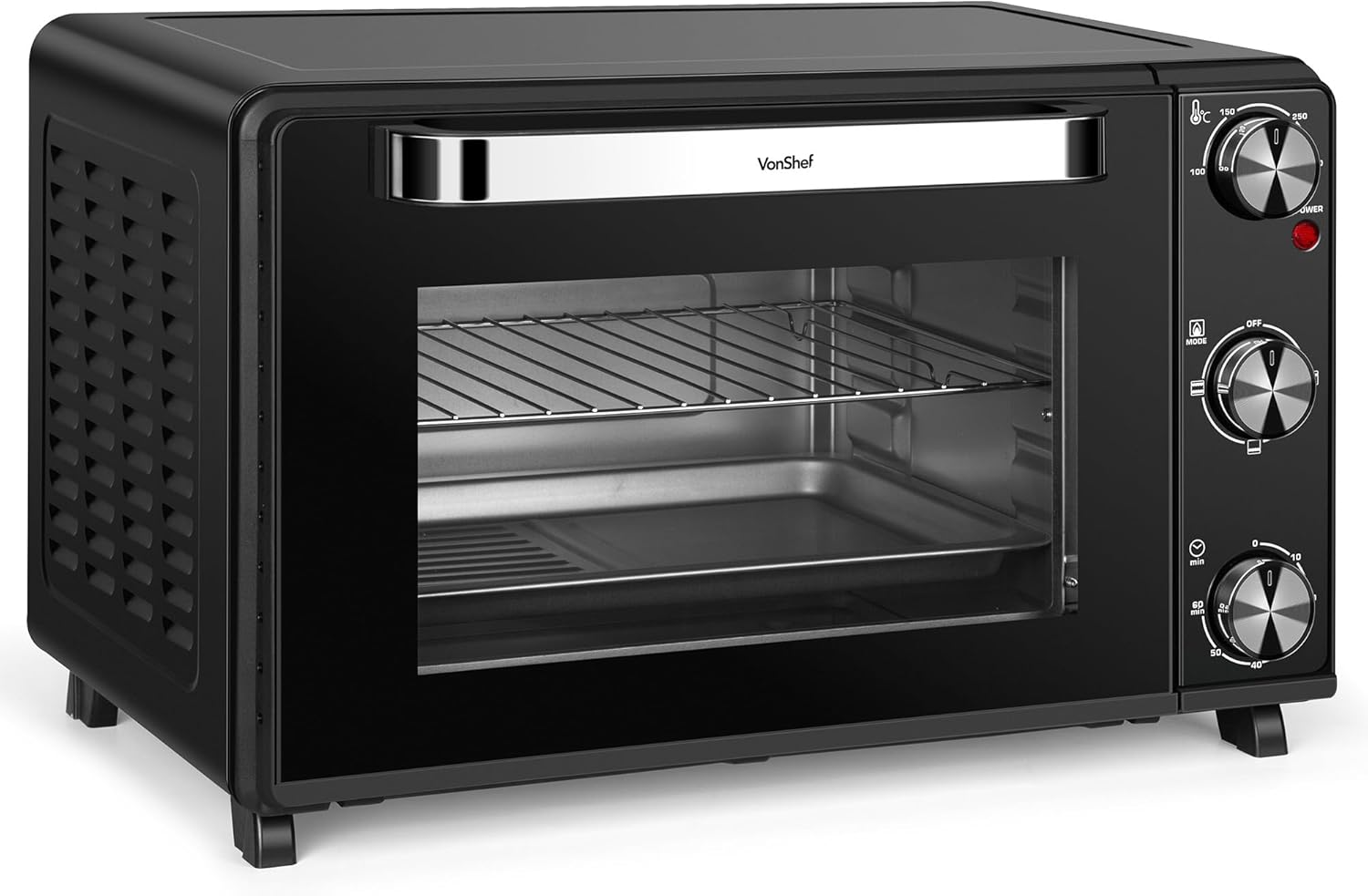

The VonShef Compact 30L Mini Oven is a versatile kitchen appliance designed for various cooking needs. It features a spacious interior within a compact footprint, making it suitable for diverse environments.

This image illustrates the advantages of the VonShef Mini Oven, highlighting its quick pre-heating, cost-effectiveness, energy efficiency, small space requirement, portability, and ease of cleaning compared to a conventional oven.

Setup u Tqegħid

Before first use, ensure the oven is placed on a stable, heat-resistant surface with adequate ventilation around all sides. Do not place the oven near flammable materials or directly against a wall. Ensure the power cord is not pinched or routed under the appliance.

Dimensjonijiet

Dimensjonijiet tal-Prodott: 14.57"D x 19.49"W x 12.6"H

This diagram provides the external dimensions of the oven (49.5cm width, 40cm depth, 32cm height) and illustrates its 30L internal capacity, along with examples of food items it can accommodate.

Istruzzjonijiet Operattivi

Kontrolli Fuqview

This image details the three control dials on the oven: the top dial for temperature (90-230°C), the middle dial for heating function (off, upper, lower, or both elements), and the bottom dial for the 60-minute timer.

Ċempel tat-Temperatura

The top dial adjusts the cooking temperature from 90°C to 230°C. Rotate clockwise to increase temperature.

Funzjoni Dial

The middle dial selects the heating elements. Options include: lower element only, upper element only, or both upper and lower elements for versatile cooking methods like grilling, baking, or roasting.

Timer Dial

The bottom dial sets the cooking time up to 60 minutes. The oven will automatically switch off when the timer reaches zero. A bell will sound to indicate completion.

L-Ewwel Użu

Before cooking food, operate the oven empty for approximately 15 minutes at the maximum temperature setting (230°C) with both heating elements active. This will burn off any manufacturing residues and odors. Ensure the area is well-ventilated during this process.

Linji Gwida tat-Tisjir

Always preheat the oven to the desired temperature before placing food inside for optimal cooking results. Use the included baking tray and grill rack as appropriate for your recipe. For best results, refer to specific recipe instructions for cooking times and temperatures.

This image demonstrates the versatility of the oven, showing it can be used for roasting, toasting, grilling, and baking, with examples of various dishes.

This image displays the standard accessories provided with the oven: a baking tray, a grill rack, and a tray handle for safe removal of hot items.

Kura u Manutenzjoni

Tindif

Always unplug the oven from the power outlet and allow it to cool completely before cleaning. The interior and exterior surfaces can be wiped with a damp cloth and mild detergent. Do not use abrasive cleaners or scourers, as they may damage the finish. The baking tray and grill rack can be washed with warm soapy water.

Ħażna

When not in use, ensure the oven is clean and dry. Store it in a cool, dry place, away from direct sunlight and moisture. Do not wrap the power cord tightly around the appliance.

Issolvi l-problemi

Kwistjonijiet Komuni

• Il-forn mhux qed jisħon: Ensure the power cord is securely plugged into a working outlet. Check if the temperature and timer dials are set correctly.
• L-ikel mhux qed jissajjar b'mod uniformi: Ensure the oven is preheated. Rotate food halfway through cooking. Check that the correct heating elements are selected for the cooking method.
• Duħħan jew riħa waqt l-ewwel użu: This is normal for the initial burn-off. Ensure good ventilation. If it persists after initial use, contact customer support.
• Timer not working: Ensure the timer dial is wound past the 10-minute mark before setting the desired time.

Speċifikazzjonijiet tal-Prodott

Garanzija u Appoġġ

For warranty information or technical support, please refer to the contact details provided with your purchase documentation or visit the official VonShef websit. Żomm il-prova tax-xiri tiegħek għal kwalunkwe talba ta' garanzija.
